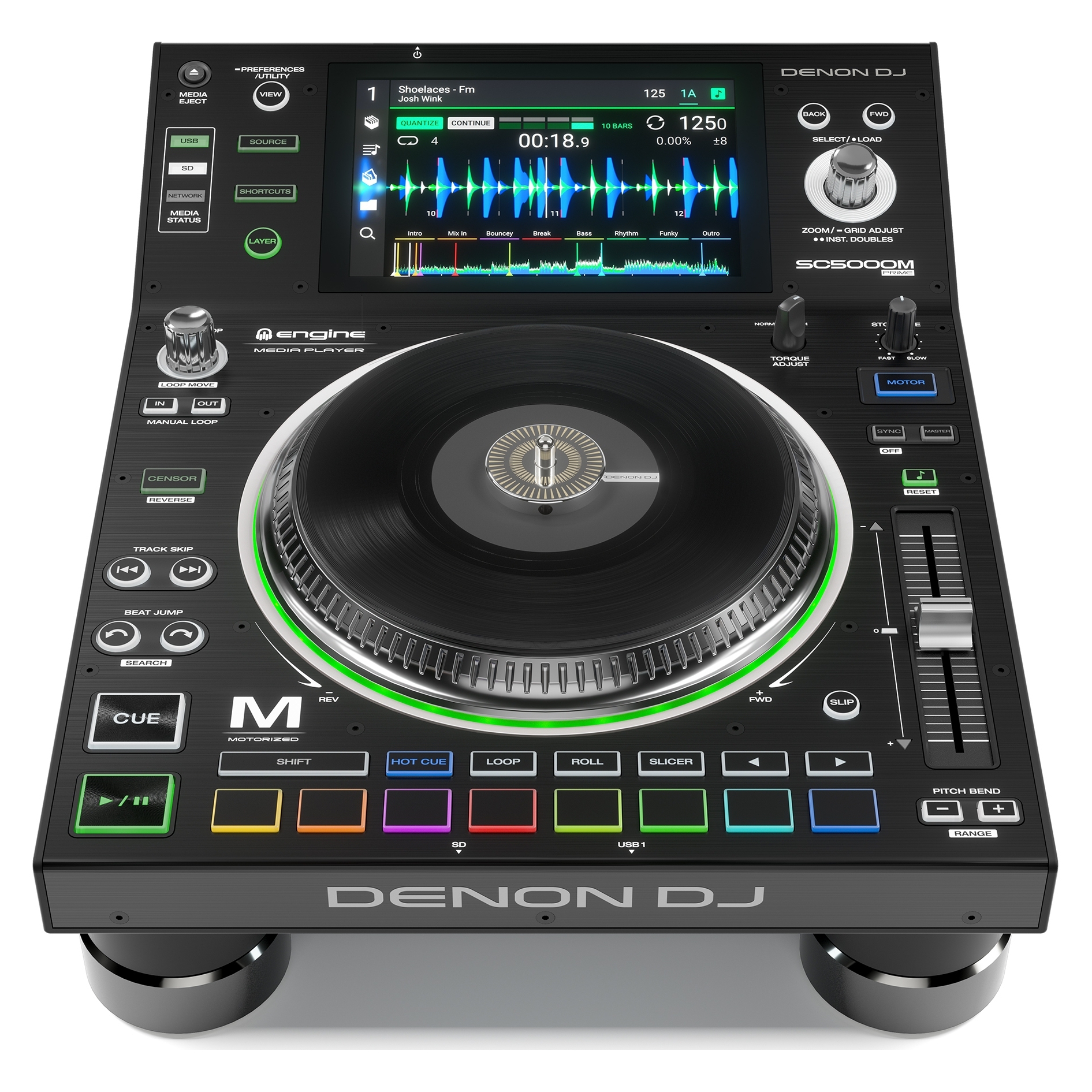

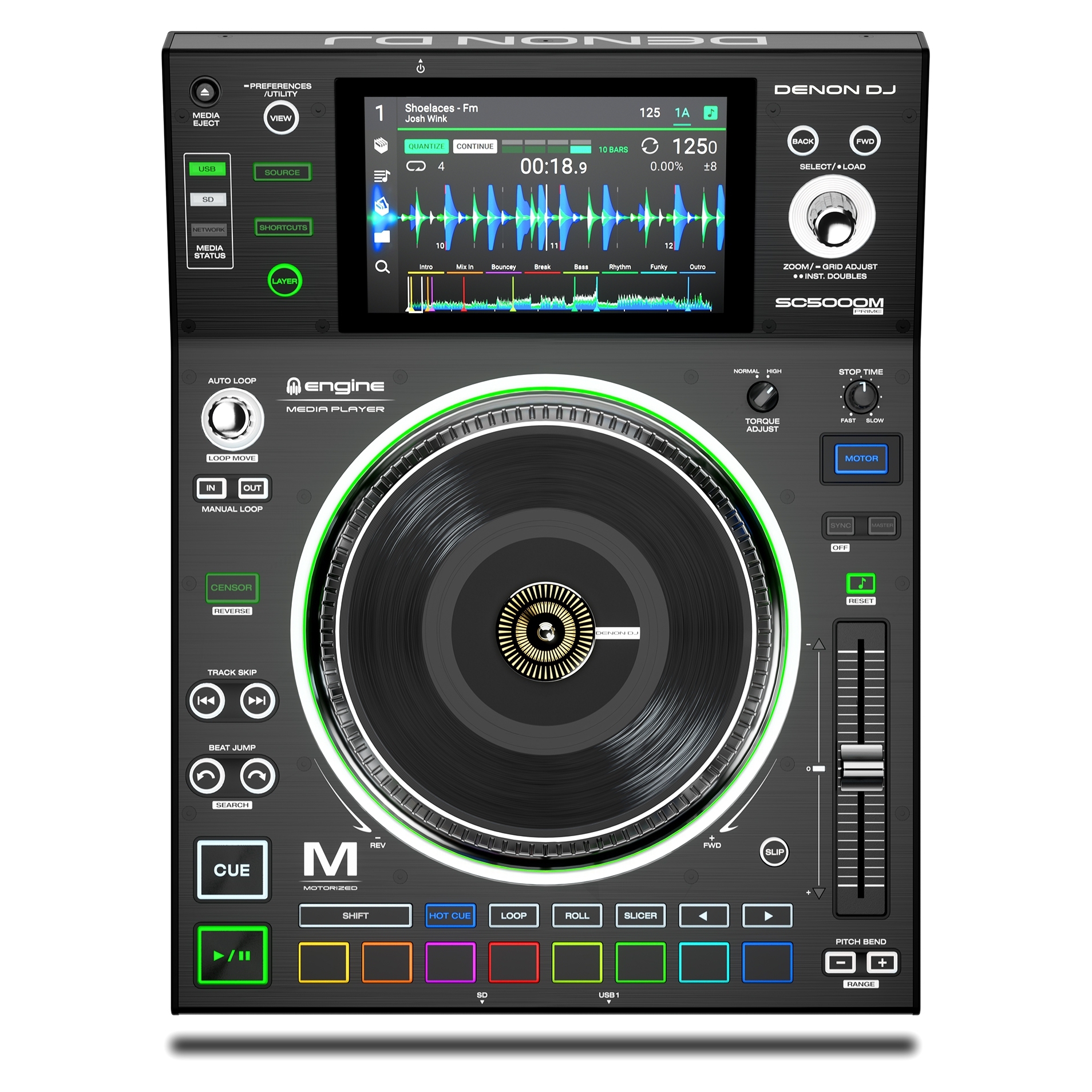

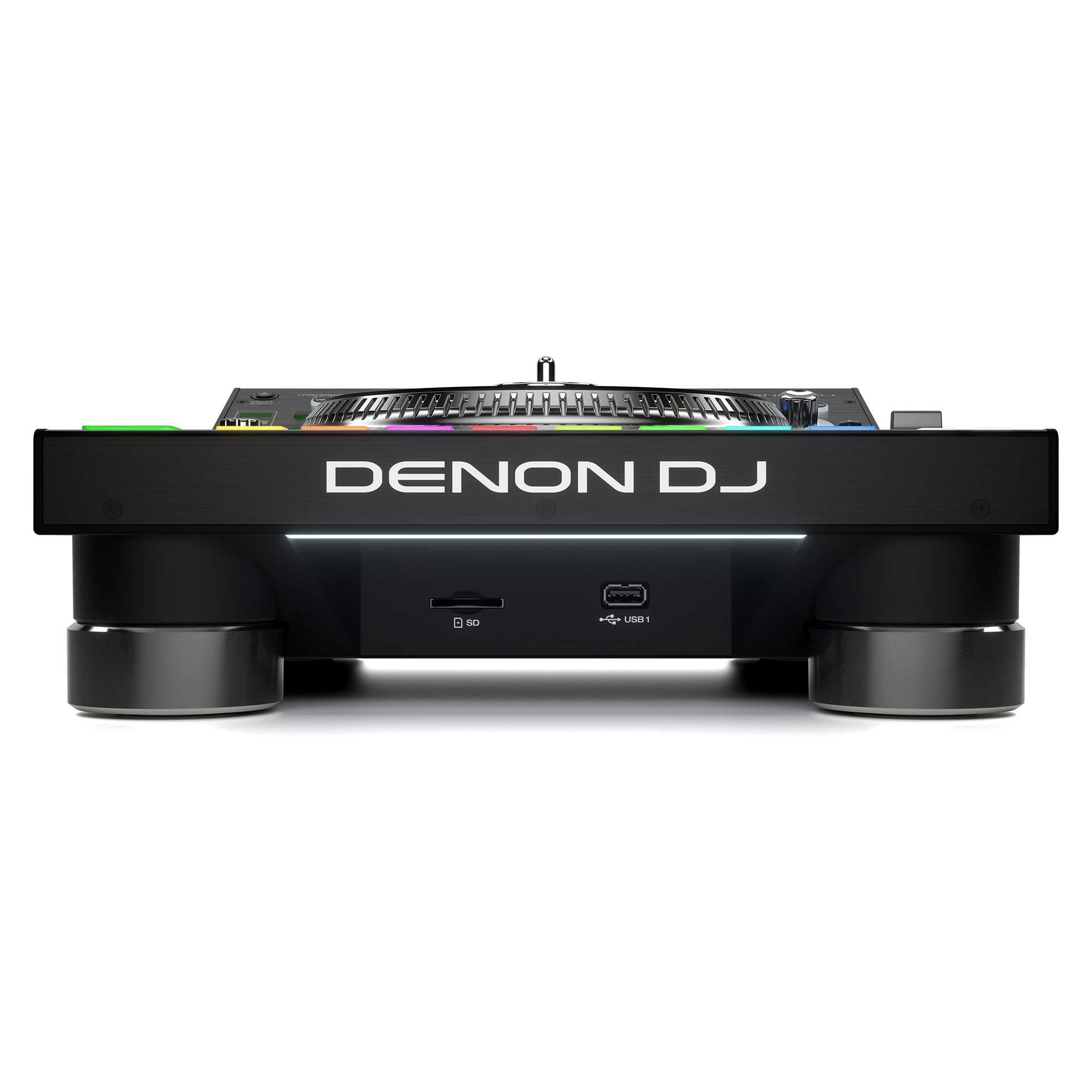

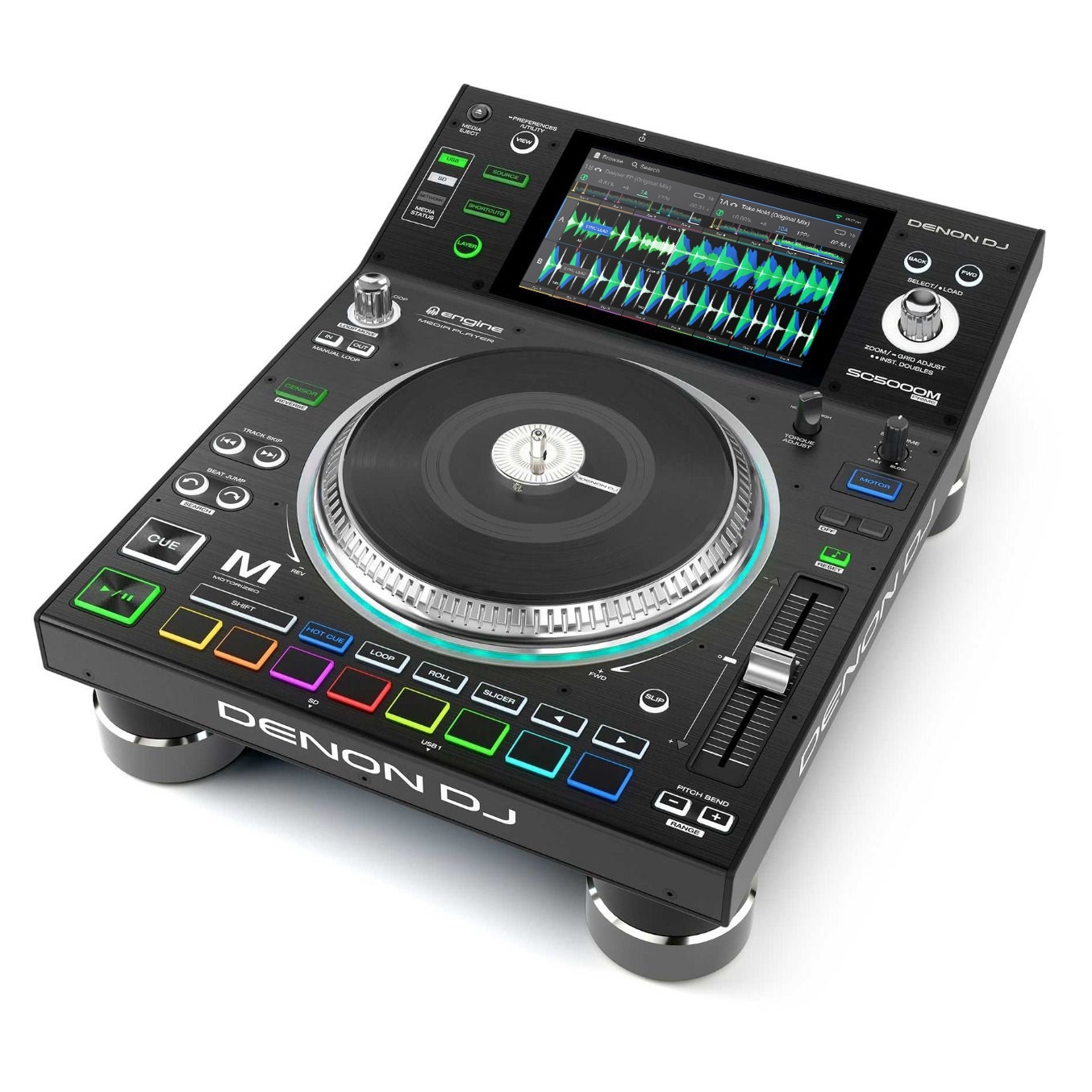

SC5000M PRIME

Denon DJ SC5000M PRIME

• Audio
  • Analog Output: 2.0 Vrms (0 dBFS, 1 kHz)
  • Dynamic Range: 116 dB
  • Distortion (THD+N): < 0.0015%
  • Frequency Range: 22–22,000 Hz
  • Digital Output:
    • Sampling Rate: 96 kHz
    • Bit Depth: 24-bit

• Motor
  • Drive: Brushless DC Electric
  • High Torque: 3.3 kgf/cm (instant); 2.8 kgf/cm (stable)
  • Low Torque: 1.6 kgf/cm (instant); 1.1 kgf/cm (stable)
  • Starting Time: 0.5 seconds
  • Braking System: Electronic

• Platter
  • Material: Aluminum die-cast
  • Diameter: ? 203.5mm ±0.5mm
  • Weight: 900g ±5%

• Display
  • 7.0” / 178 mm (diagonal)
  • 6.0” x 3.6” / 152 x 91 mm (width x height)
  • Full-color LED-backlit display with touchinterface

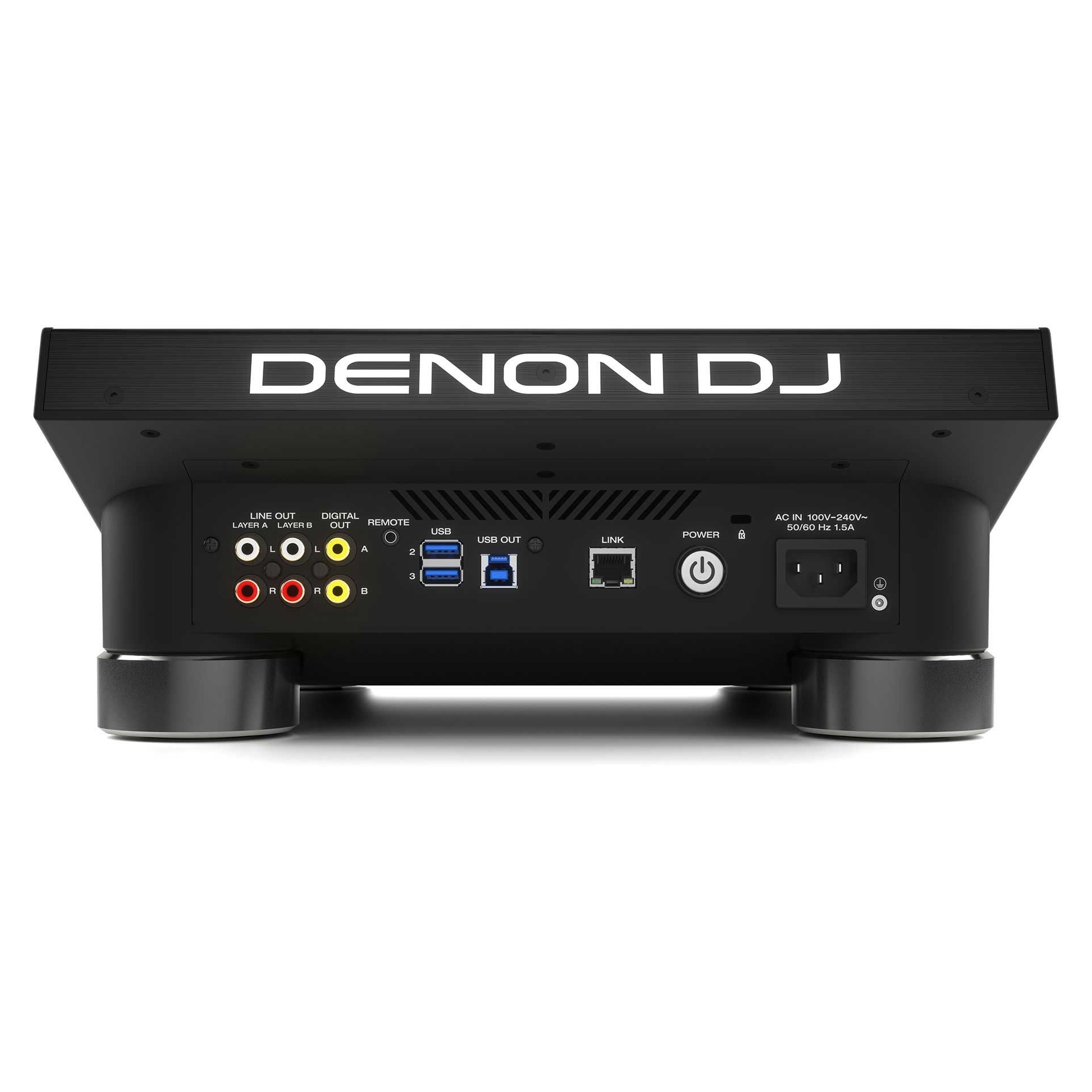

• Connections
  • (2) RCA output pairs
  • (2) coaxial digital outputs
  • (1) 1/8” (3.5 mm) mini TS input (remote start)
  • (3) USB Type-A ports (for USB drives) (Rear-panel ports supply 900mA for USB 3.0 devices, 500 mA for USB 2.0 devices. Frontpanelport supplies 500 mA for USB 2.0 devices only.)
  • (1) USB Type-B port (for computer connection)
  • (1) SD card slot
  • (1) Ethernet link port
  • (1) IEC power input

• Power
  • Connection: IEC
  • Input Voltage: 110–240 VAC, 50/60 Hz

• Dimensions (Width x Depth x Height)
  • 320mm X 419mm X 135mm
  • 12.6” x 16.5” x 5.3”
  • 32.0 x 41.9 x 13.5 cm

• Weight (Without USB and Power Cable
  • 14.08 lbs.
  • 6.4 kg

• Supported Media
  • Type:
    • SD/SDHC card
    • USB mass-storage devices (flash memory, external HDD enclosures)
  • File Systems:
    • exFAT
    • FAT32 (recommended)
  • File Formats:
    • AAC/M4A
    • AIF/AIFF (44.1–192 kHz, 16–32-bit)
    • ALAC
    • FLAC
    • MP3 (32–320 kbps, VBR)
    • MP4
    • Ogg Vorbis
    • WAV (44.1–192 kHz, 16–32-bit)
