Syntakt

Meet the machines

There are 35 sound-generating machines to call on, covering a wide range of drum and melodic sounds. Some machines have been reimagined from Analog Rytm and Model:Cycles, with deeper sound control for the latter, while others are entirely new to the world.

For you to create and personalize your sound, we’ve made sure you’ve got a set of parameter controls tailor-made for each machine. They let you quickly tweak the nature of each type of sound, showing you just the relevant options. Comprehensive without being overwhelming. Let loose with analog or digital overdrive, depending on the tracks you’re playing with.

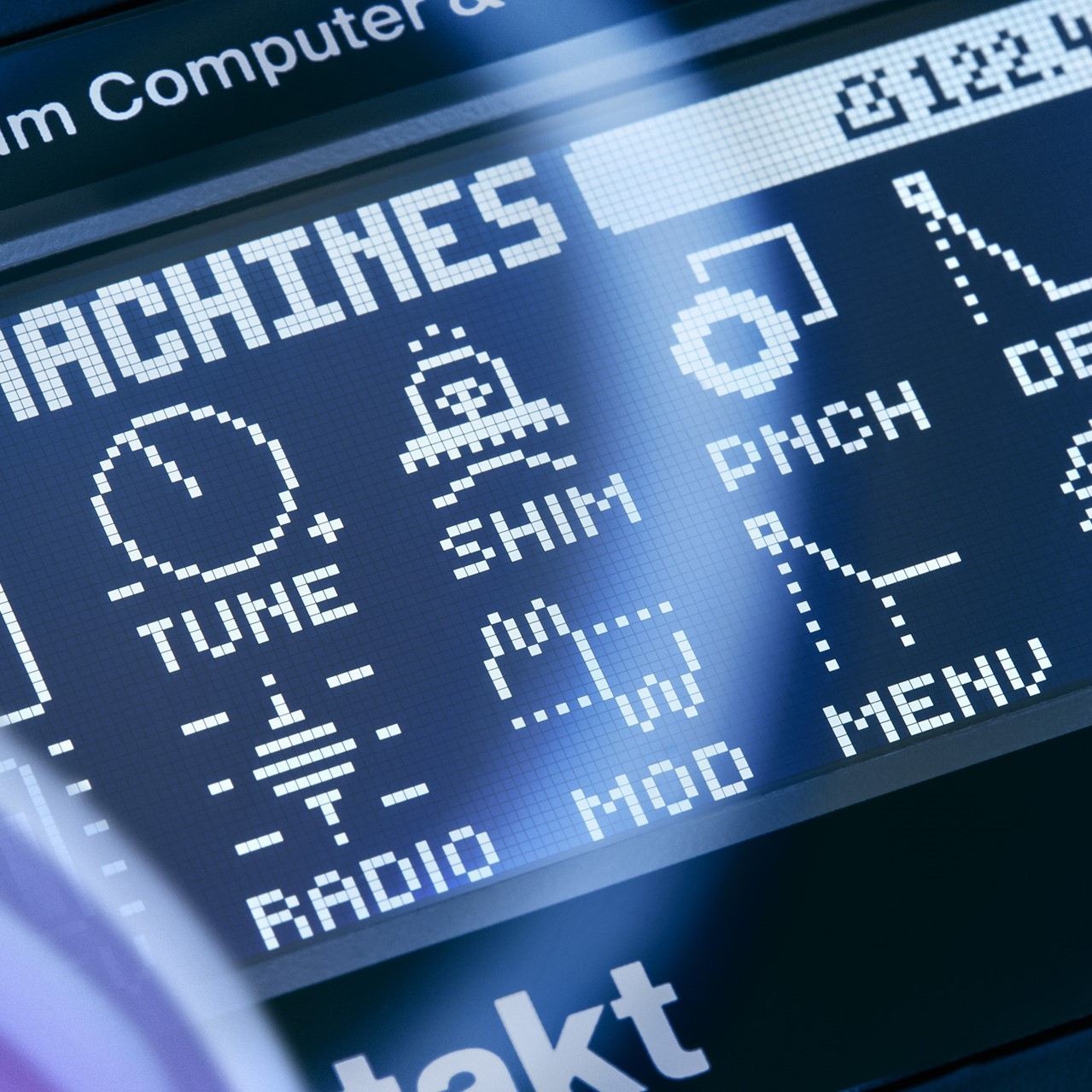

The graphics more than play their part too, with plenty of animated icons offering visual guidance and extra clarity on how each parameter affects the sound. The joys of tweaking shouldn’t only be for the ears after all.

Specifications

Digital track features (×8)

• 10 × selectable machine
  • 1 × Bass drum
  • 2 × Snare drum
  • 1 × Cymbal/hihat
  • 1 × Percussion
  • 1 × Clap
  • 4 × Tonal synth
• 1 × digital overdrive per track
• 1 × digital multimode filter per track
• 1 × digital base-width filter per track
• 2 × assignable LFOs per track
• Switchable to MIDI machine
• Analog Drum track features (×3)
• 15 × selectable machine
  • 6 × Bass drum
  • 4 × Snare drum
  • 2 × Rimshot
  • 1 × Dual VCO synth
  • 1 × Impulse
  • 1 × Noise generator
• 1 × analog overdrive per track
• 1 × analog multimode filter per track
• 2 × assignable LFOs per track
• Switchable to MIDI machine

Analog Cymbal track features (×1)

• 12 × selectable machine
  • 5 × Hihat
  • 3 × Cymbal
  • 2 × Cowbell
  • 1 × Impulse
  • 1 × Noise generator
• 1 × analog overdrive per track
• 1 × analog multimode filter per track
• 2 × assignable LFOs per track
• Switchable to MIDI machine

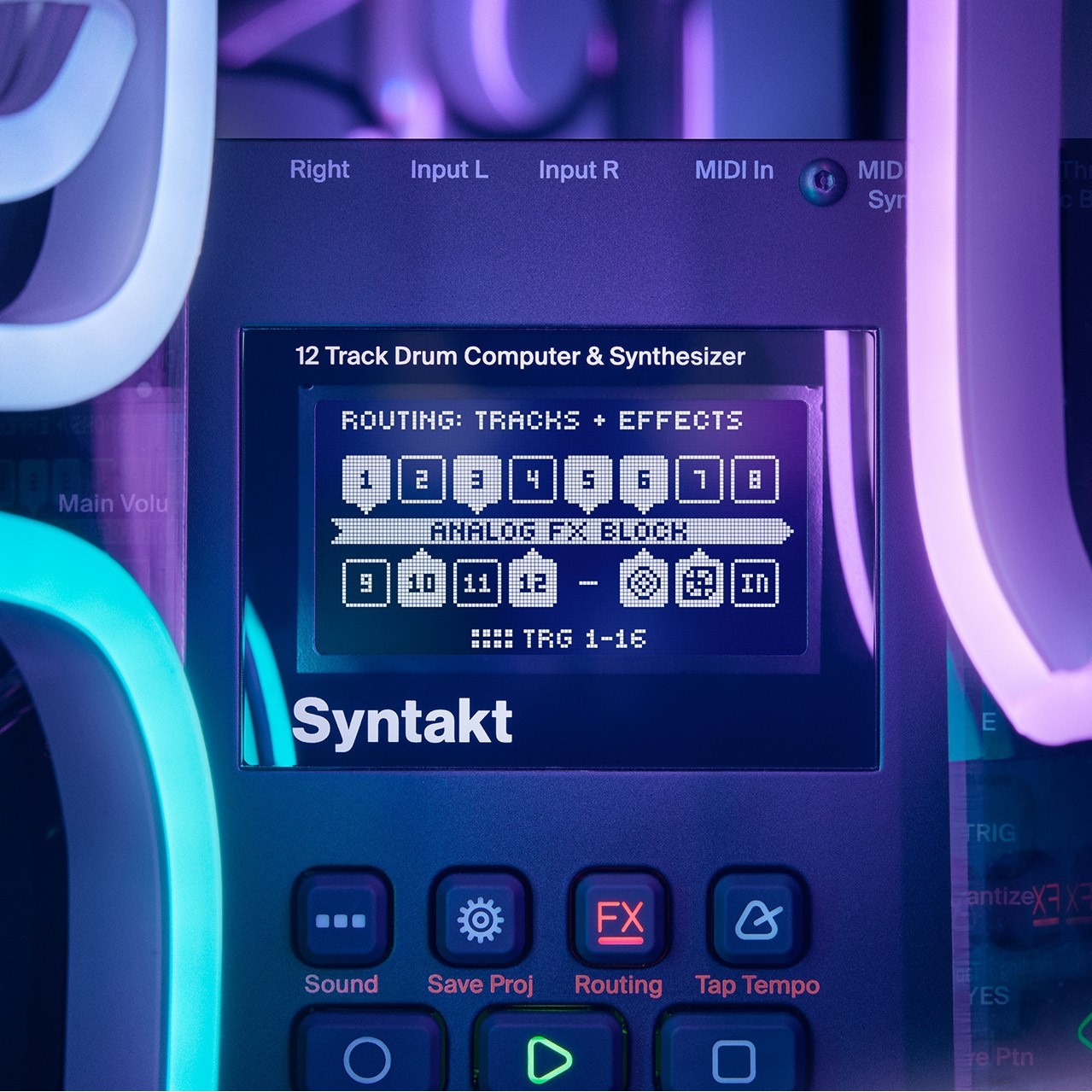

FX track features (×1)

Delay and reverb automation

• Analog stereo overdrive
• Analog stereo multimode filter
• 2 × assignable LFOs
• Assignable to each track
• External in

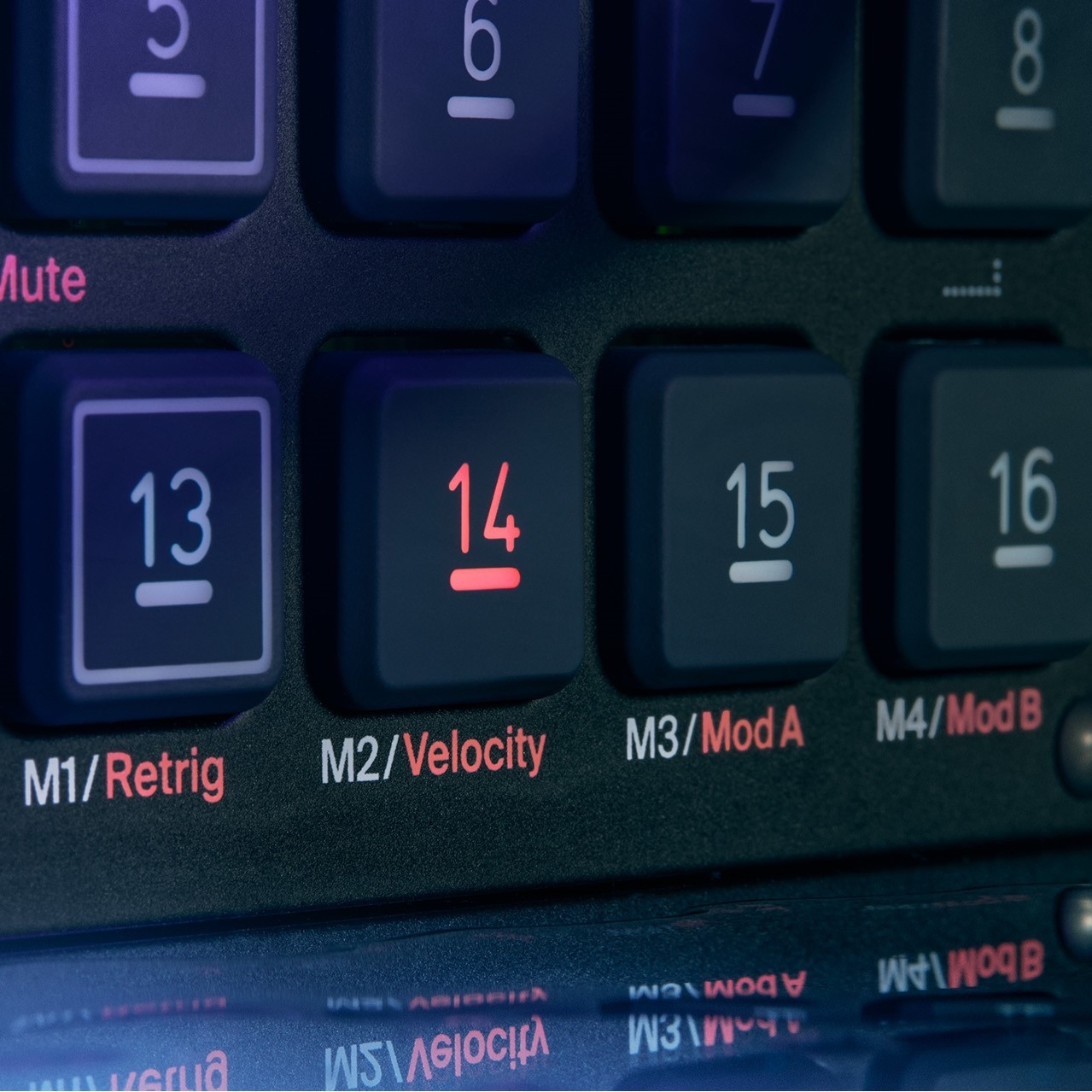

Performance features

• 1 × Retrig modifier
• 1 × Velocity modifier
• 2 × Assignable trig modifiers
• Keyboard mode with 36 different scales

MIDI Machine features

• 4 note polyphony per step
• 8 × assignable CC controls
• 1 × assignable LFOs per track

Sequencer features

• 64 steps per pattern and track
• Individual pattern length per track
• Individual time scale multiplier per track
• Parameter locks
• Trig conditions & trig chance
• Retrig
• Micro timing

Send effects

• Delay
• Reverb

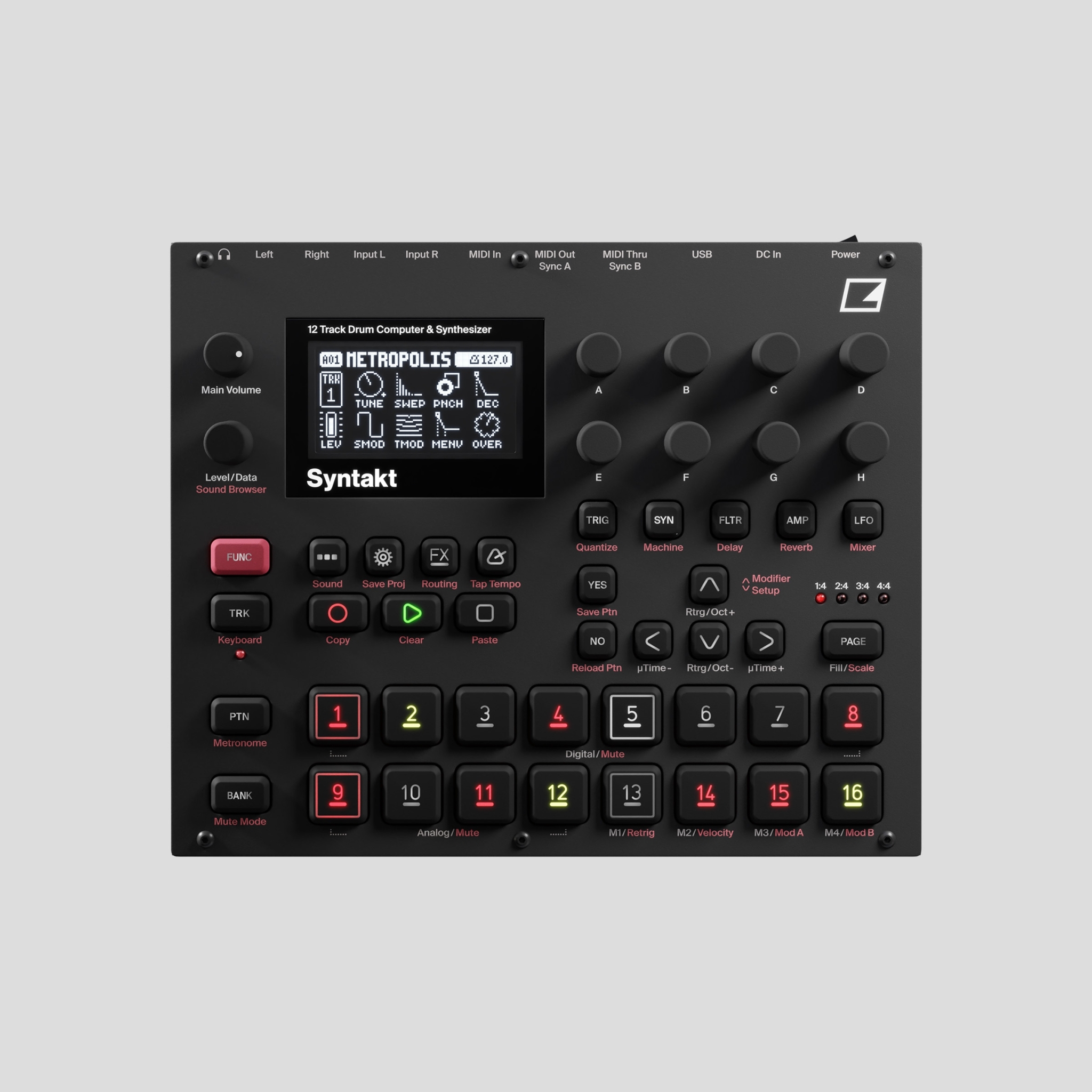

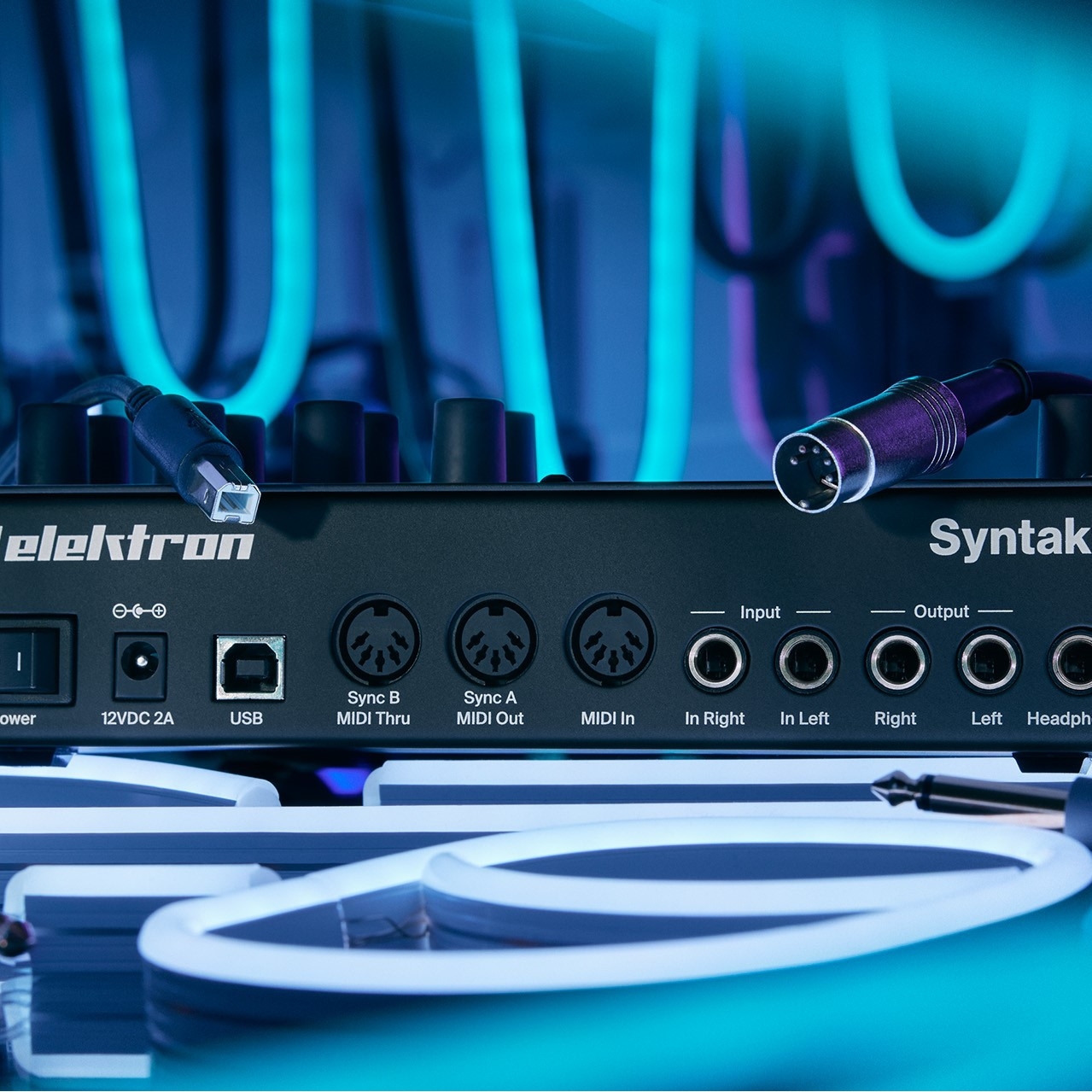

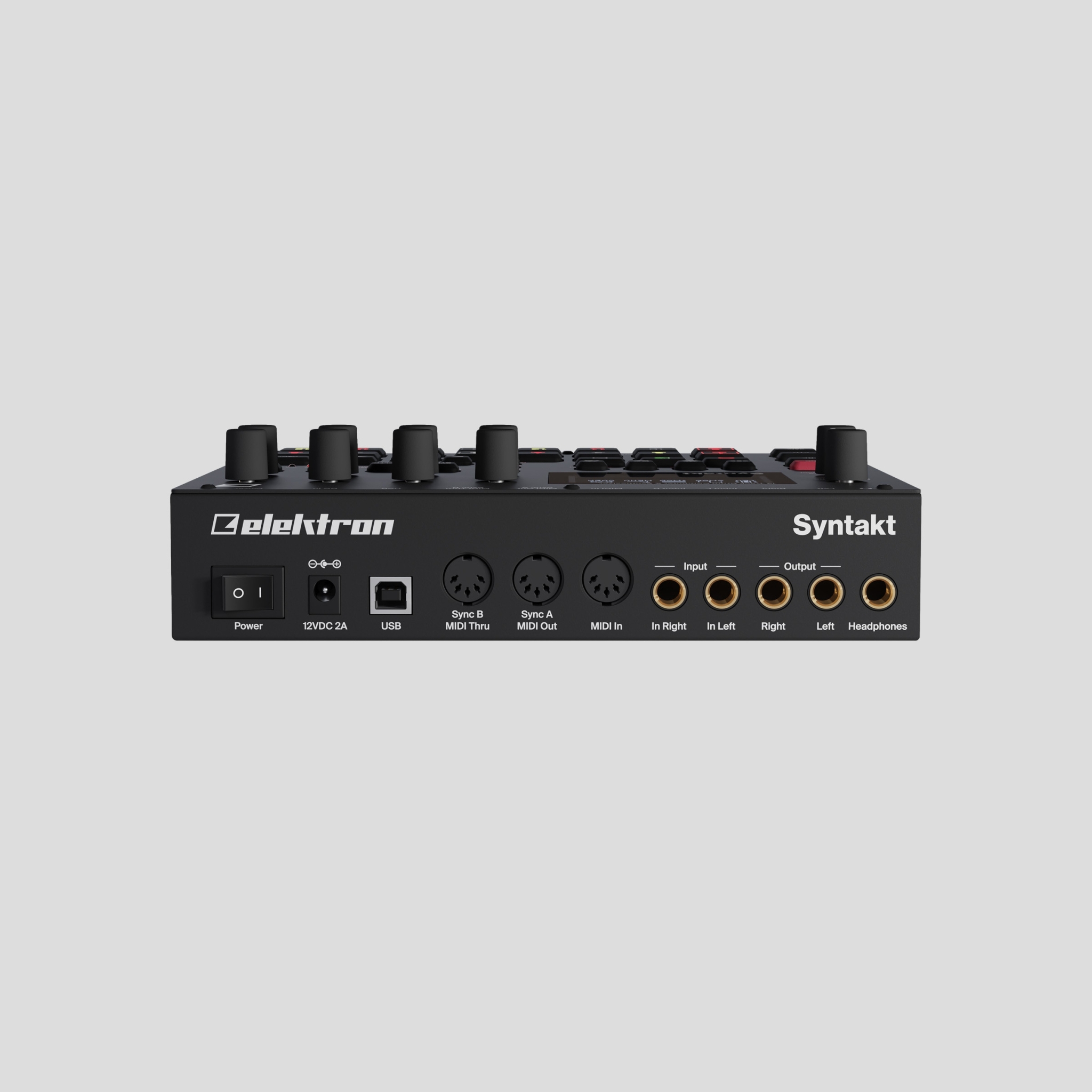

Hardware

• 128 × 64 pixel OLED screen
• 2 × ¼” impedance balanced audio out jacks
• 2 × ¼” audio in jacks
• 1 × ¼” stereo headphone jack
• 48 kHz, 24-bit D/A and A/D converters
• Hi-Speed USB 2.0 port
• MIDI In/Out/Thru with DIN Sync out

Physical specifications

• Sturdy steel casing
• Dimensions: W 215 × D 176 × H 63 mm (8.5″ × 6.9″ × 2.5″) (including knobs and feet)
• Weight: approximately 1.53 kg (3.6 lbs)
• 100 × 100 mm VESA mounting holes. Use M4 screws with a max length of 7 mm.

Miscellaneous

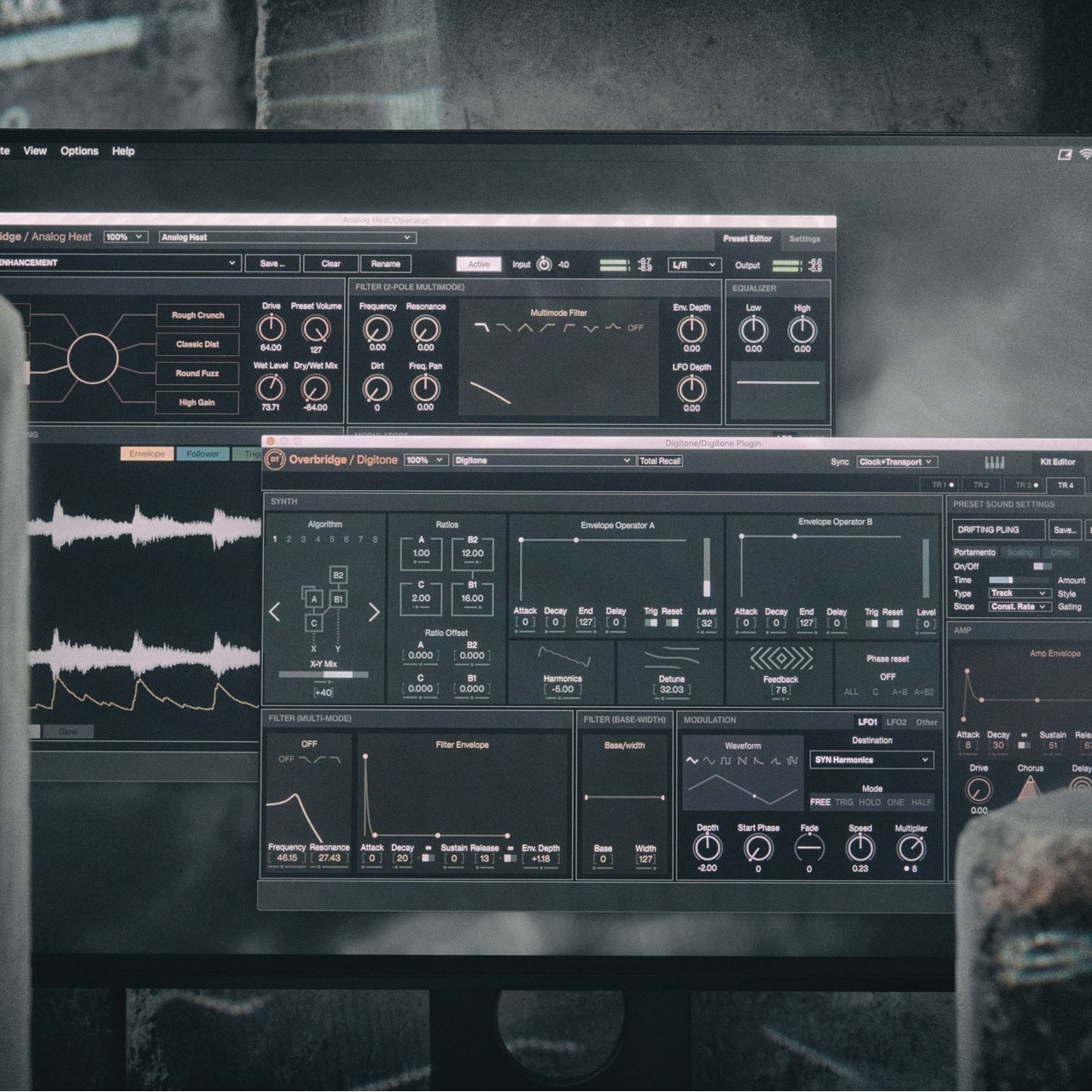

• Overbridge enabled
• Class Compliant USB Audio
• External Input mixer
• 3 year Elektron warranty

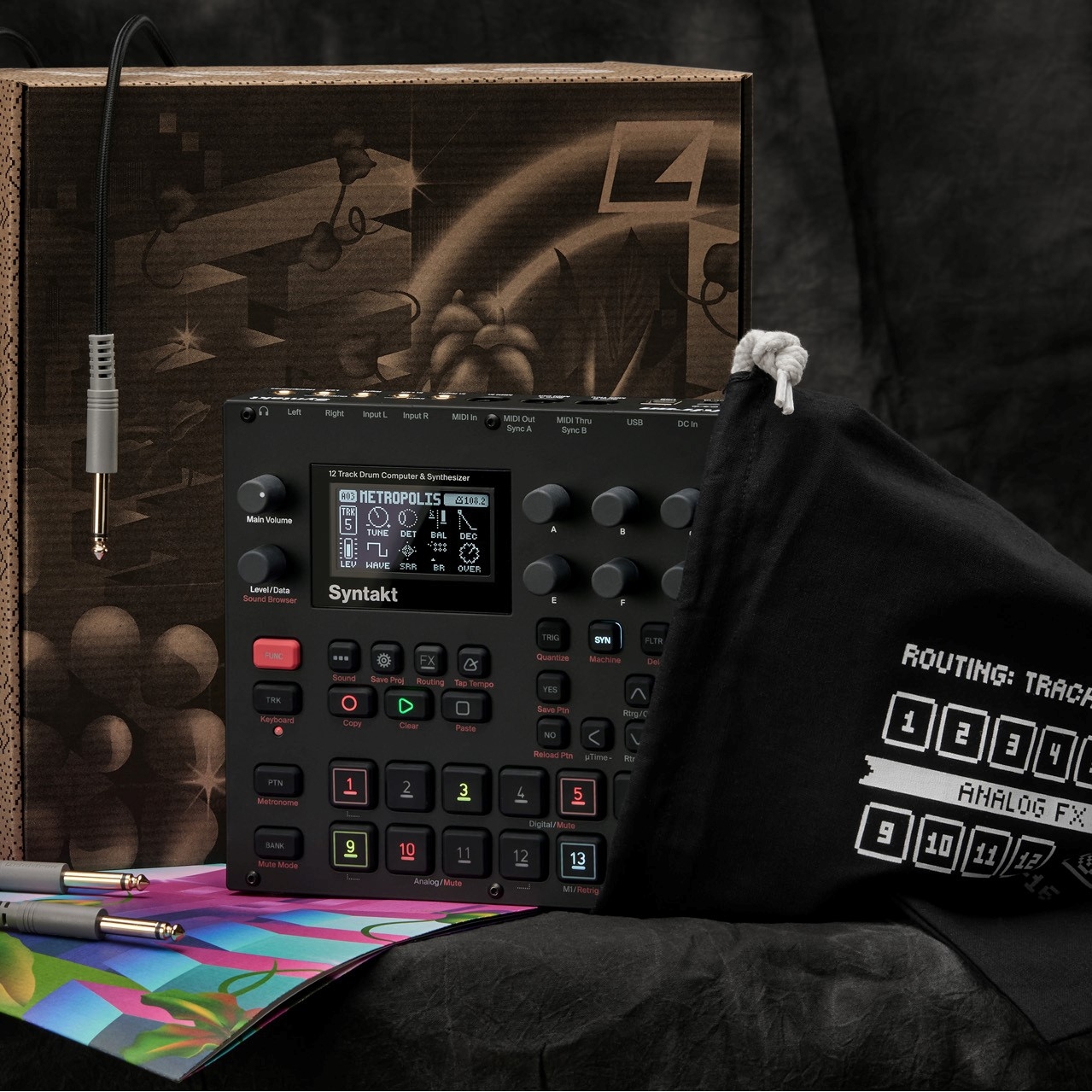

Included in the box

• Power Supply PSU-3c
• Elektron USB cable
• Quick Guide
• Exclusive artwork & epic stickers
