ICOA 12 A

LD Systems ICOA 12 A

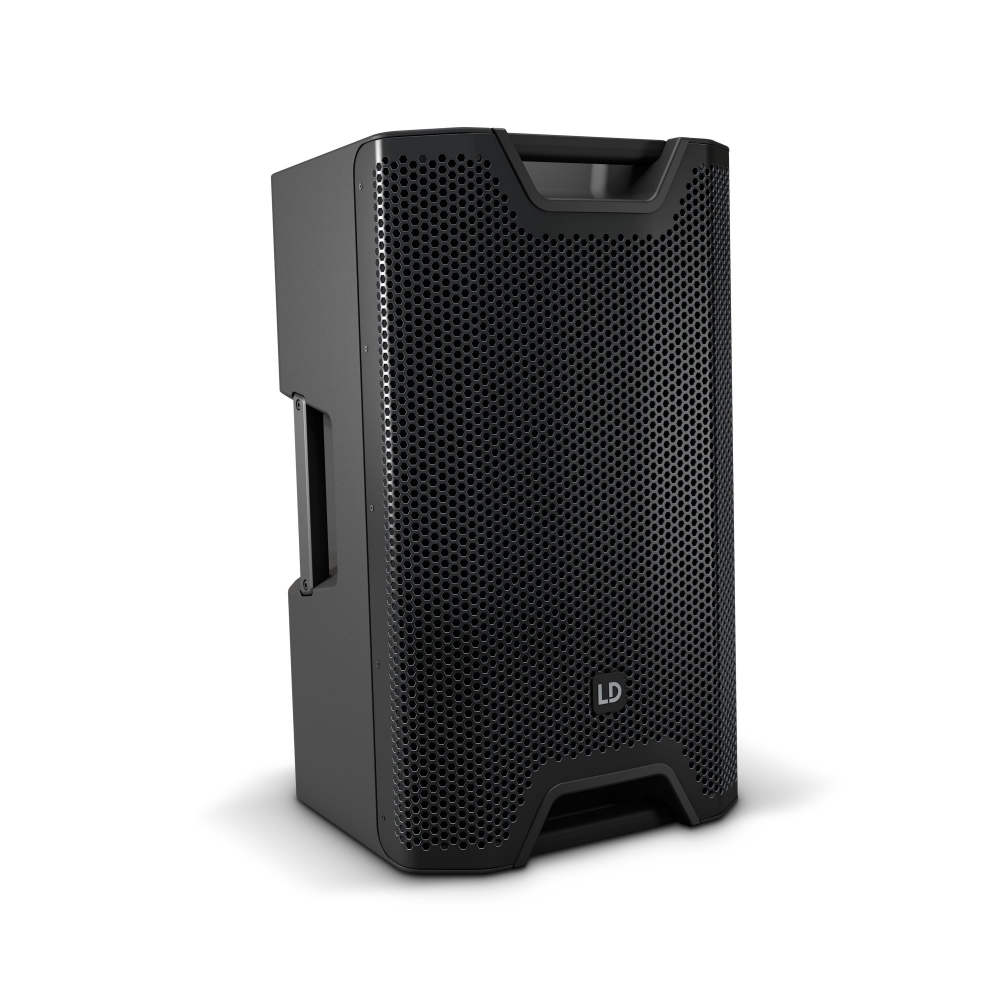

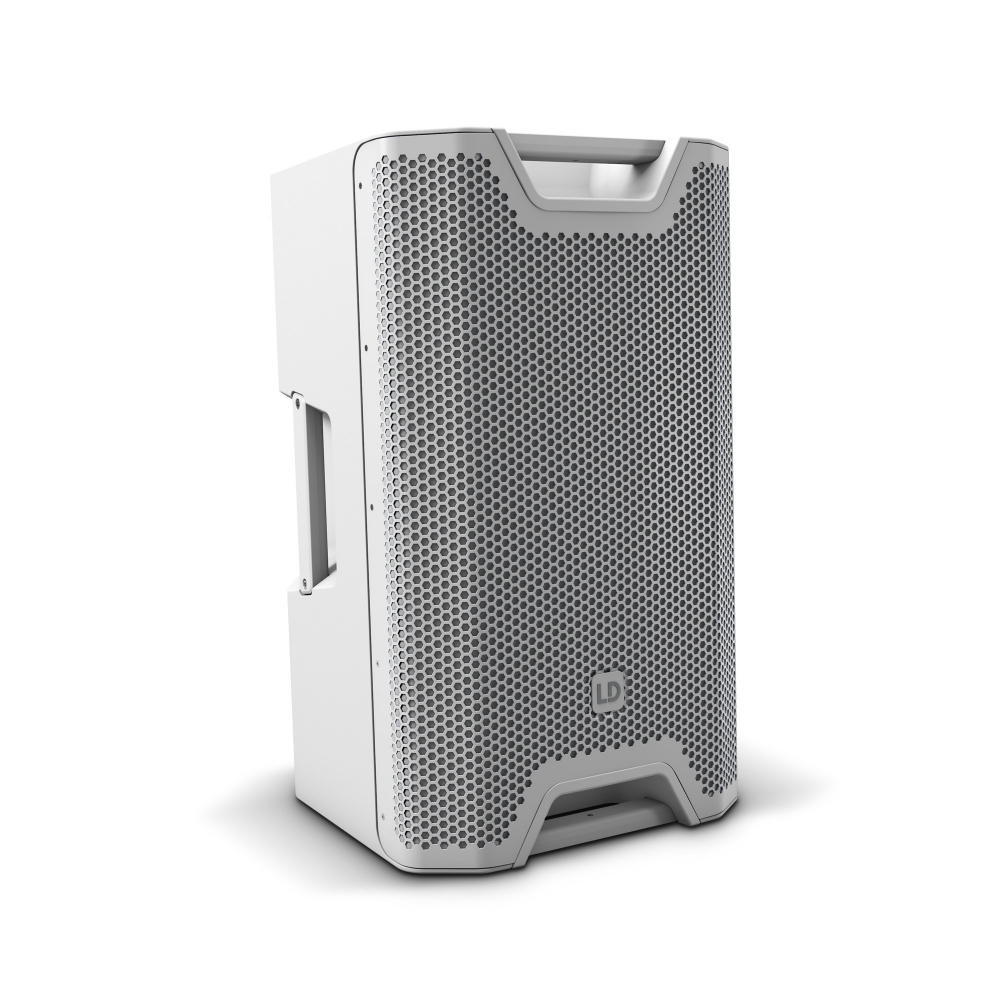

12" Powered Coaxial PA Loudspeaker

• A genuine all-rounder for full-range, satellite and monitor applications.
• 126 dB max. SPL and 1200 W peak power.
• Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimised CD horn (Patent pending).
• Horn-loaded woofer.
• DynX DSP with 4 presets, 3-band EQ and delay function.
• 2 line/mic input channels with individual gain controllers plus mono mix output; Bluetooth® streaming with the BT model.
• 36 mm dual tilt stand attachment with 0° and 5° tilt angle, 55° monitor angle with sturdy stand.
• 6 x M10 flying points.

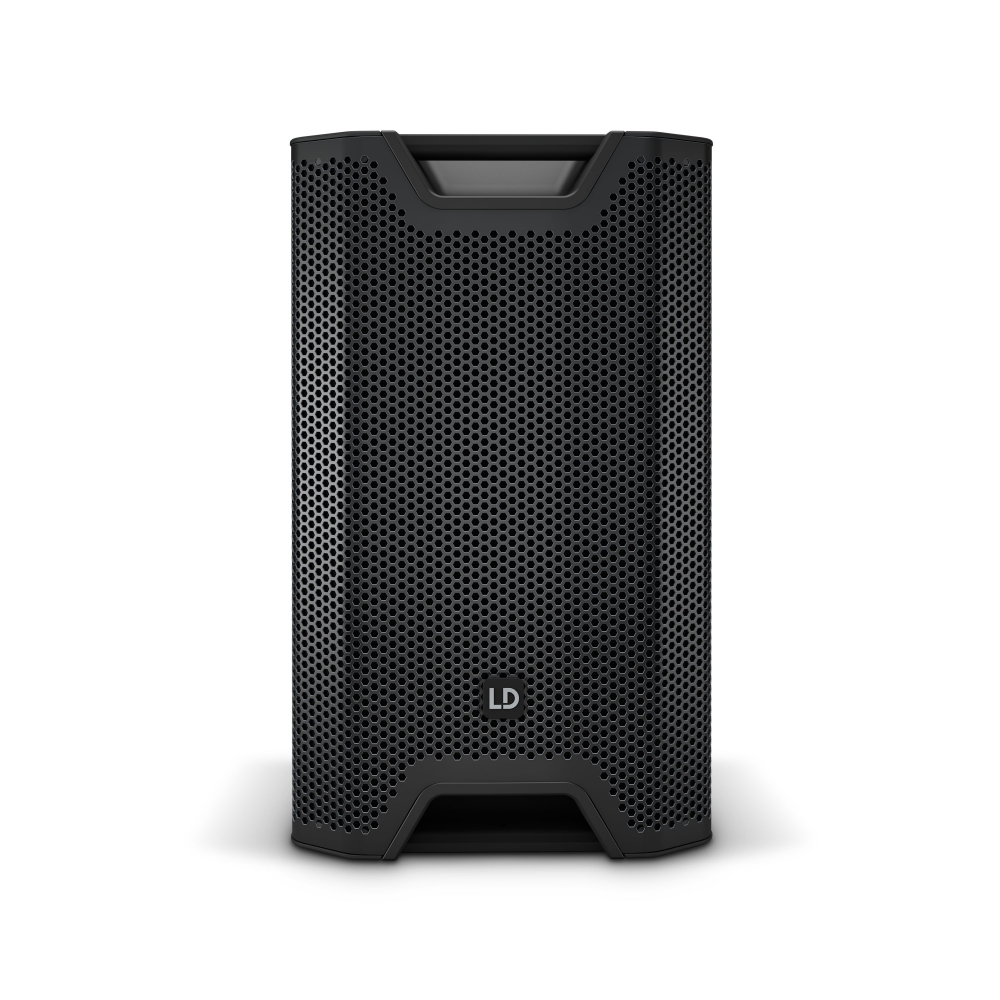

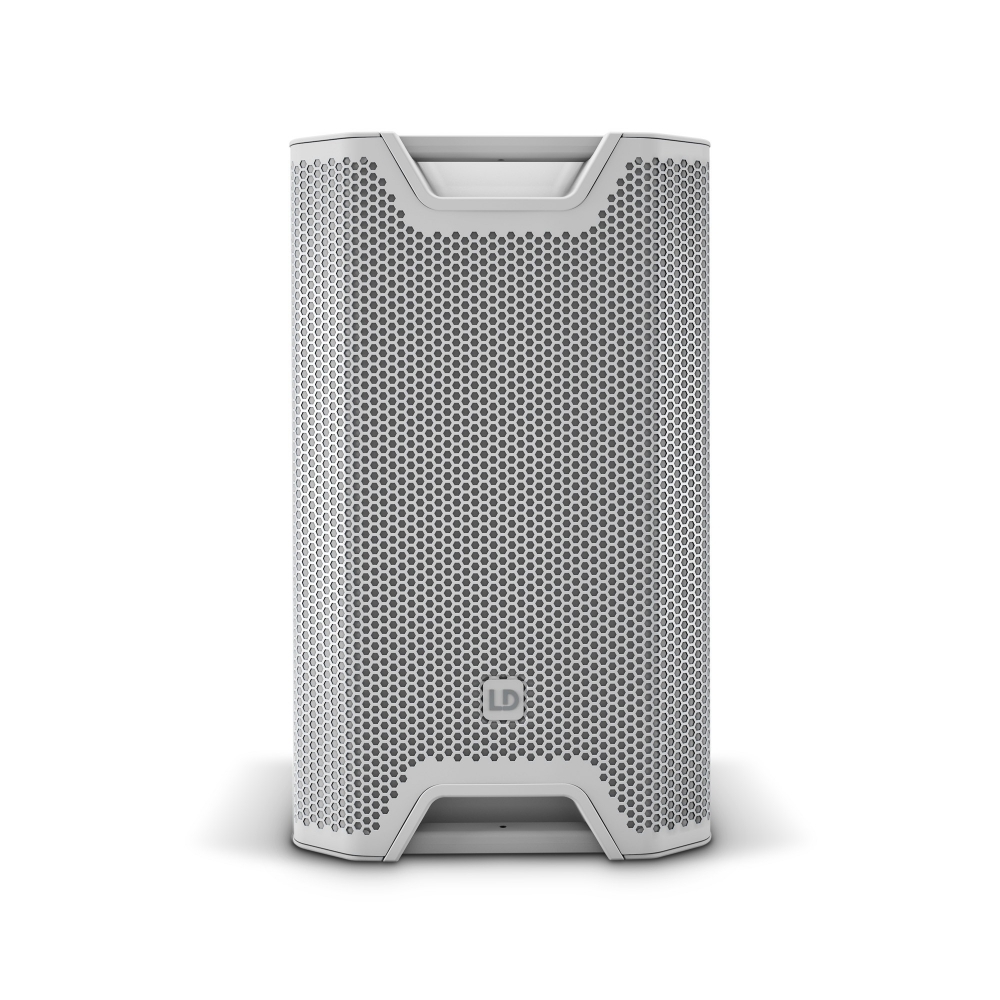

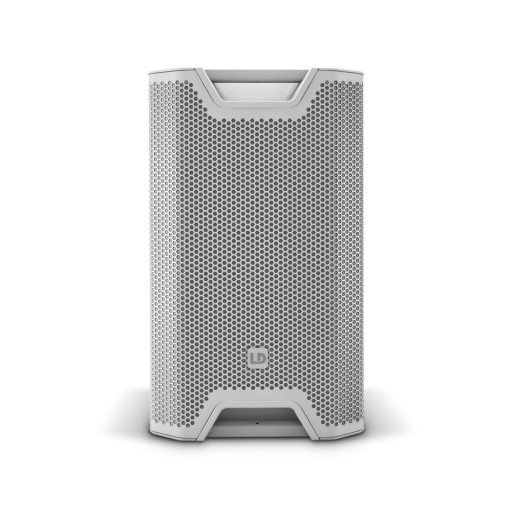

• Shock-resistant front grille for optimal protection of the speaker.
• 4 aluminium grips with ergonomic, rubber surface.
• Extensive, optionally available accessories for installation and transport.

This full-range loudspeaker impresses with its outstanding sound, even at low frequencies. The ICOA 12 A by LD Systems is a genuine all-rounder that offers unparalleled features for its class. Its coaxial design, rotating, BEM-optimised CD horn and extensive and precisely calibrated DynX DSP presets make this powered 12" loudspeaker exceptionally flexible.

The outstanding bass reproduction from the horn-loaded woofer makes the LD ICOA 12 A the ideal choice for musicians, bands, entertainers and dance schools. It also allows DJs to play sets without the need for a subwoofer. Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. The efficient class-D power amplifier delivers 126 dB max. SPL and 1200 W peak performance.

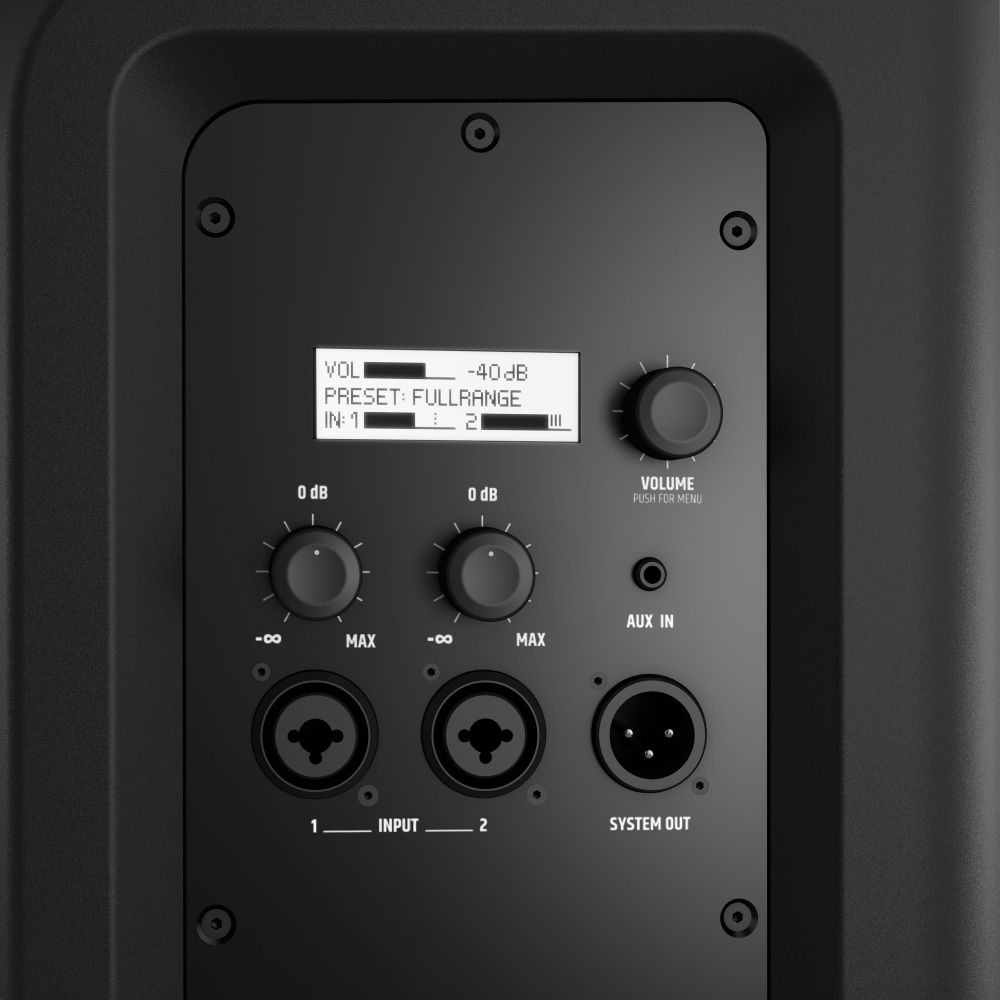

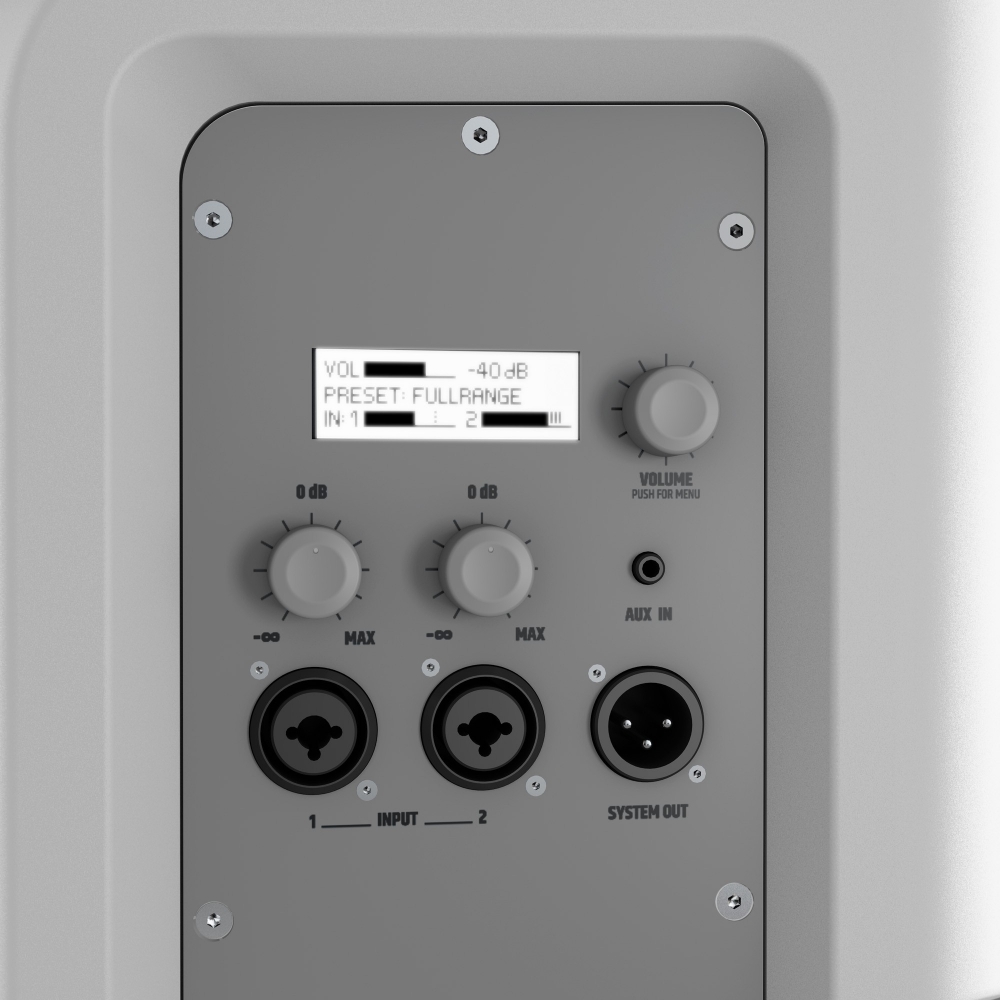

Drawing on DynX DSP technology by LD Systems, the speaker delivers perfect performance with maximum clarity and power under all conditions. 4 presets, a 3-band EQ and a delay function facilitate optimal adjustment of the sound to the venue conditions. The 2 line/mic input channels with individual gain controllers, plus mono mix output, allow a variety of signal sources to be connected.

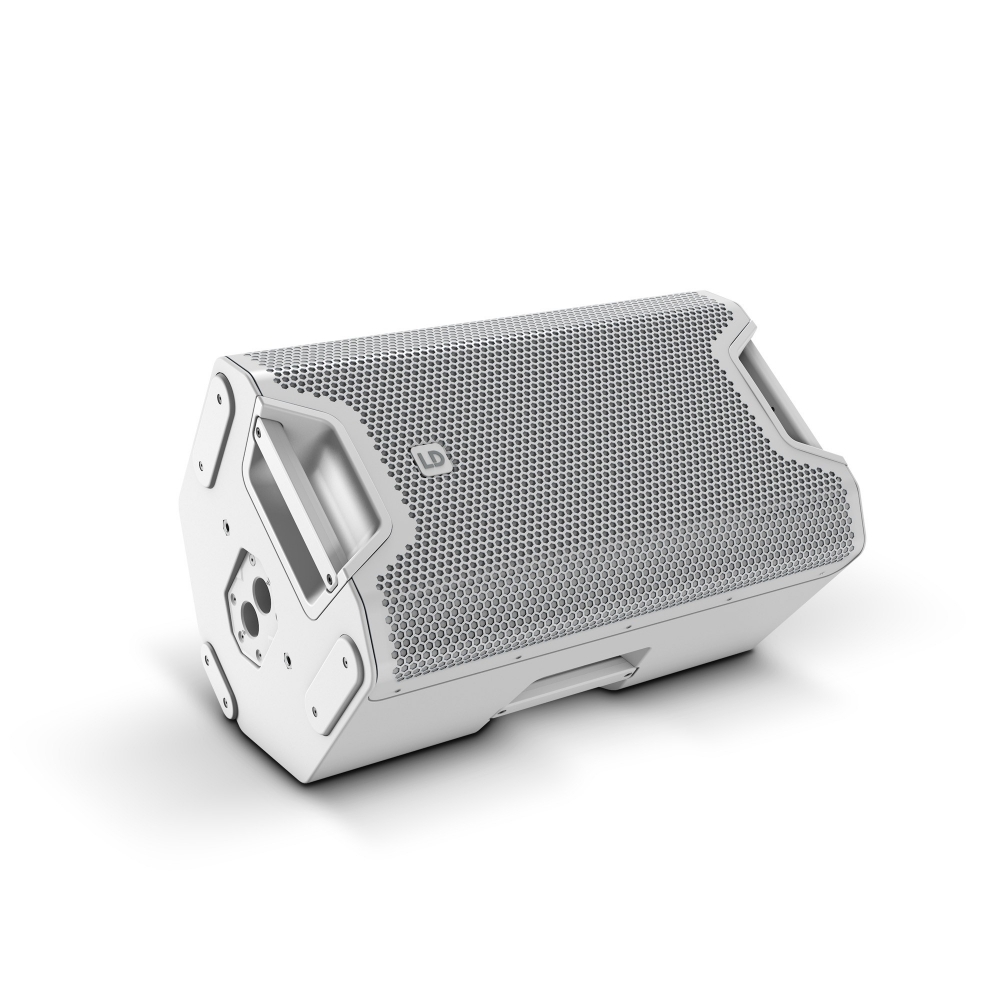

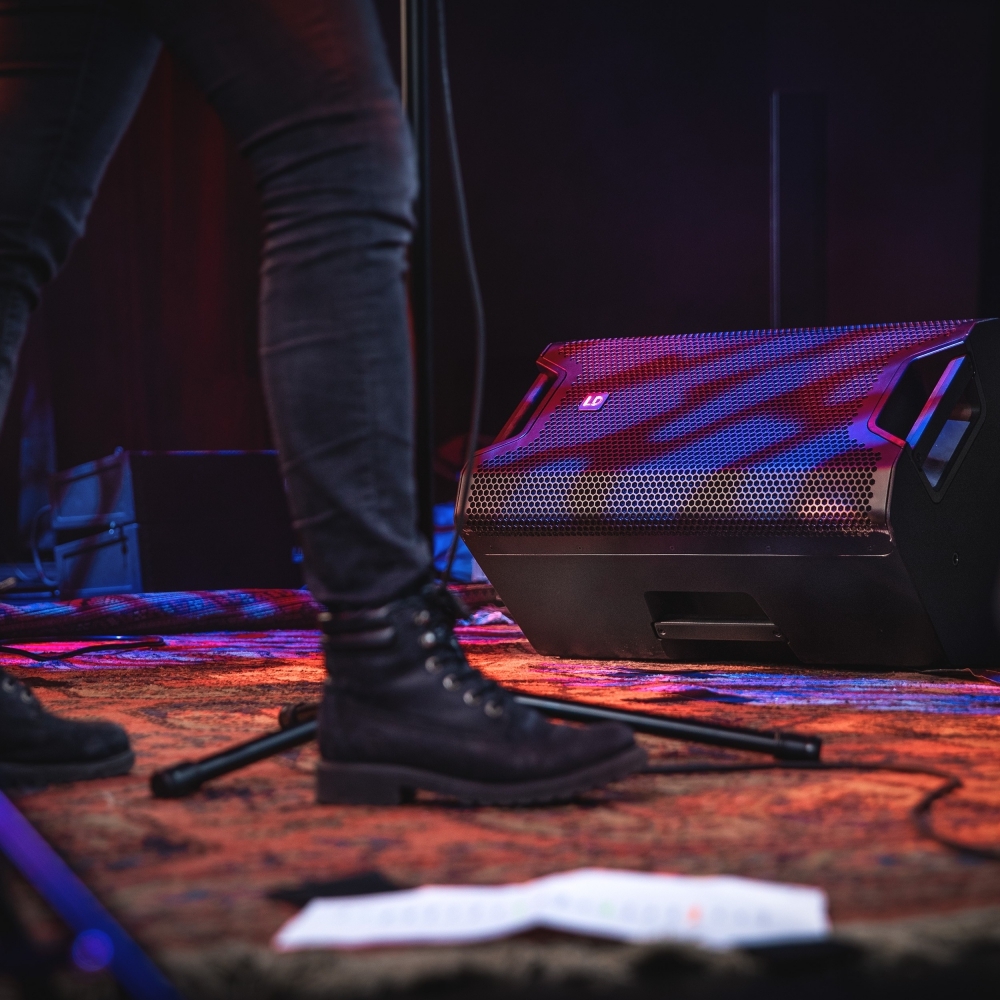

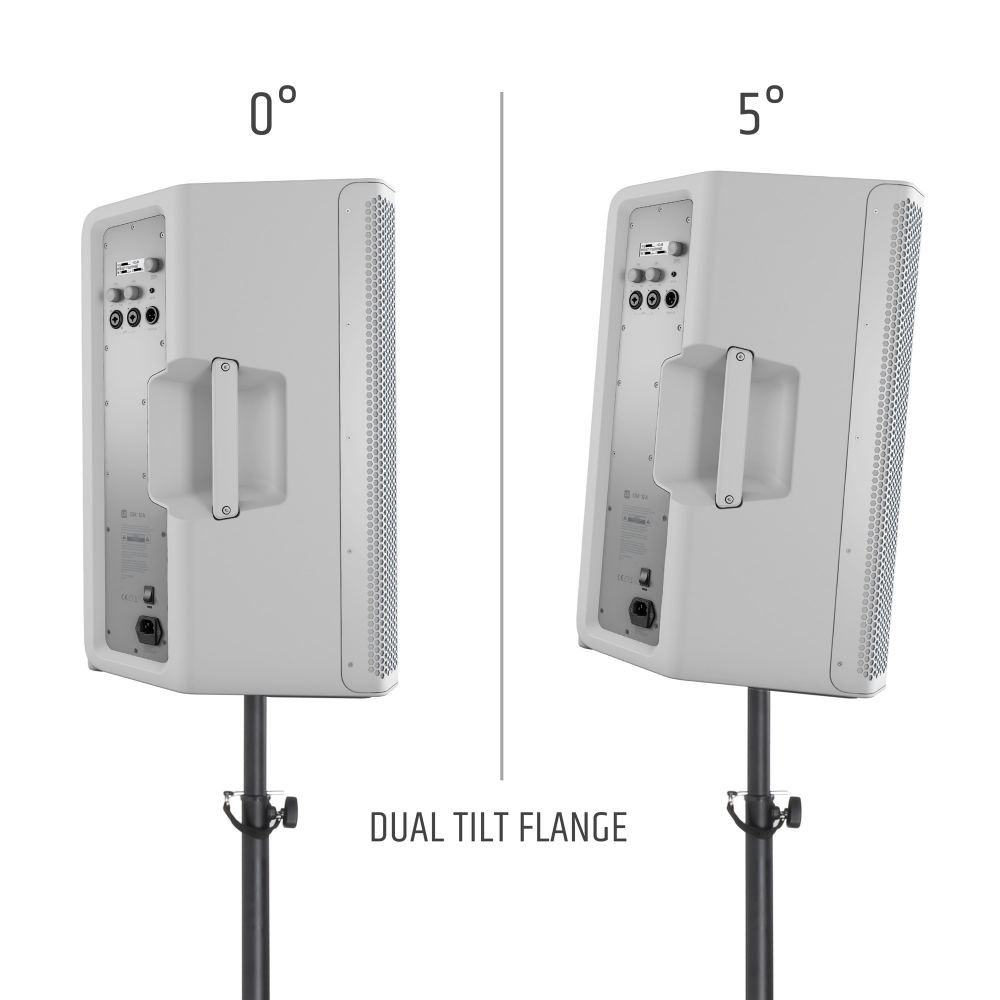

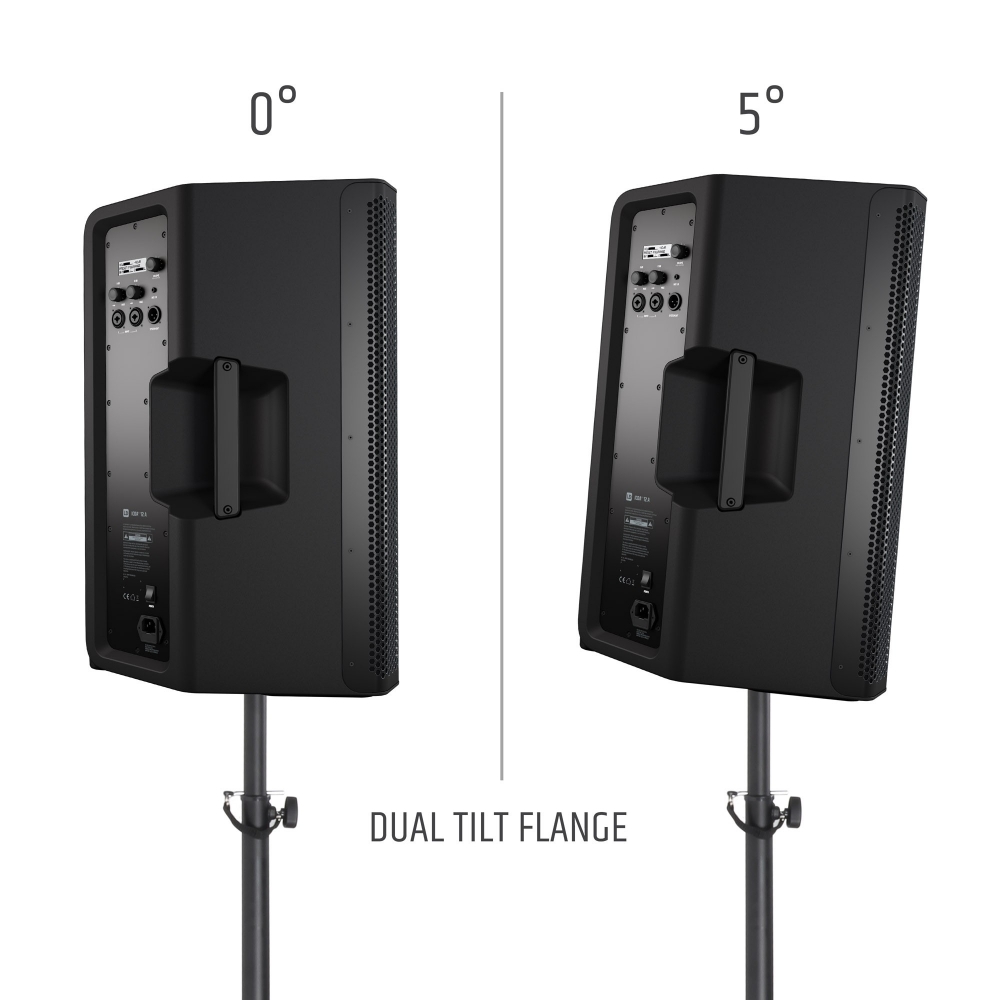

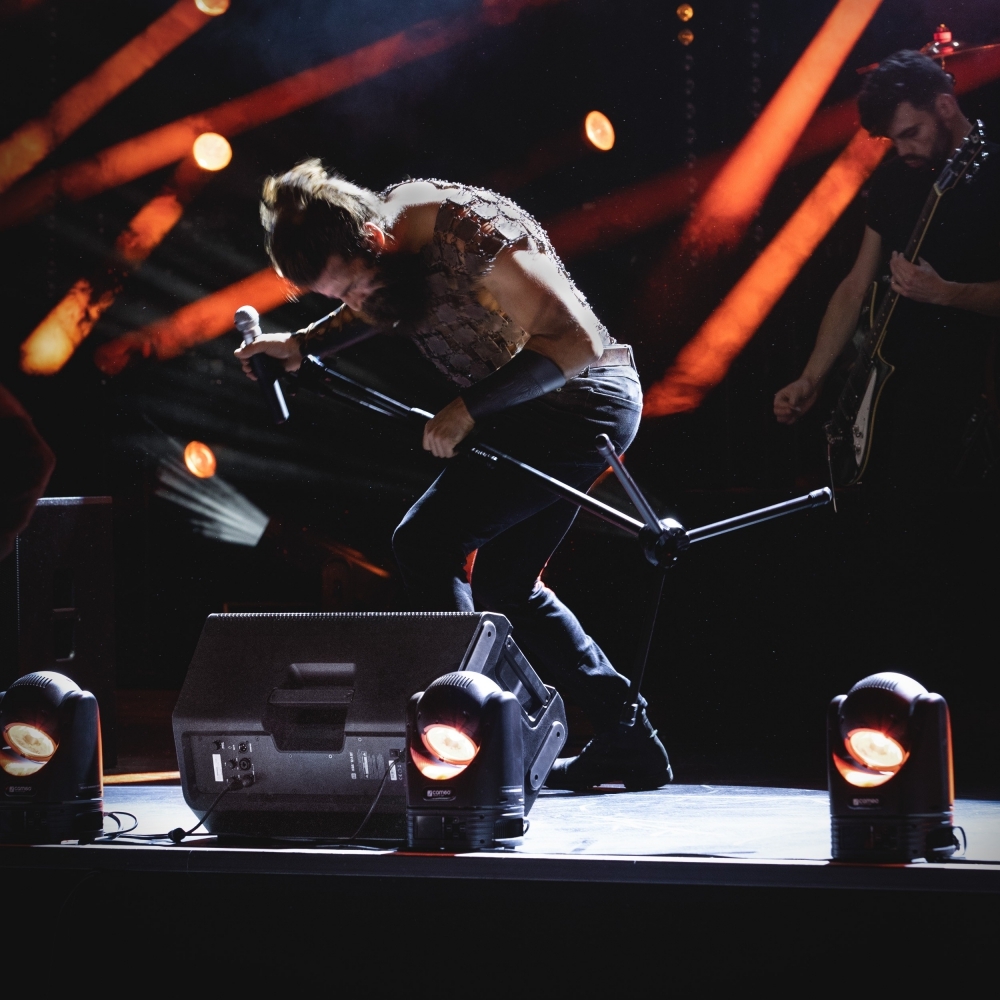

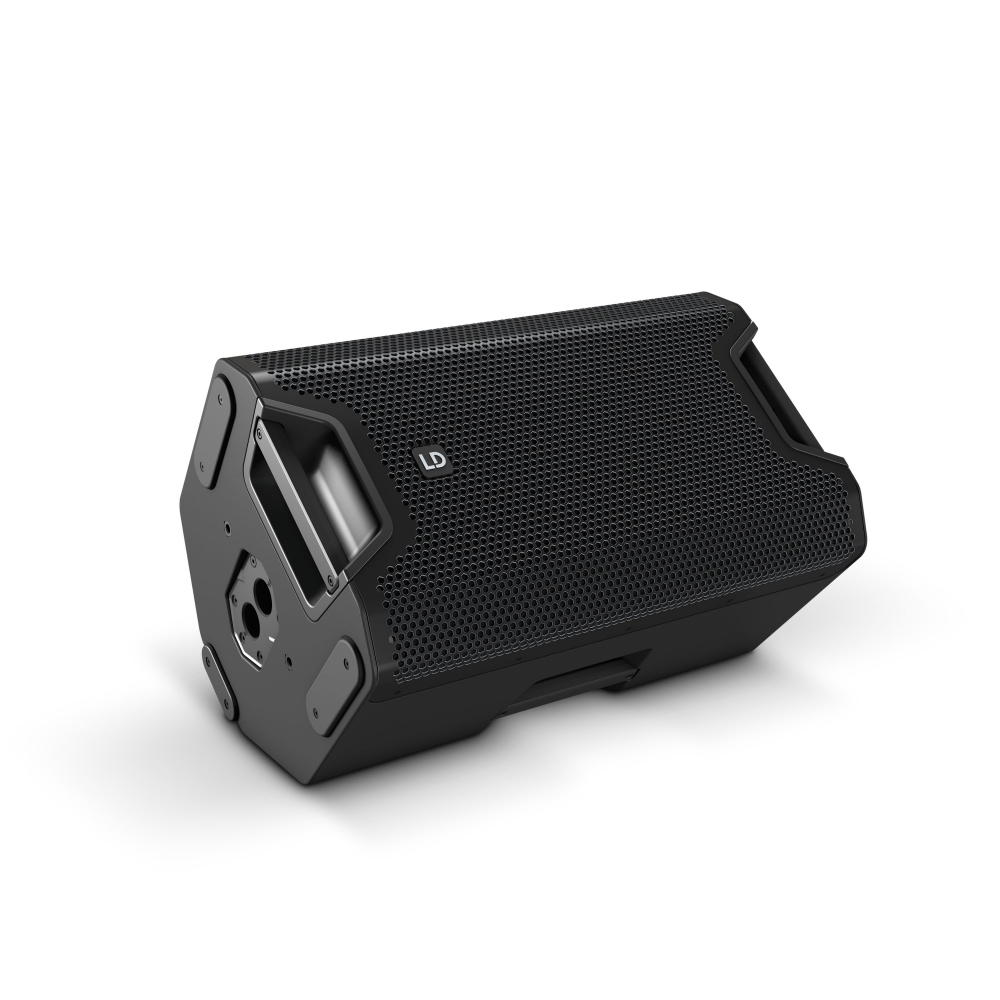

Thanks to its shock-resistant front grille and ideal 55° tilt angle, the LD ICOA 12 A is also outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment.

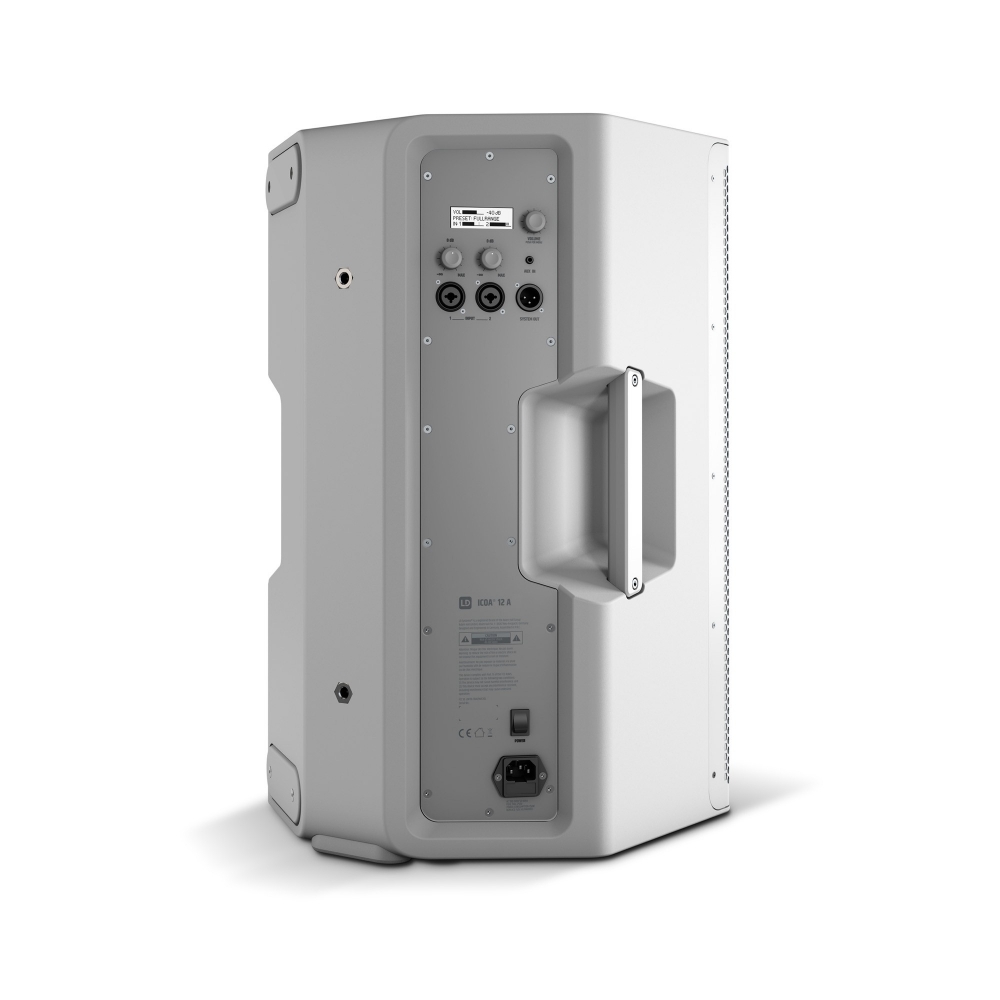

Extensive and smart accessories for installation and transport are optionally available. 4 aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.

• General
  • Product type: PA loudspeaker
  • Type: Powered
  • Low/mid Woofer dimensions: 12 "
  • Woofer dimensions (mm): 304.8 mm
  • Woofer magnet: Ferrite
  • Woofer brand: Custom-made
  • Horn: BEM optimized CD Horn
  • HF driver dimensions: 1 "
  • HF driver dimention (mm): 25.4 mm
  • HF driver magnet: Ferrite
  • HF driver brand: Custom-made
  • HF driver voice coil: 1.4 "
  • HF driver voice coil: 35 mm
  • Amplifier: Class D
  • Dispersion (H x V): 90° x 50°
  • System Power (RMS): 300 W
  • Peak power: 1200 W
  • Frequency response: 50 Hz - 20000 Hz
  • Crossover frequency kHz: 2 kHz
  • Max. SPL (Peak): 126 dB
  • Protection circuits: Multiband limiter, over voltage, over-current, thermal overload

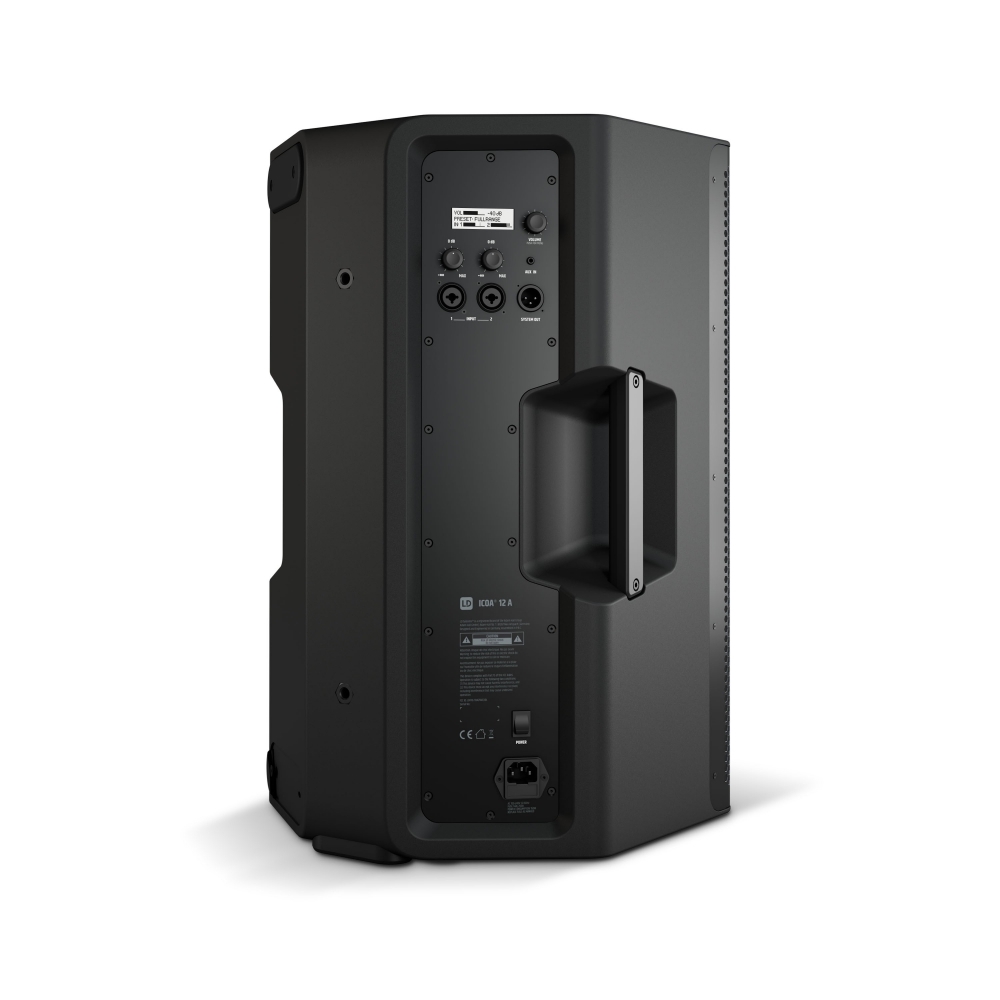

  • Controls: 2 x gain, On / off switch, Rotary/push encoder
  • Indicators: LC display
  • Mic/ line inputs: 2
  • Mic-/ Line Input Connectors: 6.3 mm jack Combination sockets (symmetrical), XLR
  • Line inputs: 1
  • Line input connectors: 3.5 mm TRS
  • Line outputs: 1
  • Line output connectors: XLR
  • Power supply: SMPS
  • Power consumption: 150 W
  • Ambient temperature (in operation): 0 - 40 °C
  • Operating voltage: 100 V - 240 V AC / 50 - 60 Hz
  • Relative Humidity:
  • Fuse: T4AL 250 V
  • Cabinet material: Polypropylene
  • Cabinet construction: Bass Reflex
  • Mounting: 36mm flange (0°, 5°), 6 x M10 flying points
  • Monitor angle: 55 °
  • Width: 375 mm
  • Height: 635 mm
  • Depth: 396 mm
  • Weight: 19,95 kg
  • Accessories (included): Power cord
