Palmer STUDIMON 5
Description (Engelska)
- :

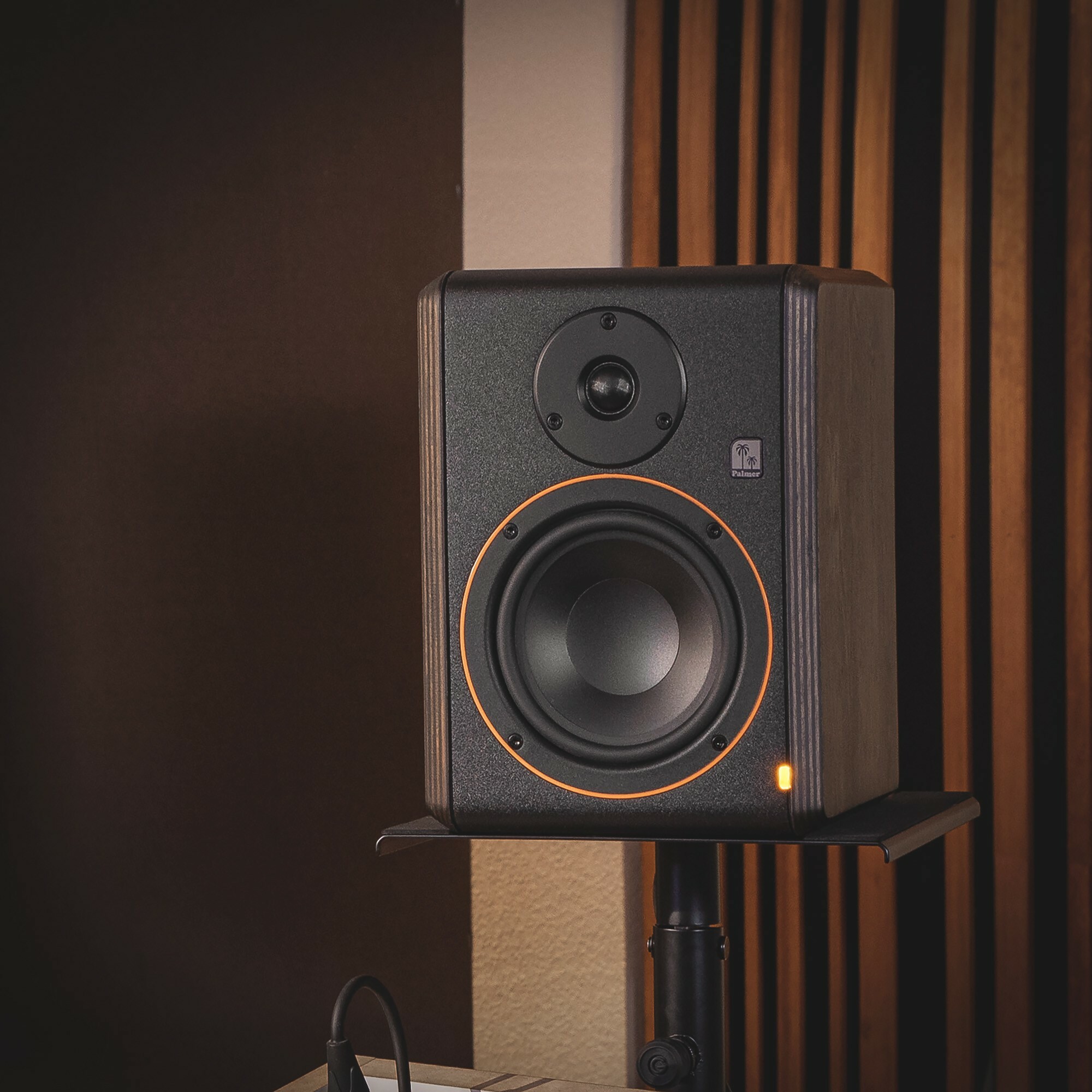

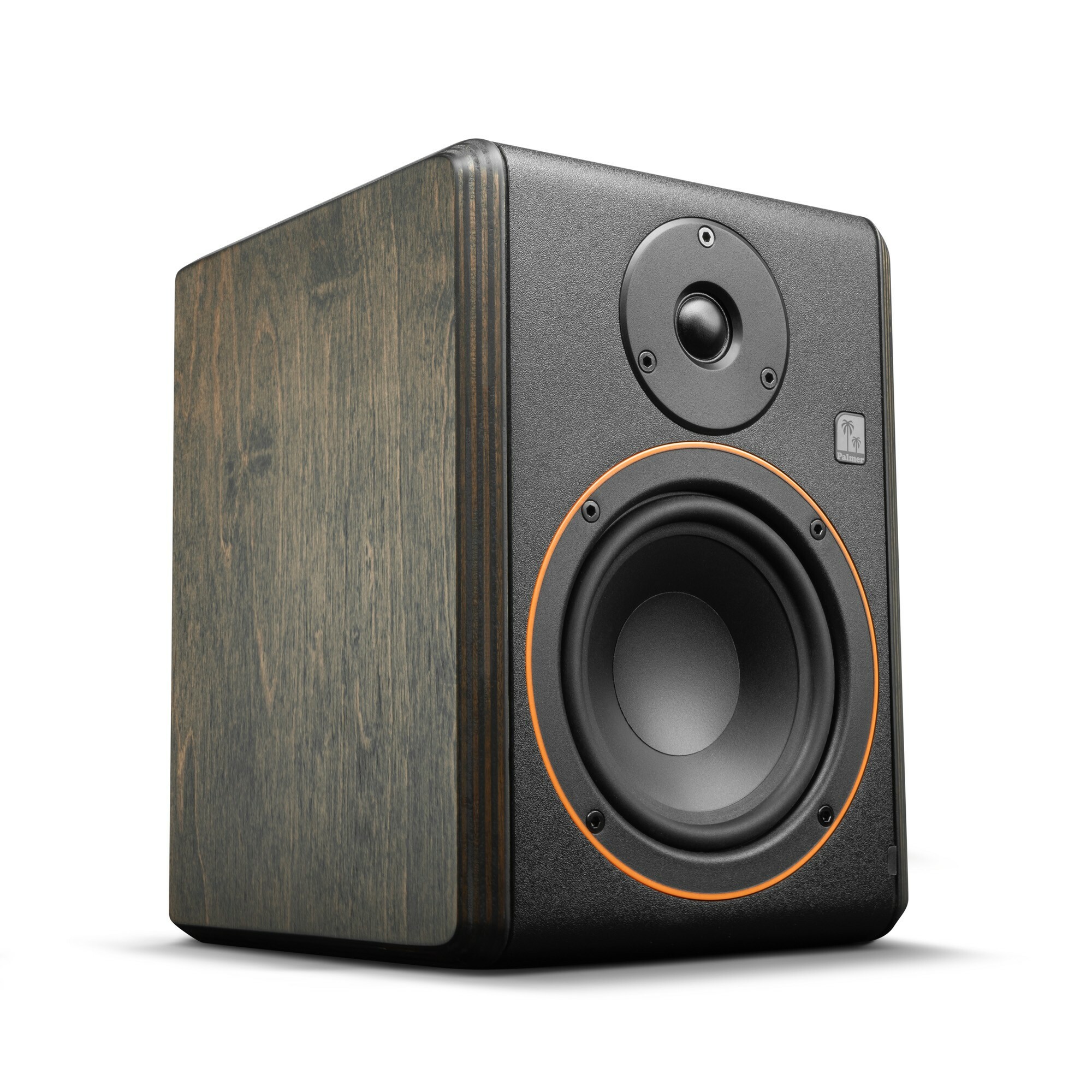

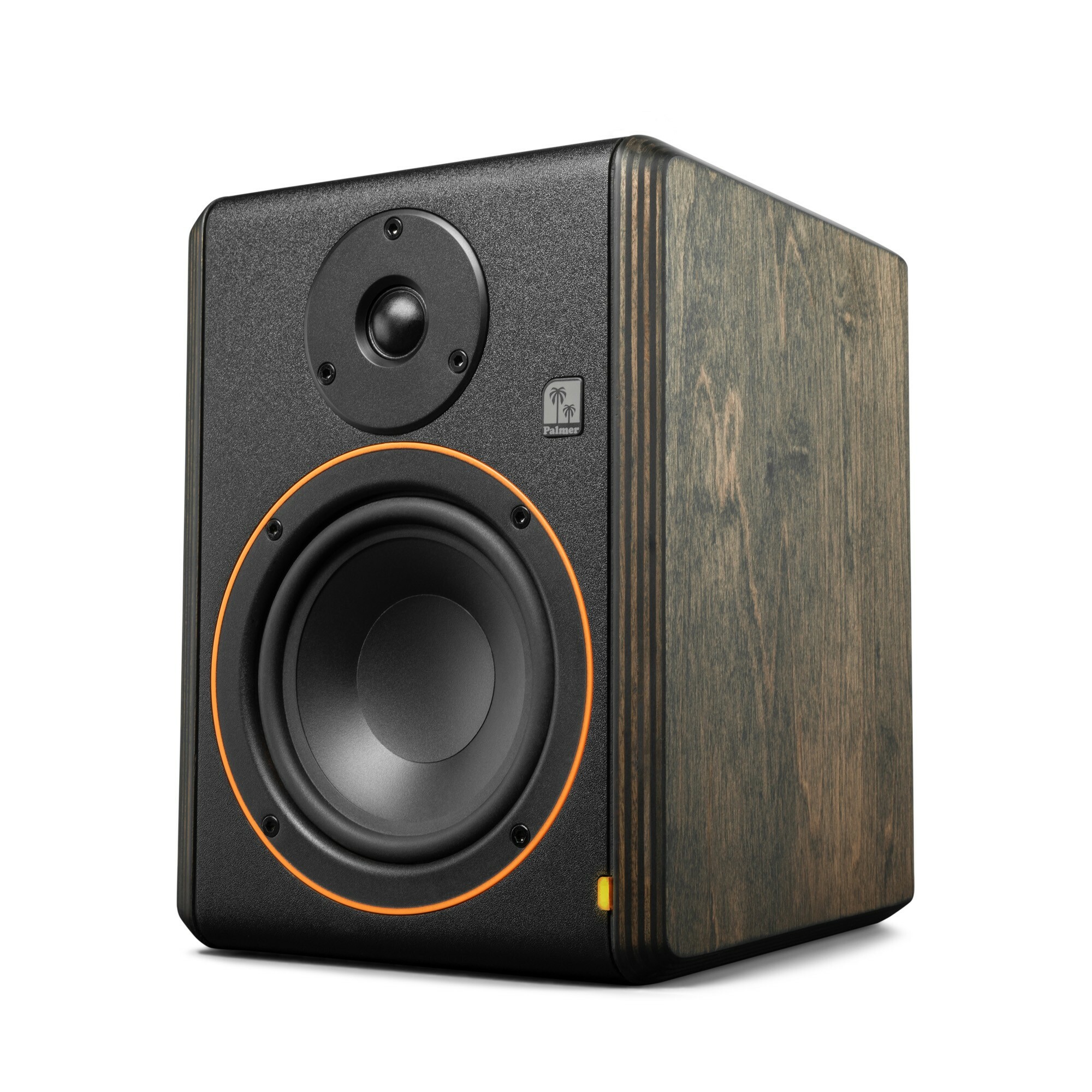

Palmer STUDIMON 5
Powered 5" Nearfield Studio Monitor
- 5" woofer and 0.75" soft dome tweeter.
- Bass reflex design.
- 60-W RMS bi-amping power amplifier.
- Frequencyrange 50 Hz - 20 kHz.
- Balanced XLR and 6.35 mm stereo jack input.
- Compact design.
- Elegant and robust housing.

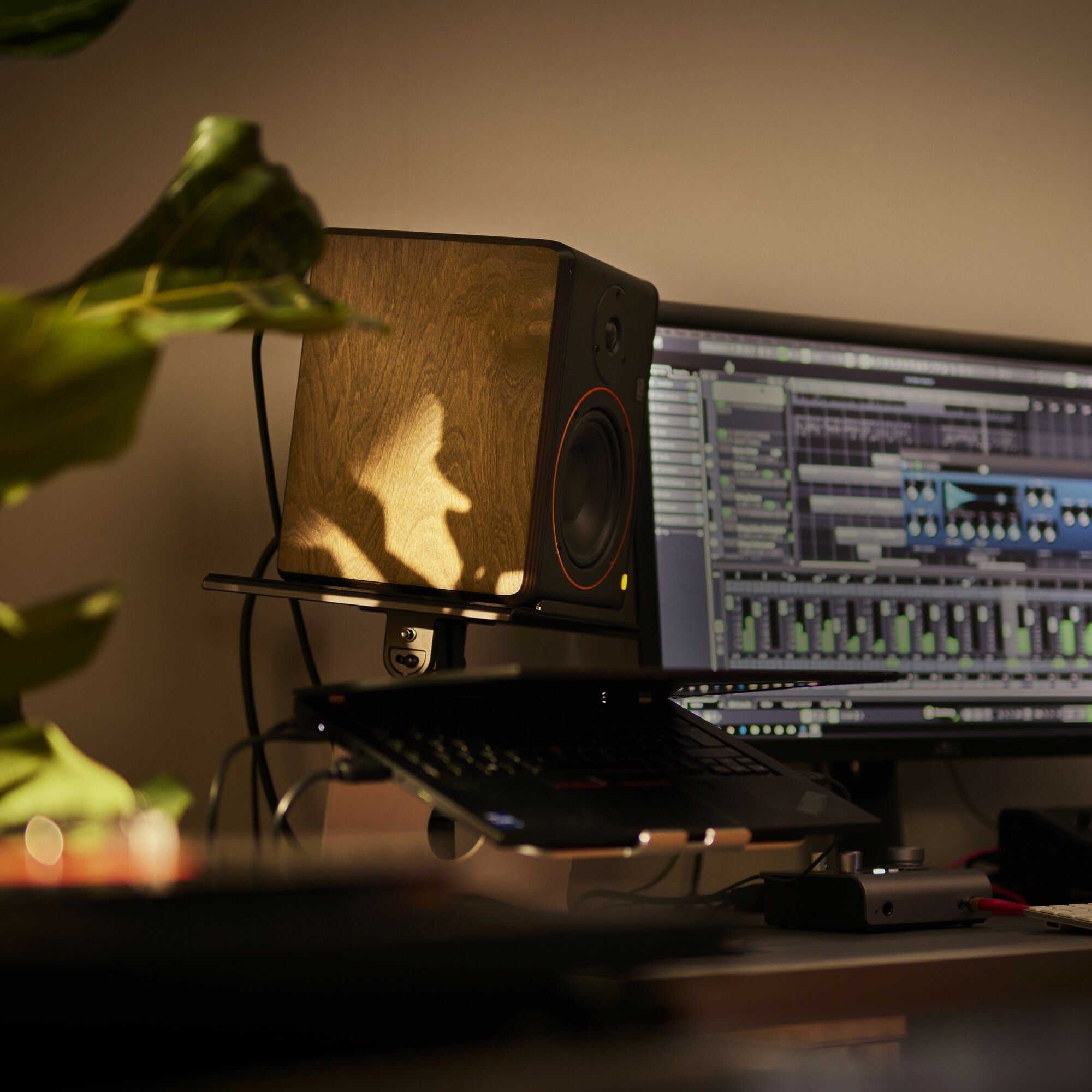

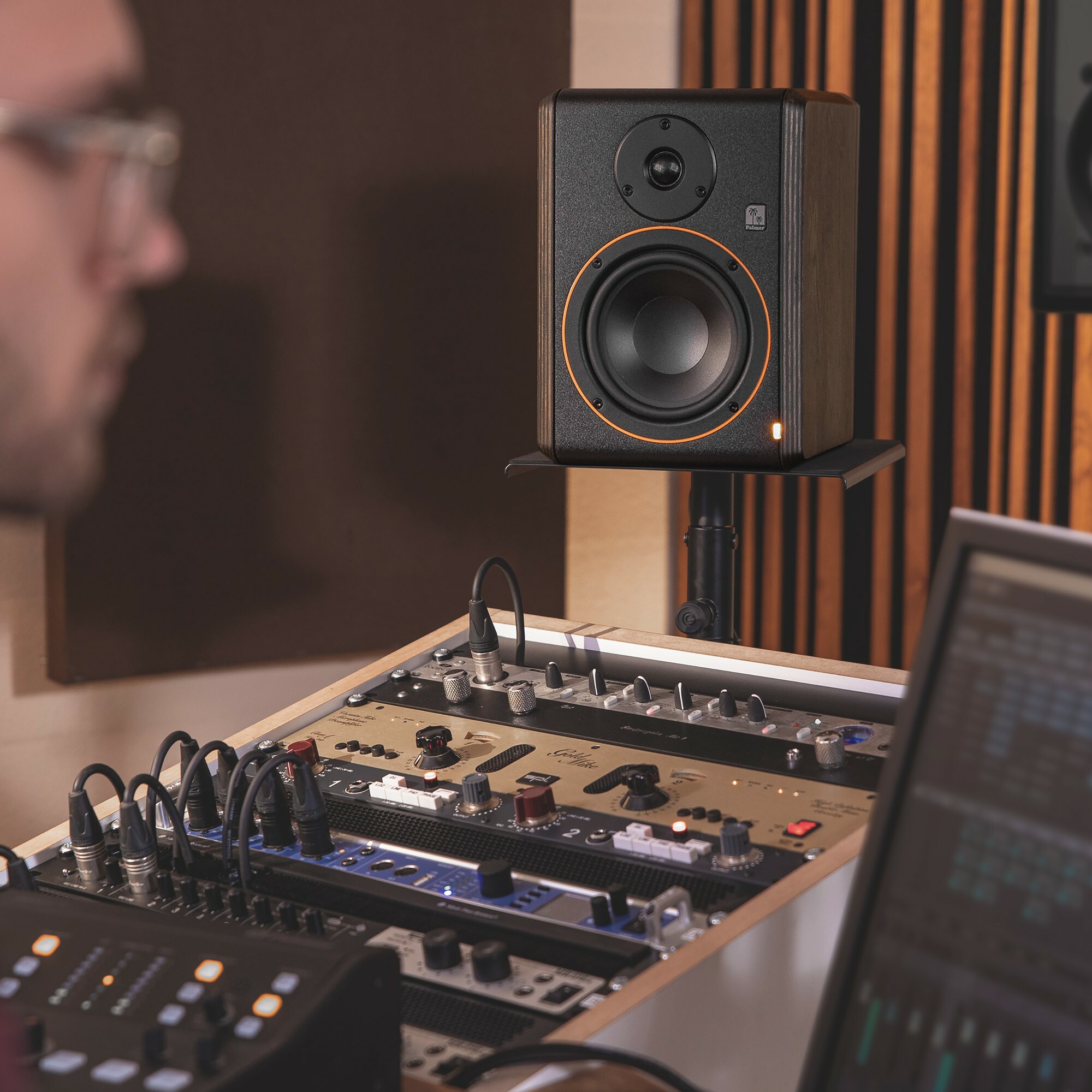

When producing and mixing your music or editing your videos you’ll need studio monitors with absolutely honest sound reproduction where all elements can be heard separately from each other. The STUDIMON5 nearfield studio monitors offer accurate sound reproduction, two powerful 30-watt class AB power bi-amplifiers and an elegant design that seamlessly complements every studio environment — even at home.

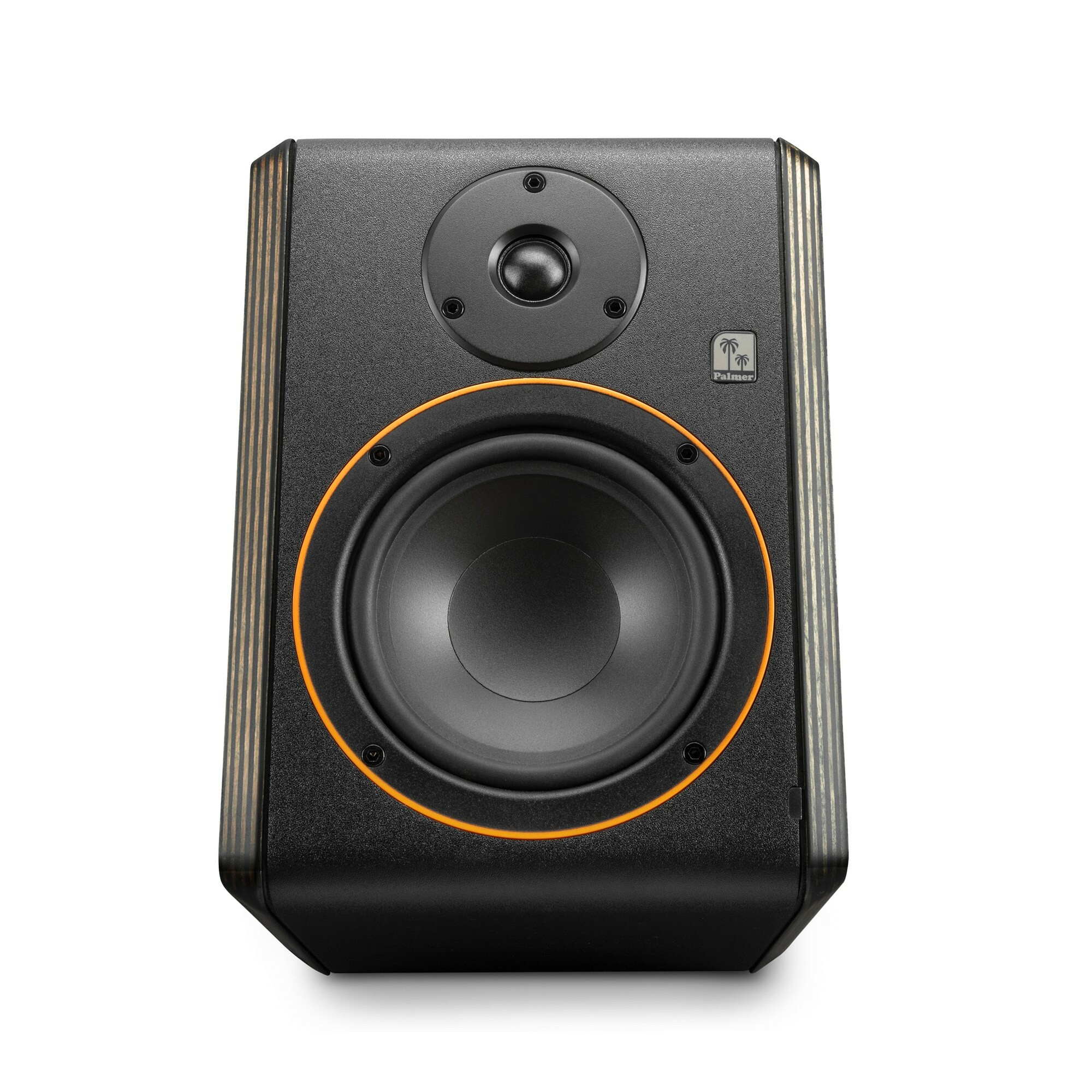

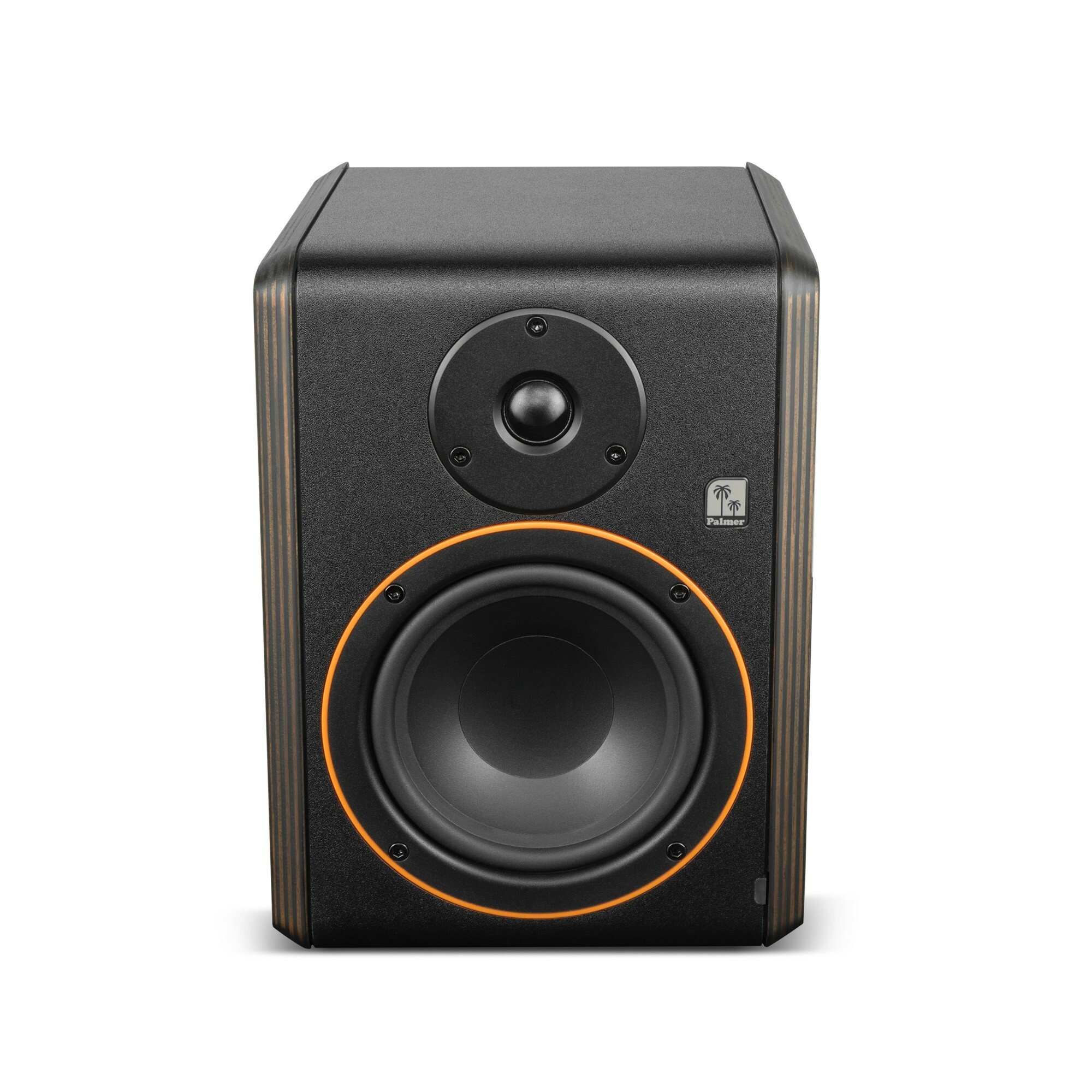

With its 3/4" silk dome tweeter, you’ll hear every detail in the stereo field of your mix up to 20 kHz. The magnetically shielded 5" woofer and, rear bass-reflex aperture will give you deep and defined bass frequencies down to 50 Hz. This is all you need to make your low end clear and pop out on most consumer systems, including smartphones.

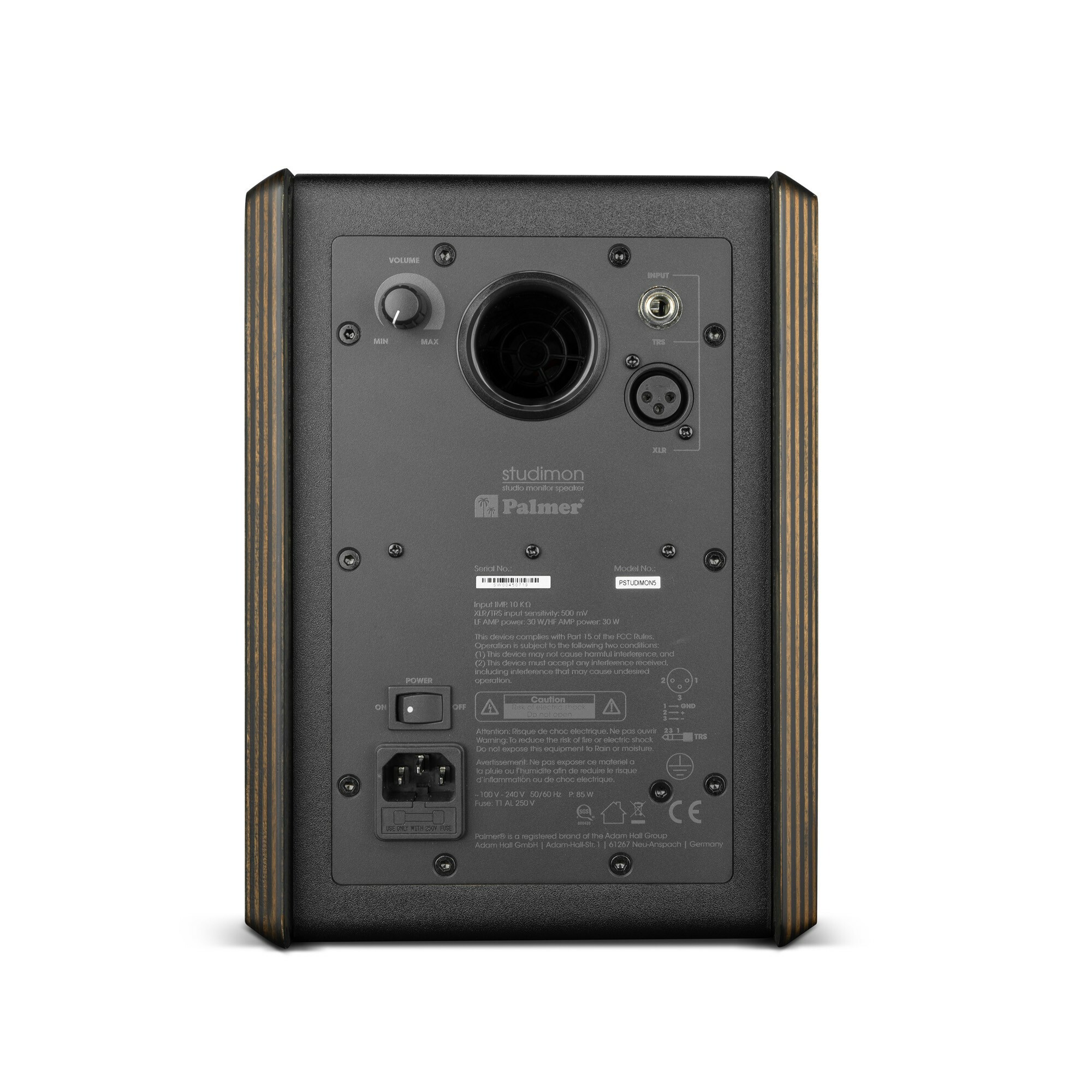

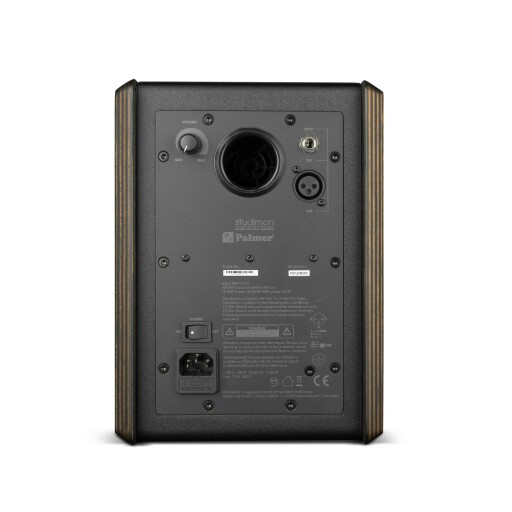

The back panel provides all needed connections in every Home- and professional Studio environment. Balanced XLR and 6.35 mm stereo jack inputs guarantee disruption-free signal transmission, while a practical volume controller rounds off the loudspeaker's features.
Whether you're making music, creating content or your next live stream, STUDIMON5 ensures a true representation of your mix, so you can make confident mixing decisions to be true to your sound.
- General
- Product type: Other Studio and Recording Equipment
- Type: Studio monitor
- Low/mid Woofer dimensions: 5 "
- Woofer dimensions (mm): 127 mm
- Woofer magnet: 80 mm Ferrit
- Woofer brand: Custom-made
- HF driver dimensions: 0.75 "
- HF driver dimention (mm): 19 mm
- HF driver magnet: 28 mm Neodym
- HF driver brand: Custom-made
- Amplifier: Class A/B
- Dispersion (H x V): 120 ° x 120 °
- System Power (RMS): 2 x 30 W
- Frequency response: 70 - 20000 Hz (-3dB)
- Frequency range: 50 - 20000 Hz
- Crossover frequency: 2500 Hz
- Max. SPL: 103 dB
- Signal-to-noise ratio: 85 dB
- Protection circuits: Overtemperature, short circuit
- Input impedance: 10,000 Ohm(s)
- Controls: Mains switch (on/off), volume control
- Indicators: Orange (LED)
- Line input connectors: 6.3 mm stereo jack (balanced), XLR (balanced)
- Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
- Cabinet material: Birch Plywood, MDF
- Housing Wall Strength: 15 mm
- Cabinet surface: Laminated, stained
- Cabinet colour: Black
- Cabinet construction: Bass Reflex
- Width: 190 mm
- Height: 268 mm
- Depth: 215 mm
- Weight: 3,95 kg
- Accessories (included): Power cord
