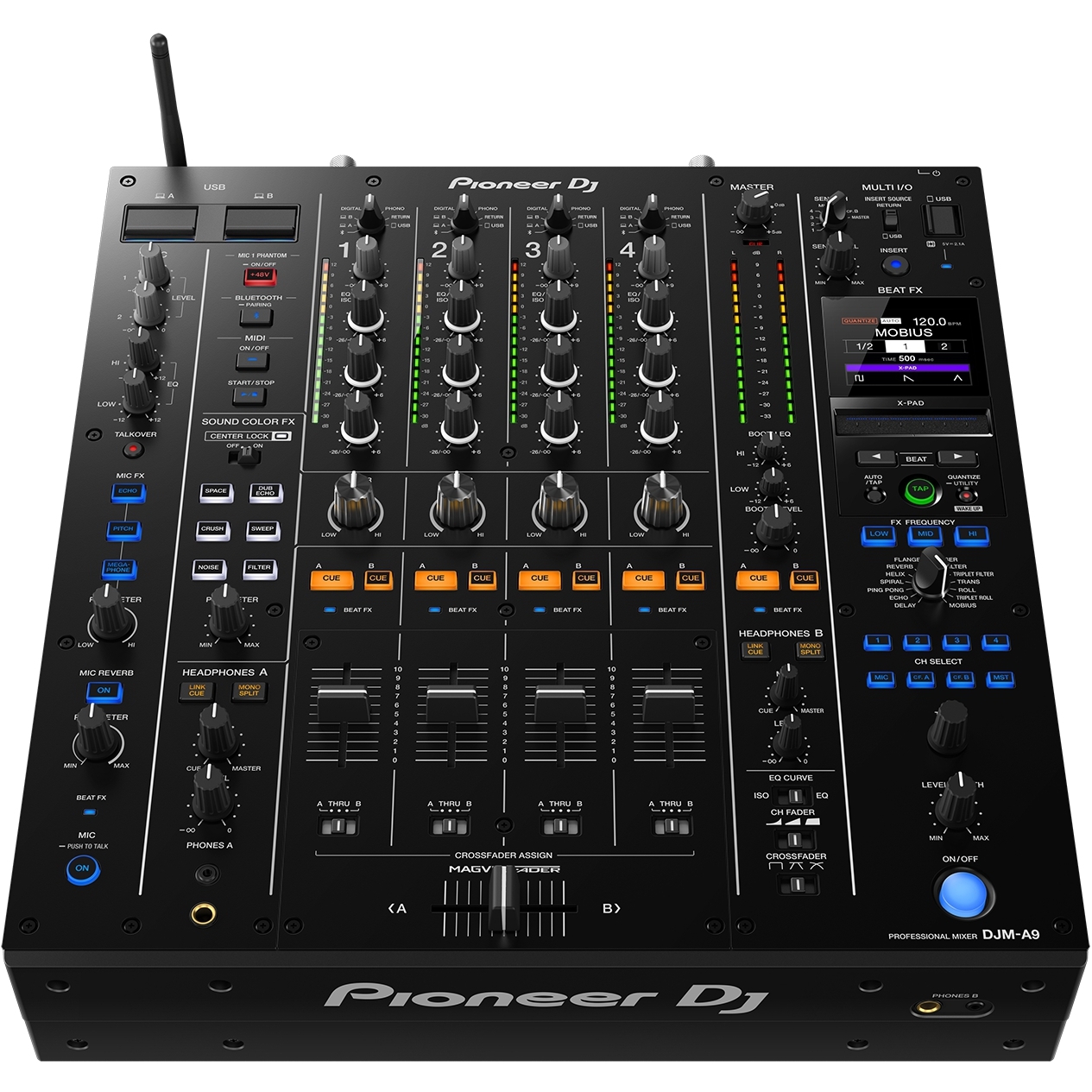

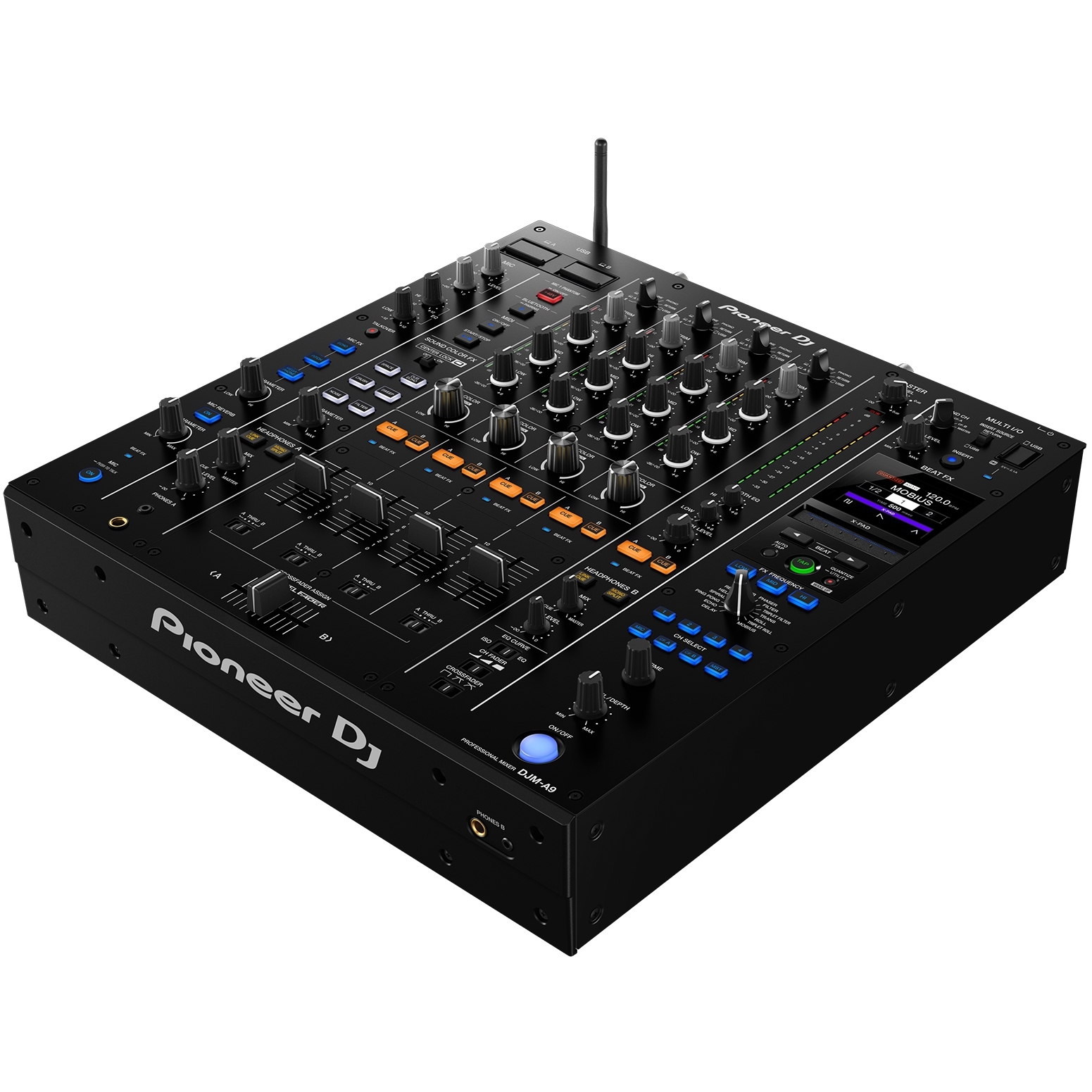

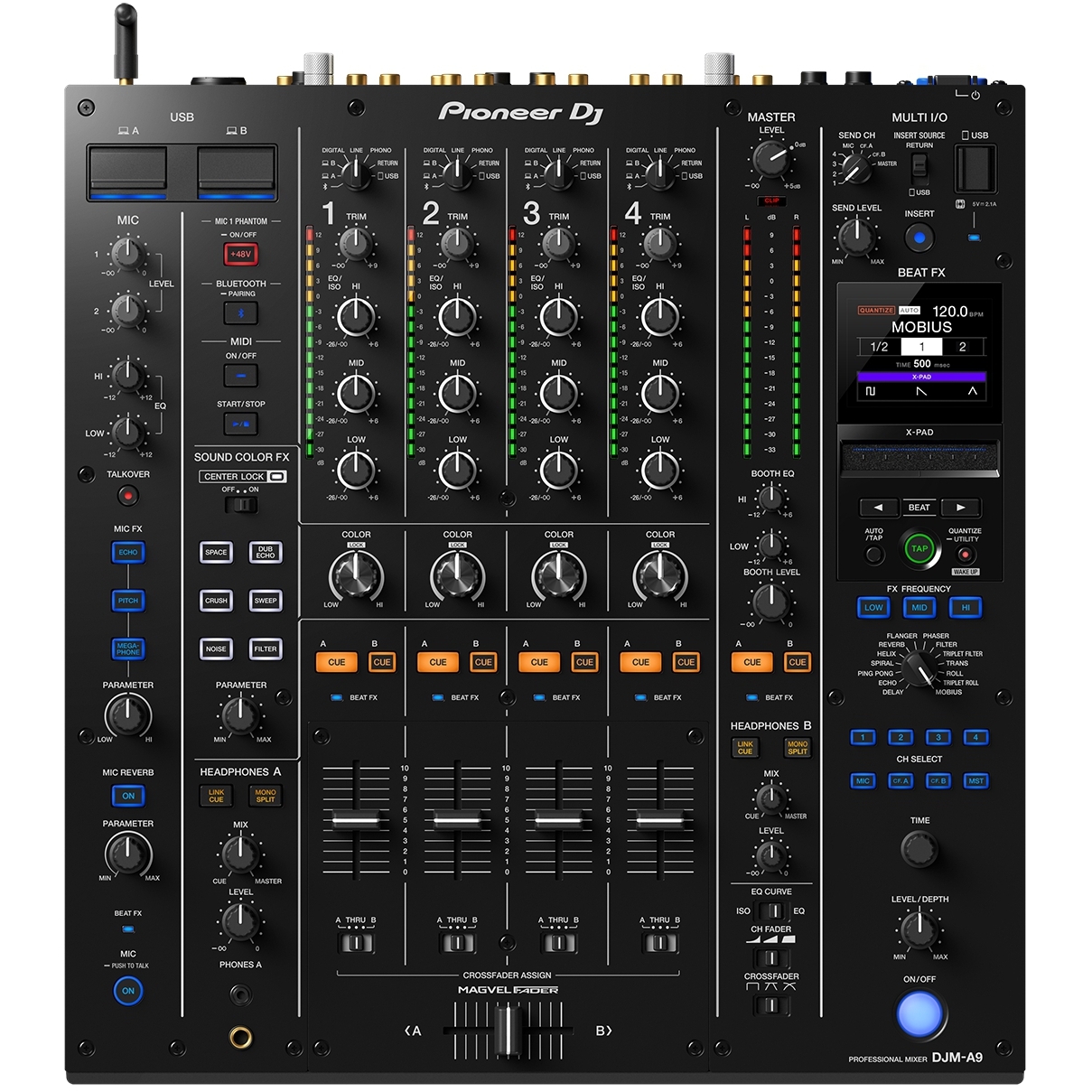

Pioneer DJ DJM-A9
Nästa generations professionella DJ-mixer
4-kanalsenheten höjer ribban för klubbstandardblandare - med enorma uppgraderingar jämfört med sin föregångare, DJM-900NXS2 - med fantastiskt tydlig ljudkvalitet, förbättrad spelbarhet och anslutning och en mängd nya funktioner som hjälper dig att ta dina föreställningar till nästa nivå.
Pioneer DJ DJM-A9
The next-generation professional DJ mixer
The 4-channel unit raises the bar for club standard mixers – boasting huge upgrades compared to its predecessor, the DJM-900NXS2 – with stunningly clear sound quality, enhanced playability and connectivity, and a host of new features to help you take your performances to the next level.
Stunningly clear sound quality
Your performances will sound better than ever on the DJM-A9, which takes the audio quality from the DJM-900NXS2 to another level.
This next-generation club sound comes from extensive development and fine-tuning of existing technology from previous units, plus brand-new components. The channel input section is equipped with an ESS Technology 32-bit high-quality A/D converter for crystal-clear, high-resolution sound, while the master and booth output sections employ 32-bit high-quality D/A converters from the same brand so you can experience sound from the booth monitors that’s the same as the crowd hears on the dancefloor. Even the sound quality of the microphone input and headphone outputs has been improved with carefully selected new parts and design optimization.

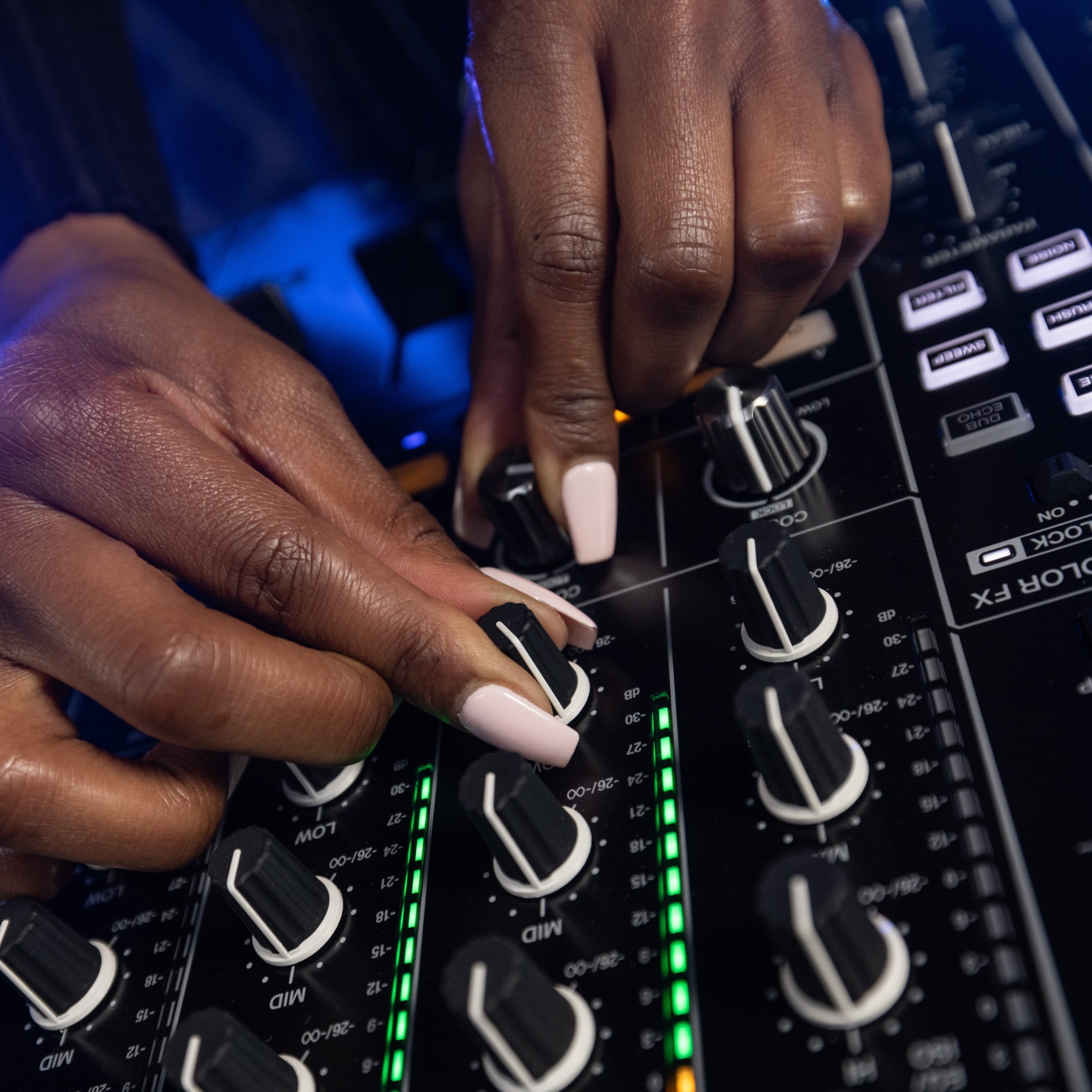

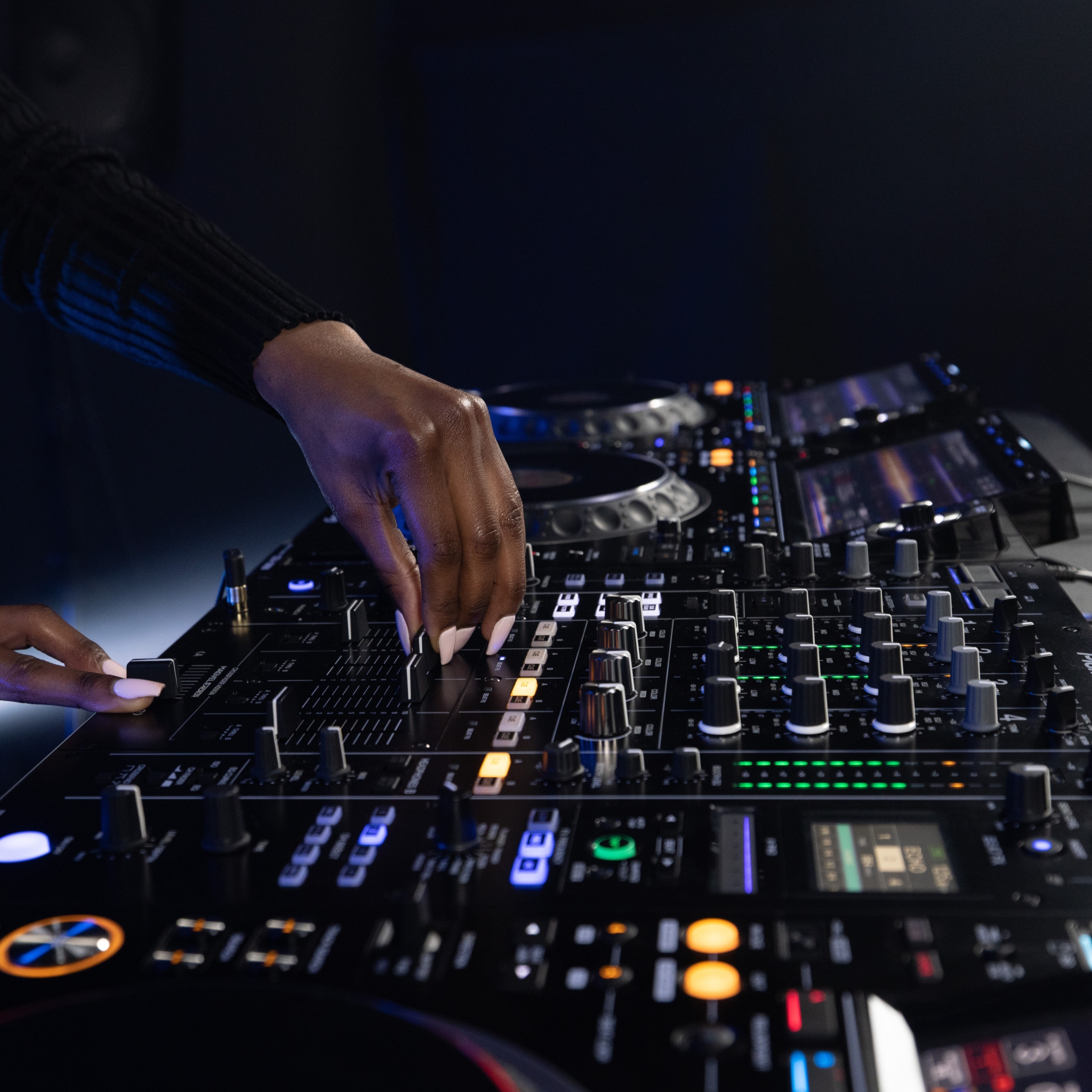

Feel like you’re playing a musical instrument when you get your hands on the DJM-A9, which inherits the familiar layout from the DJM range but includes updated controls and components for accurate mixing and instinctive scratching.
Increased spacing around the EQ knobs gives you the room to twist your fingers, and high-grade, bright LEDs in the channel section make it easier than ever to get a visual grasp on sound levels. You can perform more dynamically thanks to the frequency response of the isolators, which have been optimized to make the most of the latest music production traits. And, with higher-quality, slicker channel faders than the DJM-900NXS2, plus the third-generation MAGVEL FADER crossfader, you can enjoy silk-smooth mixing and rapid, stable scratching.

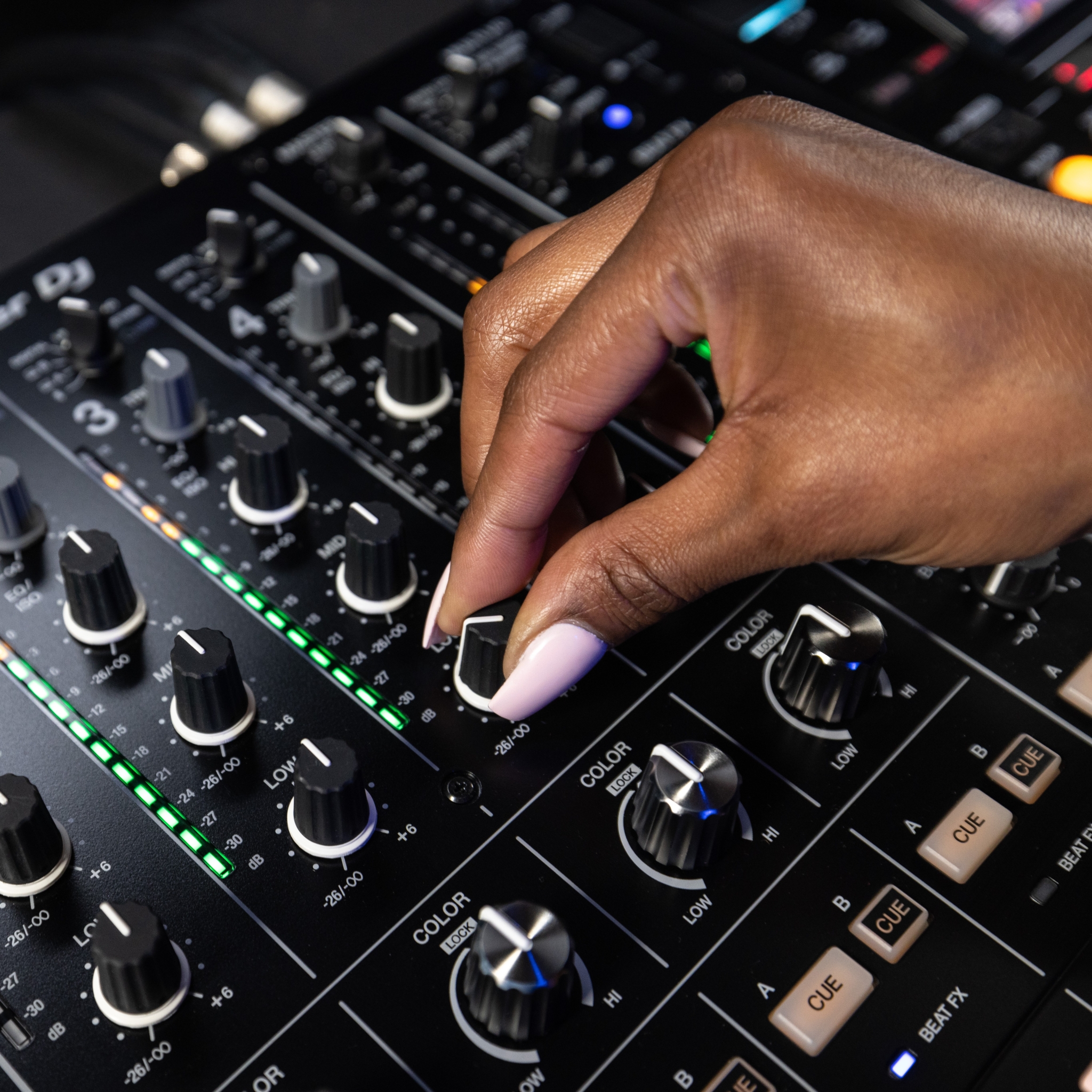

Sound Color FX with world’s first Center Lock
Turn on the brand-new Center Lock feature and, when you’re using the popular Sound Color FX, each knob will stop turning when you reach the center position. This means you can twist the dial as quickly as you like, taking the effect right up to the maximum of the hi or down to the minimum of the low parameter, without the risk of going too far and switching to the opposite parameter. When you turn Center Lock off, the Sound Color FX knobs work in the same way as those on the DJM-900NXS2.
Newly advanced Beat FX
The Beat FX section, a long-time favorite element of the DJM series, has been significantly enhanced for the DJM-A9. A new color display helps you to quickly and accurately understand the status of the selected effect, and it features lighting that corresponds with the X-Pad’s horizontal arrangement, enabling more intuitive control with a simple finger slide. You can use the X-Pad to change the Echo and Ping Pong effects to create a unique analog tape-style sound. And, within the 14 total Beat FX, there are 3 new ones you can use to add extra variation to your performances:
- Mobius: Changes the frequency of the oscillator to constantly rise or fall in time with the beat.
- Triplet Filter: Changes the cut-off frequency cyclically for the filter according to the beat (based on 3 beats).
- Triplet Roll: Outputs the recorded sound repeatedly according to the specified beat fraction (based on 3 beats).
Even better, the channel selector is now a dedicated button, enabling you to quickly apply effects to your chosen channel.
Enhanced mic section
In response to the evolving needs DJs have when using microphones during live streams and club sets, the mic section of the DJM-A9 has been developed so you can enjoy more control and add extra creativity to your performances on the mic. The phantom powered input means you can connect a high-quality condenser mic directly to the DJM-A9, a feature never seen before on a DJ mixer. And there are 3 new microphone effects, with a dedicated reverb effect so you can change the sound of your voice and hype up the crowd with your vocals:
- Echo: Outputs a delay sound several times while attenuating it to add an echo effect.
- Pitch: Changes the pitch of the microphone sound.
- Megaphone: Changes the microphone sound so it sounds like you’re talking through a megaphone.
It’s quick and easy to turn the mic input on or off with the brand-new Push-to-Talk button when you want to grab the mic and address the audience. The audio from the mic can be excluded from the recording output if you want, so you can MC for the live crowd but record your mix without vocals.
Connect 2 different PC/Mac systems at the same time thanks to the dual USB Type-B and USB Type-C ports (there are 2 of each) for seamless transitions between DJs and easy back-to-back sets. And, with a Bluetooth input which you can route to any channel on the DJM-A9, you can wirelessly drop audio tracks into your sets from other devices such as smartphones and use all the mixer’s features and effects to change the sound. The Multi I/O section has an independent channel selector so external effects can be used separately from Beat FX, giving the DJM-A9 true send capabilities. This means you can route the effected sound from an external unit such as an RMX-1000 or a delay pedal to a separate channel instead of the channel it came from.

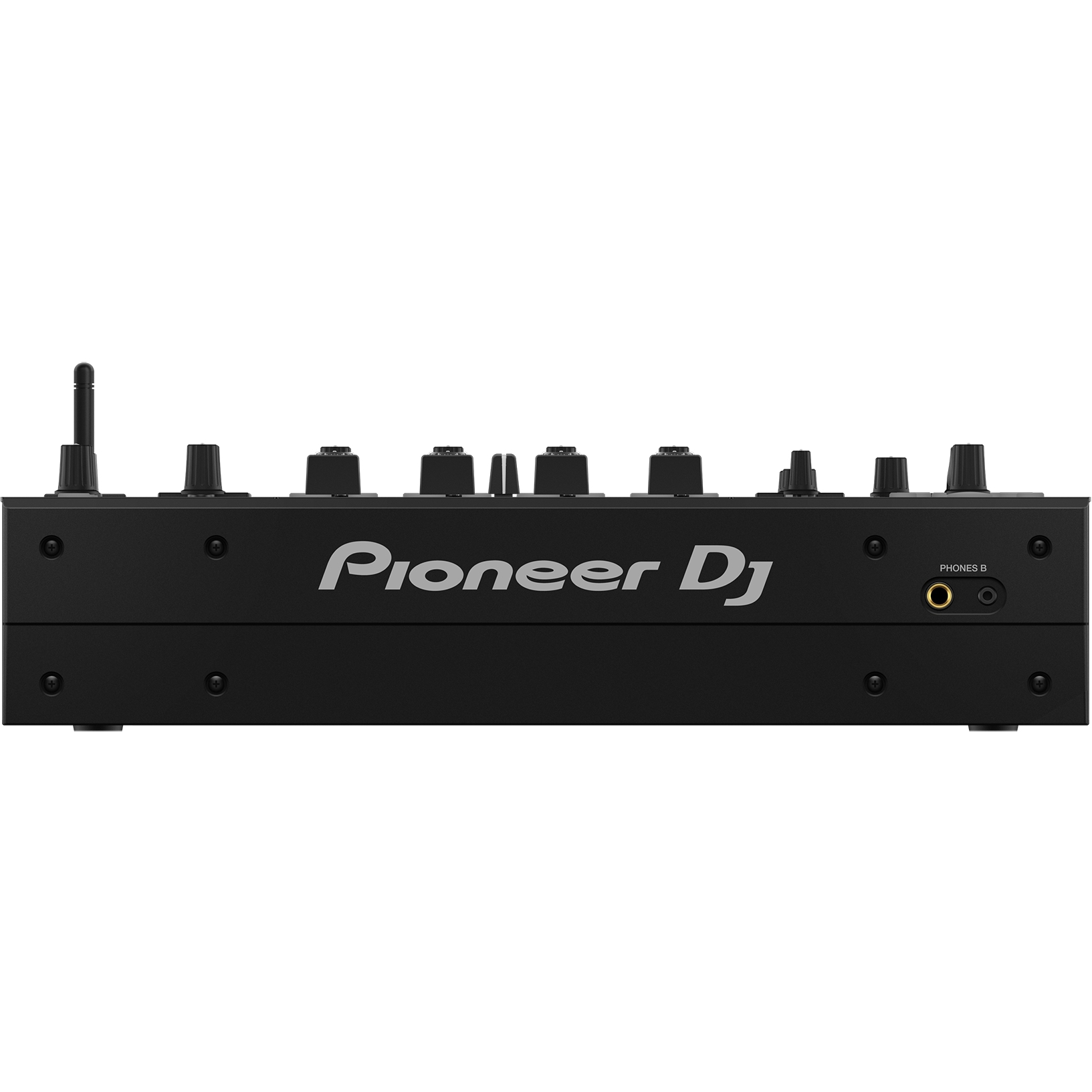

Dual independent headphone outputs and booth EQ
Plug in your headphones at the same time as another DJ and enjoy the freedom to monitor the channels you want to. With separate cue buttons, volume knobs, and mix balance knobs for each set of headphones, it’s easy for 2 DJs to cue up tracks during changeovers and back-to-back sets. Plus, with the 2-band booth EQ, you can change the high and low frequencies to complement the master output and match the mood in the booth to the feeling on the dancefloor.
Support for the brand-new Stagehand app and built-in Sound Check function
The DJM-A9 is compatible with Stagehand, the industry-first PRO DJ LINK remote management app for front of house teams. Using an iPad connected wirelessly to the mixer via a LAN router (available separately), an engineer can keep an eye on things such as level meters and the DJ’s use of the mixer’s controls, making it easier to maximize the sound system’s settings and run a smoother, more impactful show without needing to interrupt the DJ’s performance or even enter the booth. To download the Stagehand app, visit the App Store.

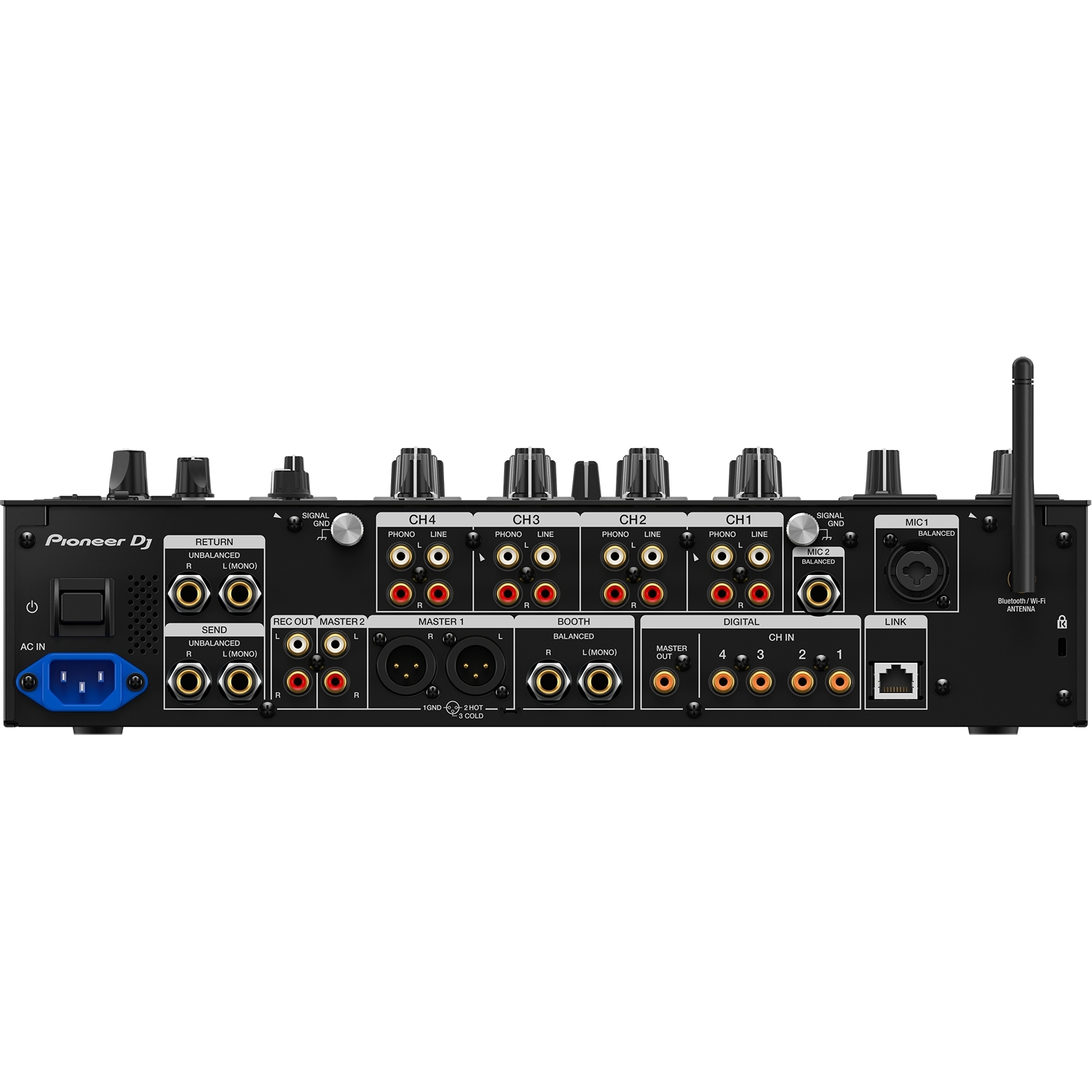

- Input/Output Terminals
- DIGITAL x 4 (coaxial)
- LINE x 4 (RCA)
- PHONO x 4 (RCA)
- MIC x 2 (XLR & 1/4” TRS jack x 1, 1/4” TRS jack x 1)
- MASTER x 2 (XLR x 1, RCA x 1)
- BOOTH x 1 (1/4” TRS jack)
- REC x 1 (RCA)
- DIGITAL MASTER x 1 (coaxial)
- PHONES x 4 (1/4” stereo jack x 2, 3.5-mm stereo mini jack x 2)
- USB Type-A x 1
- USB Type-B / USB Type-C x 2
- SEND (1/4” TS jack) x 1
- RETURN (1/4” TS jack) x 1
- LAN terminal (100BASE-TX) x 1
- Frequency Response: 20 Hz – 40 kHz (LINE)
- S/N Ratio
- 114 dB (USB, Digital IN)
- 88 dB (PHONO)
- 105 dB (LINE)
- 79 dB (MIC 1, MIC 2)
- Total Harmonic Distortion: 0.005 % (LINE-MASTER1)
- Power Consumption: 46 W
- Maximum Dimensions: (W × D × H) 407.4 × 458.3 × 107.9 mm (with the wireless antenna 140.7 mm) / 16.4” x 18.4” x 4.25” (with the wireless antenna 5.54”)
- Weight: 10.2 kg / 22.5 lb
- Power cord
- Quick Start Guide
- Precautions for Use
- Compatible Software: rekordbox, Serato DJ Pro, ShowKontrol, PRO DJ LINK Bridge
