PLX-500

Pioneer DJ PLX-500

Go vinyl

The PLX-500 inherits the layout of the PLX-1000 professional turntable and produces a warm, clear analogue sound. The perfect deck if you want to start playing with vinyl or if you just want to listen to your record collection at home.

Turntable

• Drive Method: Servo-type direct drive
• Platter: Aluminium, die-casting diameter: 332 mm
• Motor: 3-phase, brushless DC motor
• Braking System: Electronic brake
• Rotation Speed: 33?, 45, 78 rpm
• Rotation Adjustment Range: ±8 %
• Wow and Flutter: < 0.15% WRMS
• Signal-to-Noise Ratio: 50 dB
• Starting Torque: > 1.6 kgf?cm
• Start Time: Within 1 sec (at 33? rpm)

Tone Arm

• Arm Type
  • Universal type S-shape tone arm
  • Gimbal-supported type bearing structure
  • Static balance type
• Overhang: 16 mm
• Effective Length: 230.5 mm
• Tracking Error: Within 3°
• Height Adjustment Range: 6 mm
• Stylus Pressure Variable Range: 0-4 g (1 scale 0.1 g)
• Proper Cartridge Weight: < 9.5 g
• Cartridge type: VM

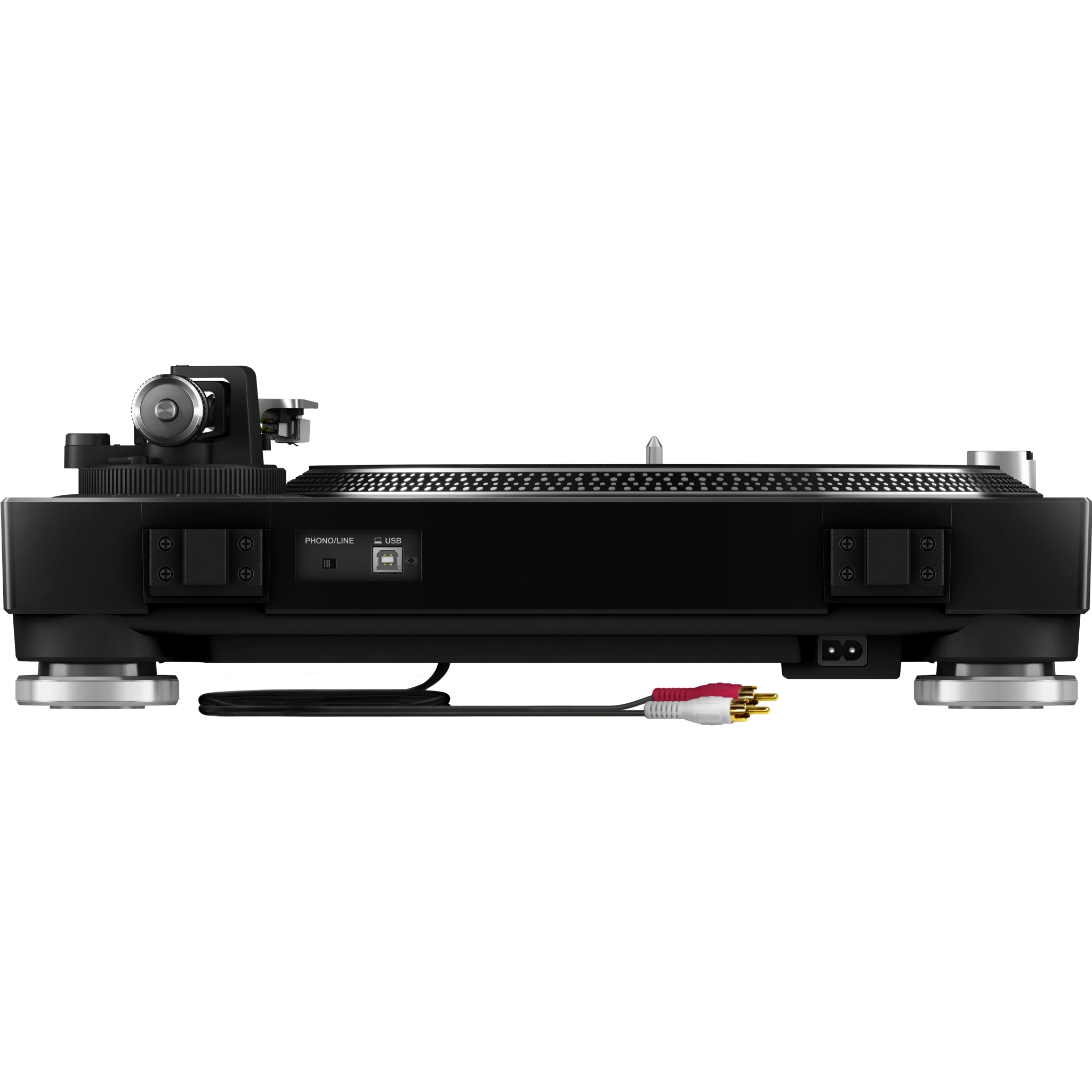

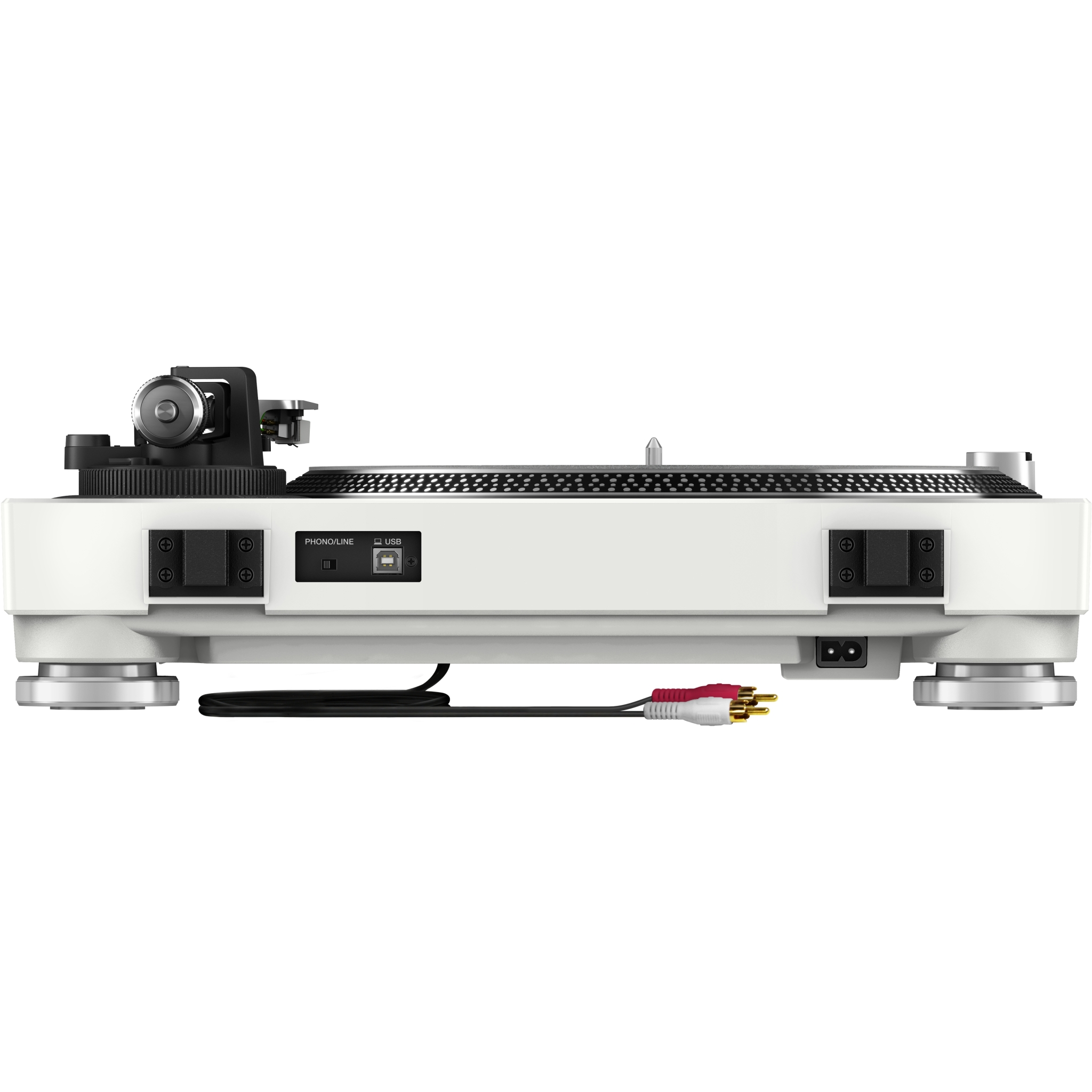

Terminals

• USB: 1 USB B port
• Outputs: 1 PHONO/LINE (RCA)

Specifications

• Width: 450 mm
• Height: 159 mm
• Depth: 368 mm
• Weight: 10.7 kg
