400200051

RIGGATEC 400200051

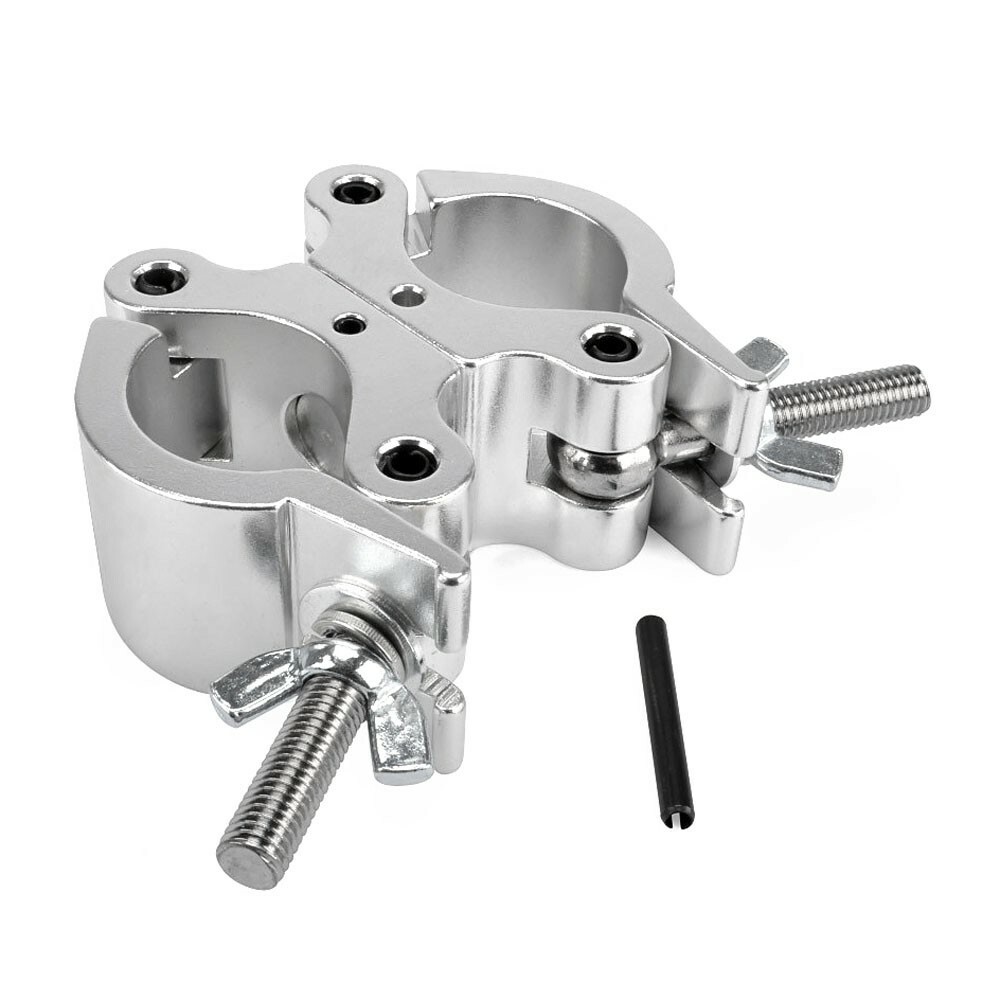

Swivel Coupler Heavy Fixable Silver max. Load 500 kg (48 - 51 mm)

• To fix it in 90°.
• 360° rotation.
• Coupled by bolts.
• Screw plug M12 galvanized with circlip, washer and wing nut.

• General
  • Product type: Truss Accessories
  • Type: Half Coupler
  • Suitable for tube diameter: 48 - 51 mm
  • Tensile load: 500 kg
  • Shear load max.: 60 kg
  • Material: Aluminium
  • Clamp width: 50 mm
  • Length: 120 mm
  • Width: 50 mm
  • Height: 184 mm
  • Weight: 1,1 kg
