400200052

RIGGATEC 400200052

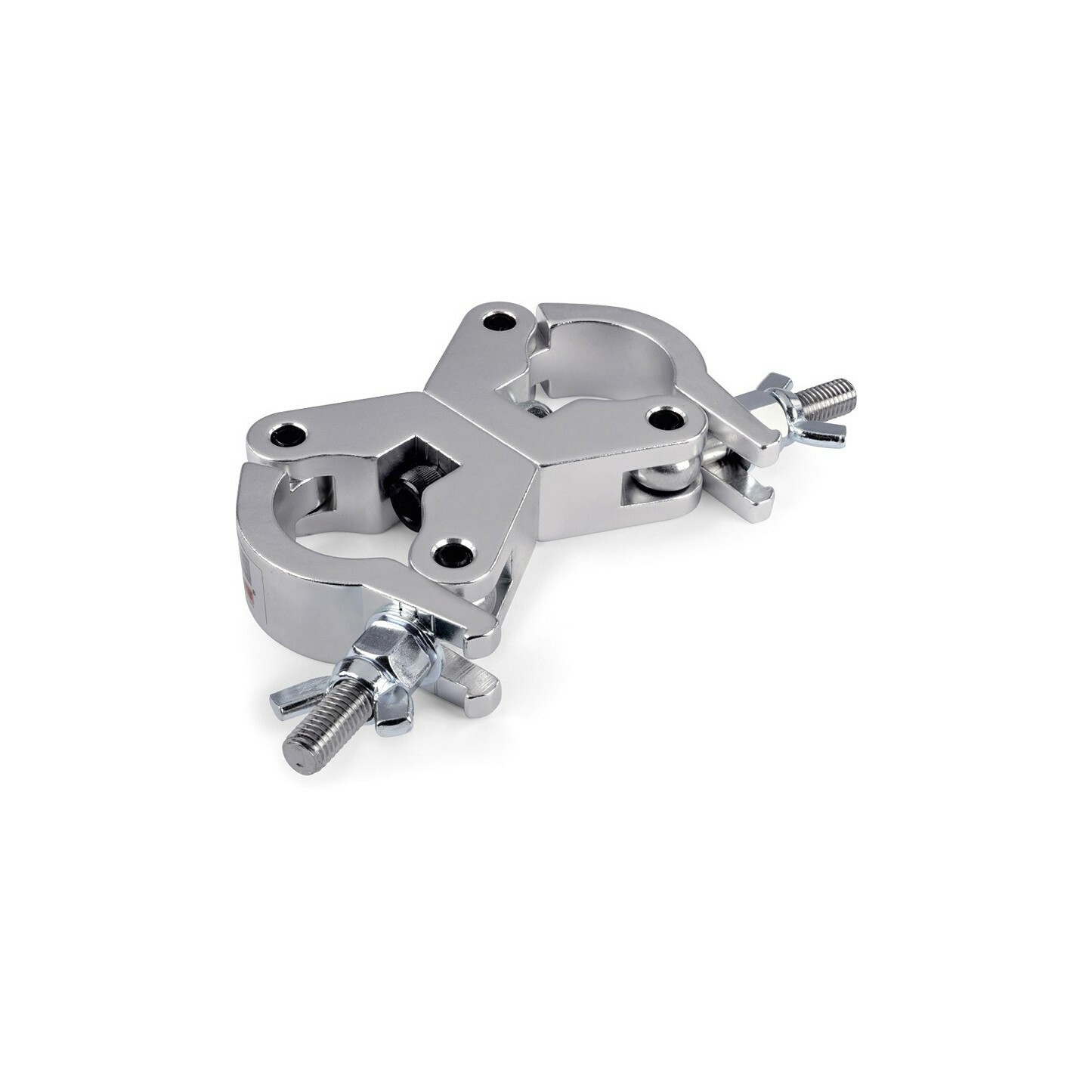

Swivel Coupler Slim max. Load 750kg MKII (48 - 51 mm), Silver

• For 48 - 51 mm pipe diameter.
• 360° turnable.
• TUV approved (certificate can be sent on request).
• Resilient up to 750 kg (tensile load).
• Clamp width: 30 mm.
• Maximum shearing load: 100 kg.
• Material: Aluminum 6061 T6.
• Linked with bolt.
• Lock screw M12 zinc coated with retaining ring, grommet and wing nut.
• Outer dimensions: 113 x 30 x 162 mm (length x width x height).
• Weight: 0,89 kg.

• General
  • Product type: Truss Accessories
  • Suitable for tube diameter: 48 - 51 mm
  • Tensile load: 750 kg
  • Shear load max.: 100 kg
  • Color: Silver
  • Material: Aluminium
  • Clamp width: 30 mm
  • Length: 113 mm
  • Width: 30 mm
  • Height: 162 mm
  • Certification: TÜV-certified
  • Weight: 0,888 kg
