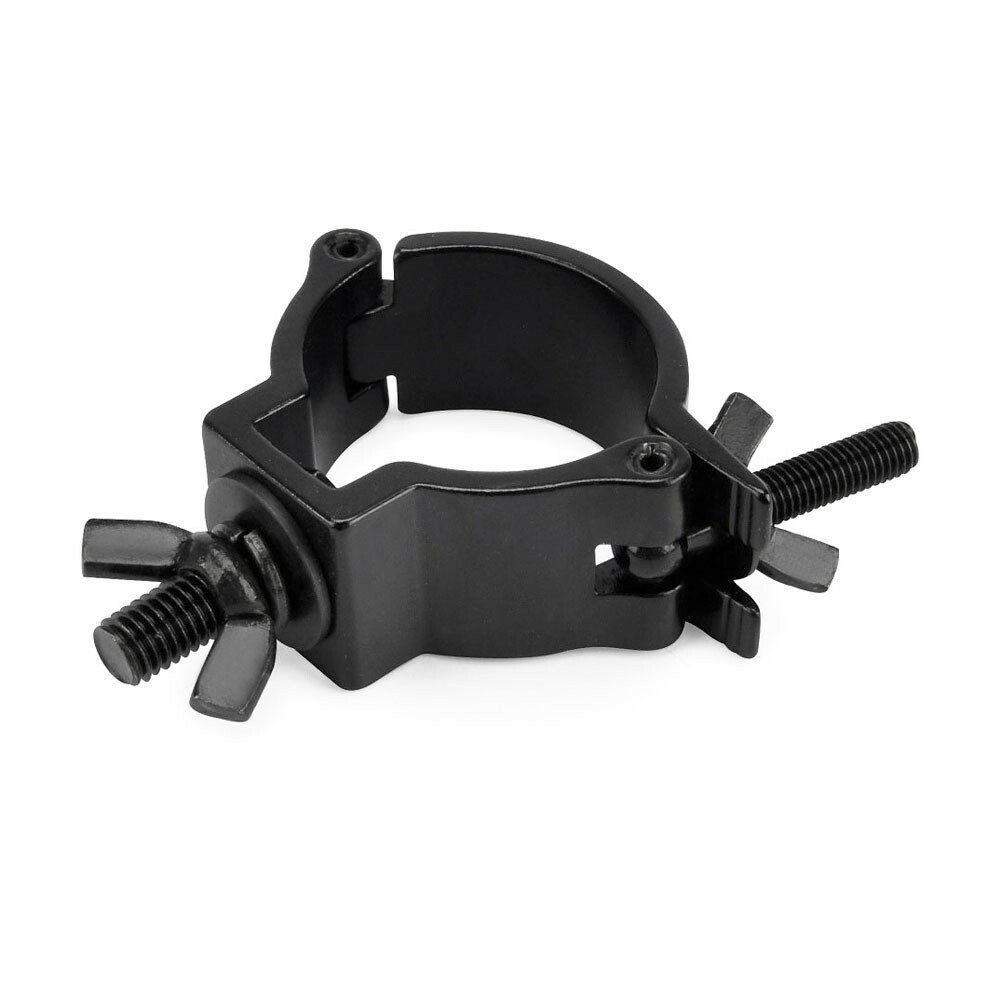

400200055

RIGGATEC 400200055

Halfcoupler Slim Black max. load 100 kg (48 - 51 mm)

• TUV approved (certificate can be sent on request).
• Incl. device screw M10 zinc coated, retaining ring, grommet and wing nut.
• Lock screw M8 zinc coated with grommet and wing nut.

• General
  • Product type: Truss Accessories
  • Type: Half Coupler
  • Suitable for tube diameter: 48 - 51 mm
  • Tensile load: 100 kg
  • Shear load max.: 30 kg
  • Material: Aluminium
  • Clamp width: 30 mm
  • Length: 82 mm
  • Width: 30 mm
  • Height: 73 mm
  • Weight: 0,15 kg
