400200074

RIGGATEC 400200074

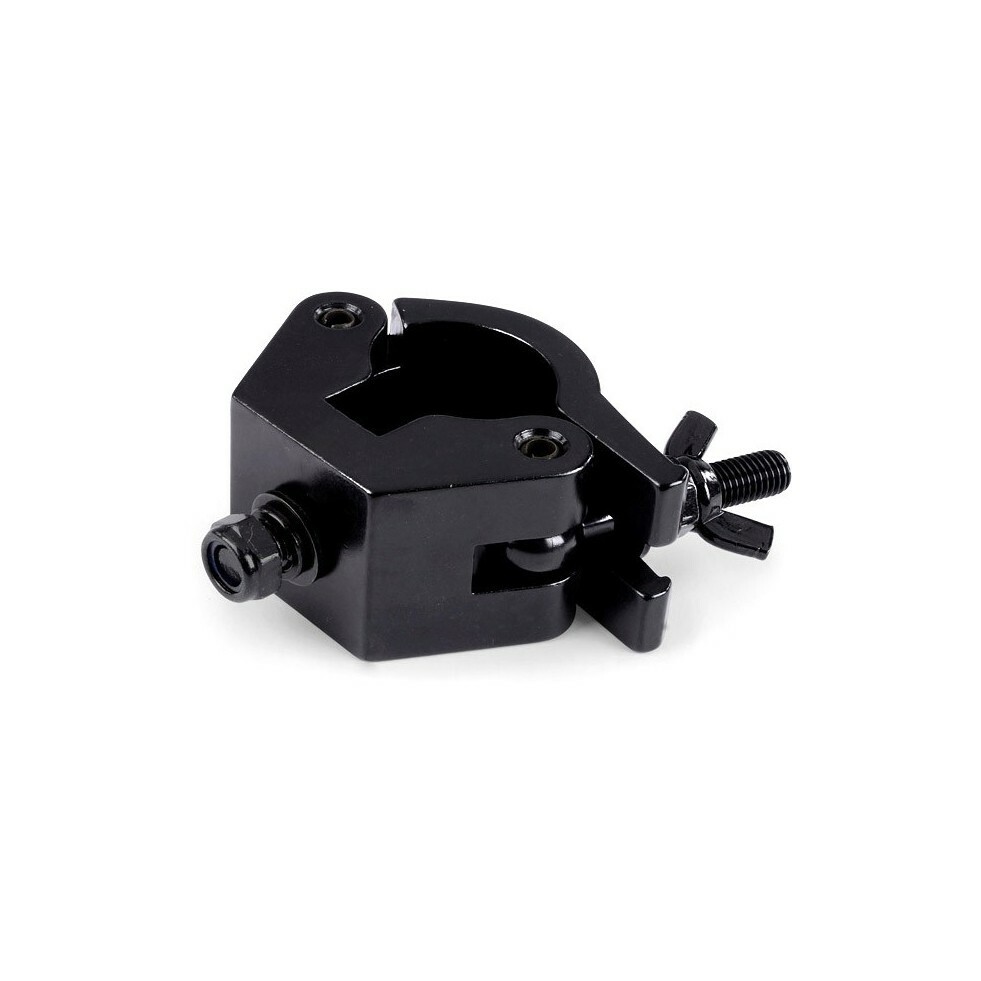

Halfcoupler Heavy Black max. Load 750 kg MKII (48 - 51 mm)

• For 48 - 51 mm pipe diameter.
• Resilient up to 750 kg (tensile load).
• TUV approved (certificate can be sent on request).
• Clamp width: 51 mm.
• Maximum shearing load: 100 kg.
• Material: Aluminum 6061 T6, black.
• Incl. device screw M12 black, retaining ring, grommet and wing nut.
• Lock screw M8 zinc coated with grommet and wing nut.
• Outer dimensions: 113 x 51 x 81 mm (length x width x height without device screw).
• Weight: 0,70 kg.

• General
  • Product type: Truss Accessories
  • Suitable for tube diameter: 48 - 51 mm
  • Tensile load: 750 kg
  • Shear load max.: 100 kg
  • Color: Black
  • Material: Aluminium
  • Clamp width: 51 mm
  • Length: 113 mm
  • Width: 51 mm
  • Height: 81 mm
  • Certification: TÜV-certified
  • Weight: 0,7 kg
