ultra-portable pro-mixerand audio interface

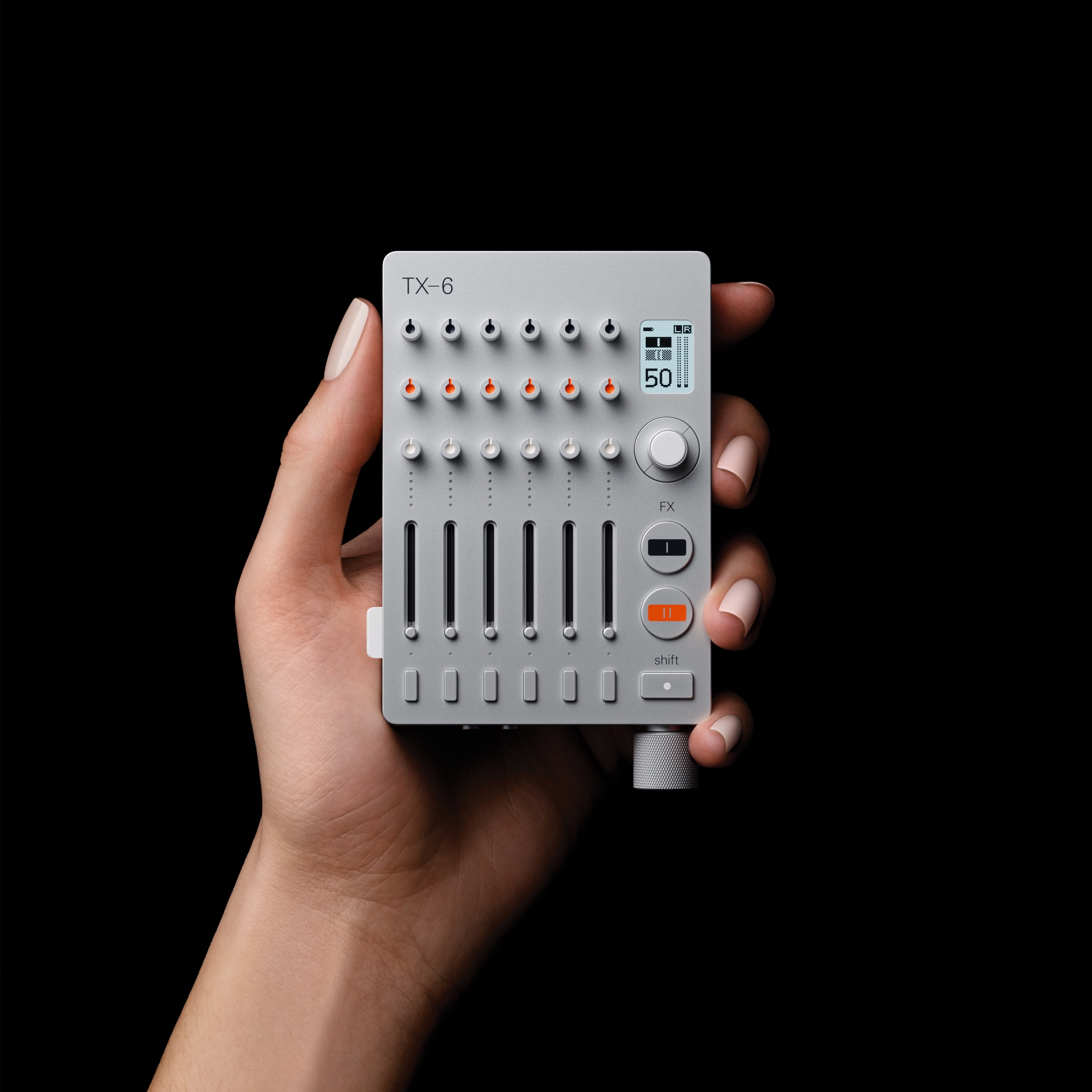

TX–6 is our ultra-portable, battery-powered mixer and multi-channel audio interface. comparable to larger units, but with even more tech packed into one sturdy little machine. mix 6 stereo input channels, use tempo sync, discover the internal synthesizer and sequencer or use the built-in tuner. MFi compatibility even lets you connect to your iOS devices.
smallest of its kind

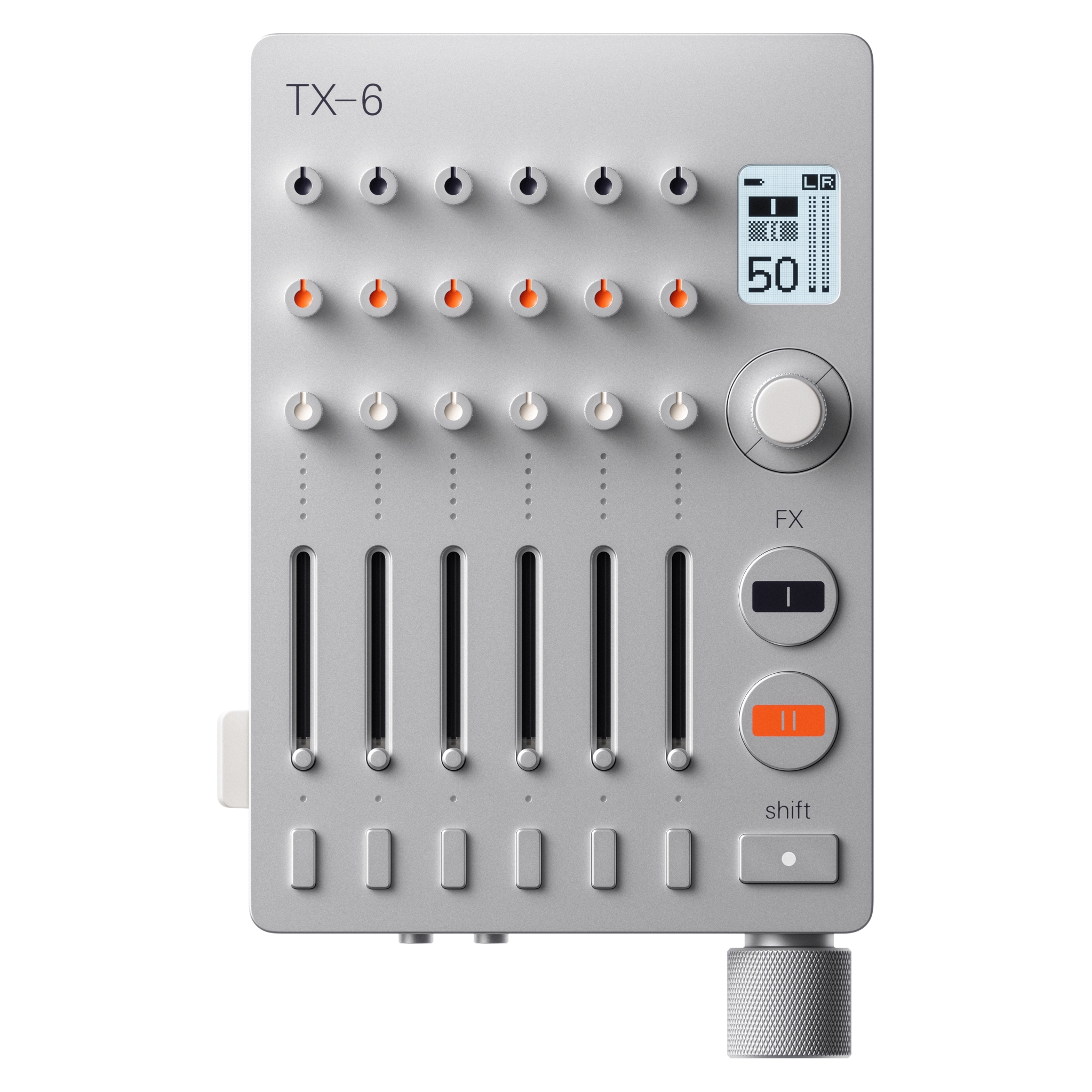

TX–6 features a 6 channel stereo mixer with a configurable knob layout. choose to have the three-band eq at your fingertips, or customize eachknob to control whichever setting you prefer. with more than meets the eye, TX–6 is packed full of features and connectivity options.
size is only half the story
- battery powered
- the rechargeable battery holds for about 8 hours. for energy efficiency, the display automatically goes to sleep when not in use, and led strength is completely adjustable.
- synthesizer & sequencer
- TX–6 also functions as a portable synthesizer and sequencer with 4 oscillator waveforms and 4 synthesized drum sounds. use tempo sync to stay on the beat.
- 8 built-in effects
- explore send effects like reverb, chorus and delay, and creative effects freeze, tape, filter, and distortion. each channel has a three-band eq and adjustable compressor.
- quality and engineering

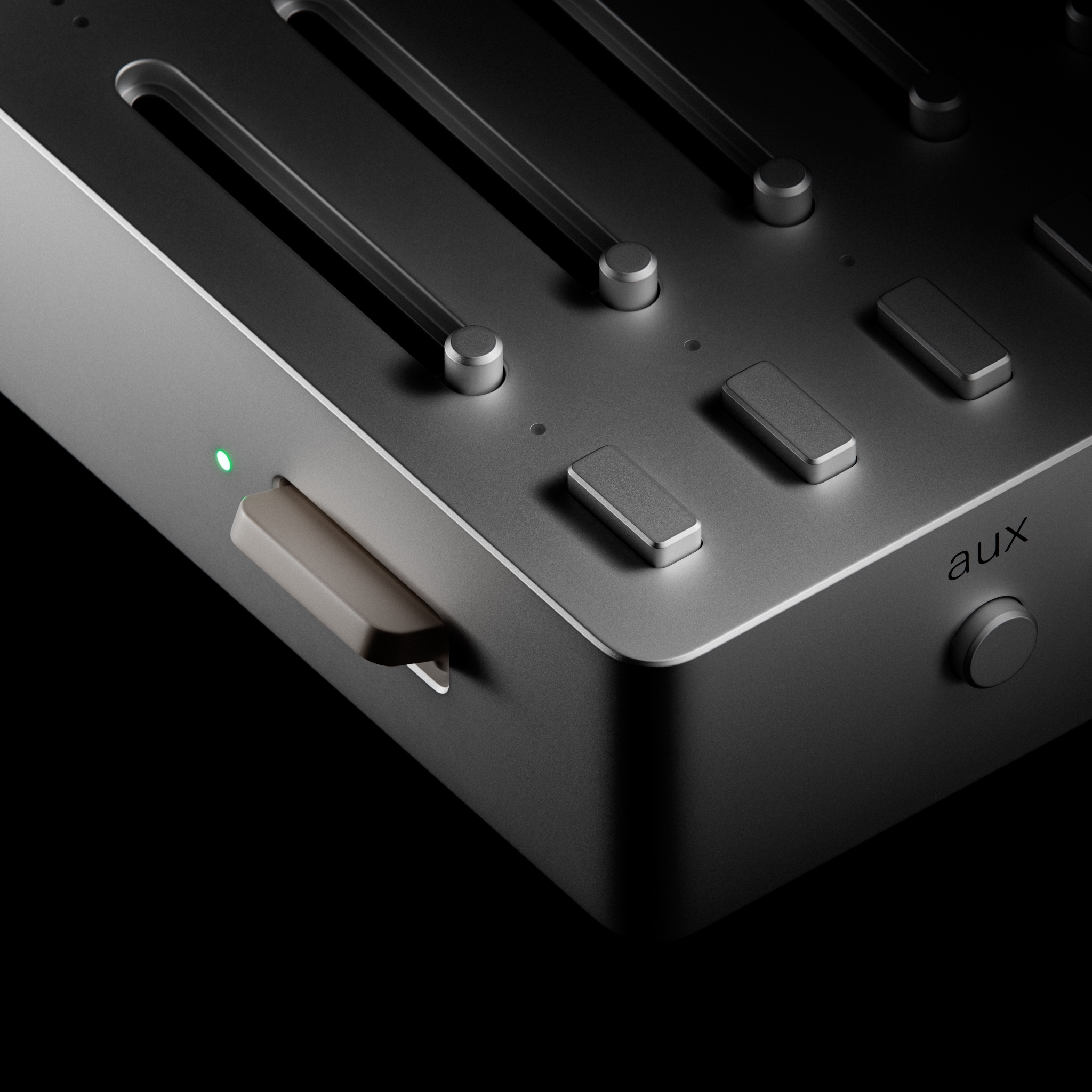

- TX–6 is a sturdy little machine. encased in cnc aluminum with 2k molding, custom-made encoders and faders, and custom pcb - engineered for portability.
- wireless connectivity
- with ble, you can use TX–6 as a wireless controller for other ble midi devices or trigger and sync the internal synth and sequencer from other sources.
- super slimline cables
- high quality, slimline cables custom-made for TX–6. the narrow profile allows you to use all 6 channels at once and makes for an easy pack down.
- customizable interface

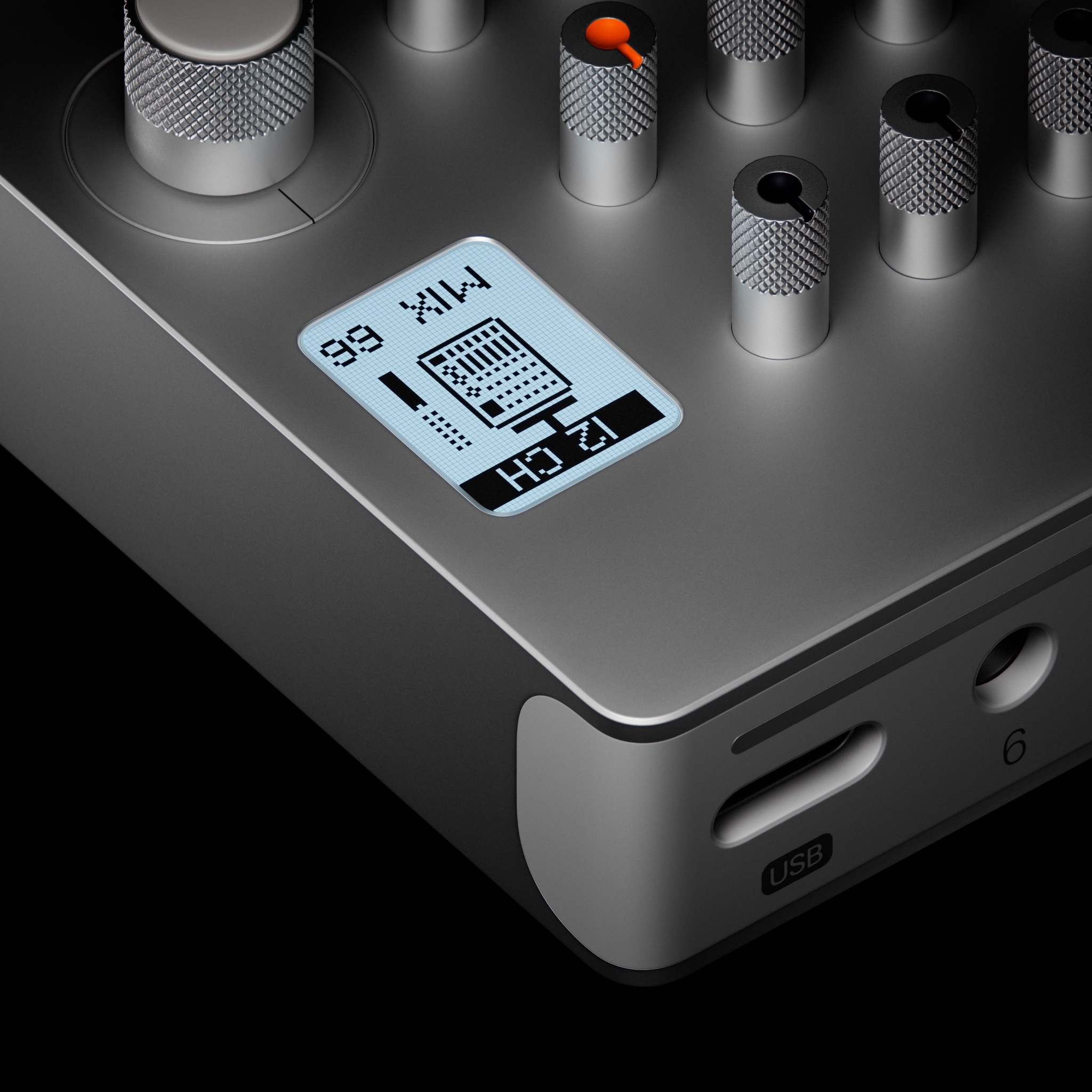

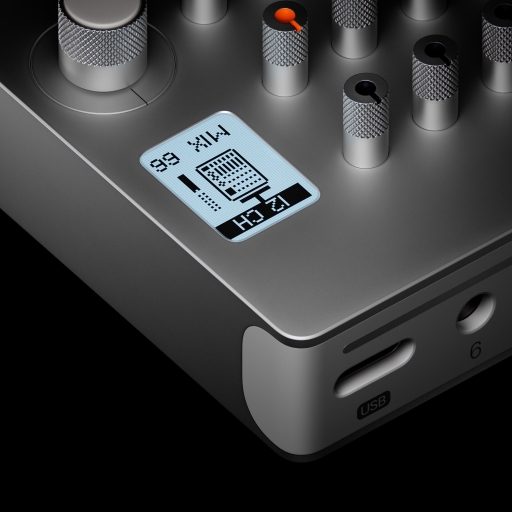

- when you're ready for the studio, use TX–6 as a 12 channel audio interface and connect to any daw over usb-c. MFi also allows you to connect to iOS devices.
- dj mode
- turn TX–6 on its side and use it as a dj mixer. turn channel 1 into a fader to crossfade between the channel 5 and 6 so you can fade or cut between the two.
- 6.35 + 3.5 mm output
- connect your audio output through 3.5 mm mini jack or use the included and removable 6.35 mm jack to 3.5 mm mini jack adapter.
- field bags
- designed to fit TX–6 field mixer and constructed in heavy duty fabric and hardware, field bags are designed for durability, ready to be used out in the field.
the first portable pro-mixer that can be used as a multi-functional 24-bit 48kHz audio interface that has an instrument tuner, built-in digital fx, synthesizer and drum machine.
connect to your daw for 12 channel multitrack recordings. use the internal synth and sequencer, or control them via external midi device. with MFi you can even connect to your iOS device.

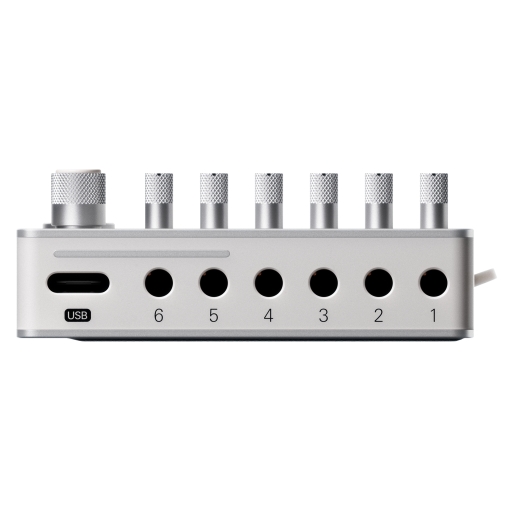

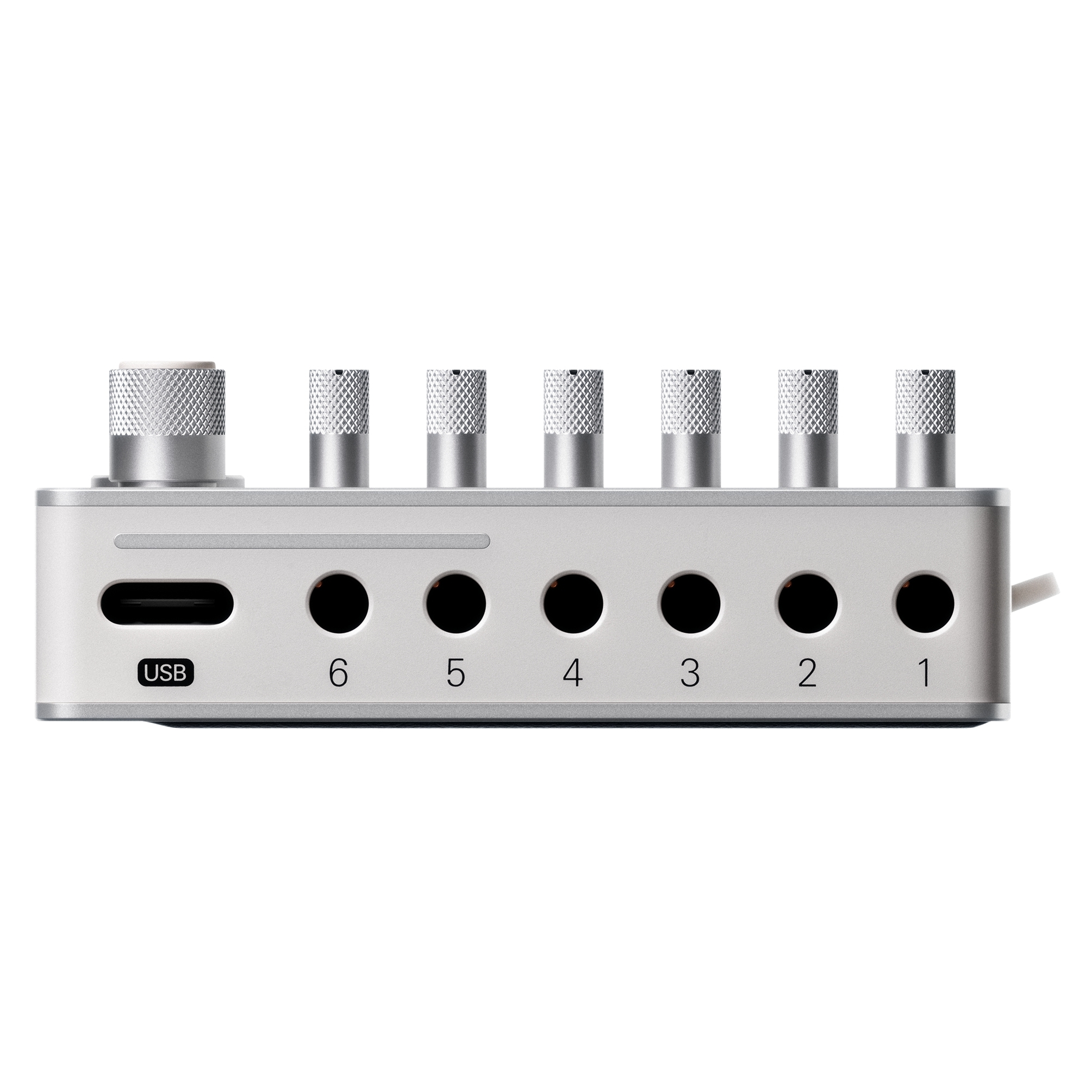

- 6 stereo input connectors
- 2 stereo output connectors
- 1 stereo headphones connector with headset microphone support
- usb audio / midi interface
- bluetooth low energy radio interface
- rechargeable battery
- 8h battery life
- 48x64 pixel monochrome display

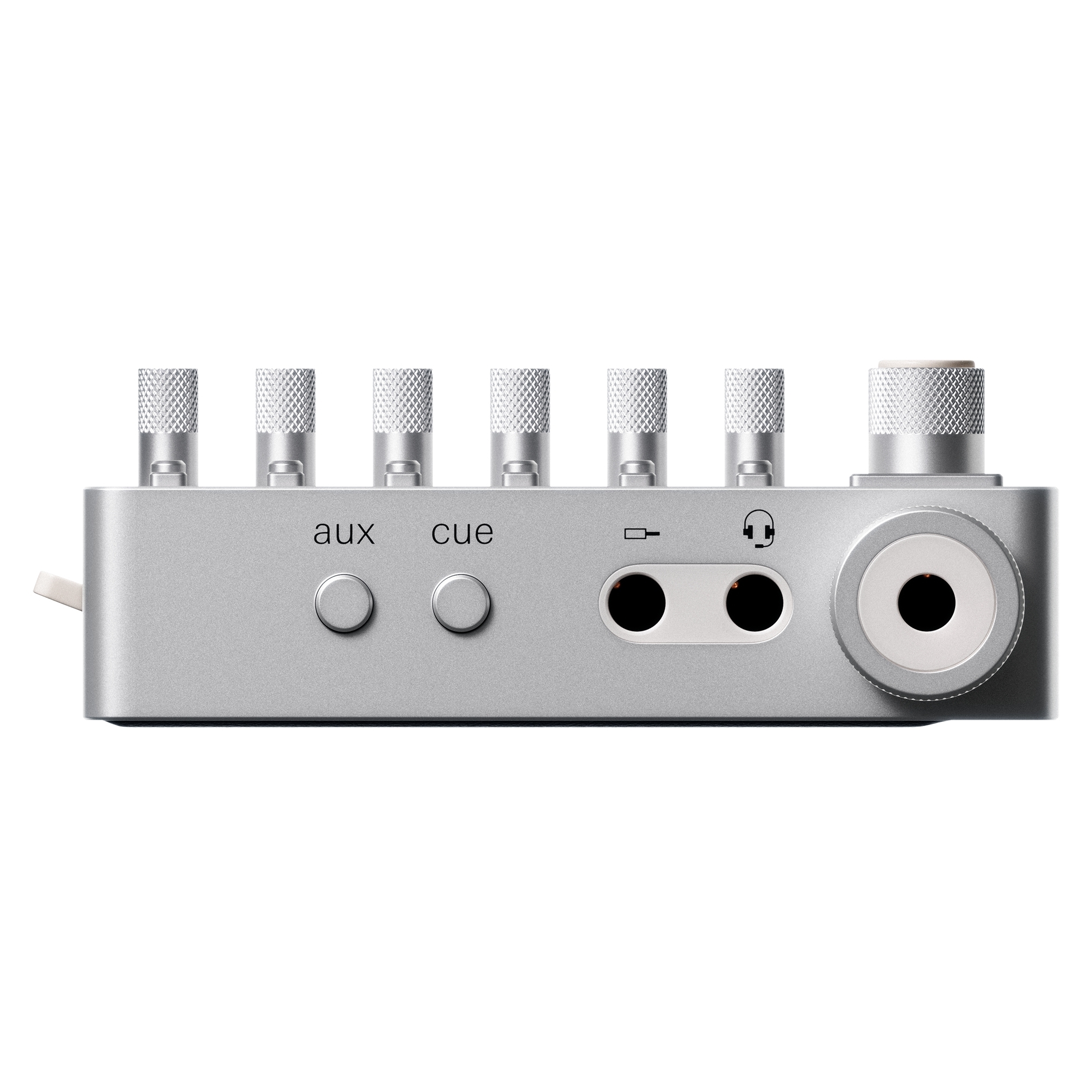

inputs and outputs
- 24-bit/48kHz usb interface
- 3.5 mm mini jack to 6.3 mm jack
- headset mic input
- aux output
- connect to iPhone®, lightning cable
- stereo or mono for each input
dimensions and weigth
- 90 mm (102 mm with adapter) x 62 mm x 23 mm
- 160 g / 5.6 oz
- audio inputs: impedance 10 kOhm analog gain 0 - 42 dB max level 8 dBu, 2 VrmsTLV320ADC3140 burr-brown™SNR ~ 102 dBA
- audio output (main and aux): max level 8 dBu, 2 Vrms cirrus logic master hifi CS43131SNR > 120 dBA
- audio output (cue): max level 2 dBu, 1 Vrms cirrus logic CS47L35SNR > 110 dBAhandling
- ambient working temperature: 0-50°C (32-122°F)
- ambient storage temperature: 0-30°C (32-86°F)
- battery powered
