Beskrivning
Cameo AURO SPOT 200
Cameo AURO® SPOT 200 är ett RDM-aktiverat ultraljust rörligt huvud med 16-bitars upplösning, 630 ° panorering och 235 ° lutningsrörelse och höghastighets 3-fasmotorer. Den drivs av en enda 100 watt LED och har 8 intensiva färger plus vita och delade färger, 6 utbytbara gobos och ett roterande 3-fasettprisma för fantastiska effekter.
AURO® SPOT 200 har 5-kanals, 13-kanals, 22-kanals DMX-kontrolllägen, autokörningsprogram och ljudaktivering samt master-, slav- och fristående funktioner. Funktionerna inkluderar ett urval av 4 släta dimningskurvor, skakningseffekter och en 0 - 20 Hz cykelstrobe.
Det kraftiga huset integrerar en temperaturkontrollerad fläkt med låg ljudnivå, 3-stifts och 5-stifts DMX-ingångar och -utgångar, Neutrik powerCON-nätkontakter och en 4-knapps LCD-kontrolldisplay. Multispänningen AURO® SPOT 200 arbetar på 100 - 240 V AC.
Description (Engelska)
- :
Cameo AURO SPOT 200
LED Moving Head
- RDM enabled moving head.
- 130,000 lx @ 1 m.
- High speed 3-phase motors.
- 16-bit resolution.
- Motor Focus.
- Automated positioning correction.
- Battery powered display for offline operation.
- 8 intense colours, white and split colours.
- 6 rotating and interchangeable gobos + open.
- All gobos replaceable with metal or glass gobos.
- Rotating 3-facet prism.
- Smooth dimming from 100 - 0% with 4 selectable curves.
- 0 - 20 Hz strobe.
- Temperature controlled low noise fan.
- Professional connectivity with 3 and 5-pin DMX and Neutrik powerCON I/O.
The Cameo AURO® SPOT 200 is an RDM enabled ultra bright moving head with 16-bit resolution, 630° pan and 235° tilt movement and high speed 3-phase motors. It is powered by a single 100 watt LED and sports 8 intense colours plus white and split colours, 6 replaceable gobos and a rotating 3-facet prism for awesome effects.
The AURO® SPOT 200 features 5-channel, 13-channel, 22-channel DMX control modes, auto run programs and sound activation as well as master, slave and standalone capabilities. Functions include a choice of 4 smooth dimming curves, shake effects and a 0 - 20 Hz cycle strobe.

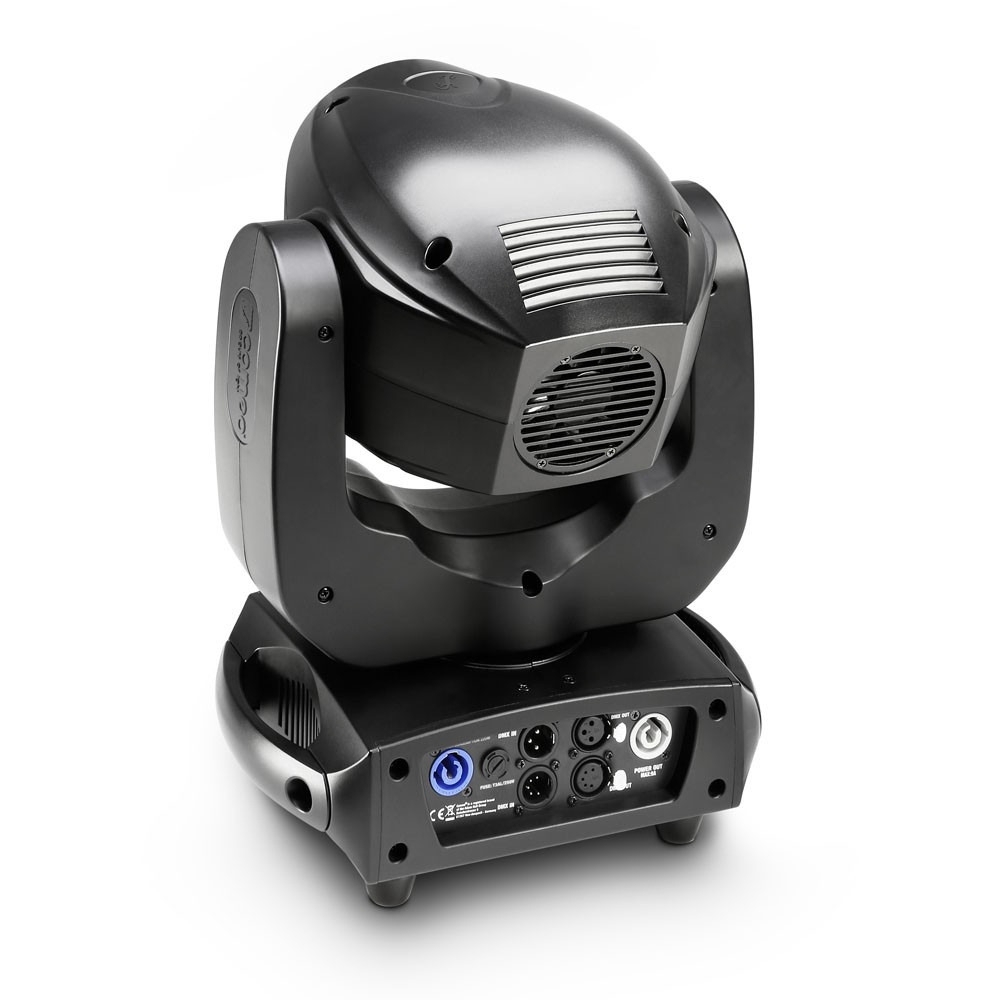

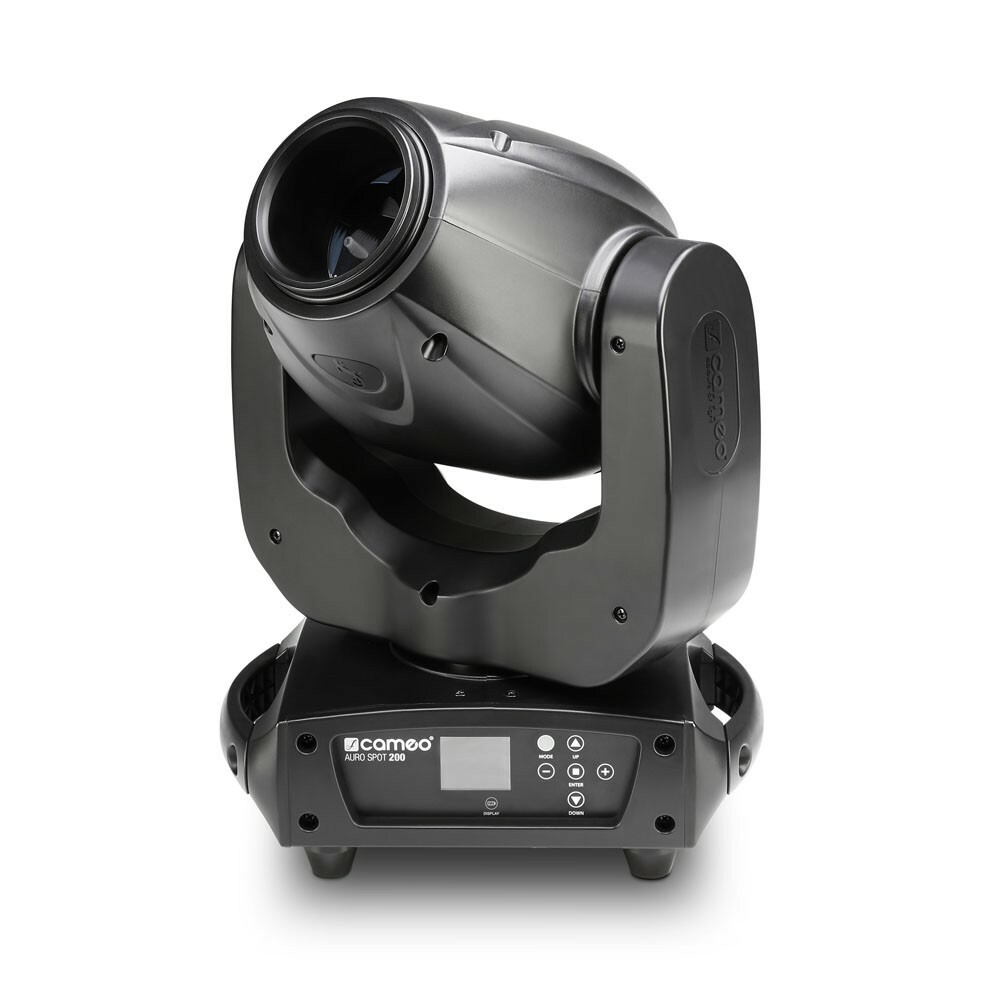

The heavy-duty housing integrates a temperature controlled low noise fan, 3-pin and 5-pin DMX inputs and outputs, Neutrik powerCON mains connectors and a 4-button LCD control display. The multi-voltage AURO® SPOT 200 operates on 100 - 240 V AC.
- General
- Product type: LED Moving Lights
- Type: LED Moving Heads
- Colour spectrum: 8-channel multi colour, Split colours, white
- Number of LEDs: 1
- Color temperature: 10000 K
- LED type: 100 W
- Dispersion: (manually adjustable) 12° - 16 °
- Number of gobos: 6 + open
- Gobo Size: Outer diameter 22.90 mm, Image diameter: 19.50 mm mm
- DMX input: XLR 3-pin male, XLR 5-pin male
- DMX output: XLR 3-pin female, XLR 5-pin female
- DMX mode: 13-channel, 22-channel, 5-channel
- DMX Functions: Auto programs, Dimmer, Dimmer Curve, Gobo Shake, Gobo wheel, PAN, TILT
- PAN movement: 630°
- TILT movement: 235°
- High Speed Strobe: 1 - 20 Hz
- Standalone modes: Auto run, Show, sound control
- Controls: -, +, Enter, Mode, Value Down, Value Up
- Indicators: Colour LC display
- Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
- Power consumption: 220 W
- Power connector: Neutrik powerCON IN / OUT
- Housing material: ABS plastic, Metal
- Cabinet colour: Black
- Cooling: Silent, temperature controlled fan
- Illuminance: 130000lx @ 1m
- Luminous flux: 3250 lm
- Width: 285 mm
- Height: 480 mm
- Depth: 180 mm
- Weight: 8,8 kg
