Q-SPOT 40i

Cameo Q-SPOT 40i

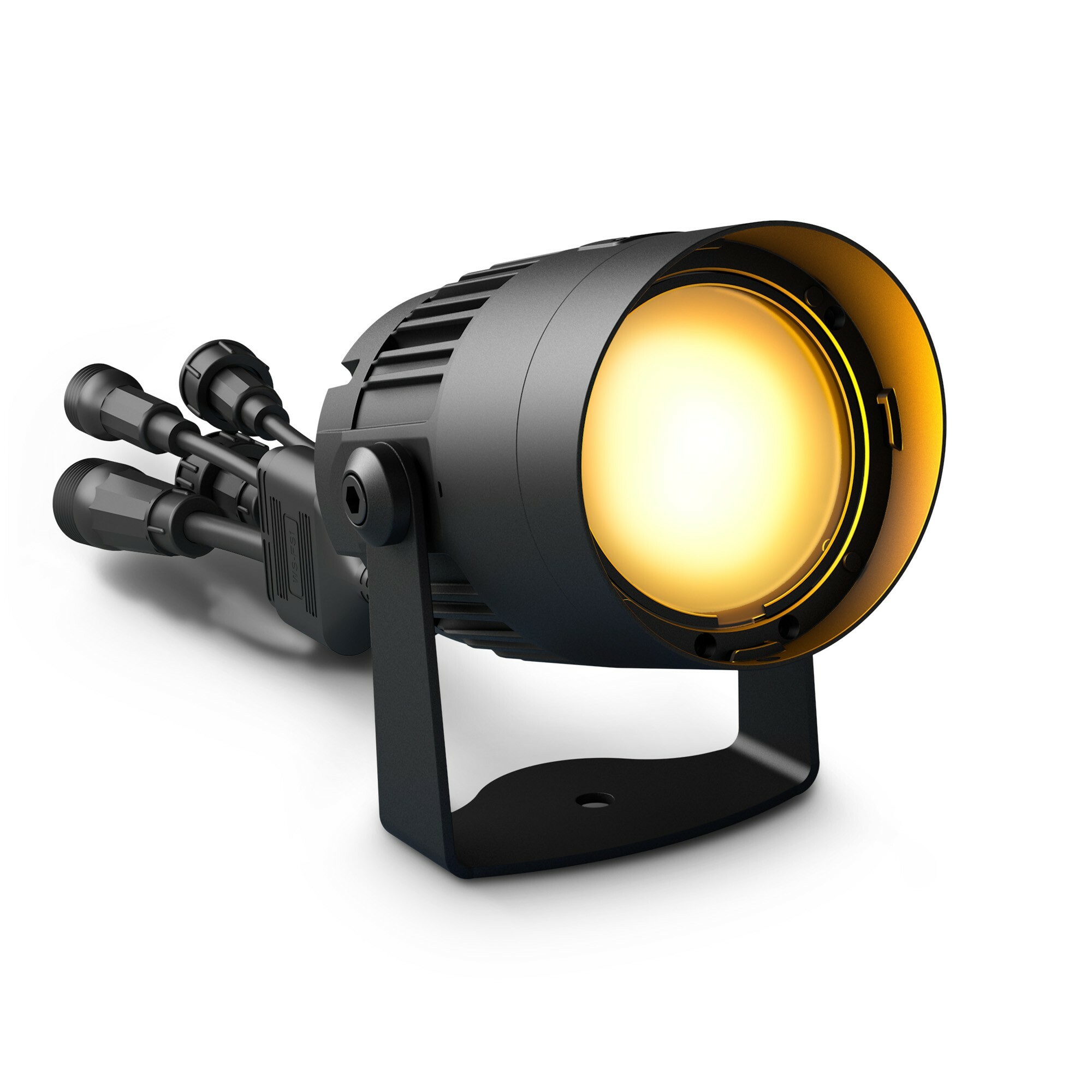

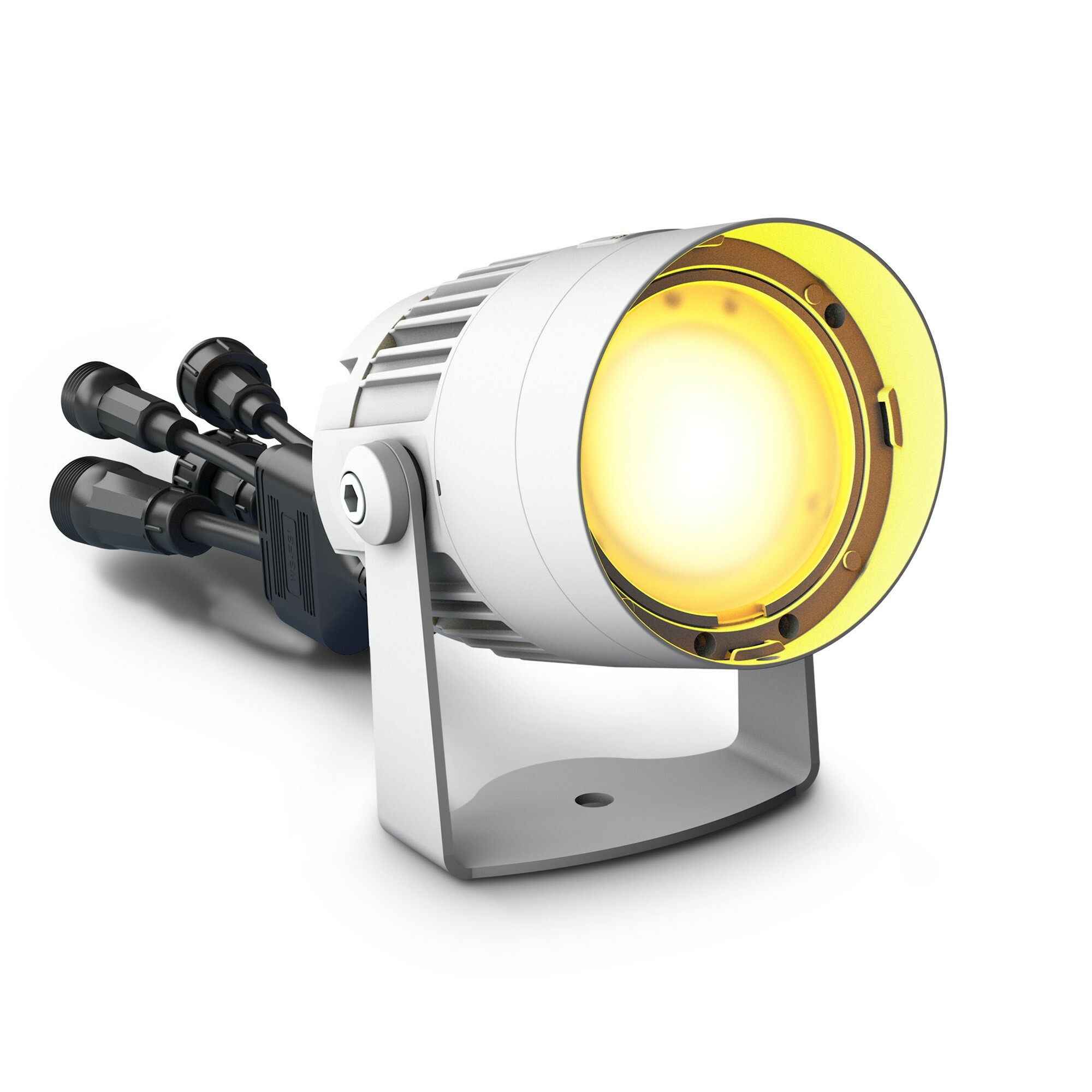

Compact IP65 Outdoor Spotlight with 40 W RGBA LED

• Compact LED outdoor spotlight with single 40W RGBA LED.
• IP65 rated for permanent outdoor installation.
• Custom lens with 4.5° beam spread for uniform light intensity.
• RDM enabled.
• 360° rotatable anti-glare shield.
• 16-bit technology for high definition colours and ultra smooth dimming.
• 4 high resolution dimming curves with adjustable response.
• 4 modes of DMX control plus master, slave and standalone capability.
• OLED display with 4 touch buttons for easy configuration.
• Convection cooling for noiseless performance.
• Includes ground spike and 2 replacement lenses for 10° or 25° beam angles, Power & DMX IN cables and endcaps for Power & DMX I/O.
• IR remote control optionally available (item no. CLQSREMOTE2).

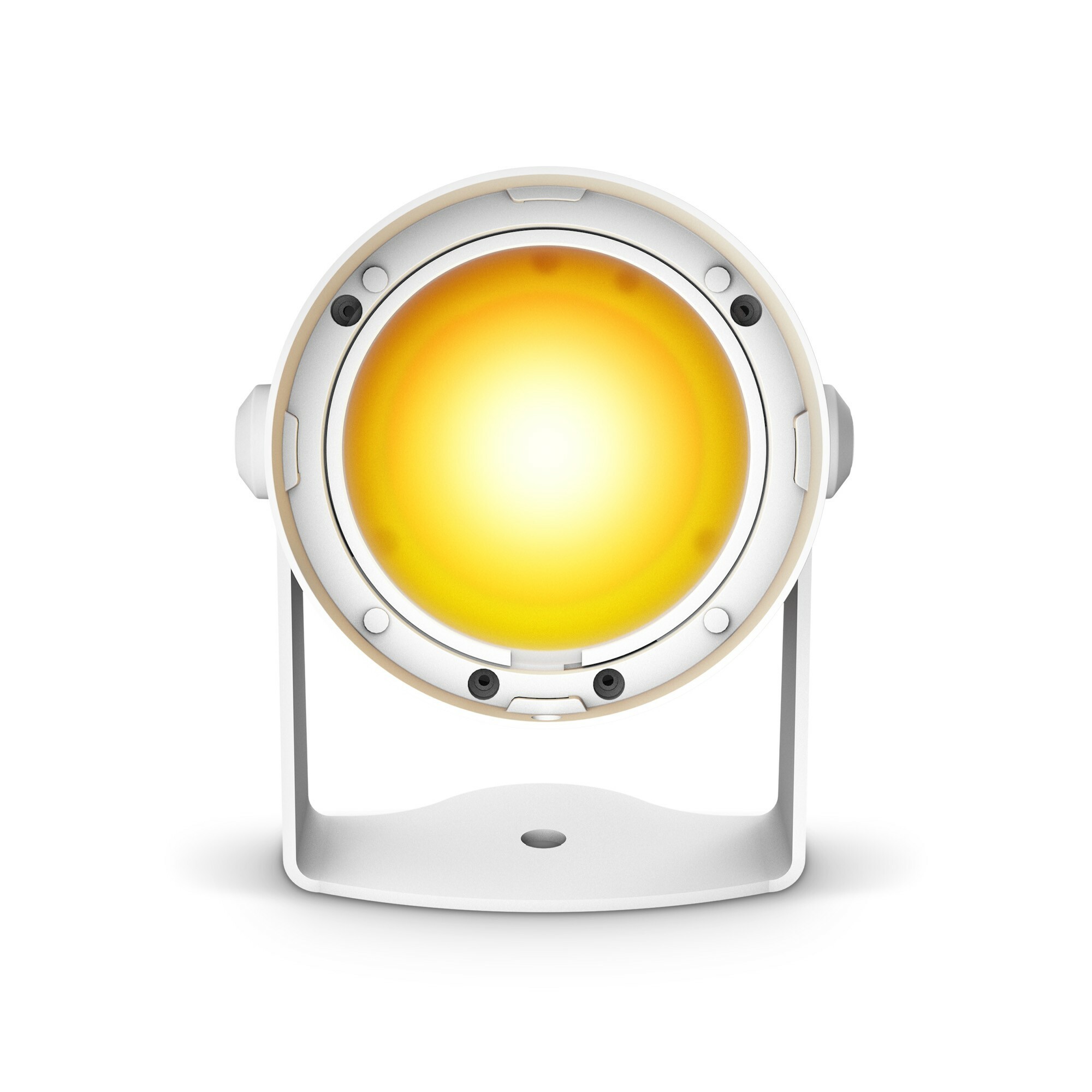

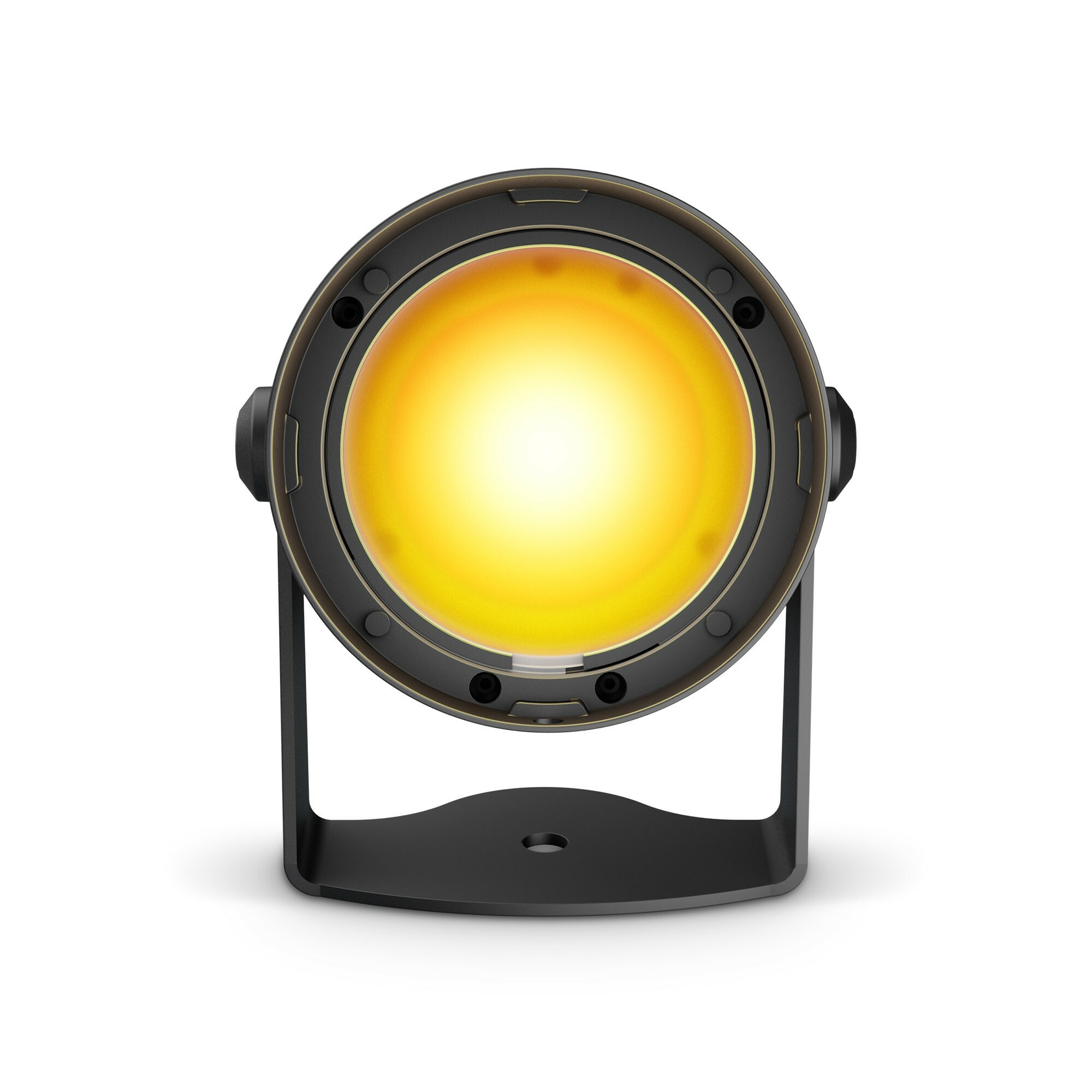

• Available in black or white housing.

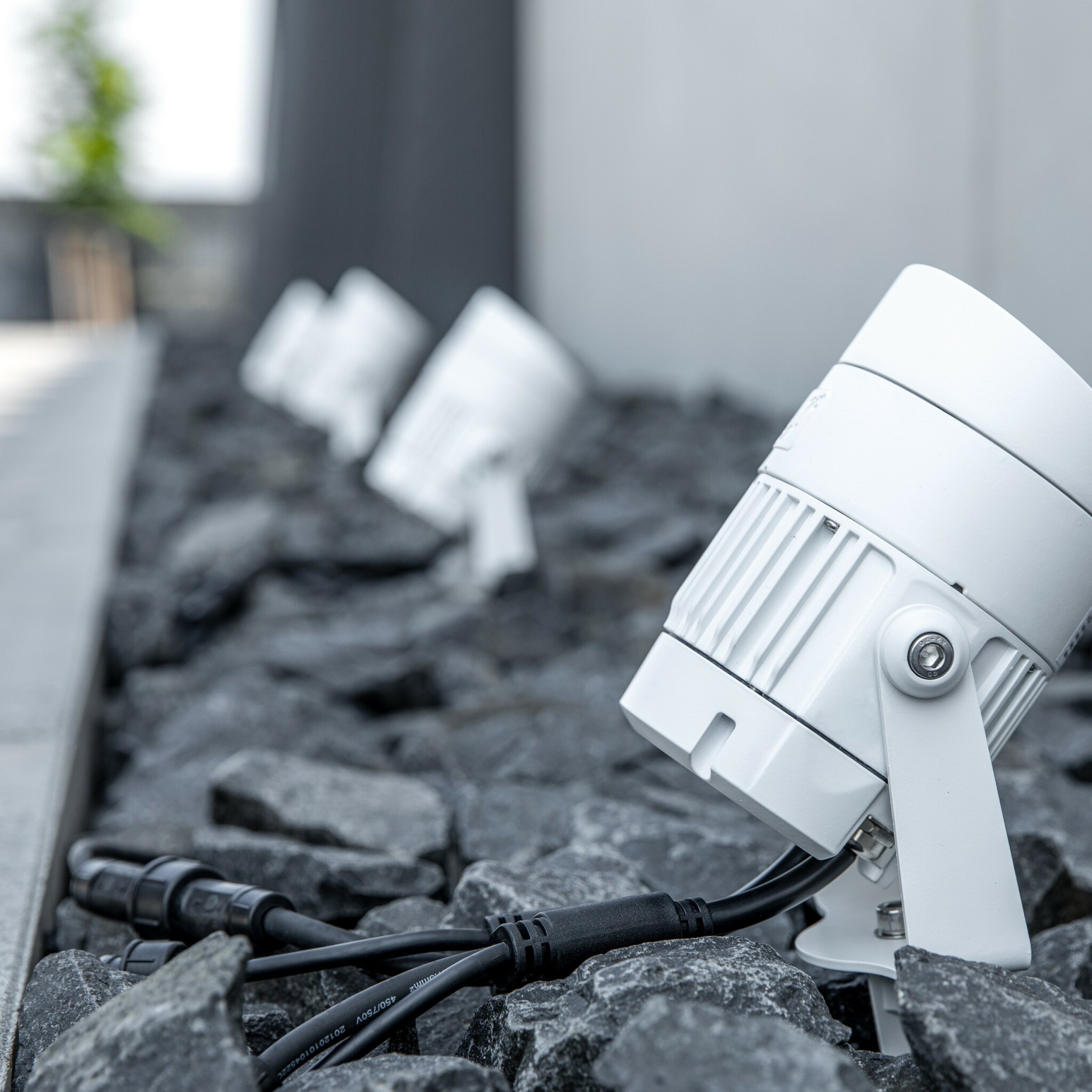

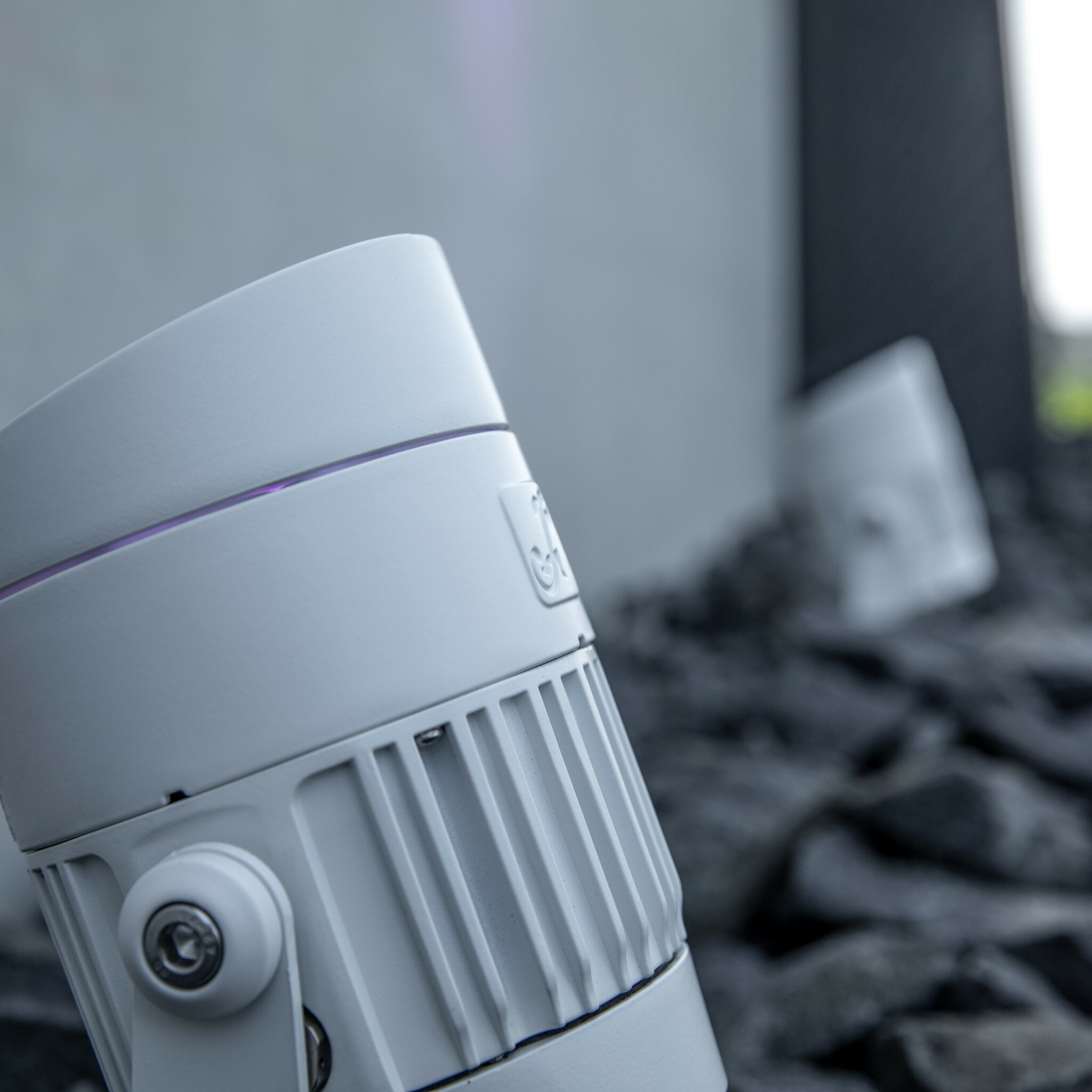

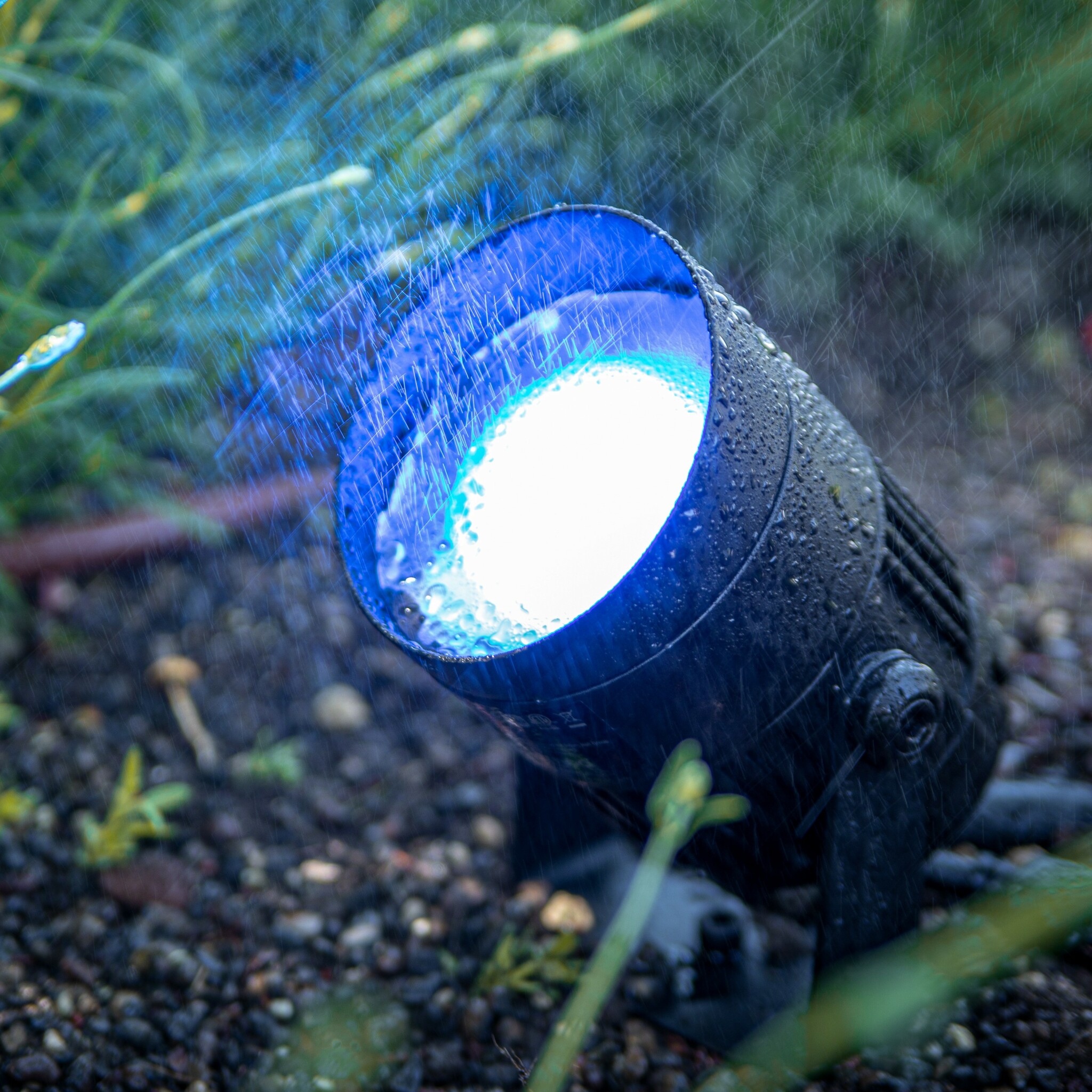

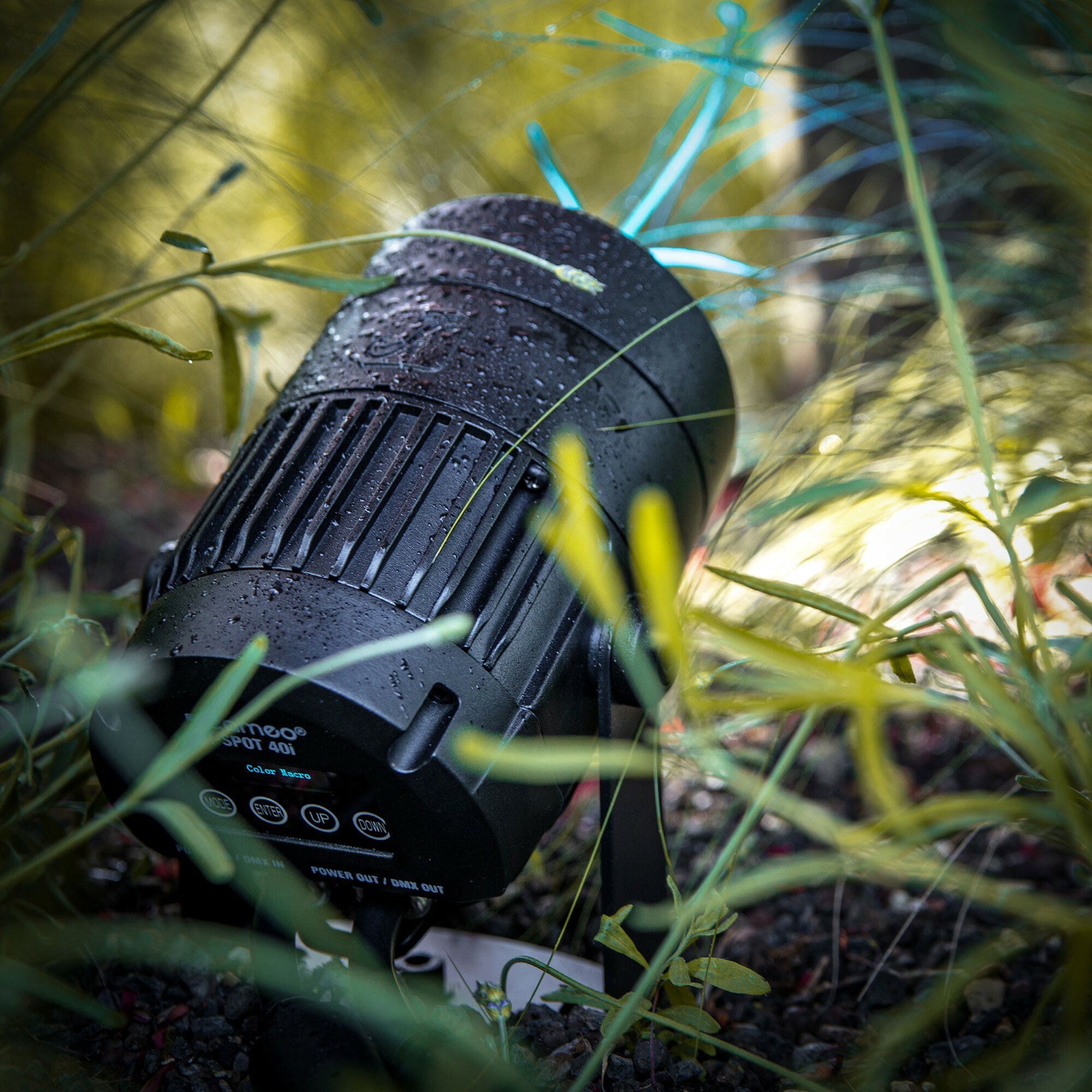

Highlighting objects with pinpoint accuracy and showcasing them in brilliant colours both indoors and outdoors - that is the forte of Cameo's Q-Spot 40i. The compact, IP65-certified spotlight can be used in horticulture and public parks as well as in galleries or museums. It is equipped with a powerful 40 watt RGBA LED that has a 50,000 hour life expectancy and comes with a 360° rotatable anti-glare shield.

The Q-Spot 40i is RDM enabled and sports a custom lens for a tightly focussed 4.5° beam spread. It comes with two replacement lenses offering versatility and a choice of 10° and 25° angles. Using 16-bit technology, the spotlight achieves intense, high definition RGBA colour mixes and ultra smooth dimming with selectable curves and response. It operates without flicker, and highly efficient convection cooling ensures noiseless operation and minimum maintenance requirements.

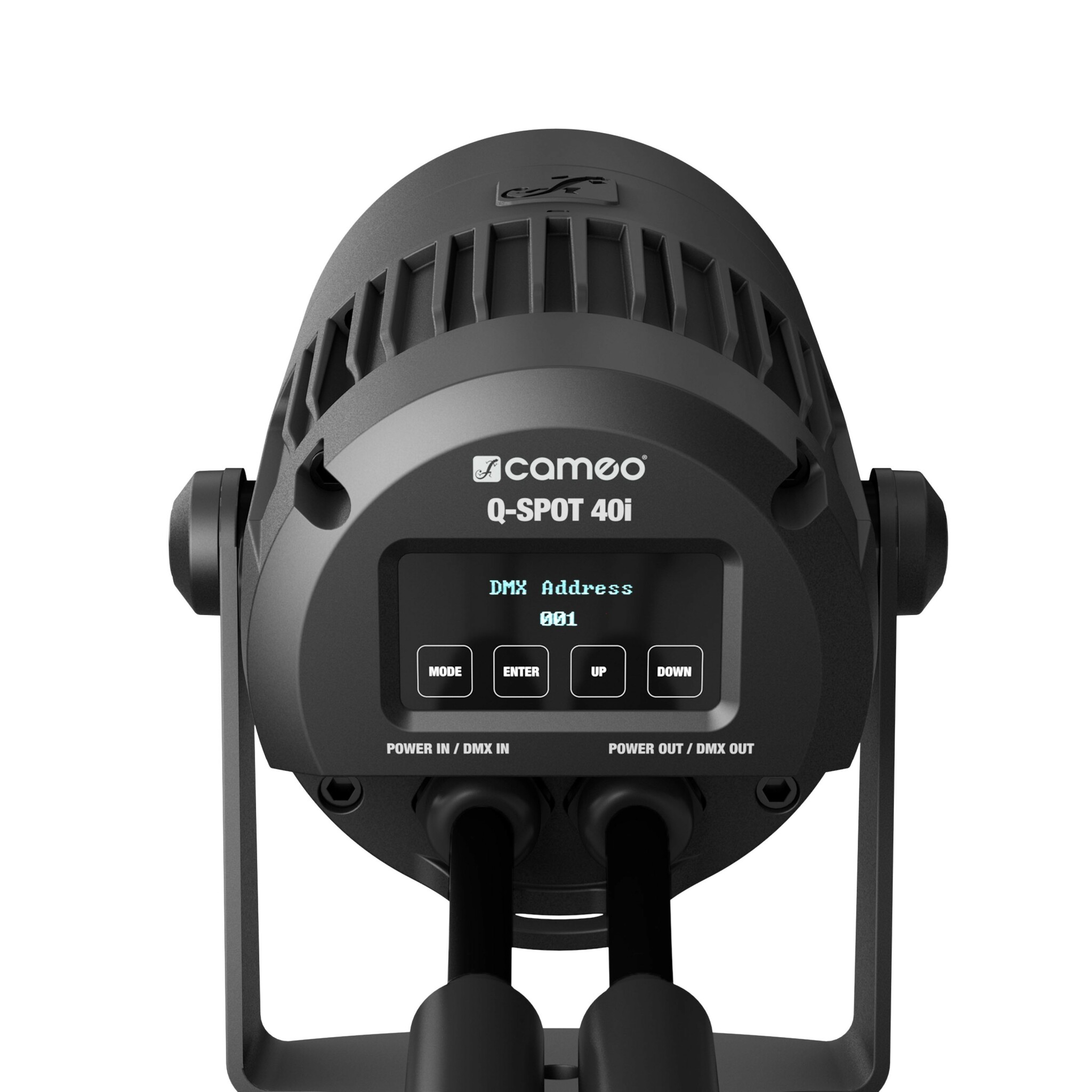

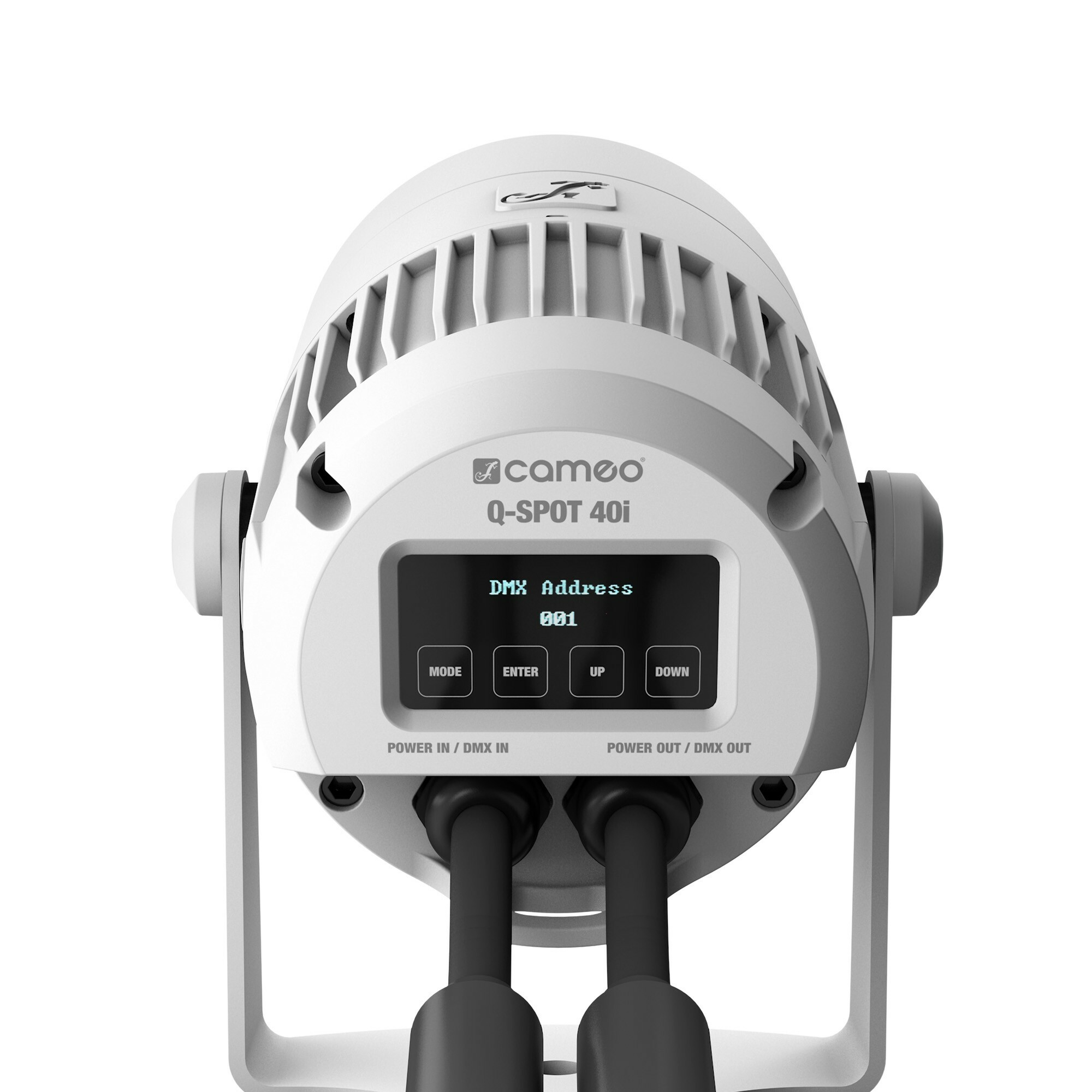

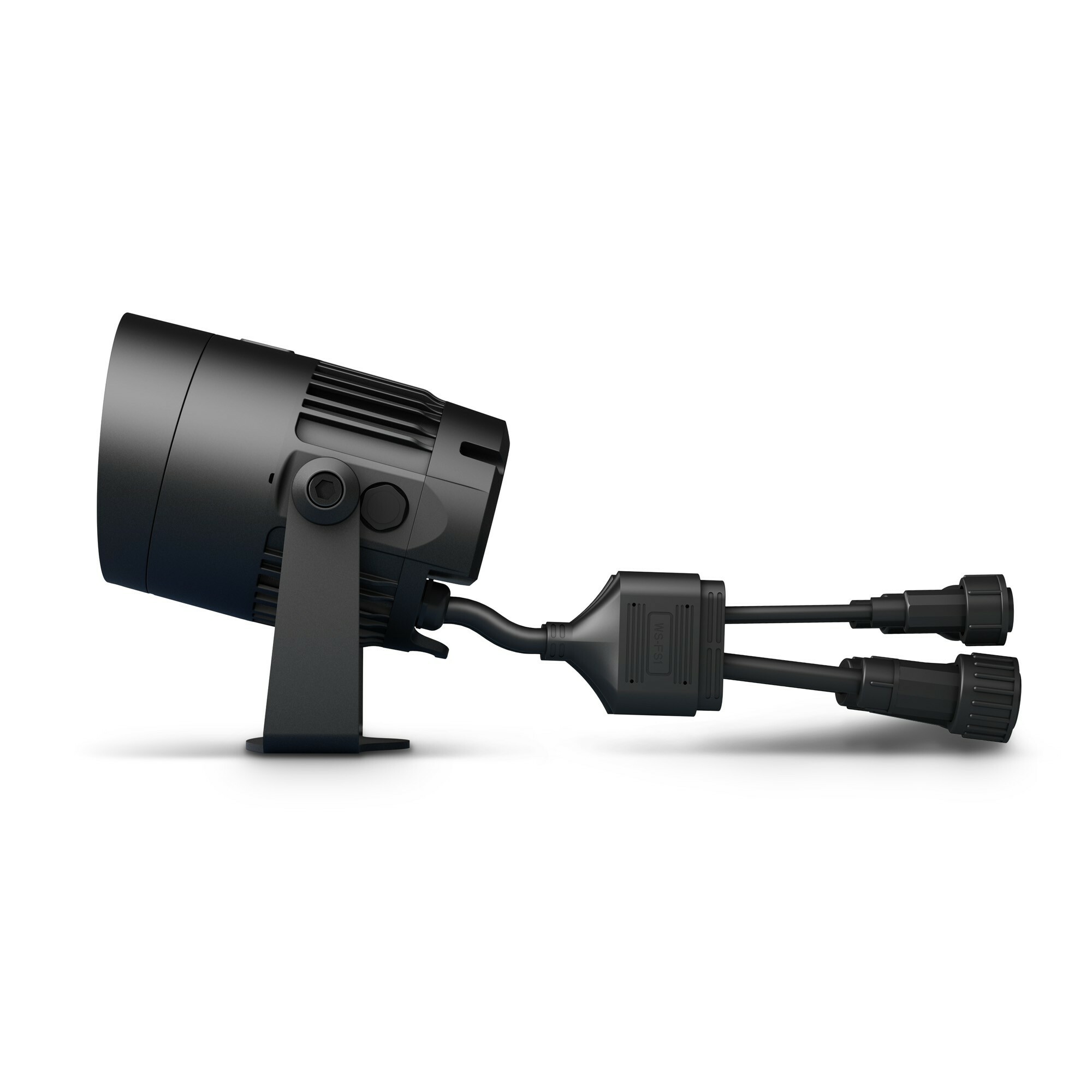

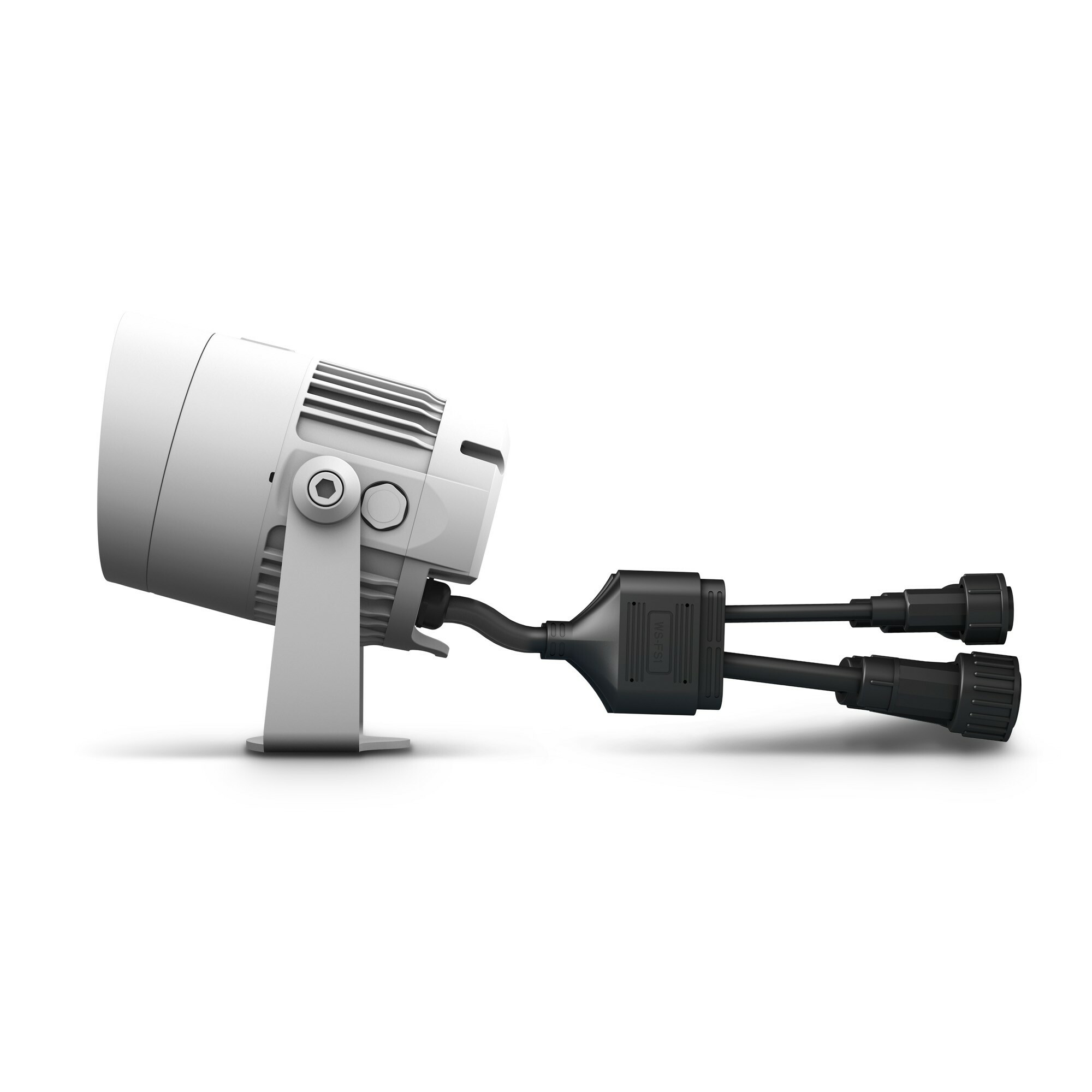

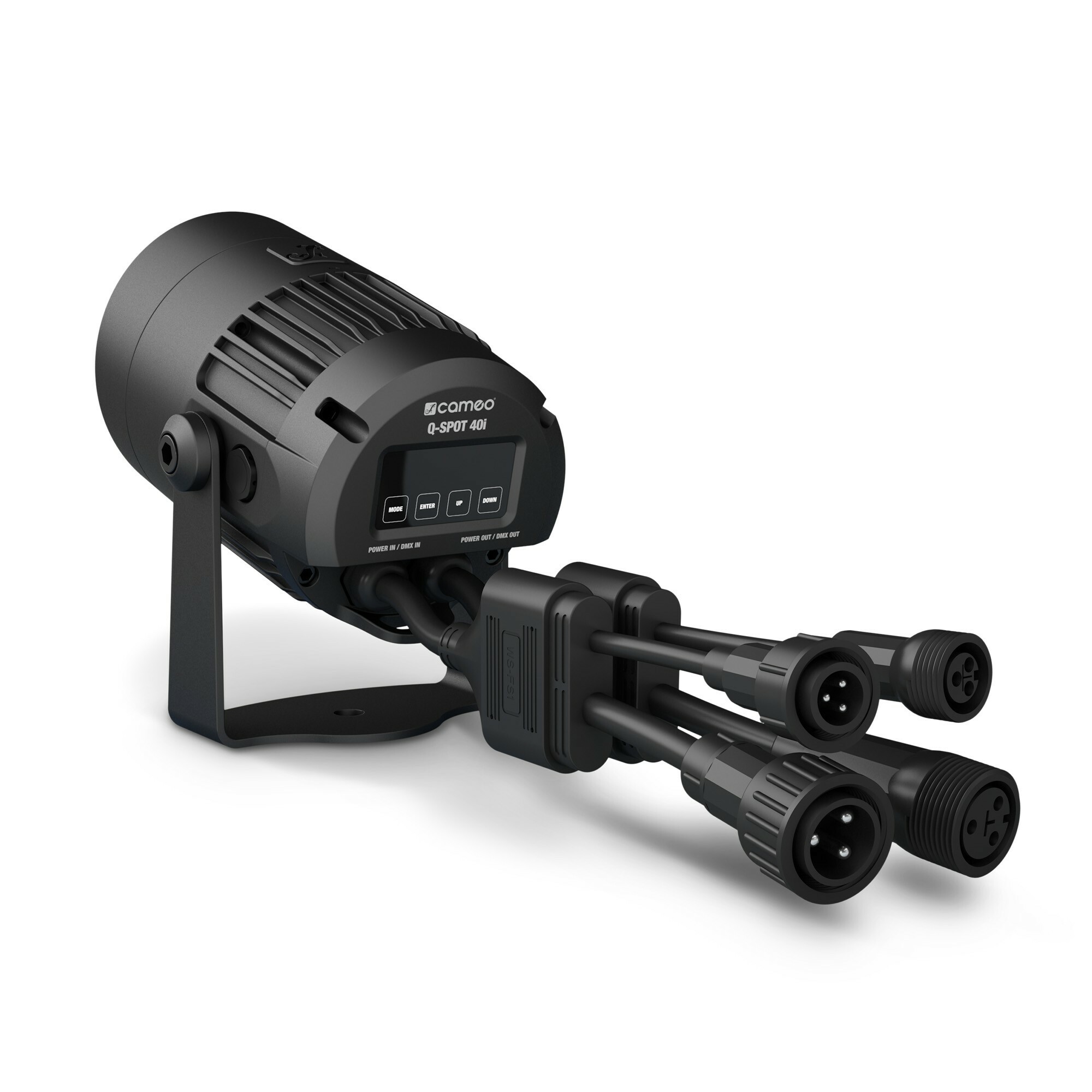

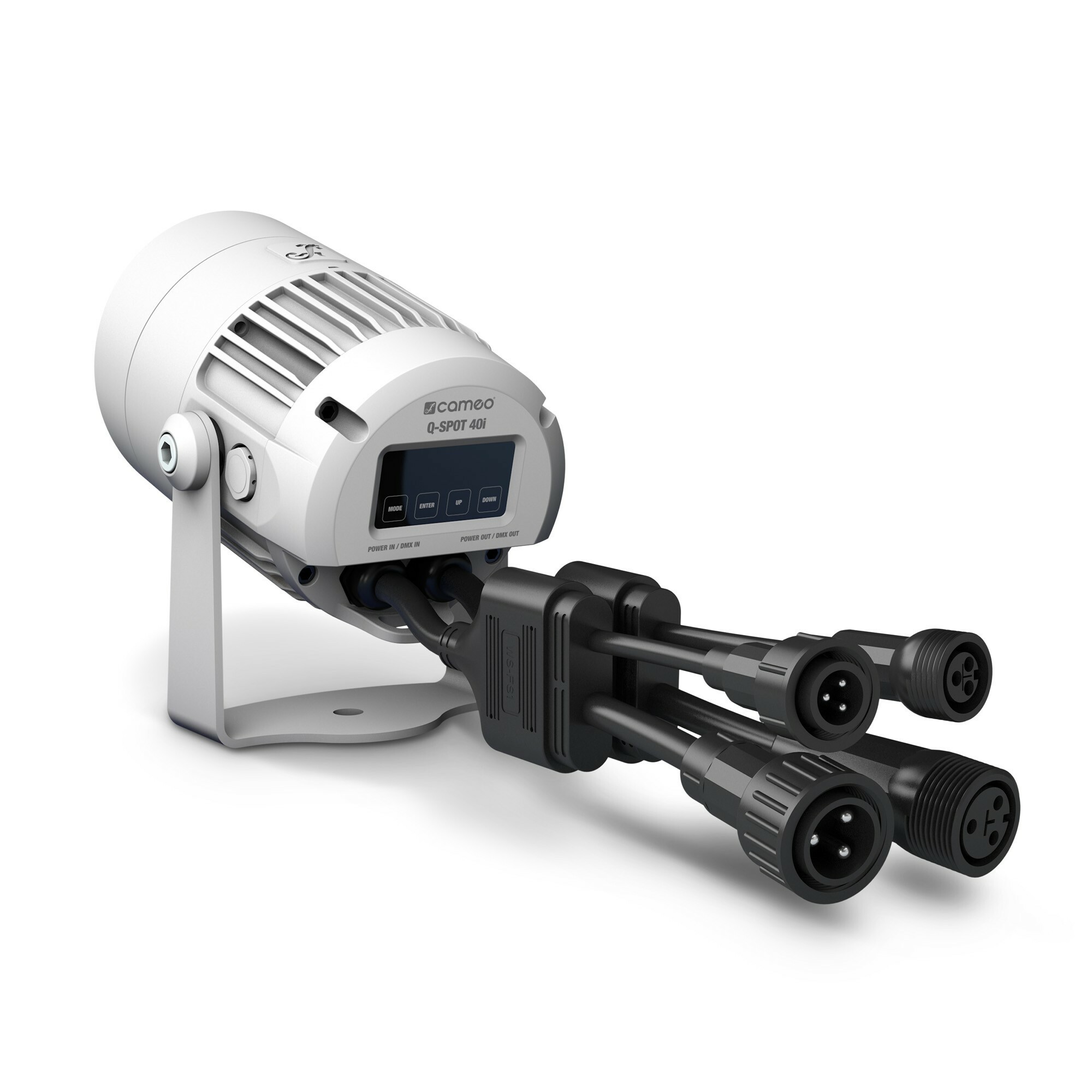

The Q-Spot 40i provides 4 modes of DMX control, autorun programs and master, slave and standalone capability. The spotlight features a bright OLED display with 4 touch buttons for easy configuration. The rugged all-metal housing provides 3-pin DMX and power inputs and outputs with waterproof threaded coupling for trouble-free daisy-chaining and power linking. The Q-Spot 40i is available with a black (item no. CLQS40IB) or white housing (item no. CLQS40IW).

• General
  • Product type: LED PAR Lighting
  • Type: Outdoor
  • Colour spectrum: RGBA
  • Number of LEDs: 1
  • LED type: 40 W
  • Average LED lifetime: 50000 hrs.
  • Refresh rate: 3600 Hz
  • Dispersion: 4.5° (10°, 25° over optional diffusors) °
  • DMX input: 3-pole IP65 plug, screwable
  • DMX output: 3-pole IP65 plug, screwable
  • Protocols: USITT DMX-512
  • DMX mode: 2-channel, 3-channel 1, 4-channel, 9-channel
  • DMX Functions: Colour jump, colour macro, master dimmer, RGBW, Strobe
  • Wireless DMX: No
  • Standalone modes: Auto run, colour fade, colour jump, colour macro, slave mode
  • Controls: Enter, Mode, Value Down, Value Up
  • Indicators: OLED Display
  • Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
  • How many devices can be connected (110 V): 5
  • How many devices can be connected (240 V): 5
  • Power consumption: 48 W
  • Power connector: 3-pole IP65 plug, screwable
  • Max. output current: 12 A
  • Power supply connection: 3-pole IP65 plug, screwable
  • Housing material: Metal
  • Cabinet colour: Black
  • Protection class IP: IP65
  • Cooling: Convection
  • Illuminance: 36900 lx @ 1 m
  • Luminous flux: 582 lm
  • Maximum Ambient Temperature: 0 - 40 °C
  • Width: 107 mm
  • Height: 150 mm
  • Depth: 160 mm
  • Weight: 1,9 kg
  • Accessories (included): DMX IN Cable, End caps for Power Out & DMX Out, Power IN Cable
