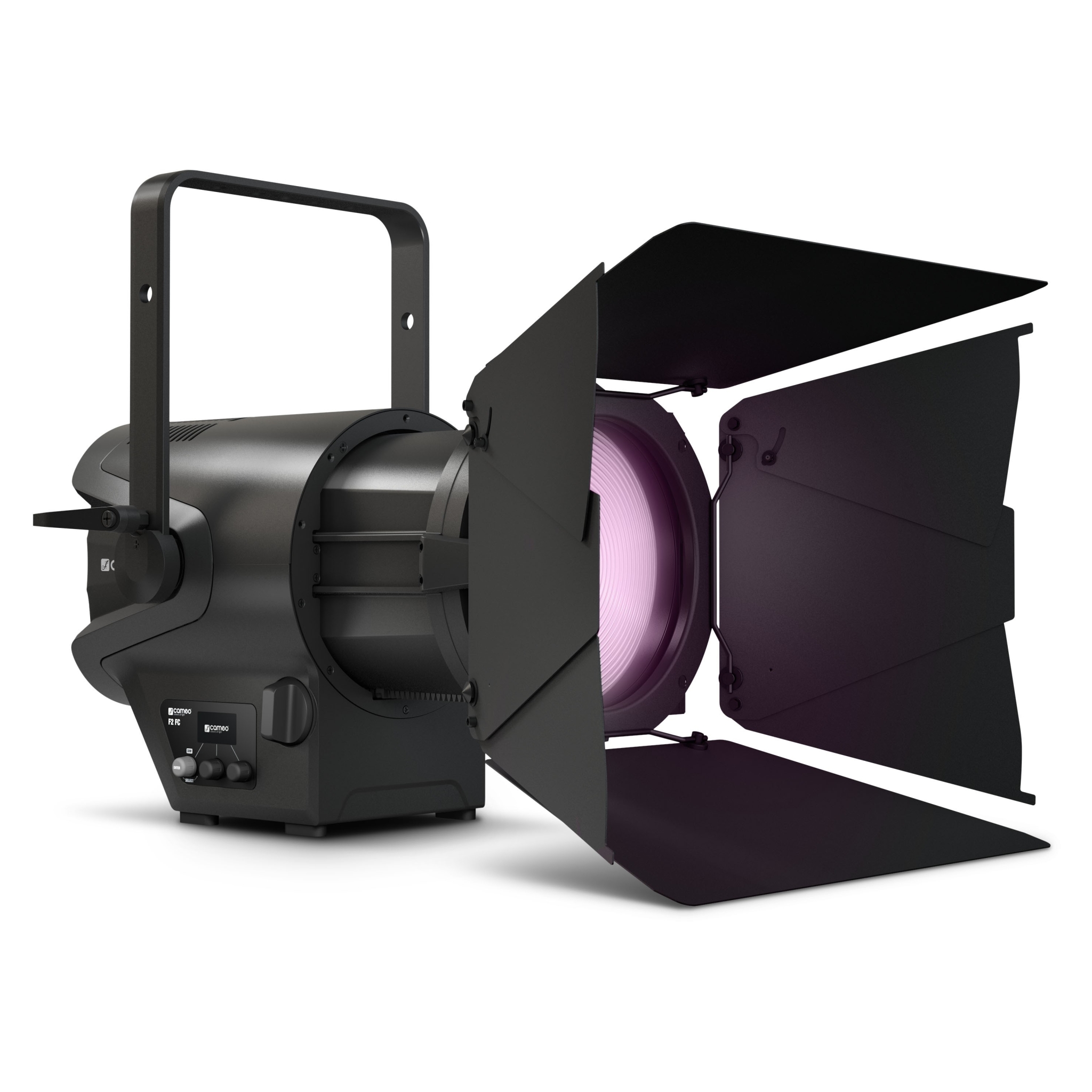

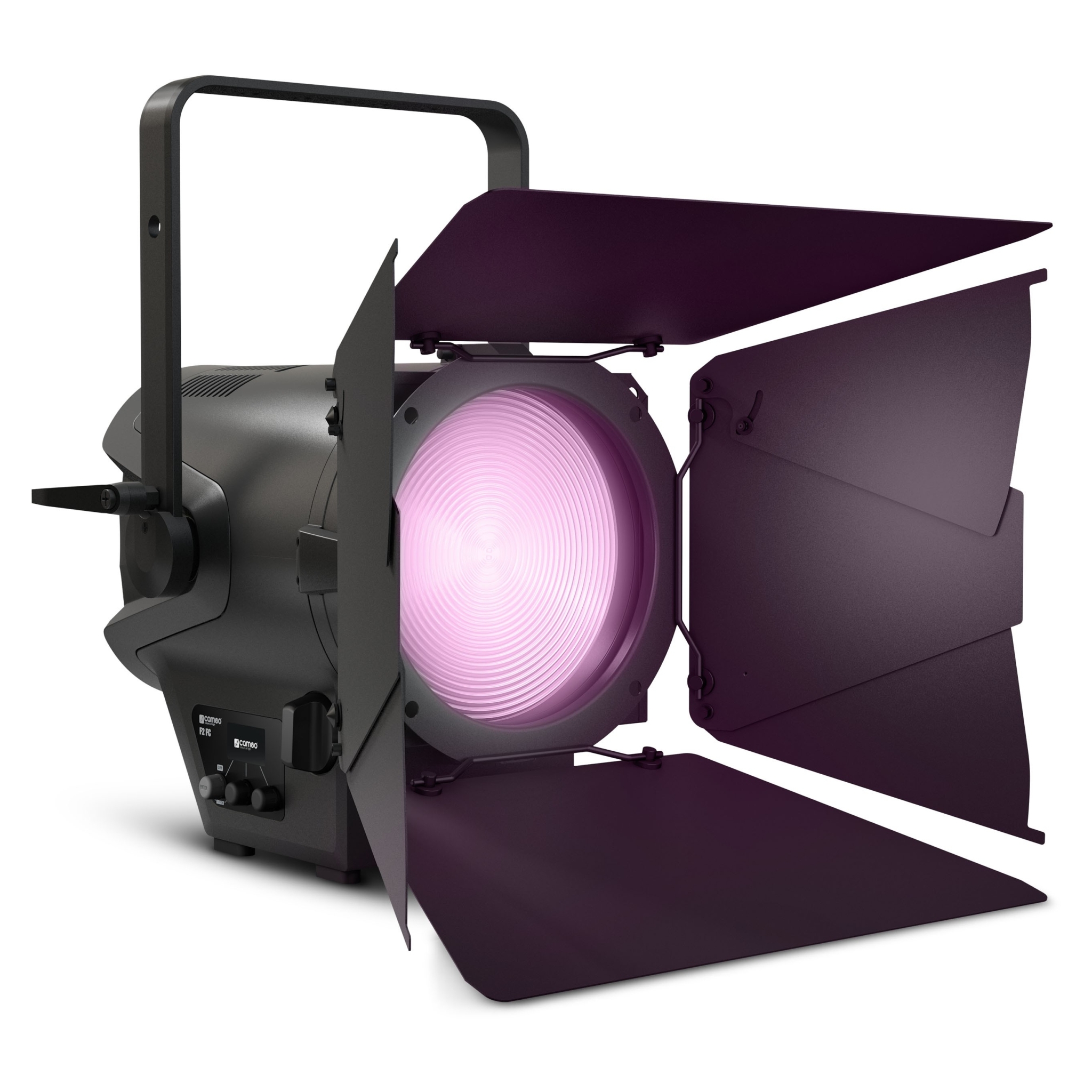

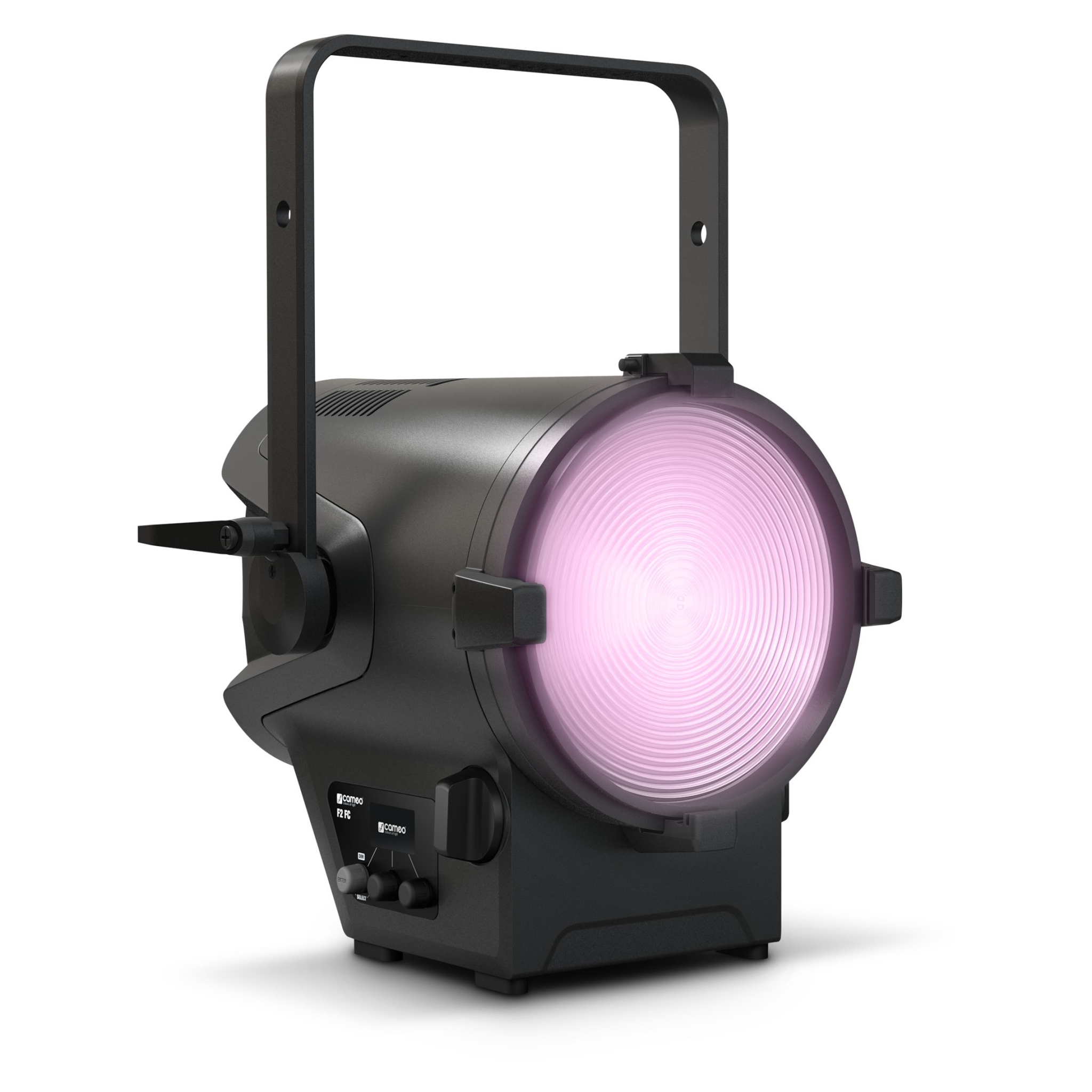

Cameo F2 FC (RGBW LED)

Professional High-Power Fresnel with RGBW LED

• Full colour Fresnel with special RGBW LED and a CRI of over 90.
• Seamless colour temperature adjustment from 1,600 K to 6,500 K.
• Adjustable green-magenta correction.
• Brilliant colours and precise white tone adjustment.

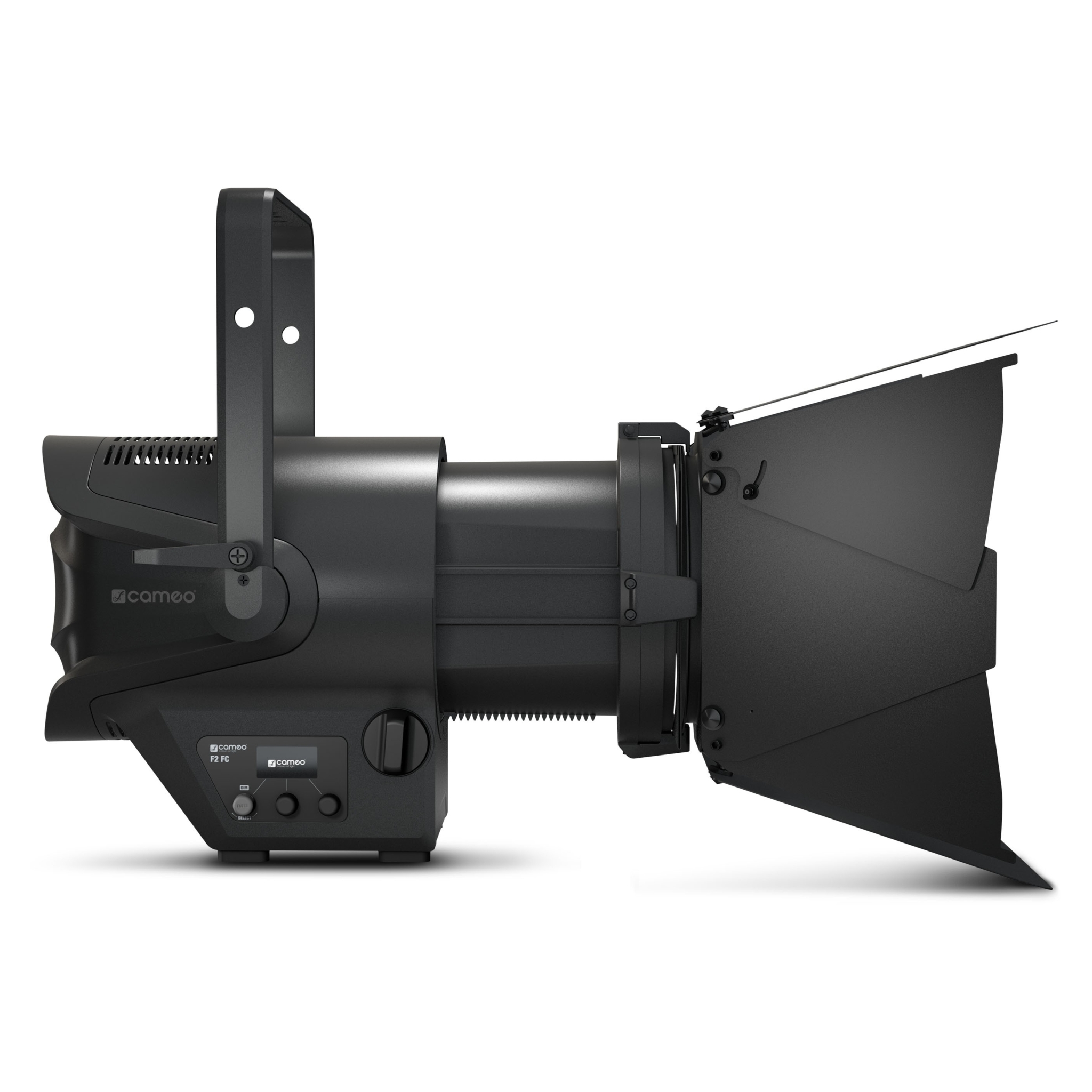

• Continuous zoom for beam angles from 18° to 55°.
• Four selectable 16-bit dimmer curves with adjustable response.
• Highly efficient cooling thanks to a heatpipe and temperature-controlled fan.
• Control via DMX and RDM.
• Selectable pulse width modulation frequencies up to 25 kHz.
• Flicker-free and noiseless operation, ideal for TV, film, photography studios and theatre.

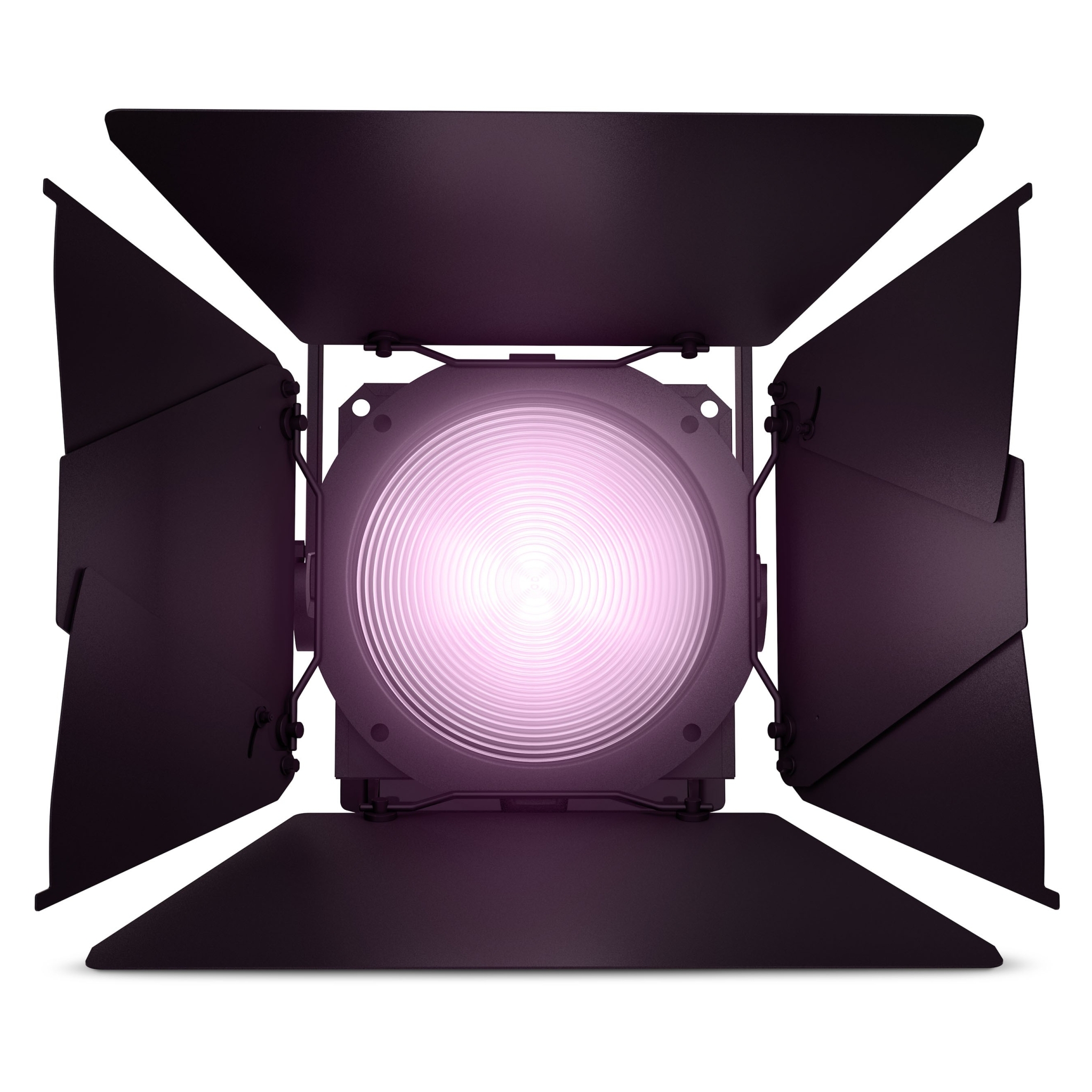

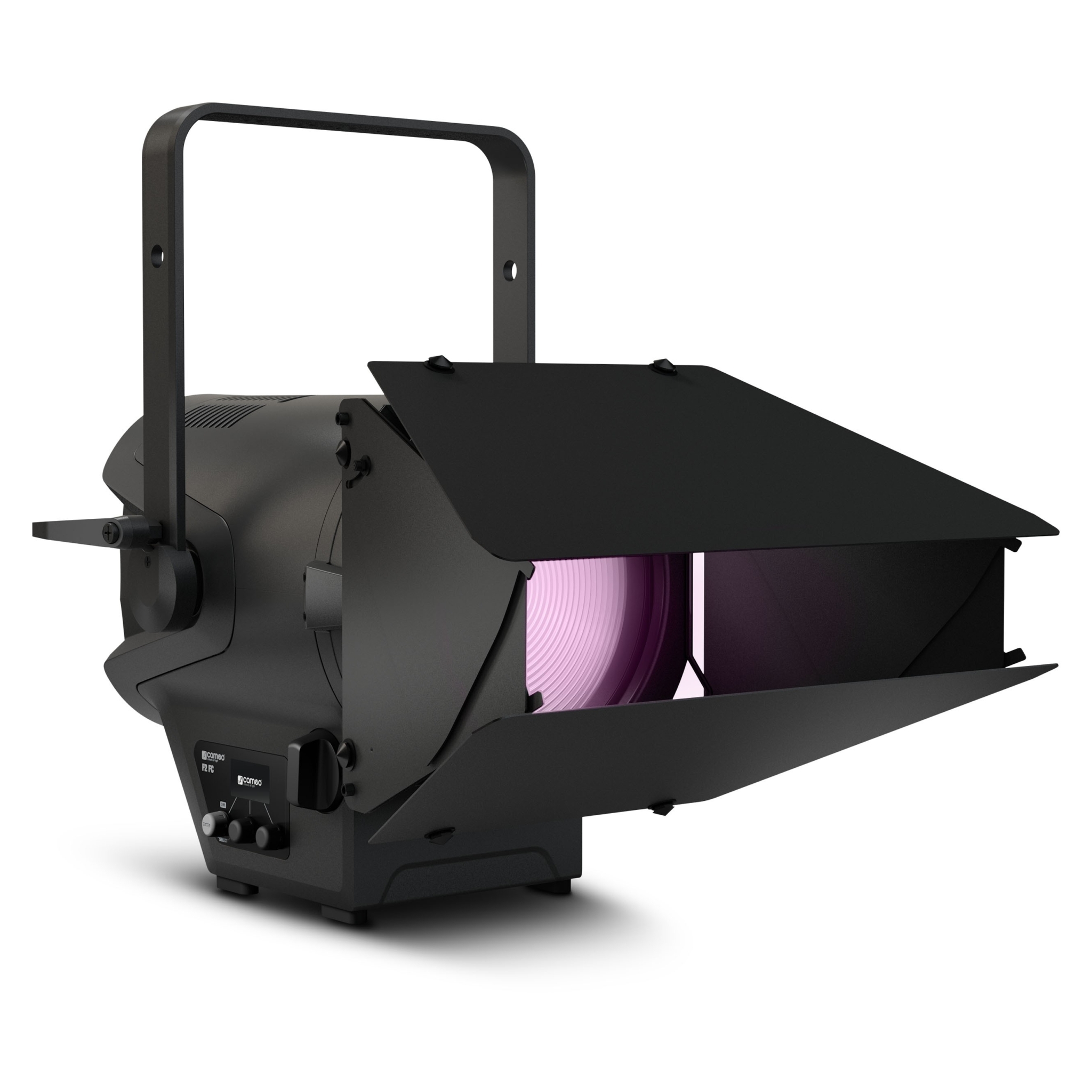

• Includes 8-way barndoor and gel filter frames.

A complete palette of dynamic colours, and countless shades of white at maximum reproduction quality – the Cameo F2 FC is your perfect Fresnel spotlight for professional application in front of the camera and in theatres. Its white tones can be precision-adjusted in CCT mode from 1,600 K to 6,500 K at a constant CRI of over 90, and perfectly adjusted to skin tones, camera sensors and ambient light via additional green-magenta correction. RGBW colour-blending in HSI mode facilitates rapid adjustment of colour, intensity and saturation at the light desk using only three control circuits. Using additional colour filters is in the past. The high-quality 200 mm lens creates a soft-edged beam of light, which can be manually and gradually adjusted in the 18° to 55° beam angle from spot to flood and all intermediate positions. At the same time, the integrated condenser lens provides evenly blended colours and colour shadow-free light dispersion, even when using the barndoor.

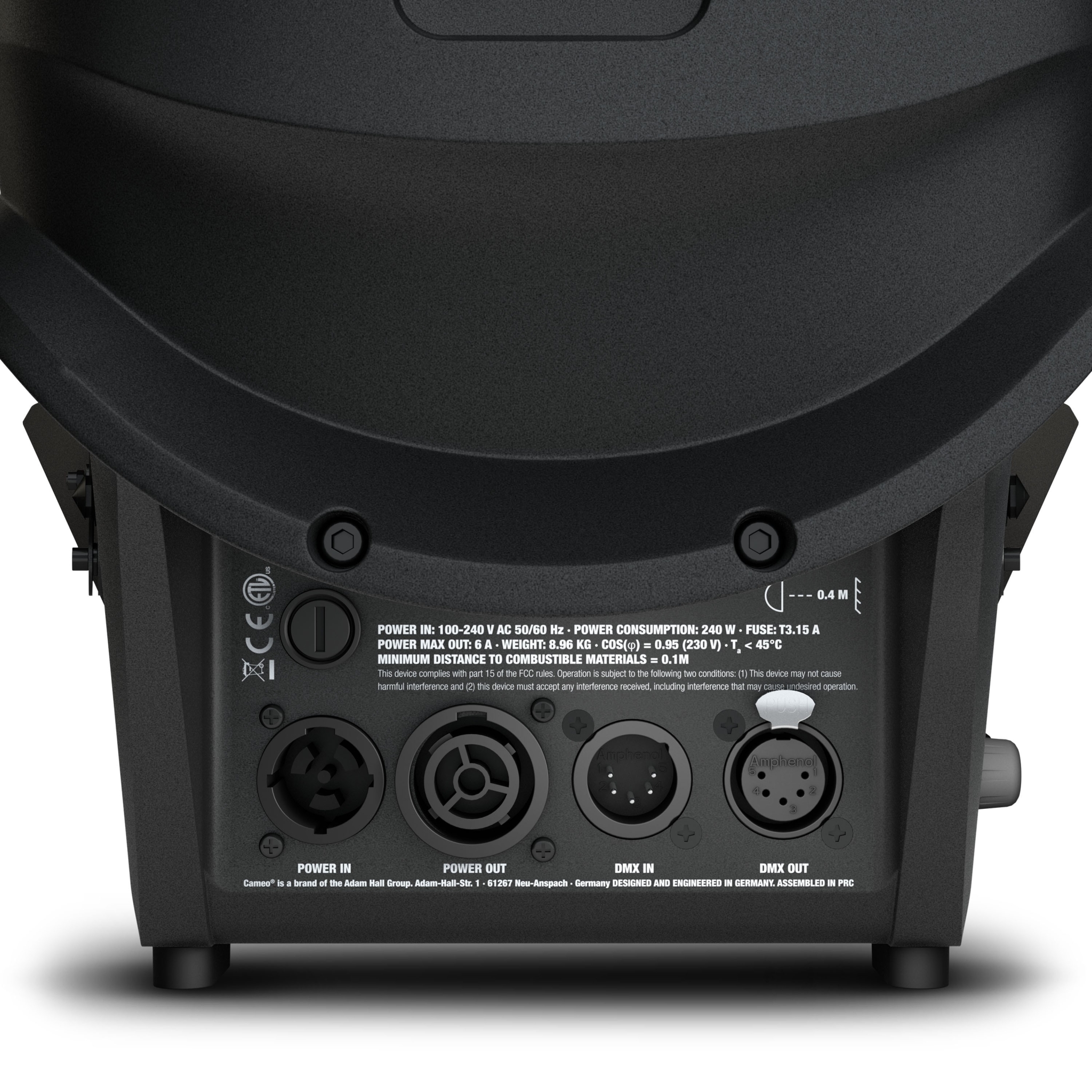

The F2 FC is fully RDM-capable, and has a range of DMX control modes as well as four 16-bit dimmer curves with adjustable response. Even at its lowest setting, gradual dimming meets the highest theatre demands. Six selectable pulse width modulation frequencies of 800 Hz to 25 kHz ensure flicker-free operation, even for high-speed camera settings. A heatpipe combined with a temperature-controlled fan provides highly-efficient cooling and virtually noiseless operation. For convenient configuration, the spotlight’s robust die-cast aluminium housing is equipped with three rotary encoders and an OLED display. 5-pin DMX connections and Power Twist mains sockets facilitate unproblematic daisy chaining. Included are an 8-way barndoor, a filter frame and a mains cable with a Schuko plug.

• General
  • Product type: LED Fresnel Spotlight
  • Type: Theater Fresnel
  • Colour spectrum: RGBW
  • Number of LEDs: R: 18 PCS / G: 18 PCS / B: 16 PCS / W: 37 PCS
  • LED type: 240 W (ca. 50,000 Operating Hours)
  • Refresh rate: 800 - 25000 Hz
  • Dispersion: Beam Angle: 17 ° - 53 °, Field Angle: 30 ° - 87 °
  • Lens: 200 mm Fresnel
  • DMX input: 5-Pol
  • DMX output: 5-Pol
  • DMX mode: 10-channel CCT, 10-channel HSI, 14-channel, 3-channel CCT, 3-channel HSI, 4-channel, 7-channel CCT, 7-channel HSI, 8-channel, 9-channel
  • DMX Functions: CCT, Colour macros, Device Settings, Dim to Warm, Dimmer, Dimmer Curve, Dimmer Fine, Hue Saturation, RGBW, RGBW Fine, strobe
  • Standalone modes: Loop, Master / Slave mode, Static
  • Controls: 3 x Encoder Knobs, 4 x Buttons
  • Indicators: OLED Display
  • Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
  • Power consumption: 250 W
  • Power factor: 0.95 / 230 V, 0.99 / 120 V
  • Power connector: TRUE1 Compatible Power I/O Socket
  • Housing material: Die-cast aluminium
  • Cabinet colour: Black
  • Protection class IP: IP20
  • Cooling: Combination of Heat Pipe and Temperature Controlled Fan
  • Luminous flux: 6500 lm
  • Efficiency: 27 lm/W
  • Color temperature: 1600 - 6500 K
  • Ambient temperature (operating): -15 - 45 °C
  • Weight: 9 kg
  • Accessories (included): 8-way barndoor, gel frame, Power cord
• Dimensions (W x H x D, without Mounting Bracket and Sash Limiter)
  • Width: 270 mm
  • Height: 292 mm
  • Length: 442 mm
  • Depth: 322 mm
