INSTANT FOG 1700 T PRO

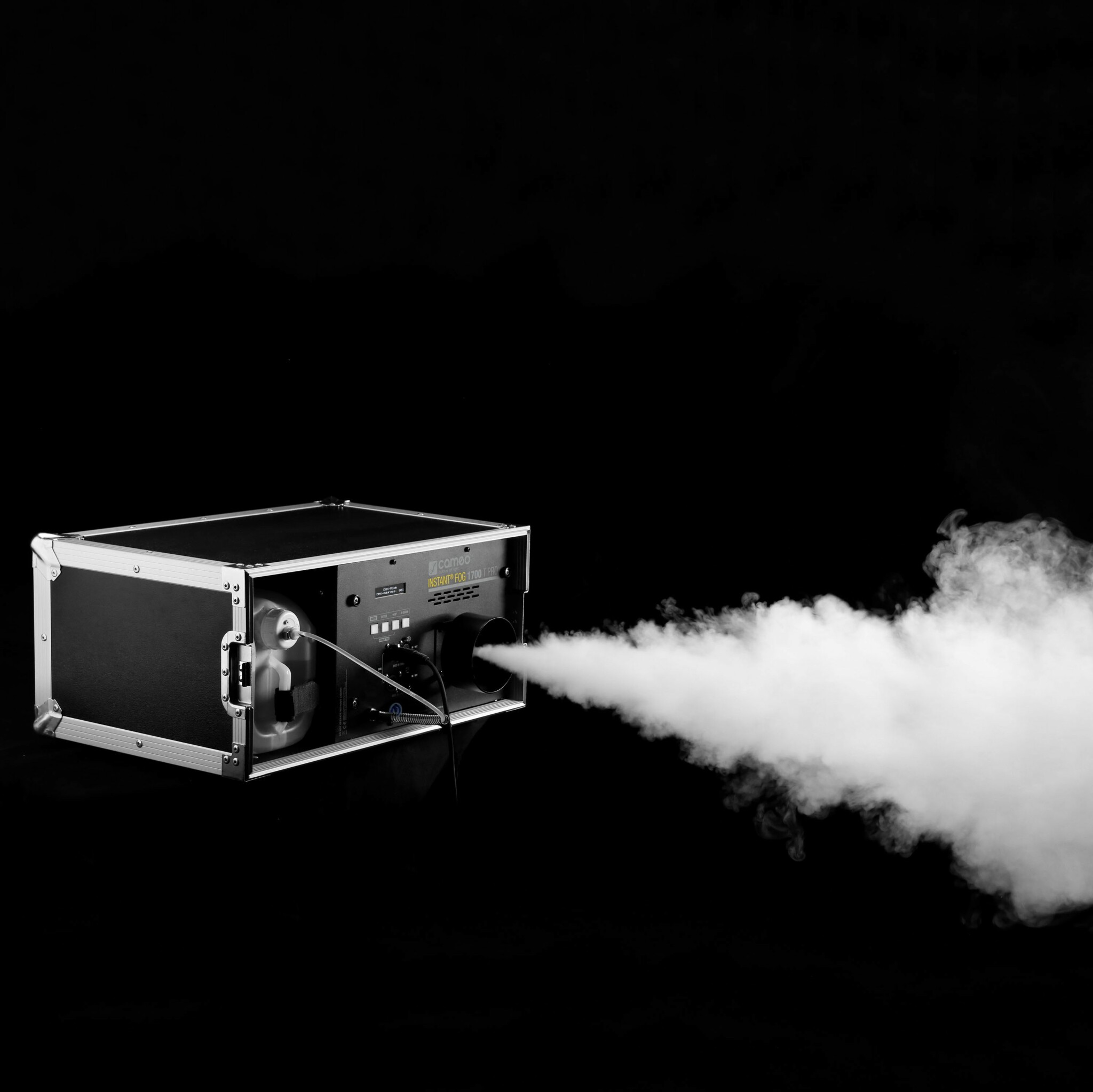

Cameo INSTANT FOG 1700 T PRO

High Output 1,700 W Touring Fog Machine

• 1700 watt high output touring fogger.

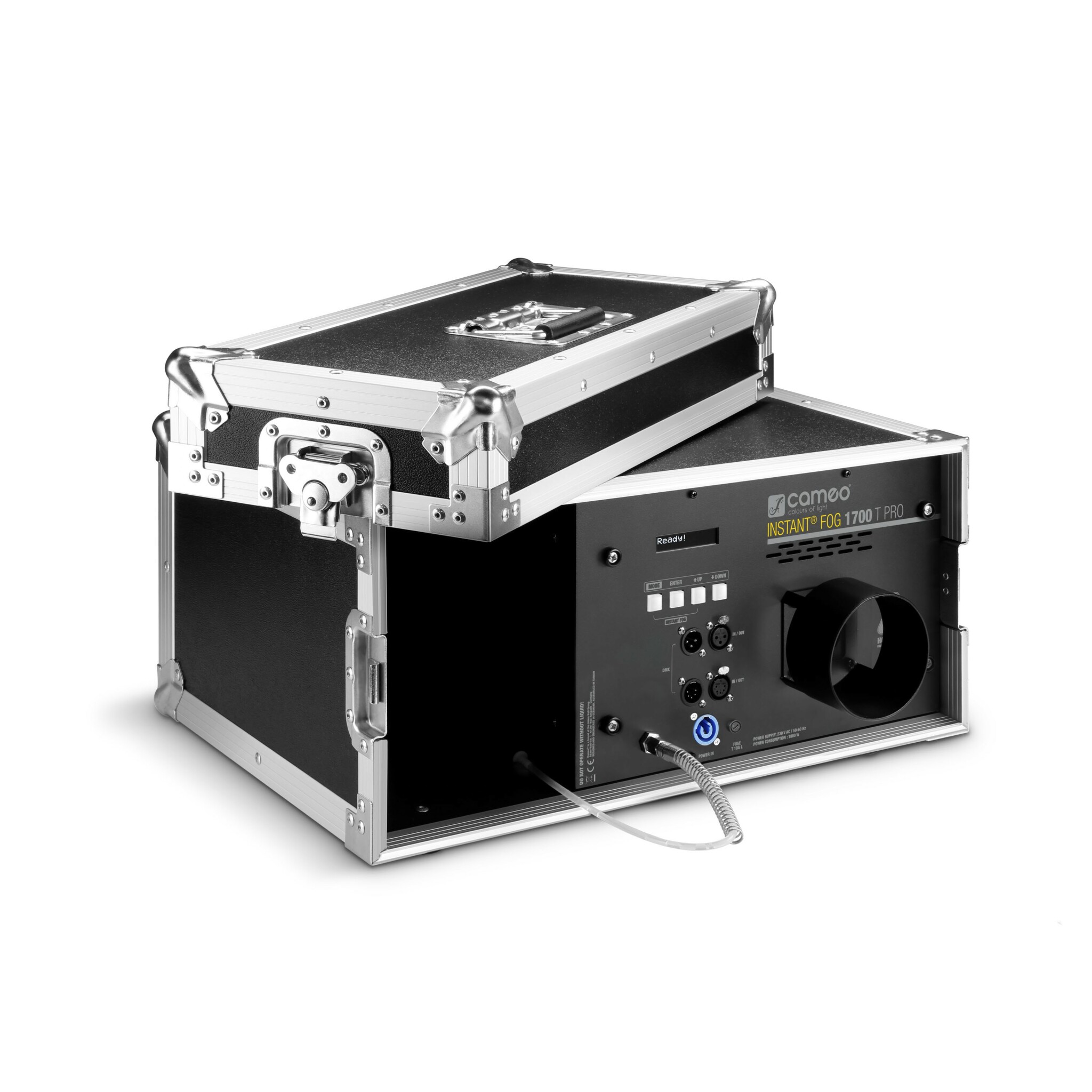

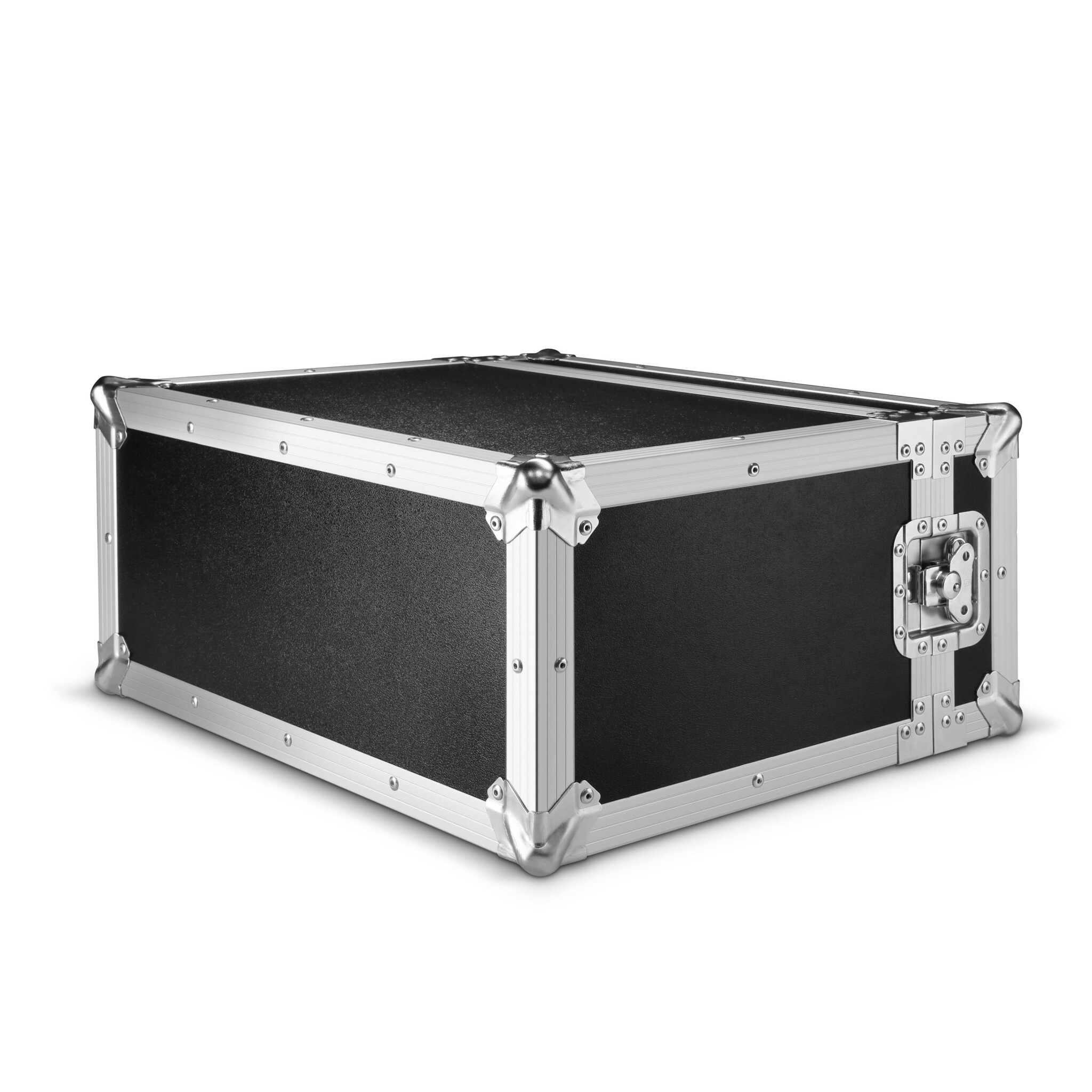

• Built into a rugged road case.
• DMX control plus standalone operation.
• High-contrast LC display.
• Master/Slave Mode.

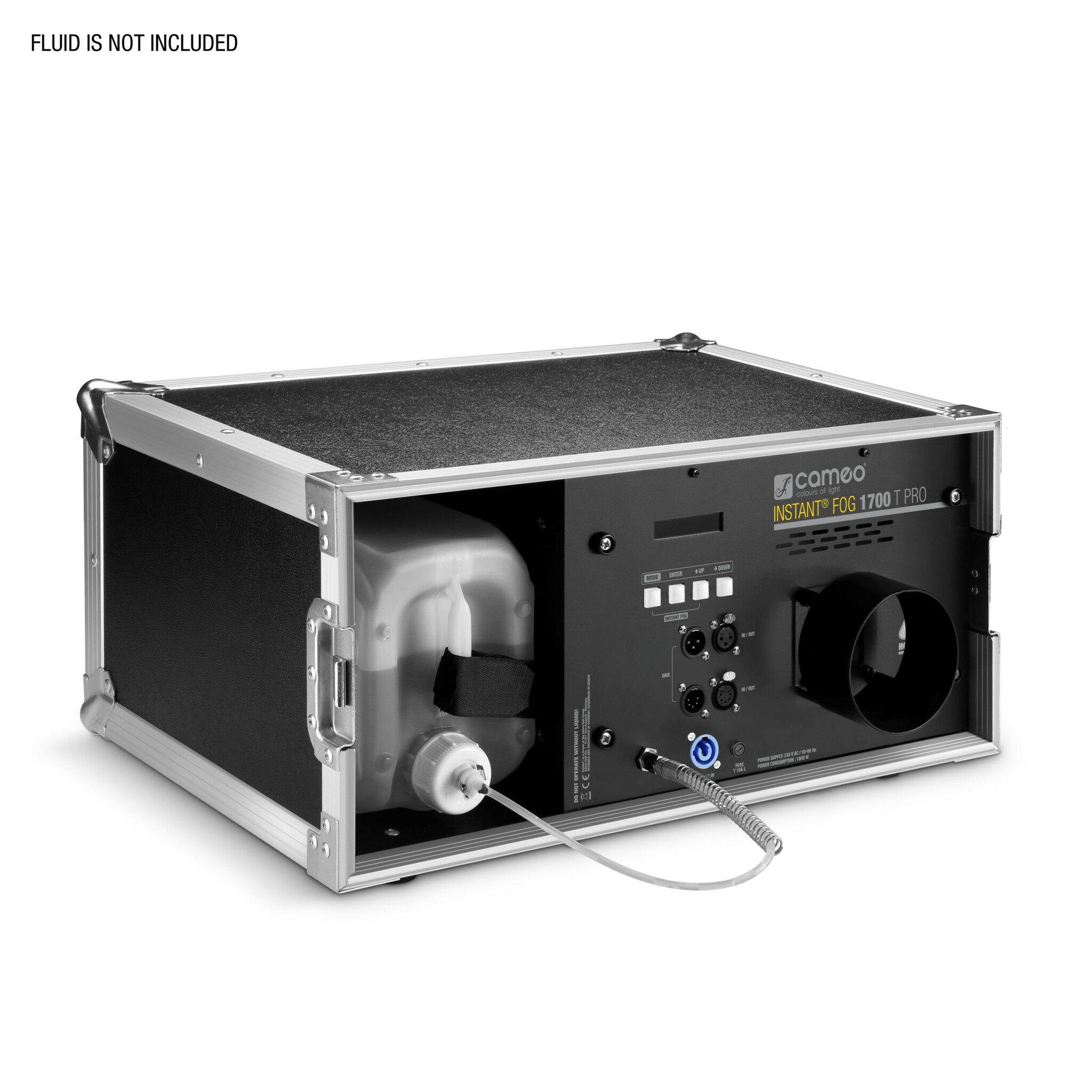

• Integrated fluid canister drawer.
• Integrated 100 mm hose adapter.
• Automatic shutdown prevents pump damage when fluid tank is empty.
• Ideal for live events, discotheques, theatres, TV and film productions.

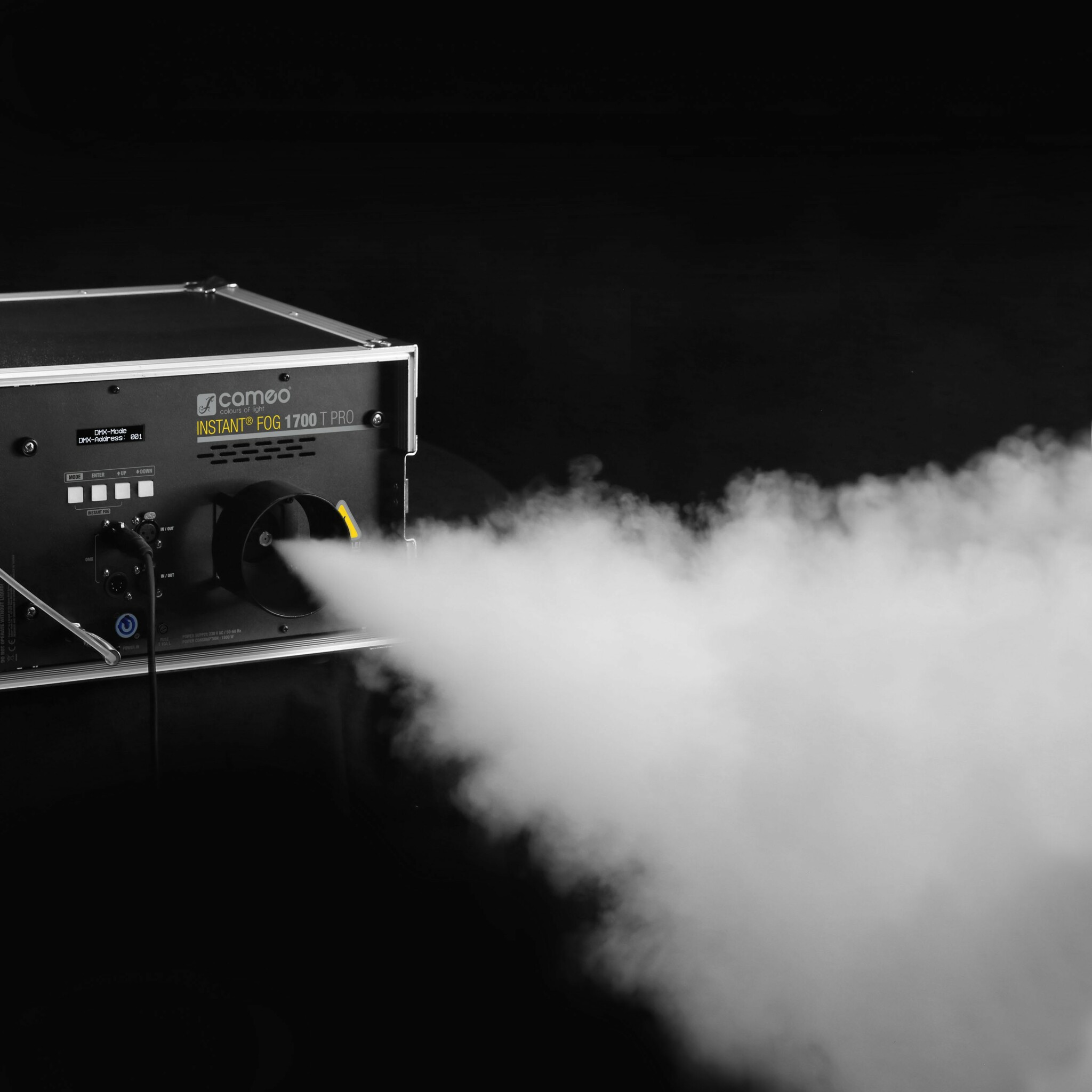

Generating spectacular atmospheres and enhancing every light show, the Cameo INSTANT FOG 1700 T PRO is a high output touring fogger built into a rugged road case to meet the rigorous demands of professional applications. It is the perfect choice for live events, discotheques, theatres and on-camera use.

Sporting a powerful 1,700 watt heating element and a massive output of 700 cubic meters per minute, it fills large stages and venues with dense, consistent fog after an initial warm-up time of 7 minutes only. Fluid consumption is a very low 150 ml/min at 100% output, and the integrated fluid canister drawer takes containers up to 5 liter capacity for extended operation between refills.

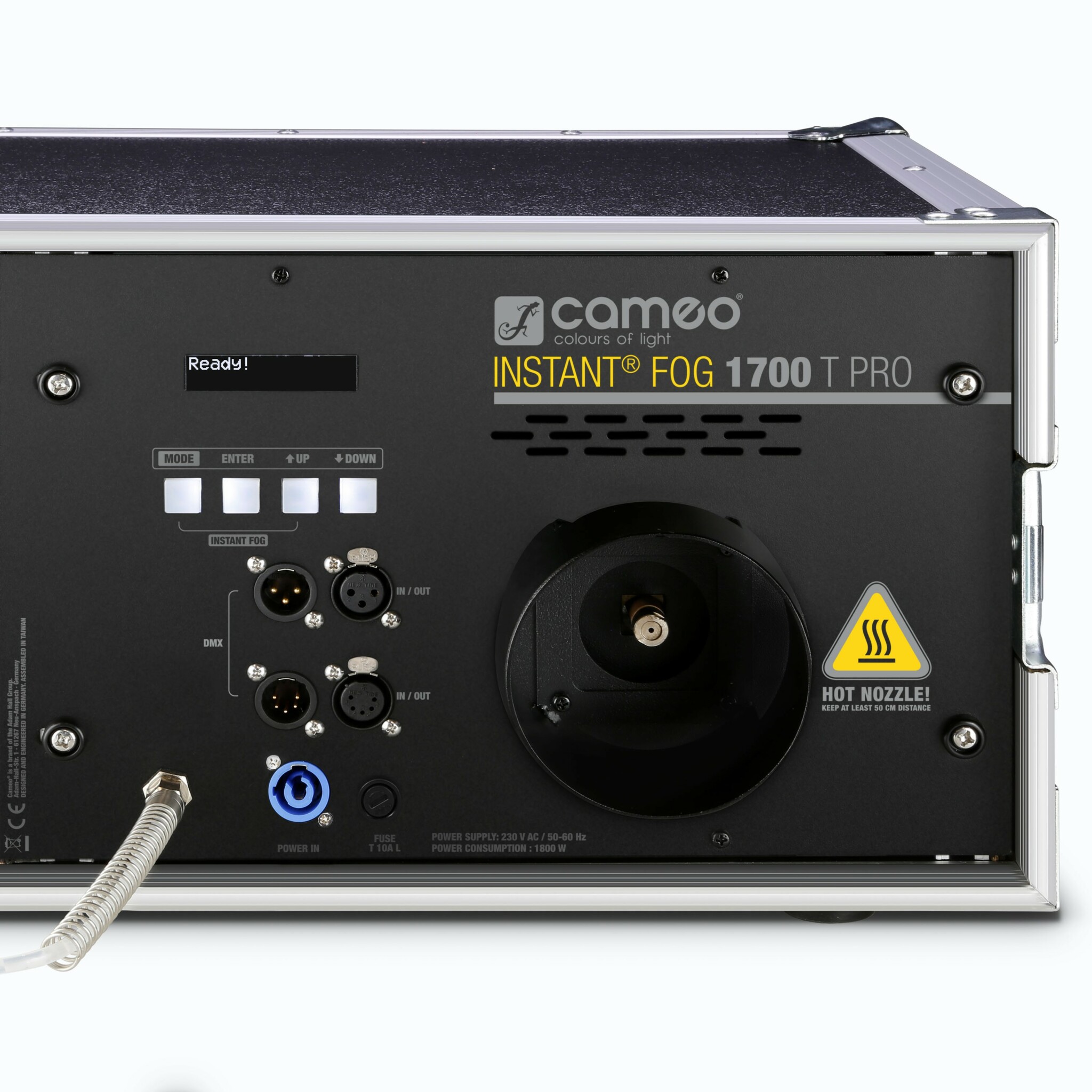

The INSTANT FOG 1700 T PRO is controlled via DMX in 3-channel mode or the easy-to-read high-contrast LCD display and four buttons. It provides both 3-pin and 5-pin DMX inputs and outputs and integrates a 100 mm hose adapter if you want to duct the fog from the machine to another location. A convenient automatic shutdown feature prevents damage to the pump when the fluid tank runs empty. Generating spectacular atmospheres and enhancing every light show, the INSTANT FOG 1700 T PRO is the perfect choice for live events, discotheques and theatres as well as TV and motion picture applications.

• General
  • Product type: Fog and Wind Machines
  • Type: Fog Machine
  • Power: 1700 W
  • Warm-up time: Ca. 7 minutes
  • Fog duration: Ca. 40 seconds @ 100% Output / Non-Stop @ 50% Output
  • Reheating time: 60 seconds
  • Fluid tank capacity: 5 l
  • Fluid Consumption: 150 ml/min
  • DMX input: XLR 3-pin male, XLR 5-pin male
  • DMX output: XLR 3-pin female, XLR 5-pin female
  • DMX mode: 3-channel
  • DMX Functions: Fog Quantity, Interval
  • Standalone Functions: Fog Quantity, Instant Fog, Interval
  • Controls: Enter, Mode, Value Down, Value Up
  • Indicators: Canister lighting, Key illumination, LC display
  • Operating voltage: 230 V AC / 50-60 Hz
  • Operating voltage: 230 - 240 V AC / 50 - 60 Hz, Neutrik PowerCON TRUE1
  • Power consumption: 1800 W
  • Overheating Protection: Heating element with thermostat
  • Power connector: Power cord with safety plug (Type E / CEE 7/7), Power Twist Connector
  • Fuse: T10AL (5 x 20 mm)
  • Ambient temperature (operating): 5 - 40 °C
  • Relative Humidity:
  • Housing material: Metal, plywood
  • Cabinet colour: Black
  • Dimensions with cover (W x H x D): 550 x 265 x 465 mm
  • Width: 465 mm
  • Height: 255 mm
  • Length: 550 mm

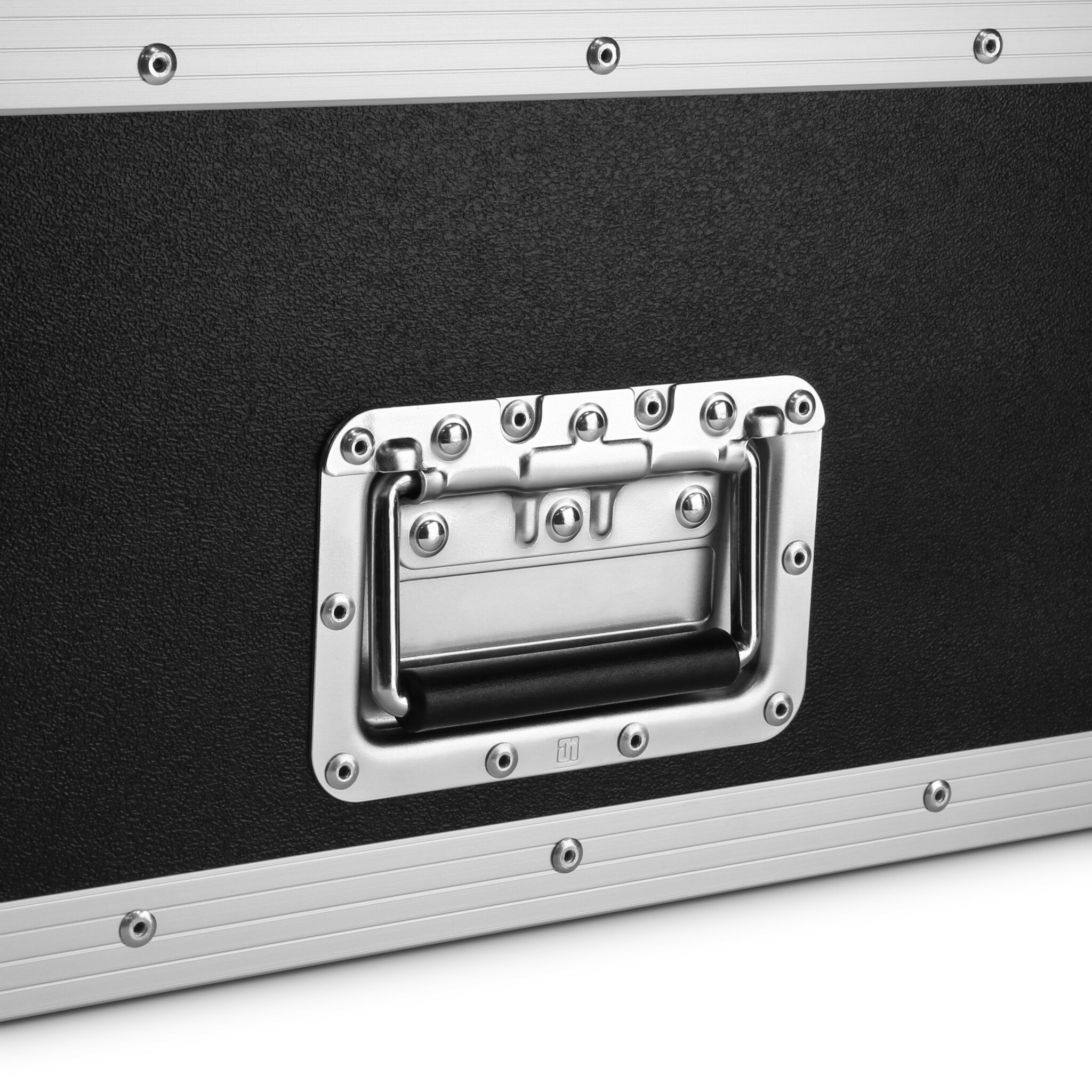

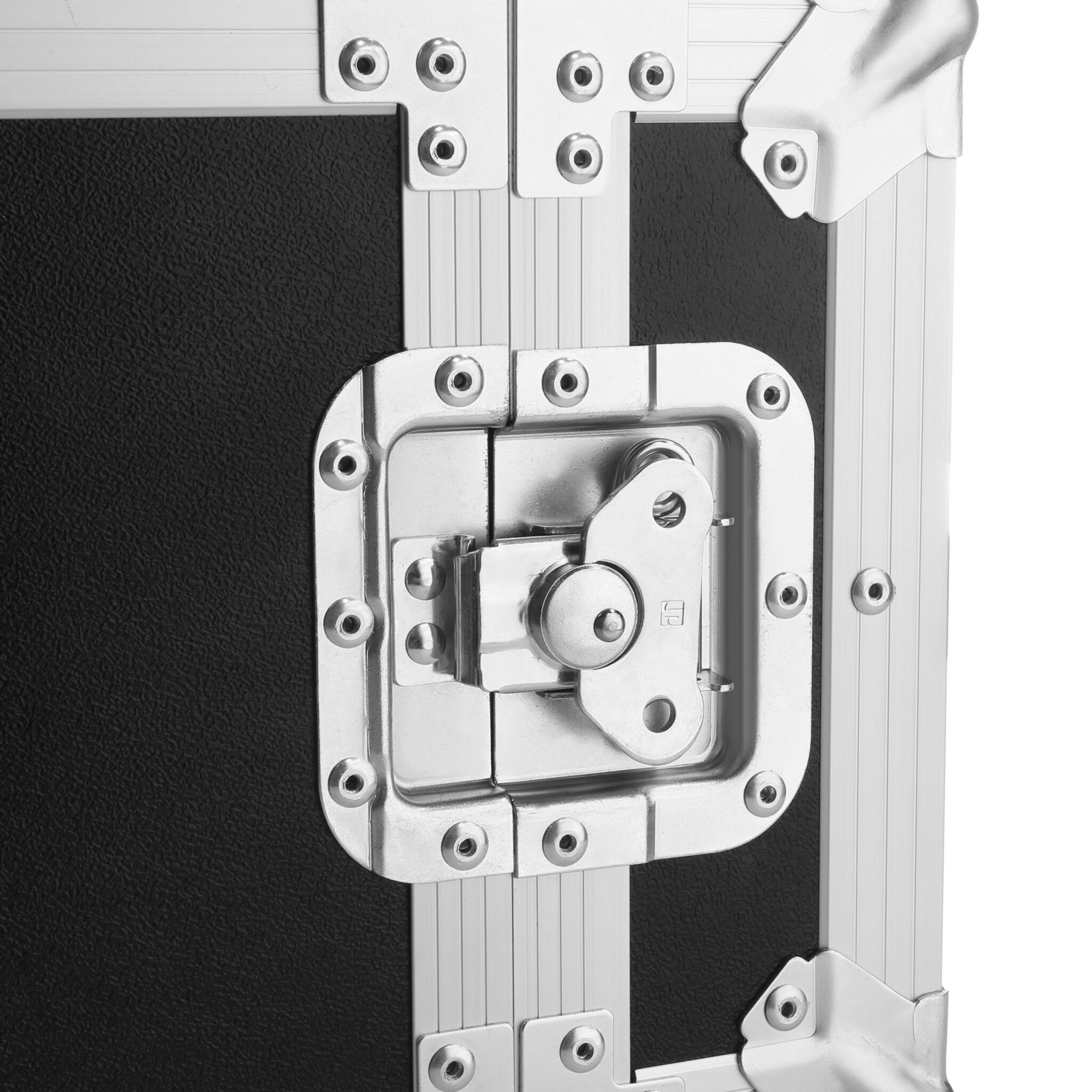

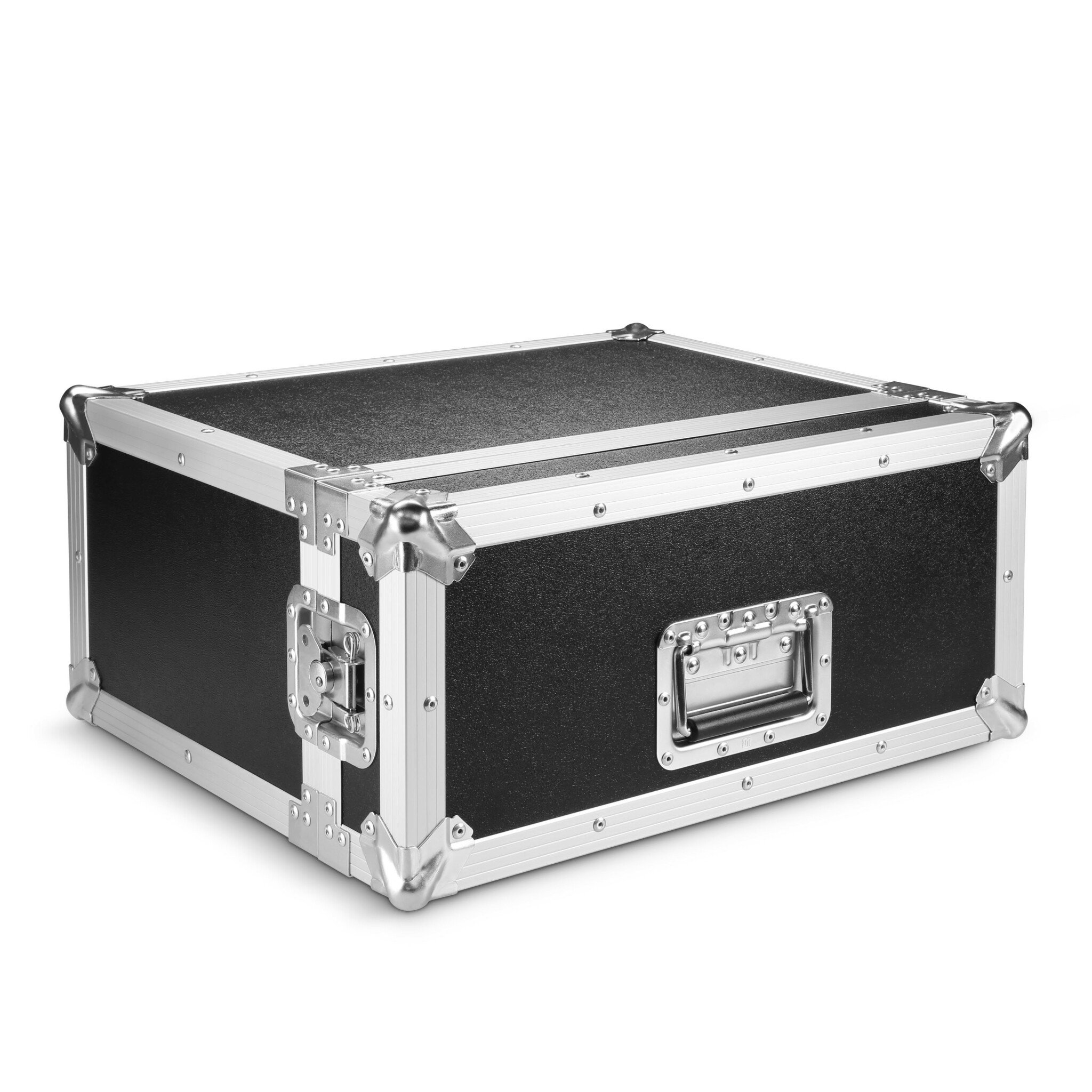

  • Other features: 4 x rubber feet, Flightcase with cover, butterfly locks and carrying handle., Power cord, Special canister cap with ventilation valve and suction pipe
  • Weight: 21,763 kg
