DAVE 15 G3

LD Systems DAVE 15 G3

Compact 15" active PA System

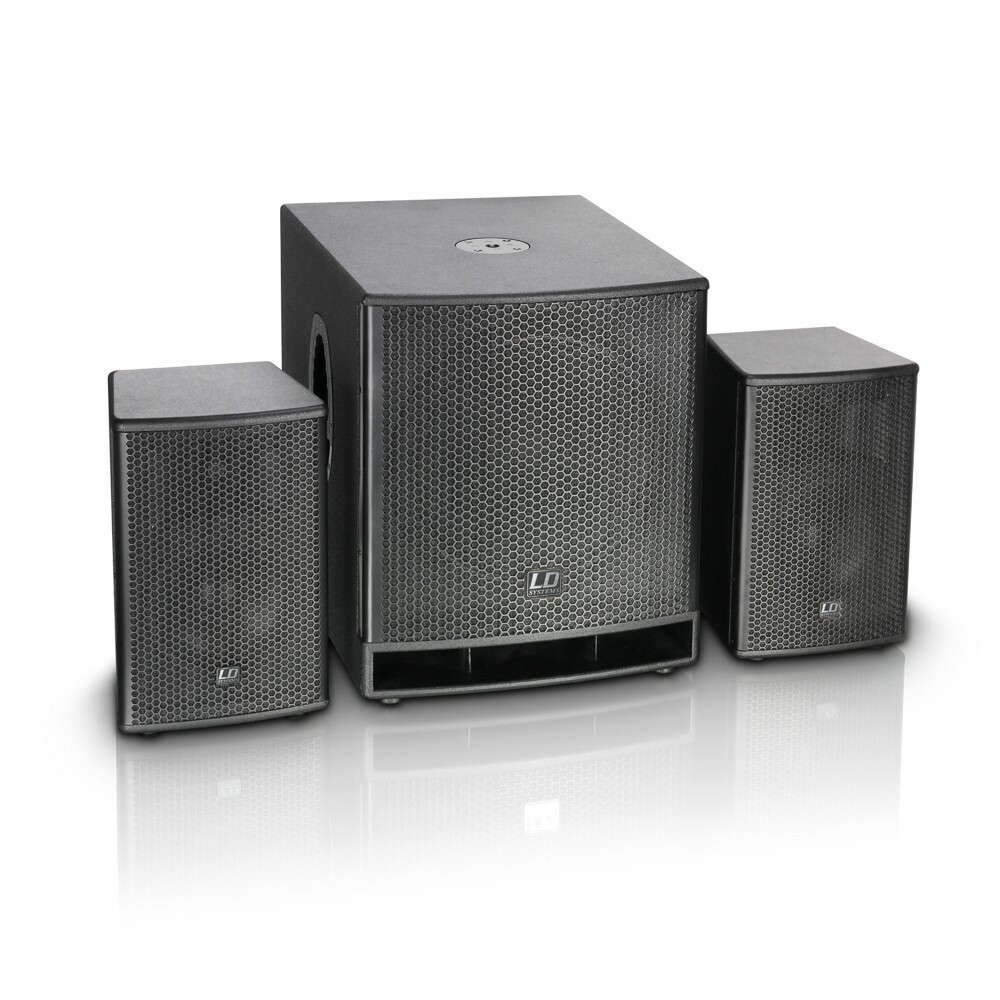

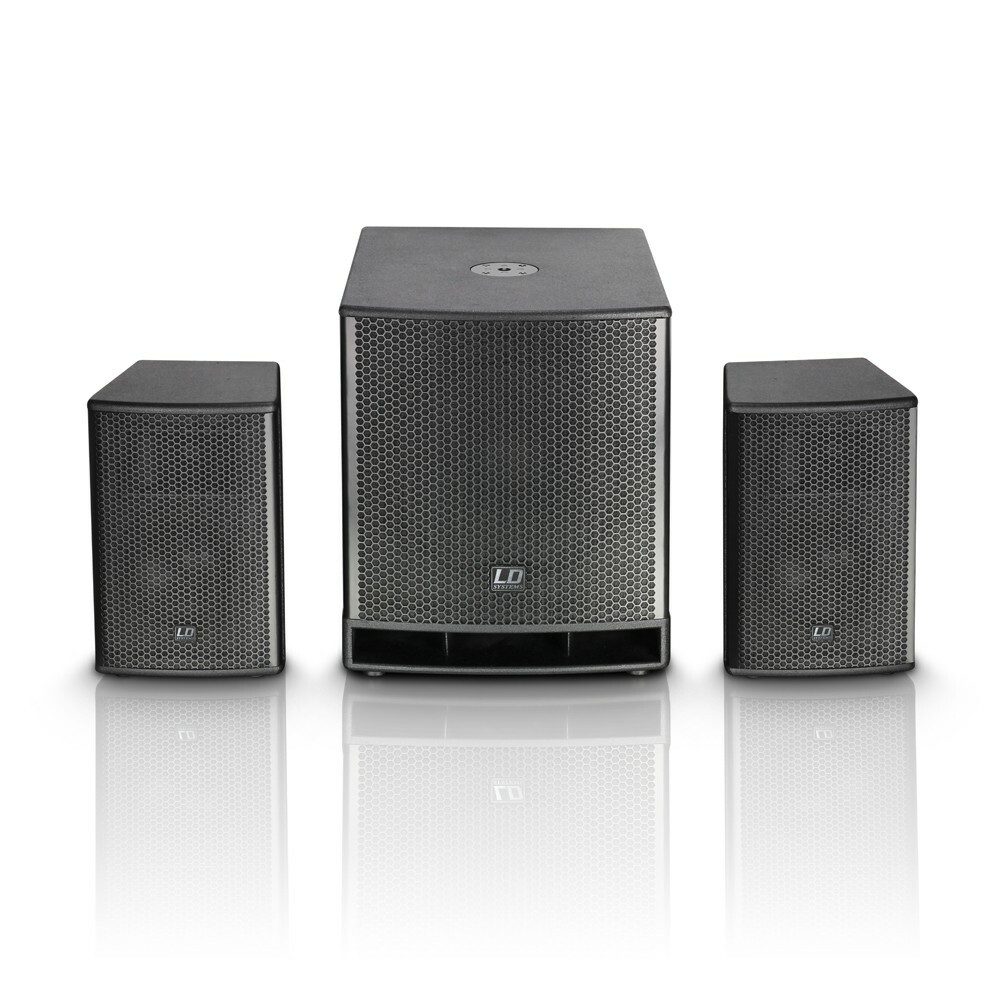

The DAVE 15 G3 is a powerful active compact system. A bass reflex subwoofer with a 15" driver constitutes the massive, powerful foundation. The satellites with 8" drivers and HF horns are responsible for a natural sounding, assertive midrange and transparent treble. The subwoofer incorporates a 2.1 power amp module that drives the components of the DAVE 15 G3 with 2800W of Peak power.

The LD LECC DSP digital processor ensures perfectly tuned functioning of the system. It includes specially amplitude and low-latency optimised crossovers, separate equalisers and limiters for the bass, mid, and treble frequency ranges, and a dynamic compressor that controls the subwoofer according to volume and provides for increased punch at low volumes.

The thoroughly professional features of the DAVE 15 G3 active PA system include sturdy multiplex cabinets, all important protection circuits, RCA, XLR/jack combo and Speakon-compatible connectors, and ergonomically shaped, recessed handles. The LD "Evolutive" handles of the subwoofer are especially worthy of mention: the innovative design with a metal ring handle permits secure, convenient handling from all sides. For accurate vertical orientation, the speaker supports of the satellites are vertically adjustable by ± 13,5° max. in seven increments.

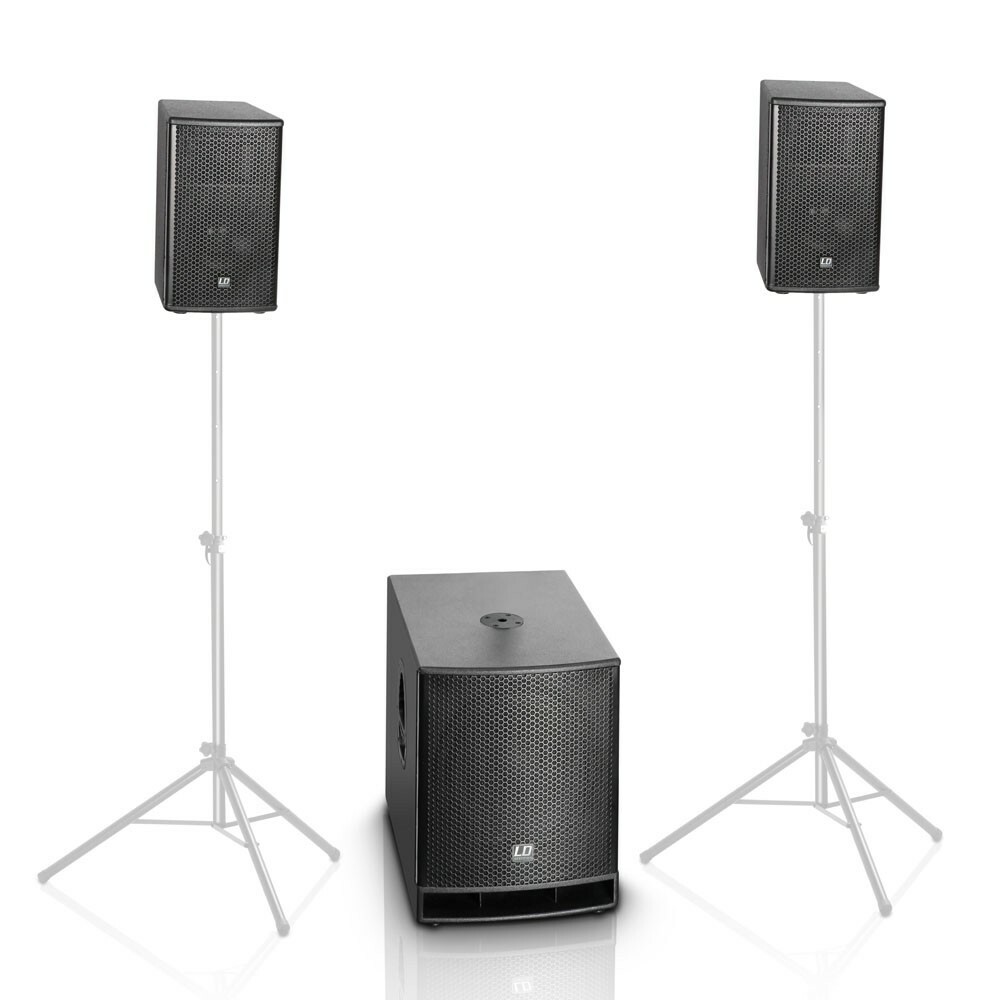

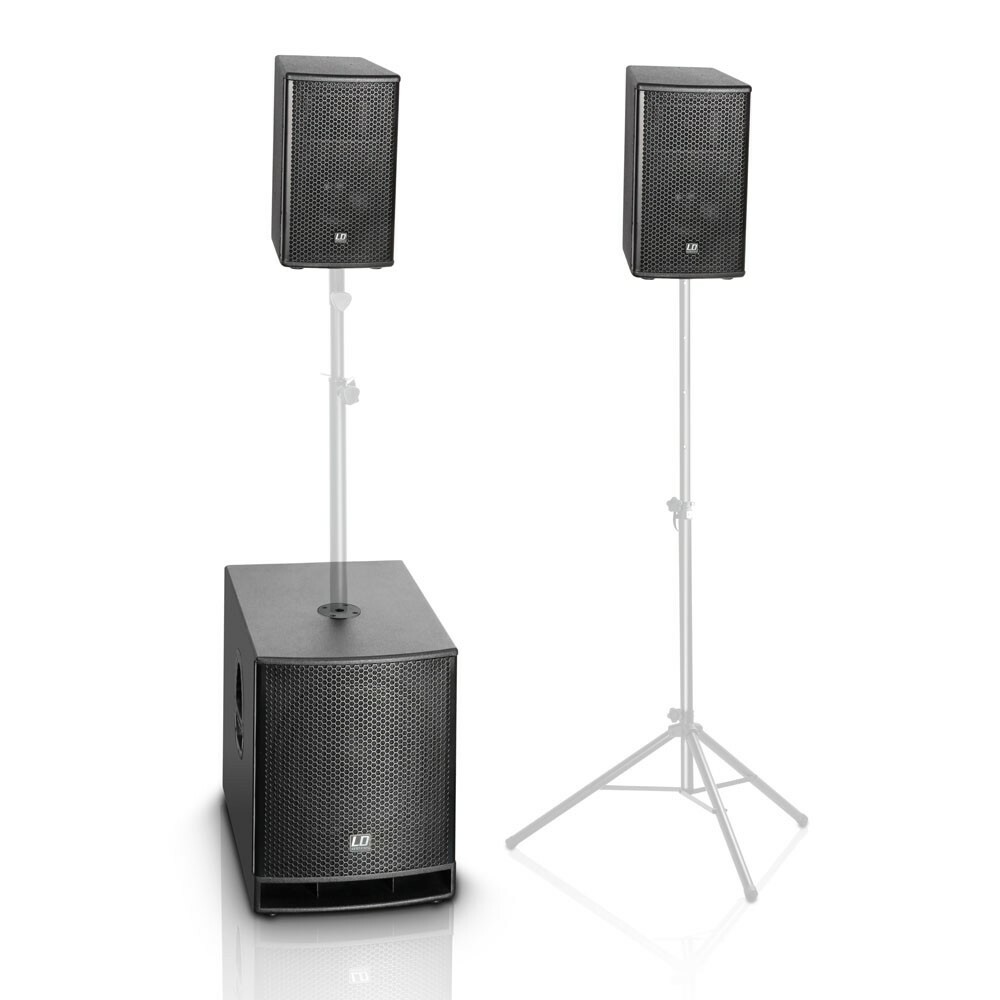

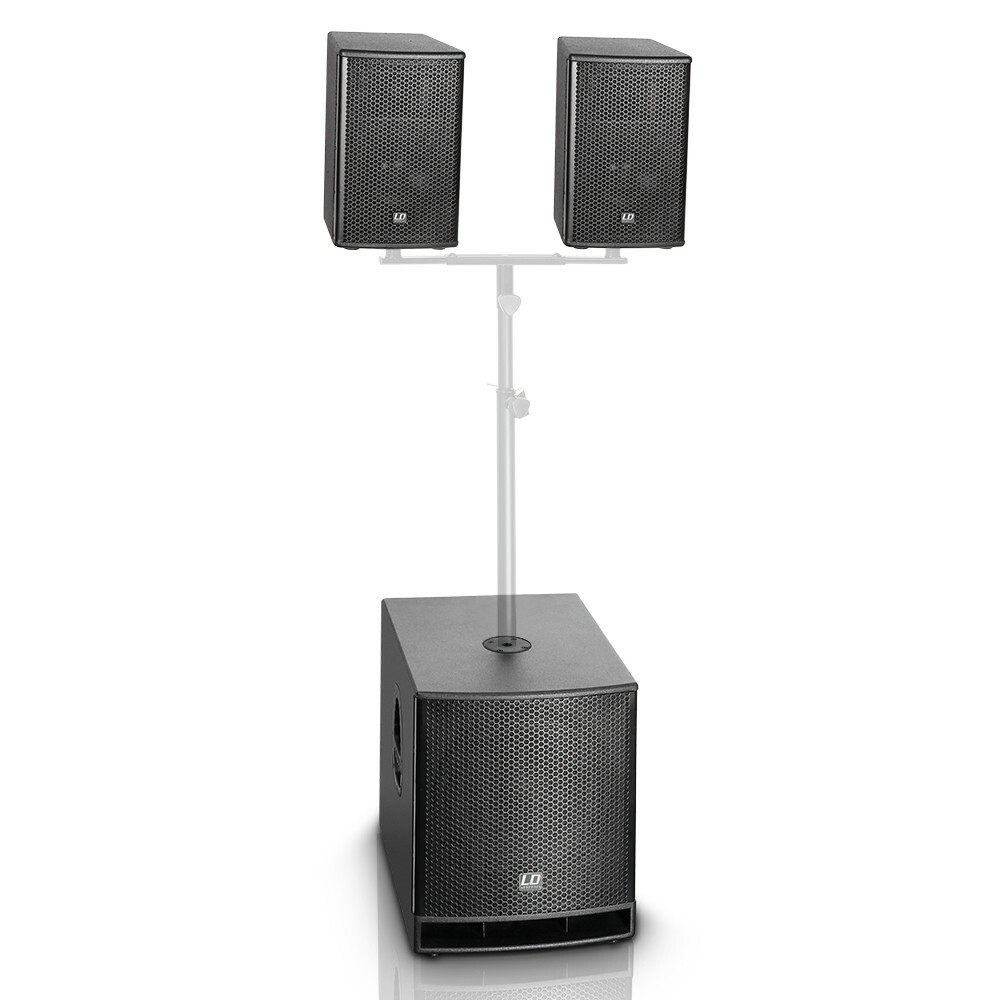

Speaker protection covers and a castor board with a lashing strap for simple transport are available as accessories. Matching speaker stands, spacer tubes, and mounting forks are also available separately.

Like all systems in the DAVE series, the DAVE 15 G3 is suitable for portable use and for permanent installation.

• General
  • Weight: 60,9 kg
  • Product type: PA Complete Systems
  • Color: Black
  • Max. SPL (continuous): 121 dB
  • Max. SPL (Peak): 132 dB
  • Frequency response: 35 - 19000
  • Dispersion (H x V): 90 x 40 °
• Subwoofer
  • Low/mid Woofer dimensions: 15 "
  • Woofer dimensions (mm): 381 mm
  • Woofer magnet: Ferrite
  • Woofer brand: Custom-made
  • Woofer voice coil: 3 "
  • Woofer voice coil (mm): 76.2 mm
  • Cabinet construction: Bass Reflex
  • Cabinet material: 18 mm Plywood
  • Cabinet surface: Texture paint
  • Subwoofer width: 480 mm
  • Subwoofer height: 570 mm
  • Subwoofer depth: 635 mm
  • Subwoofer features: LD Systems "Evolutive" handles, threaded flange M20
• Mid/Hi System
  • Midrange dimensions: 8 "
  • Midrange dimensions (mm): 203.2 mm
  • Midrange magnet: Ferrite
  • Midrange brand: Custom-made
  • Midrange voice coil: 38.1 mm
  • Horn: CD horn
  • Tweeter dimensions: 1 "
  • Tweeter dimensions (mm): 25.4 mm
  • Tweeter magnet: Ferrite
  • Tweeter brand: Custom-made
  • Tweeter voice coil: 1 "
  • Tweeter voice coil (mm): 25.4 mm
  • Mid/Hi system impedance: 4 Ohm(s)
  • Loudspeaker inputs: 1
  • Speaker input connections: Speakon compatible
  • Cabinet construction mid/high: Closed
  • Mid/Hi system cabinet material: 15 mm Plywood
  • Mid/Hi system cabinet surface: Texture paint
  • Mid/Hi system width: 275 mm
  • Mid/Hi system height: 430 mm
  • Mid/Hi system depth: 260 mm
  • Mid/Hi system features: Ergonomically shaped insert handles, SM707 stand mount 36 mm

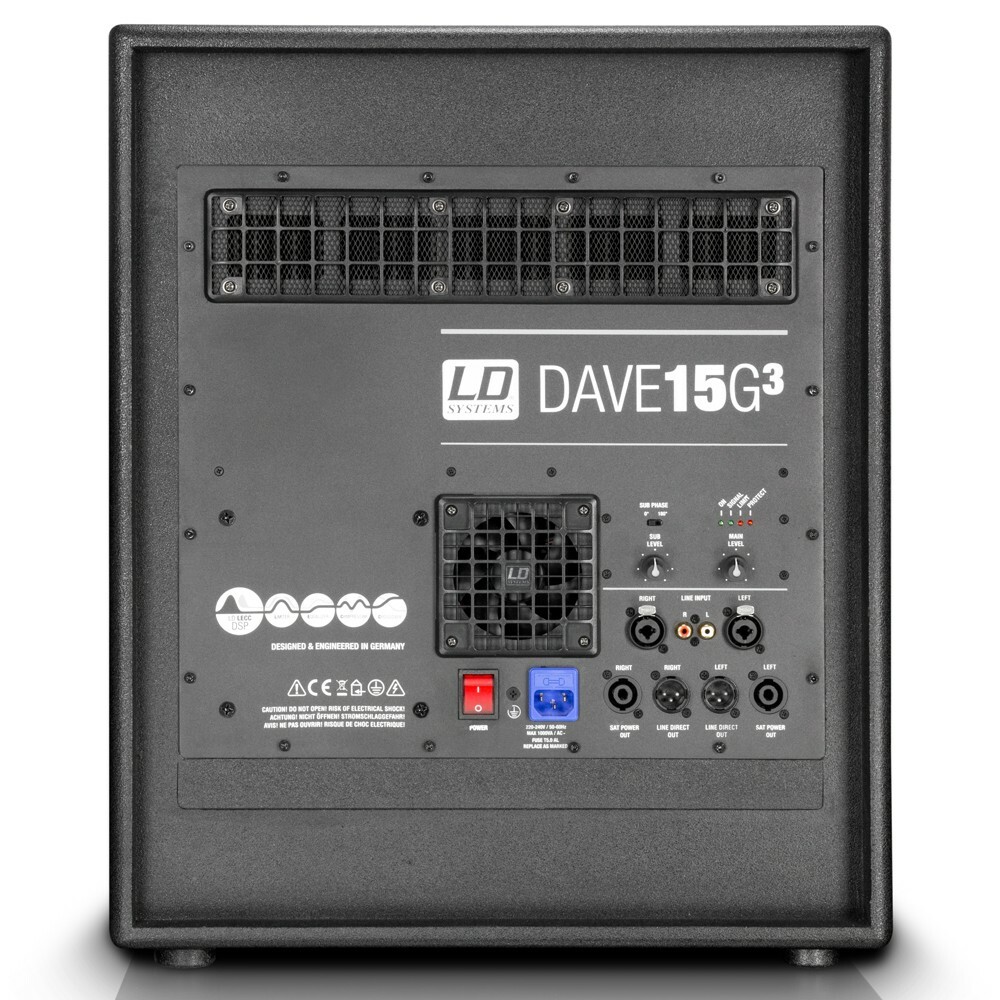

• Amplifier module (integrated in subwoofer)
  • Amplifier: Class A/B
  • Amplifier output system (RMS): 700 W
  • Amplifier output system (peak): 2800 W
  • Protection circuits: Limiter, overload, short circuit
  • Cooling: Volume-controlled fan
  • Controls: Power, Sub level, Subwoofer Phase Reverse, volume
  • Indicators: Limit, on/off, Protect (protection circuit engaged), Signal
  • Operating voltage: 220 V AC - 240 V AC
  • Power consumption: 1000 VA
  • Line inputs: 2
  • Line input connectors: 6.3 mm jack, RCA, XLR
  • Line output connectors: XLR
  • Loudspeaker outputs: 2
  • Speaker output connections: Speakon compatible
