Beskrivning
LD Systems DQOR 3
3" Tvåvägs passiv inomhus/utomhus installationshögtalare 8 Ohm eller 16 Ohm (Par)
Description (Engelska)
- :

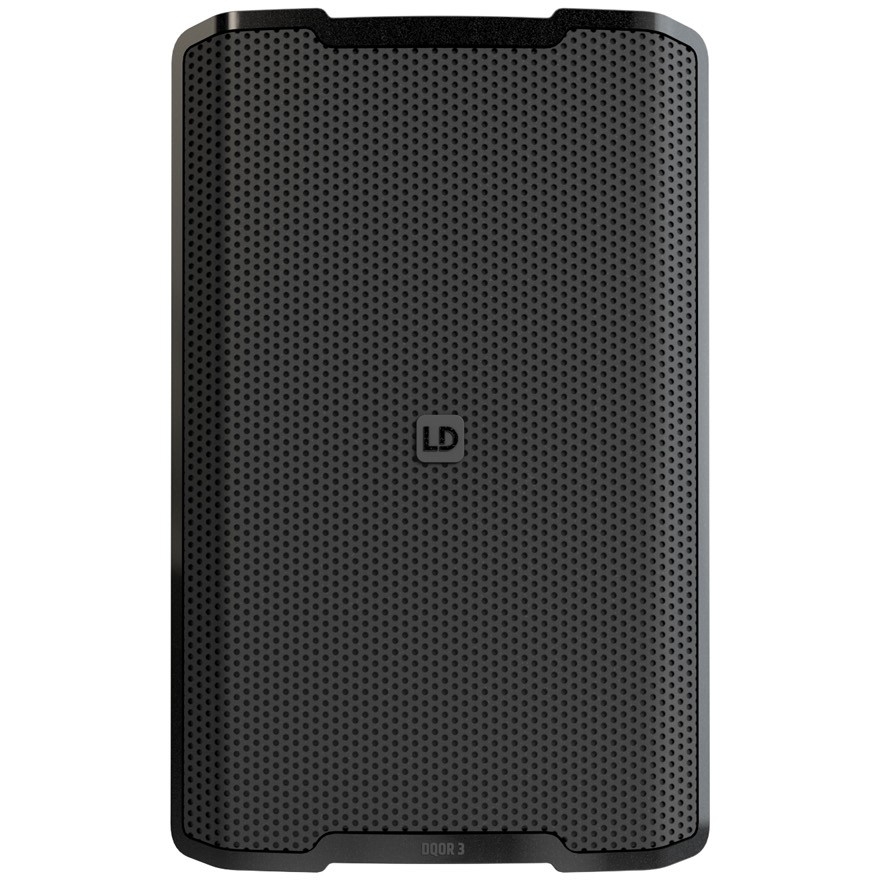

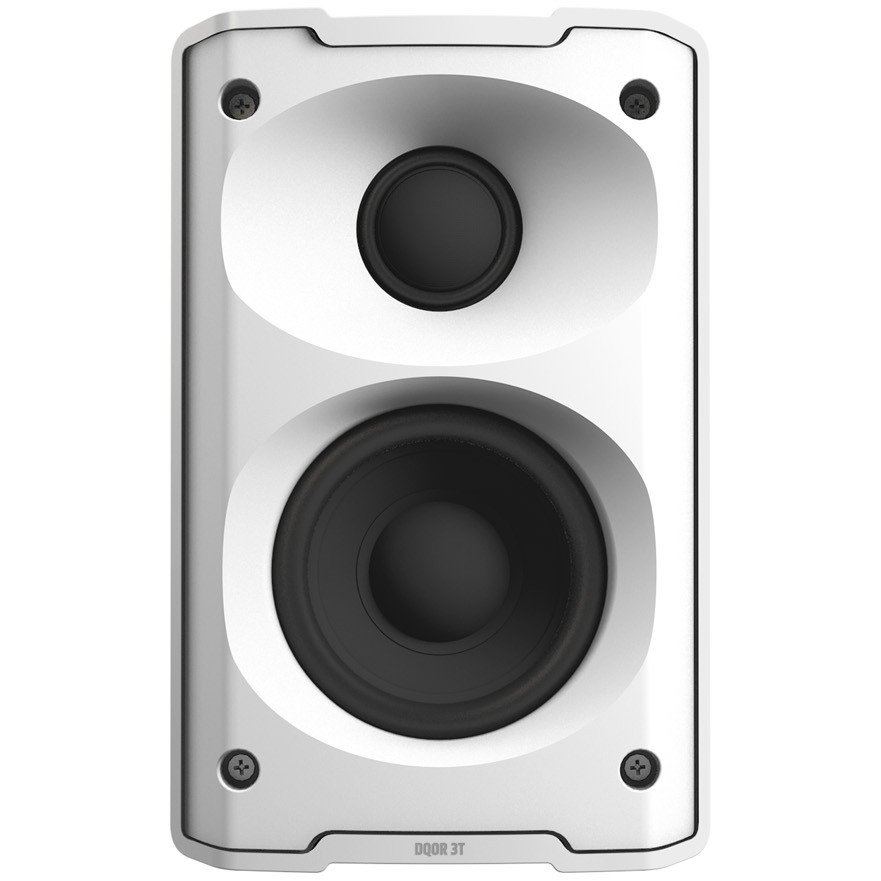

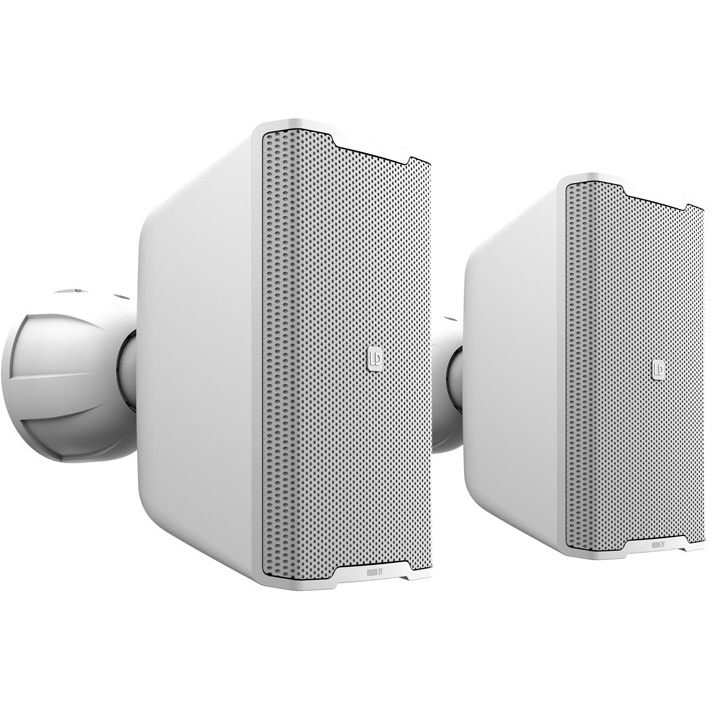

LD Systems DQOR 3 ( LDDQOR3B & LDDQOR3W )

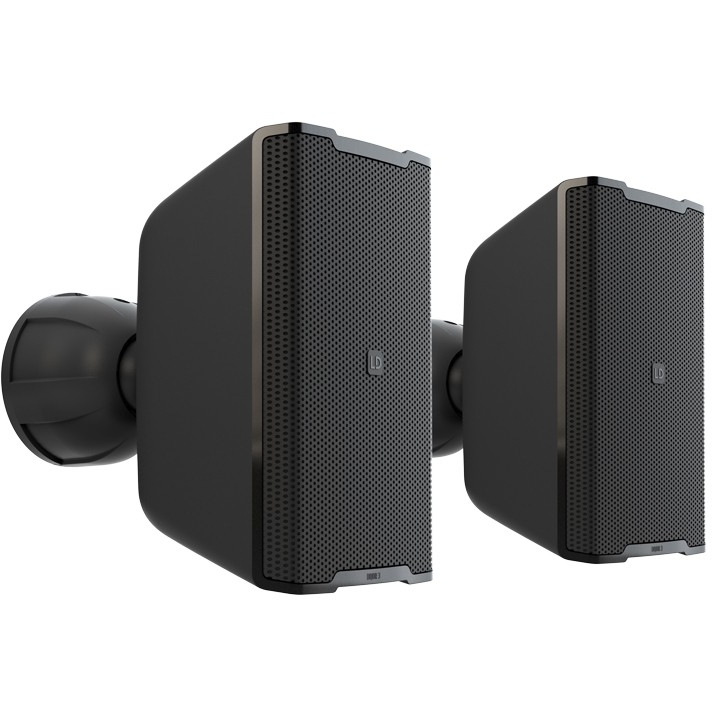

3" Two-way Passive Indoor/Outdoor Installation Loudspeaker 8 Ohm (Pair)
- For indoor and outdoor use, IP65 (DQOR 3) and IP55 (DQOR 5 & 8) certified.
- Corrosion-resistant aluminum front grille.
- Elegant, dynamic design to suit any environment.
- Available in black or white.

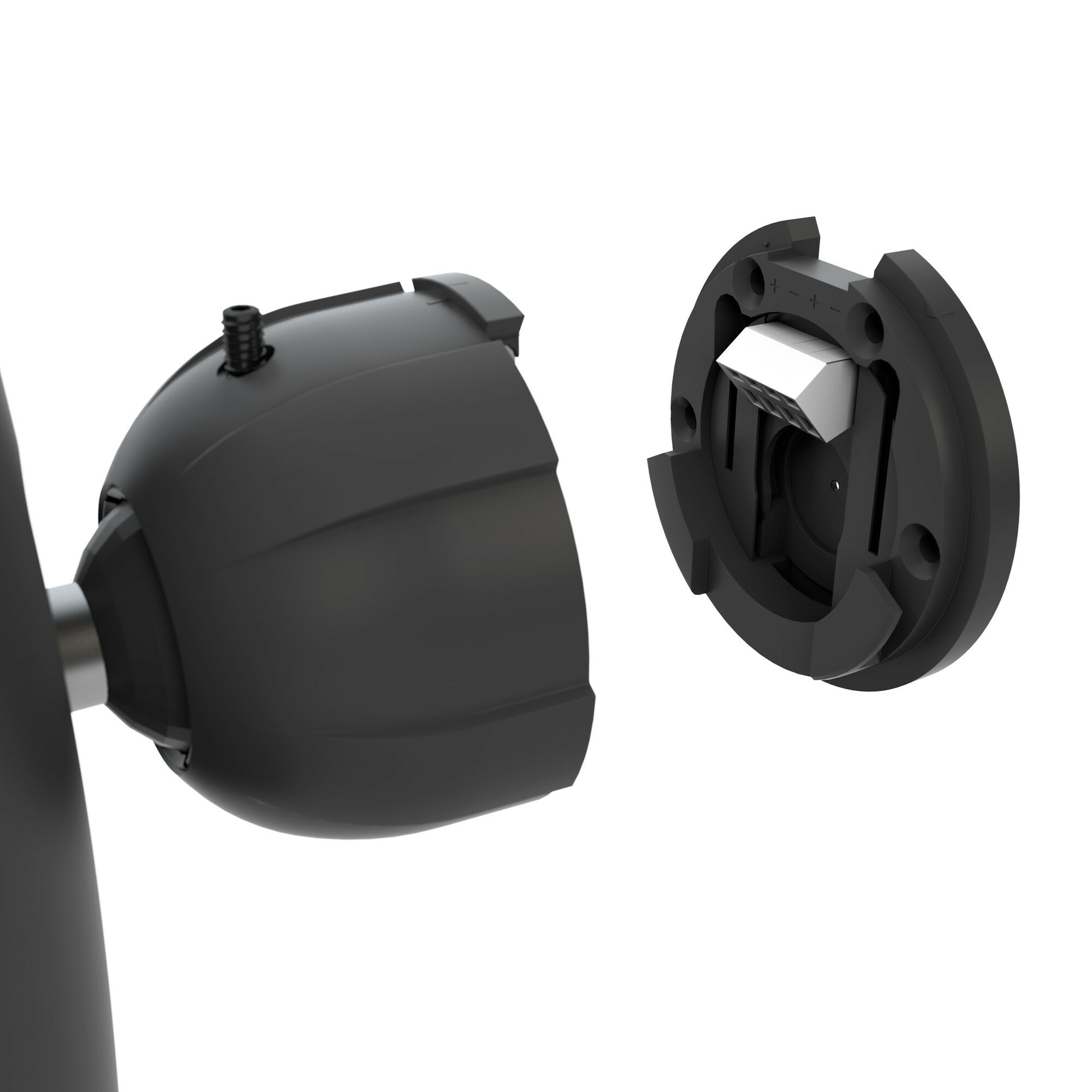

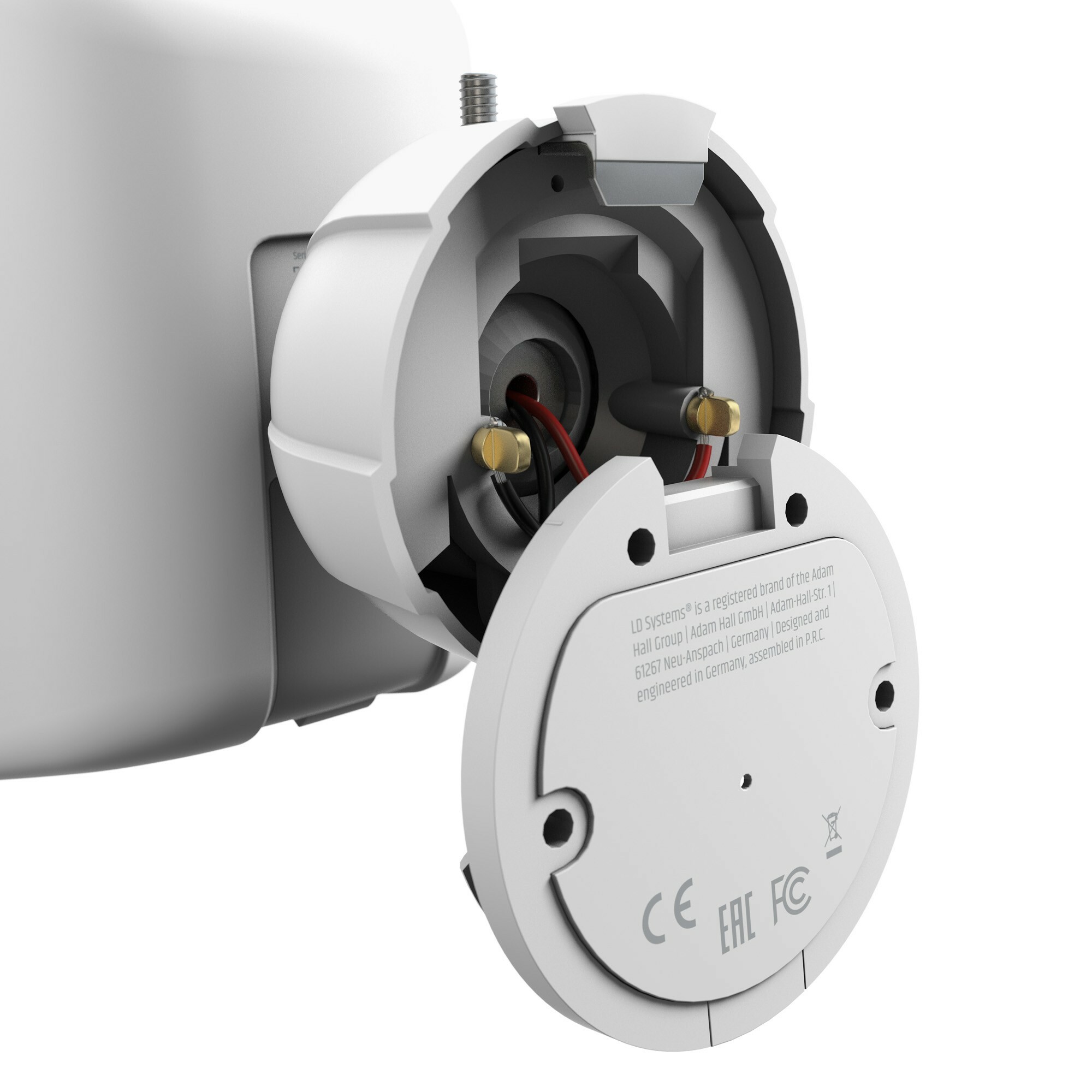

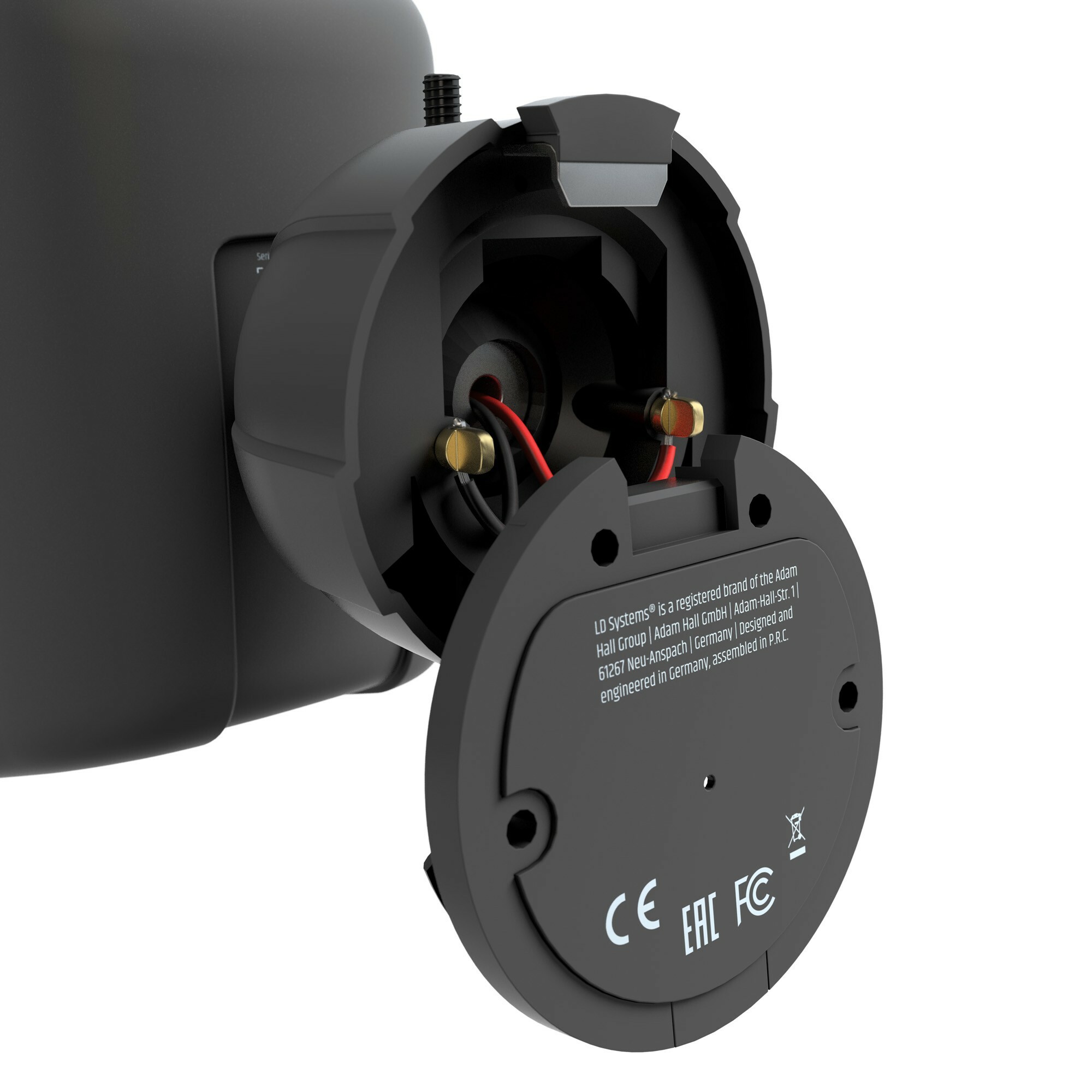

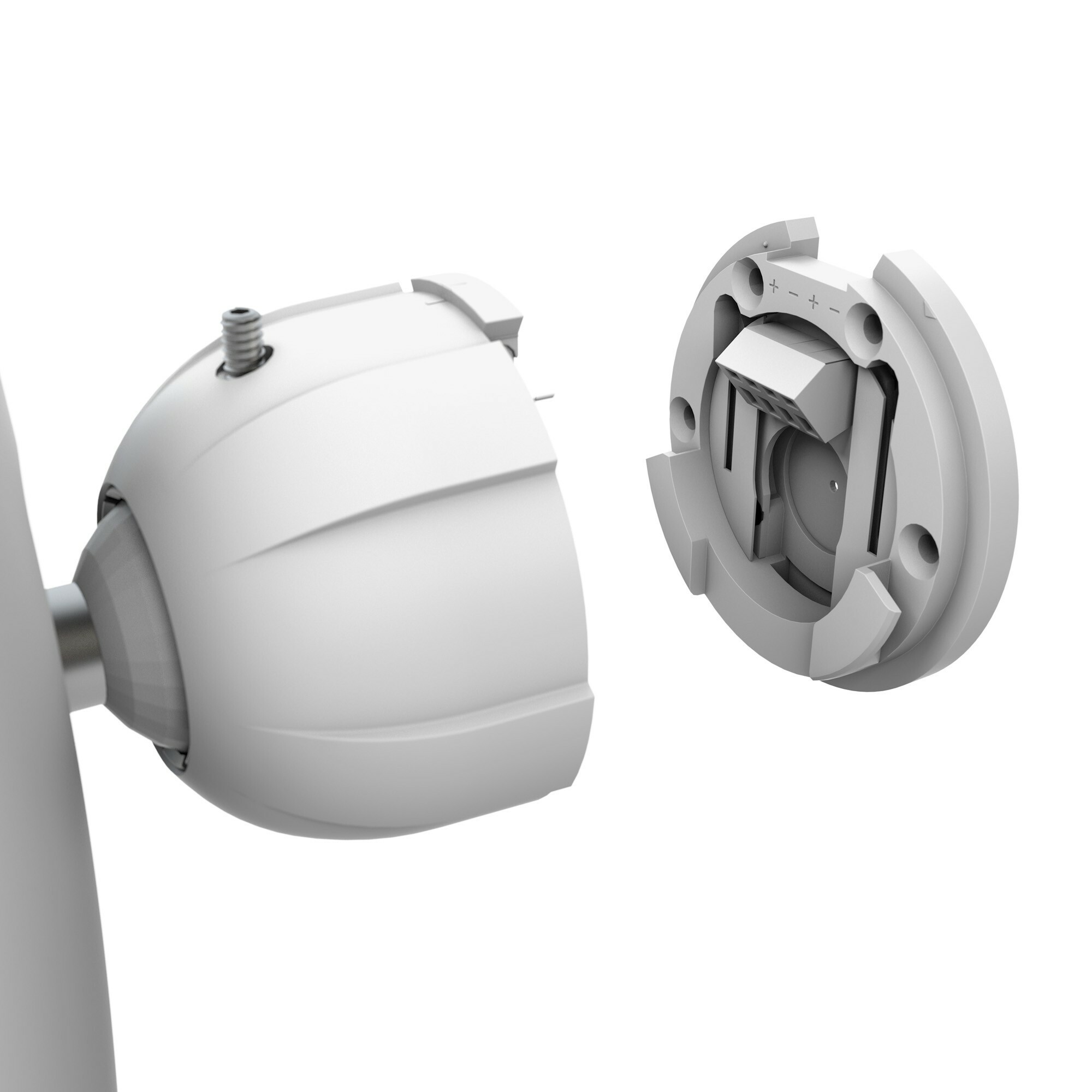

- Slide-and-lock wall mount with concealed integrated connections.
- Superb, balanced sound thanks to a 2-way system.

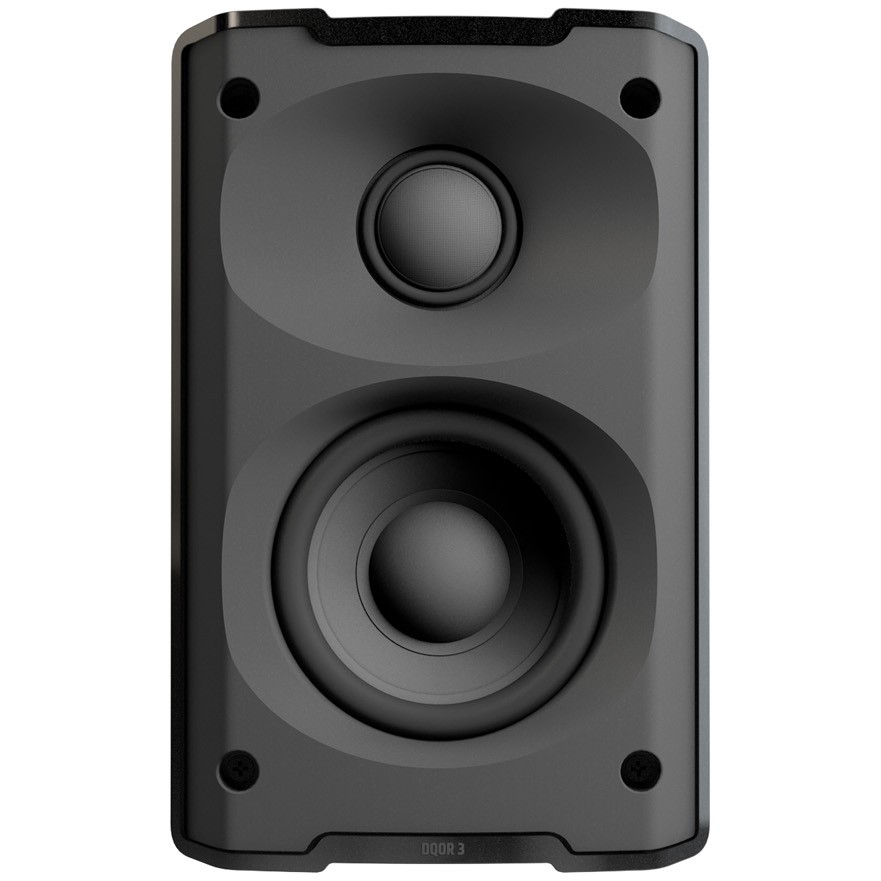

- Weather treated paper cone woofer and FerroFluid™-cooled titanium high frequency driver.
- Wide coverage angle (120° horizontal, 80° vertical).
- BEM-optimized waveguide for balanced sound.
- 3", 5" and 8" variants available.
- Available in two connection variants: low impedance (8 Ohm) or as a 70/100V version with multiple power taps, and can be operated under low impedance (16 Ohm).
Encourage your customers and guests to linger for longer with great sound. Thanks to their wide coverage angle and balanced sound, DQOR loudspeakers provide an inviting ambience.
Whether indoors or outdoors, with its elegant, dynamic design in black or white, the 2-way speaker fits harmoniously into any installation. Thanks to the clever slide-and-lock wall mount with concealed integrated connections, there is no need for unsightly cables. To maintain an elegant and smart look on the long term, the front grille is made of corrosion-resistant aluminum.

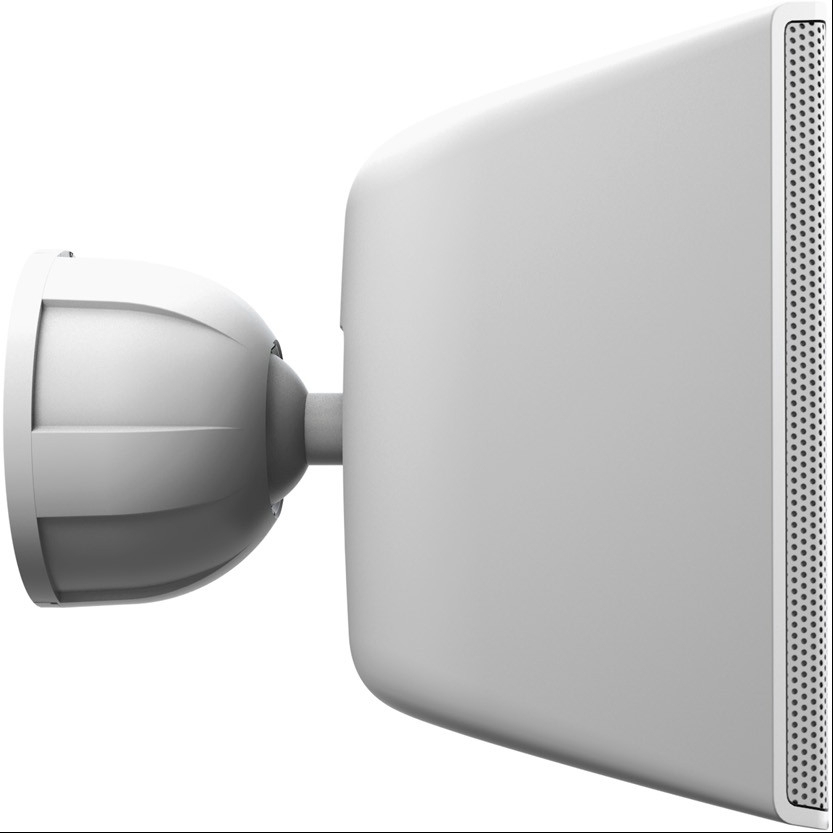

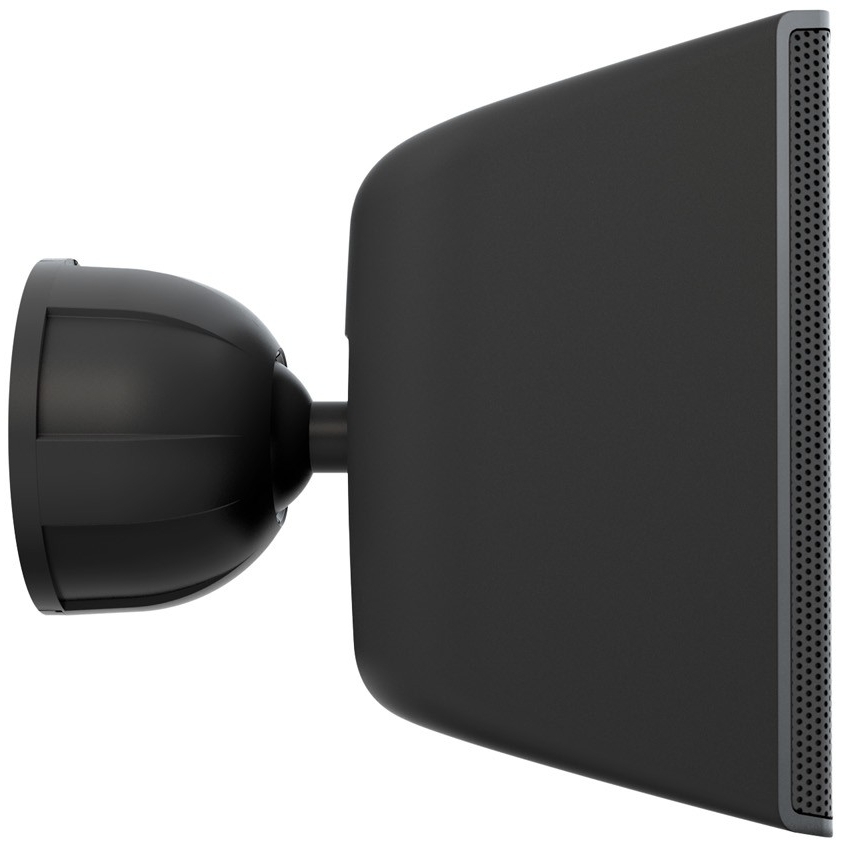

No restrictions! With a tilt angle of up to 27° and a 45° horizontal swivel angle, DQOR loudspeakers offer flexible positioning to meet your needs.
DQOR loudspeakers can also be used in a distributed sound system with numerous speakers and long cable runs. The DQOR 3T, DQOR 5T and DQOR 8T models are equipped with multitap transformers for 70V/100V systems to minimize power loss. Play background music and announcements at the sound level you want: the output power of each speaker can be adjusted with a power tap. Alternatively, the transformer variants can also be operated at conventional low impedance amplifier outputs. Their 16 Ohm impedance allows the parallel connection of up to eight DQOR loudspeakers at 2 Ohm. DQOR series loudspeakers provide superb sound and the sort of feel-good atmosphere which always puts your customers and employees in a great mood, whether in your shop, your hotel lobby, at a beach bar or on a cruise ship.
- General
- Product type: PA loudspeaker
- Type: Passive
- Low/mid Woofer dimensions: 3 "
- Woofer dimensions (mm): 76.2 mm
- Woofer magnet: Ferrite
- Woofer brand: Custom-made
- Woofer voice coil: 1 "
- Woofer voice coil (mm): 25.4 mm
- Horn: BEM optimized CD Waveguide
- HF driver dimensions: 1 "
- HF driver dimention (mm): 25.4 mm
- HF driver magnet: Neodymium
- HF driver brand: Custom-made
- HF driver voice coil: 1 "
- HF driver voice coil: 25.4 mm
- Dispersion (H x V): 120° x 80° (-6 dB)
- Load rating (RMS): 30 W
- Peak power: 60 W (>200Hz)
- Frequency response: 85 - 20000 Hz (-10dB)
- Crossover frequency: 2200 Hz
- SPL (1W/1m): 80 dB
- Max. SPL: 98 dB
- Impedance: 8 Ohm(s)
- Speaker input connections: 4-pole Terminal Block. Pitch 5.08mm
- Cabinet material: ABS plastic
- Cabinet colour: Black (RAL 9005) or White (RAL9010)
- Protection class IP: 65
- Width: 114.6 mm
- Height: 180 mm
- Depth: 180.8 mm
- Accessories (included): Allen Key for the safety screw, Bracket for surface mount
- Optional accessories: LDDQORWMC (rubber cover set for wall mount bracket)
- Weight: 1,4 kg

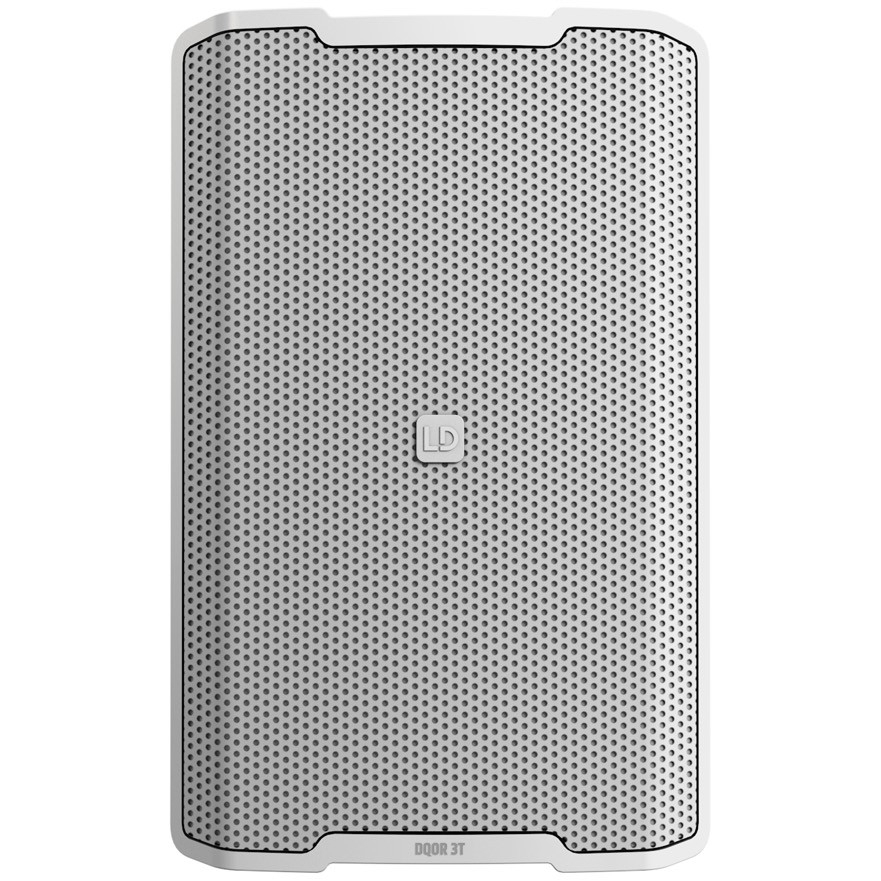

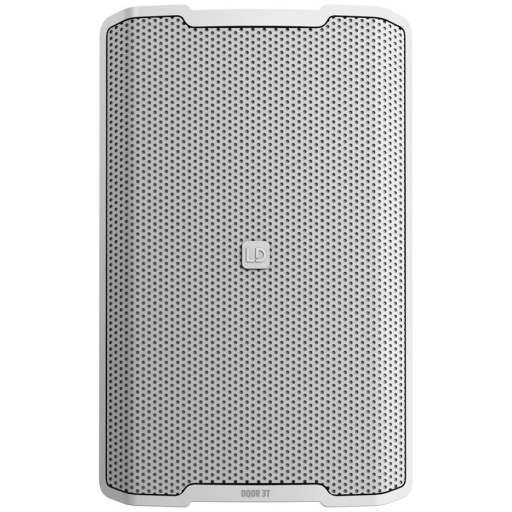

LD Systems DQOR 3 T ( LDDQOR3TB & LDDQOR3TW )
3" Two-way Passive Indoor/Outdoor Installation Loudspeaker 16 Ohm, 70/100 V (Pair)
- For indoor and outdoor use, IP65 (DQOR 3) and IP55 (DQOR 5 & 8) certified.
- Corrosion-resistant aluminum front grille.
- Elegant, dynamic design to suit any environment.
- Available in black or white.
- Slide-and-lock wall mount with concealed integrated connections.
- Superb, balanced sound thanks to a 2-way system.
- Weather treated paper cone woofer and FerroFluid™-cooled titanium high frequency driver.
- Wide coverage angle (120° horizontal, 80° vertical).
- BEM-optimized waveguide for balanced sound.
- 3", 5" and 8" variants available.
- Available in two connection variants: low impedance (8 Ohm) or as a 70/100V version with multiple power taps, and can be operated under low impedance (16 Ohm).
Encourage your customers and guests to linger for longer with great sound. Thanks to their wide coverage angle and balanced sound, DQOR loudspeakers provide an inviting ambience.
Whether indoors or outdoors, with its elegant, dynamic design in black or white, the 2-way speaker fits harmoniously into any installation. Thanks to the clever slide-and-lock wall mount with concealed integrated connections, there is no need for unsightly cables. To maintain an elegant and smart look on the long term, the front grille is made of corrosion-resistant aluminum.
No restrictions! With a tilt angle of up to 27° and a 45° horizontal swivel angle, DQOR loudspeakers offer flexible positioning to meet your needs.
DQOR loudspeakers can also be used in a distributed sound system with numerous speakers and long cable runs. The DQOR 3T, DQOR 5T and DQOR 8T models are equipped with multitap transformers for 70V/100V systems to minimize power loss. Play background music and announcements at the sound level you want: the output power of each speaker can be adjusted with a power tap. Alternatively, the transformer variants can also be operated at conventional low impedance amplifier outputs. Their 16 Ohm impedance allows the parallel connection of up to eight DQOR loudspeakers at 2 Ohm. DQOR series loudspeakers provide superb sound and the sort of feel-good atmosphere which always puts your customers and employees in a great mood, whether in your shop, your hotel lobby, at a beach bar or on a cruise ship.
- General
- Product type: PA loudspeaker
- Type: Passive
- Low/mid Woofer dimensions: 3 "
- Woofer dimensions (mm): 76.2 mm
- Woofer magnet: Ferrite
- Woofer brand: Custom-made
- Woofer voice coil: 1 "
- Woofer voice coil (mm): 25.4 mm
- Horn: BEM optimized CD Waveguide
- HF driver dimensions: 1 "
- HF driver dimention (mm): 25.4 mm
- HF driver magnet: Neodymium
- HF driver brand: Custom-made
- HF driver voice coil: 1 "
- HF driver voice coil: 25.4 mm
- Dispersion (H x V): 120° x 80° (-6 dB)
- Load rating (RMS): 30 W
- Peak power: 60 W (>200Hz)
- Frequency response: 85 - 20000 Hz (-10dB)
- Crossover frequency: 2200 Hz
- SPL (1W/1m): 80 dB
- Max. SPL: 98 dB
- Impedance: 16 Ohm(s)
- Input selector switch: 70 V - 100 V - 16 Ohms
- 100V transformer power (Taps): 30 - 6 - 3 - 1.5W
- 70V transformer power (Taps): 30 - 6 - 3 - 1.5W
- Speaker input connections: 4-pole Terminal Block. Pitch 5.08mm
- Cabinet material: ABS plastic
- Protection class IP: 65
- Cabinet colour: Black (RAL 9005) or White (RAL9010)
- Width: 114.6 mm
- Height: 180 mm
- Depth: 180.8 mm
- Accessories (included): Allen Key for the safety screw, Bracket for surface mount
- Optional accessories: LDDQORWMC (rubber cover set for wall mount bracket)
- Weight: 4,2 kg
