LD Systems ICOA 15 A W
Description (Engelska)
- :
LD Systems ICOA 15 A W
15" Powered Coaxial PA Loudspeaker, White
- A genuine all-rounder for full-range, satellite and monitor applications.
- 128 dB max. SPL and 1200 W peak power.

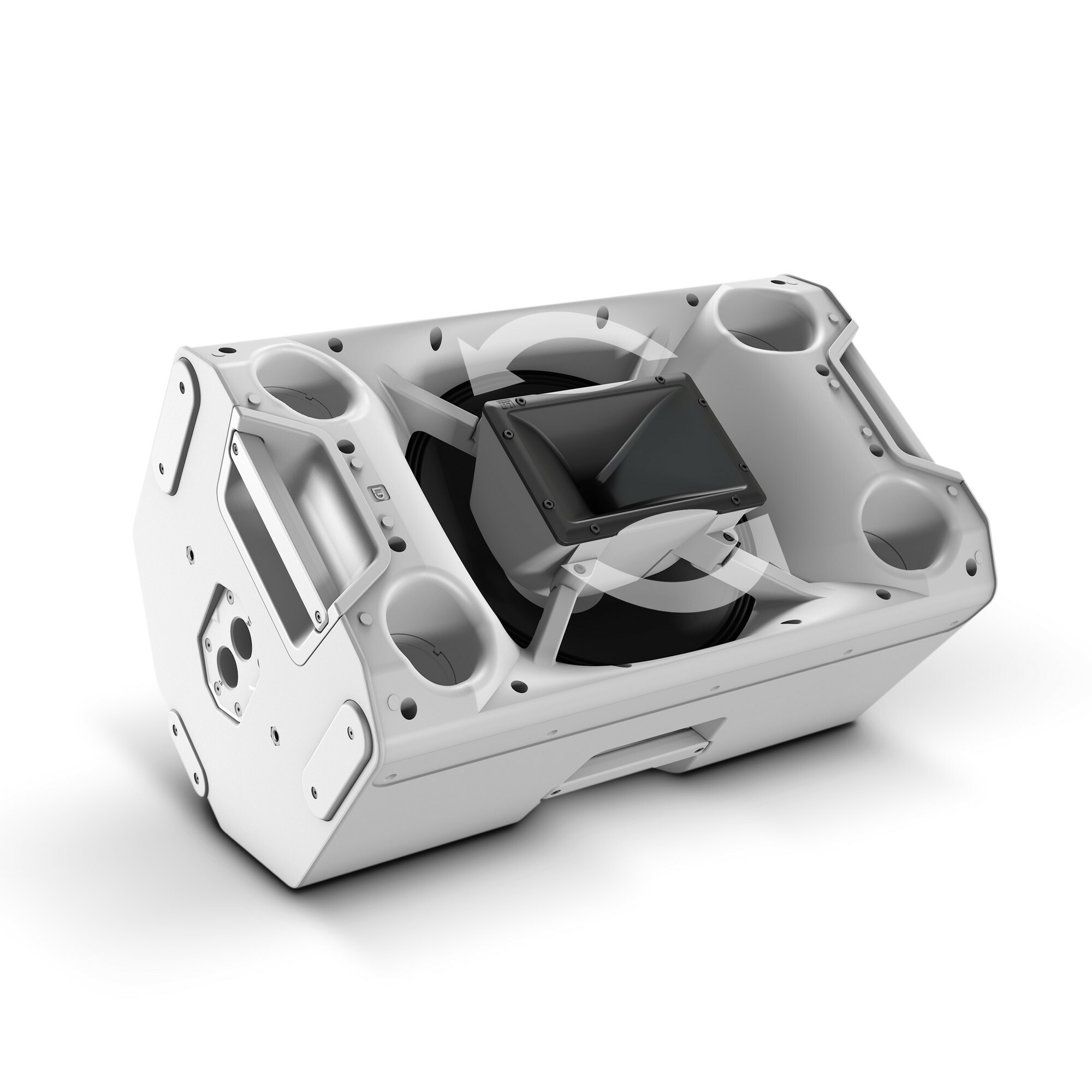

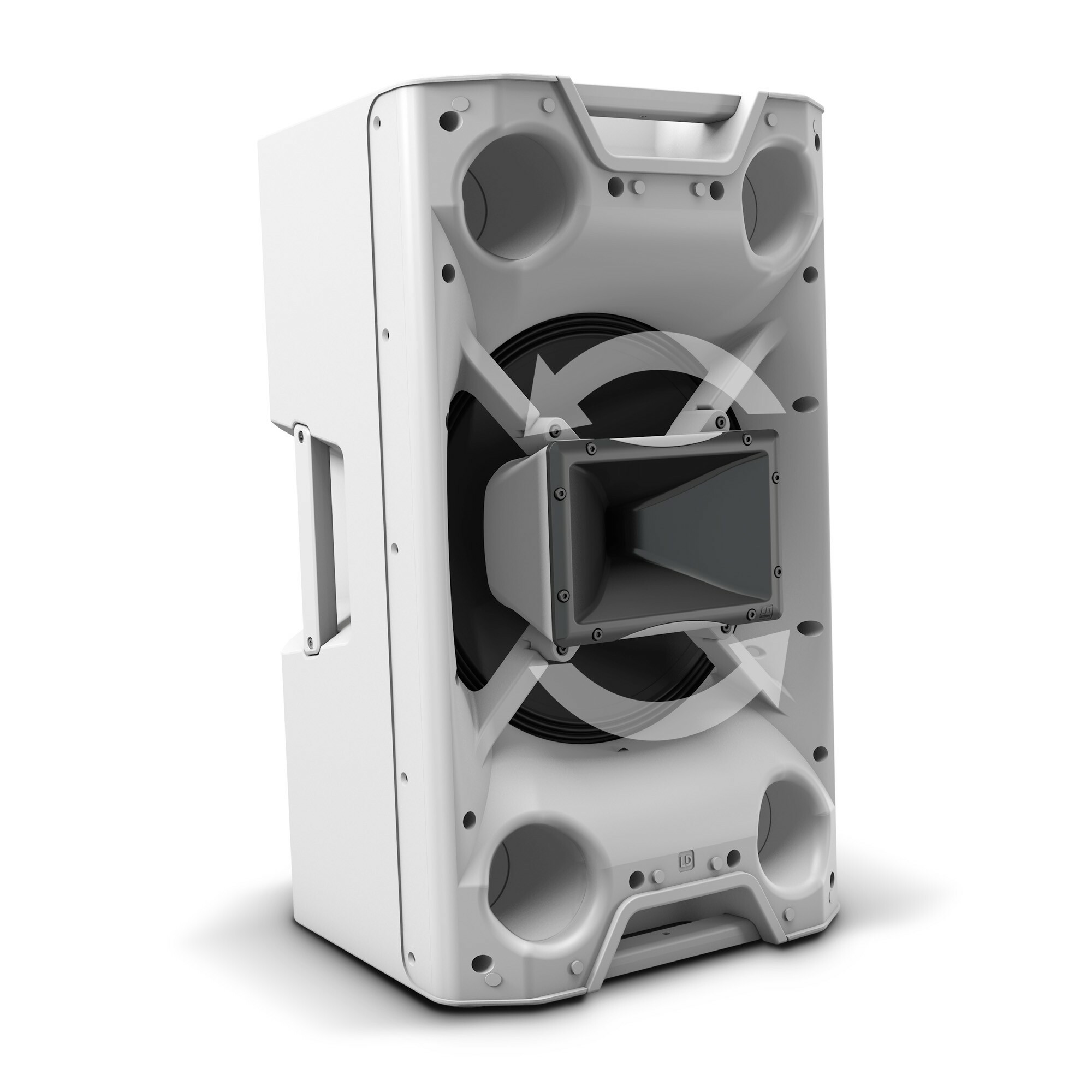

- Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimised CD horn (Patent pending).
- Horn-loaded woofer.
- DynX DSP with 4 presets, 3-band EQ and delay function.
- 2 line/mic input channels with individual gain controllers plus mono mix output; Bluetooth® streaming with the BT model.

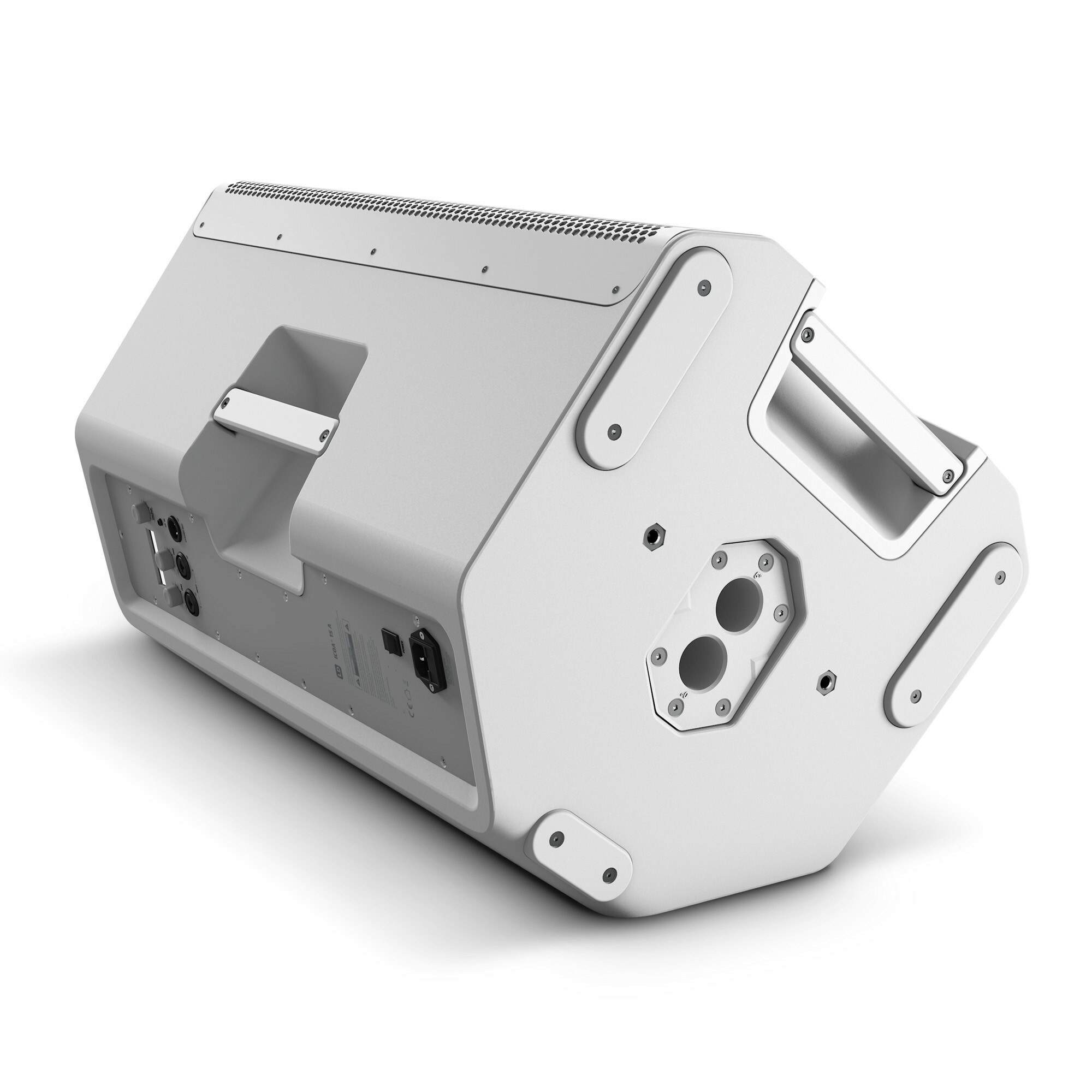

- 36 mm dual tilt stand attachment with 0° and 5° tilt angle, 55° monitor angle with sturdy stand.
- 6 x M10 flying points.

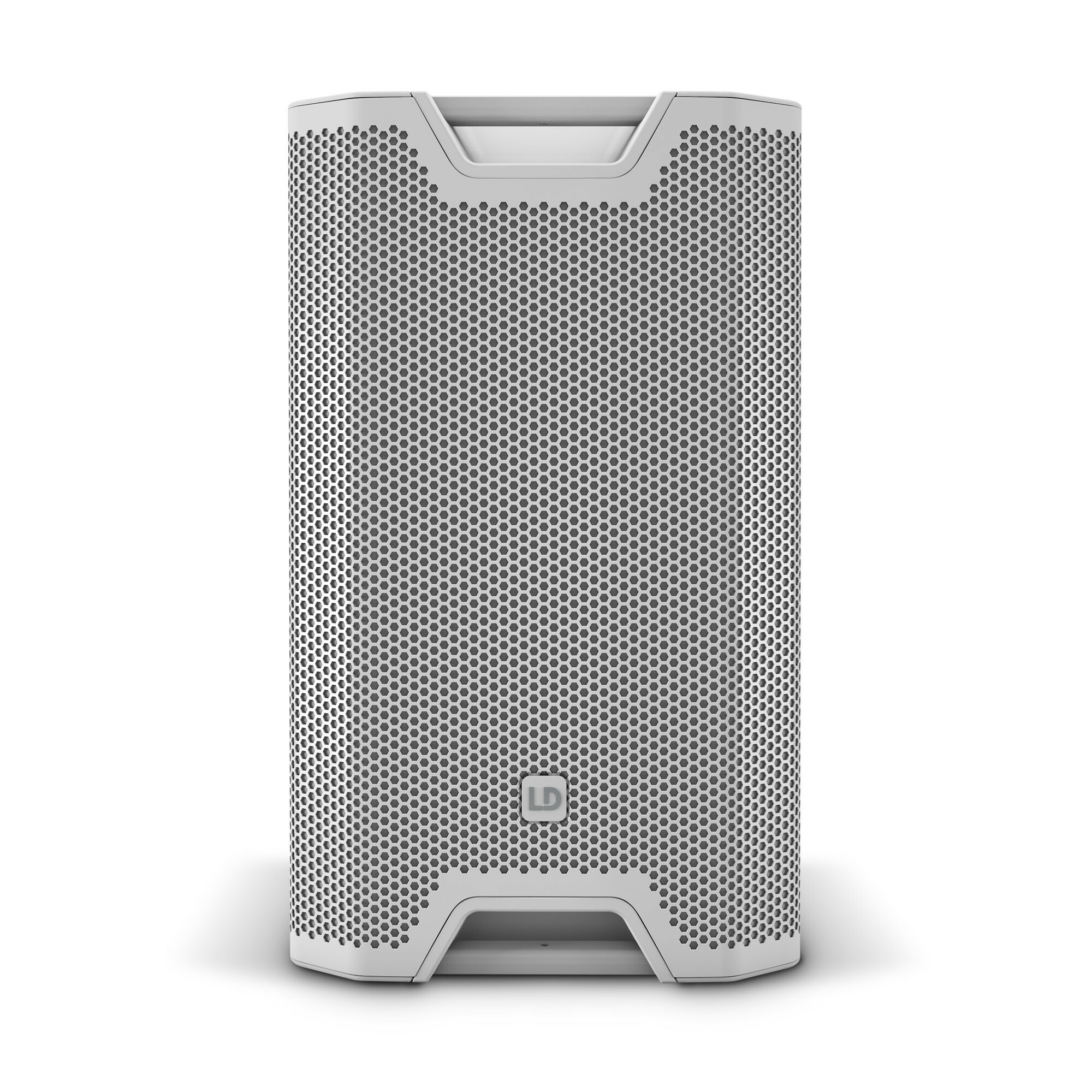

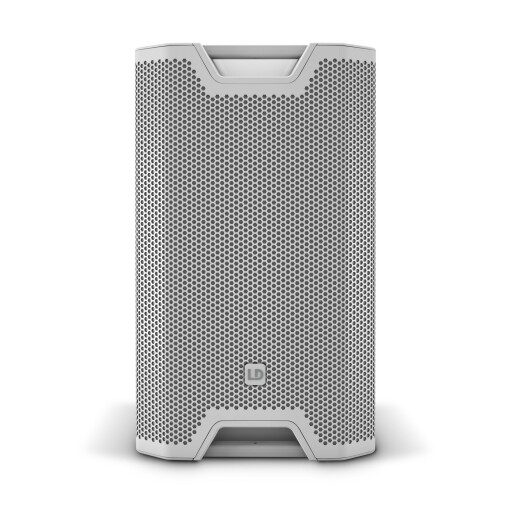

- Shock-resistant front grille for optimal protection of the speaker.
- 4 aluminium grips with ergonomic, rubber surface.
- Extensive, optionally available accessories for installation and transport.

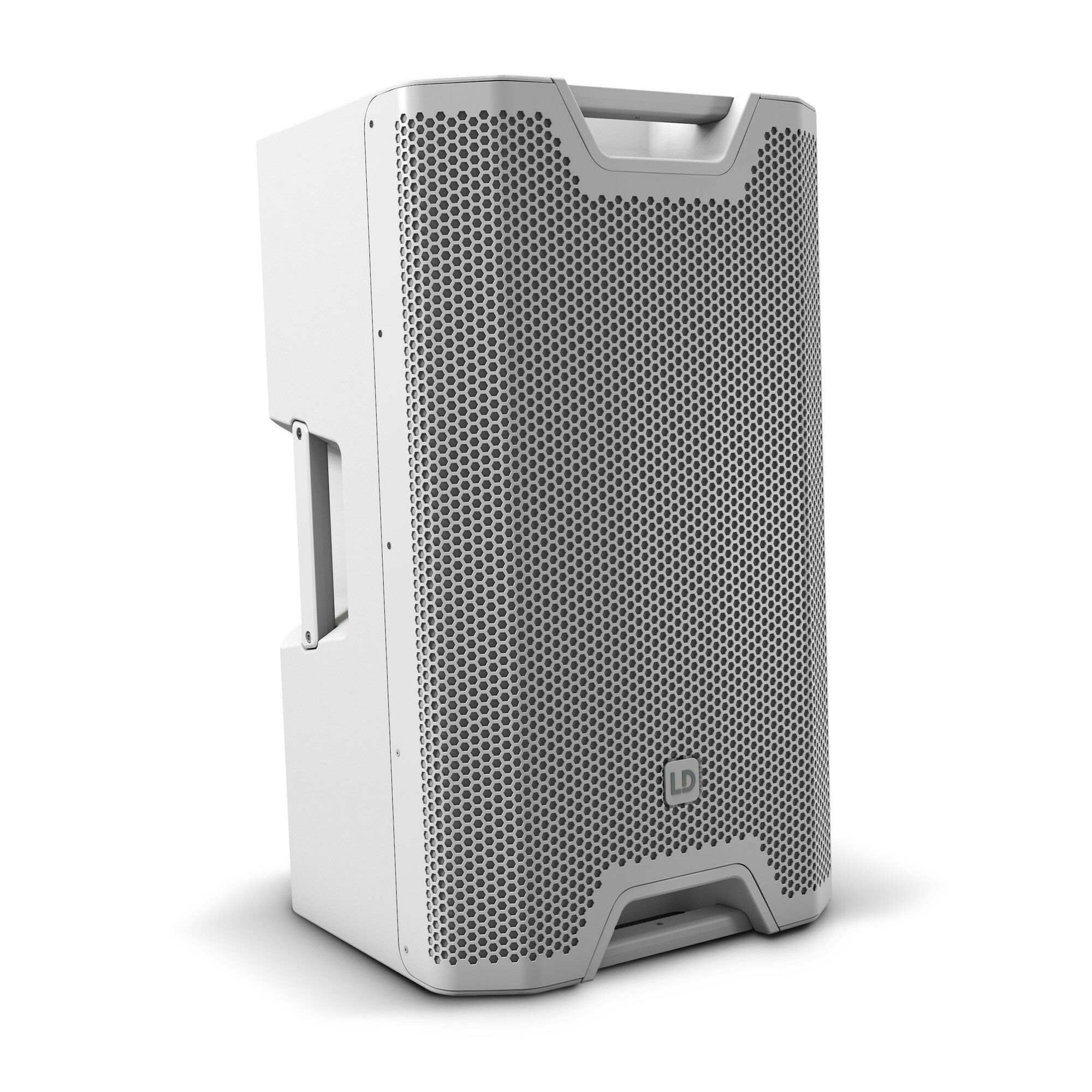

This full-range loudspeaker impresses with its outstanding sound, even at low frequencies. The ICOA 15 A W by LD Systems is a genuine all-rounder that offers unparalleled features for its class. Its coaxial design, rotating, BEM-optimised CD horn and extensive and precisely calibrated DynX DSP presets make this powered 15" loudspeaker exceptionally flexible.
The outstanding bass reproduction from the horn-loaded woofer makes the LD ICOA 15 A W the ideal choice for musicians, bands, entertainers and dance schools. It also allows DJs to play sets without the need for a subwoofer. Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. The efficient class-D power amplifier delivers 128 dB max. SPL and 1200 W peak performance. Especially the version with white housing and white front grille blends discreetly and unobtrusively into almost any environment.

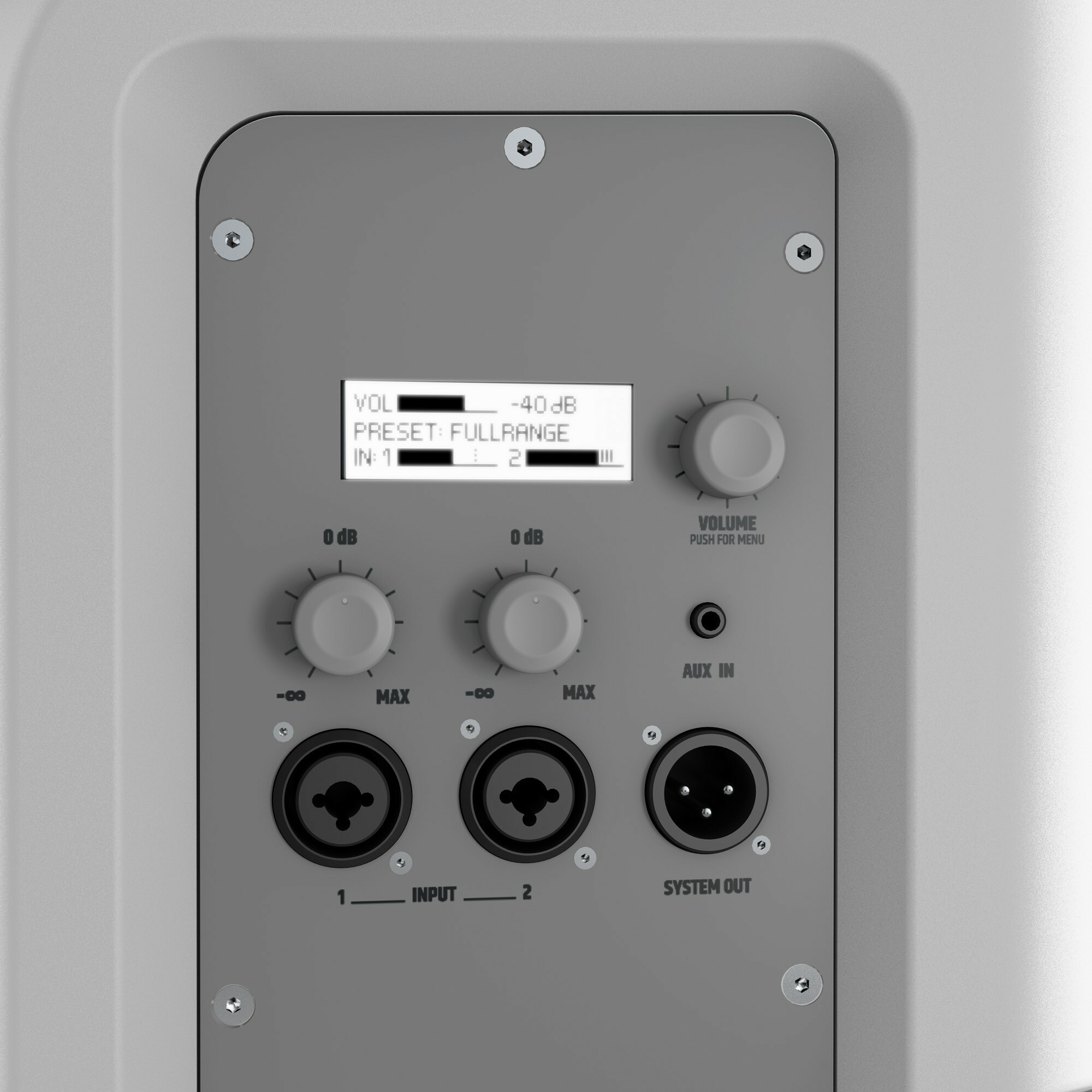

Drawing on DynX DSP technology by LD Systems, the speaker delivers perfect performance with maximum clarity and power under all conditions. 4 presets, a 3-band EQ and a delay function facilitate optimal adjustment of the sound to the venue conditions. The 2 line/mic input channels with individual gain controllers, plus mono mix output, allow a variety of signal sources to be connected.

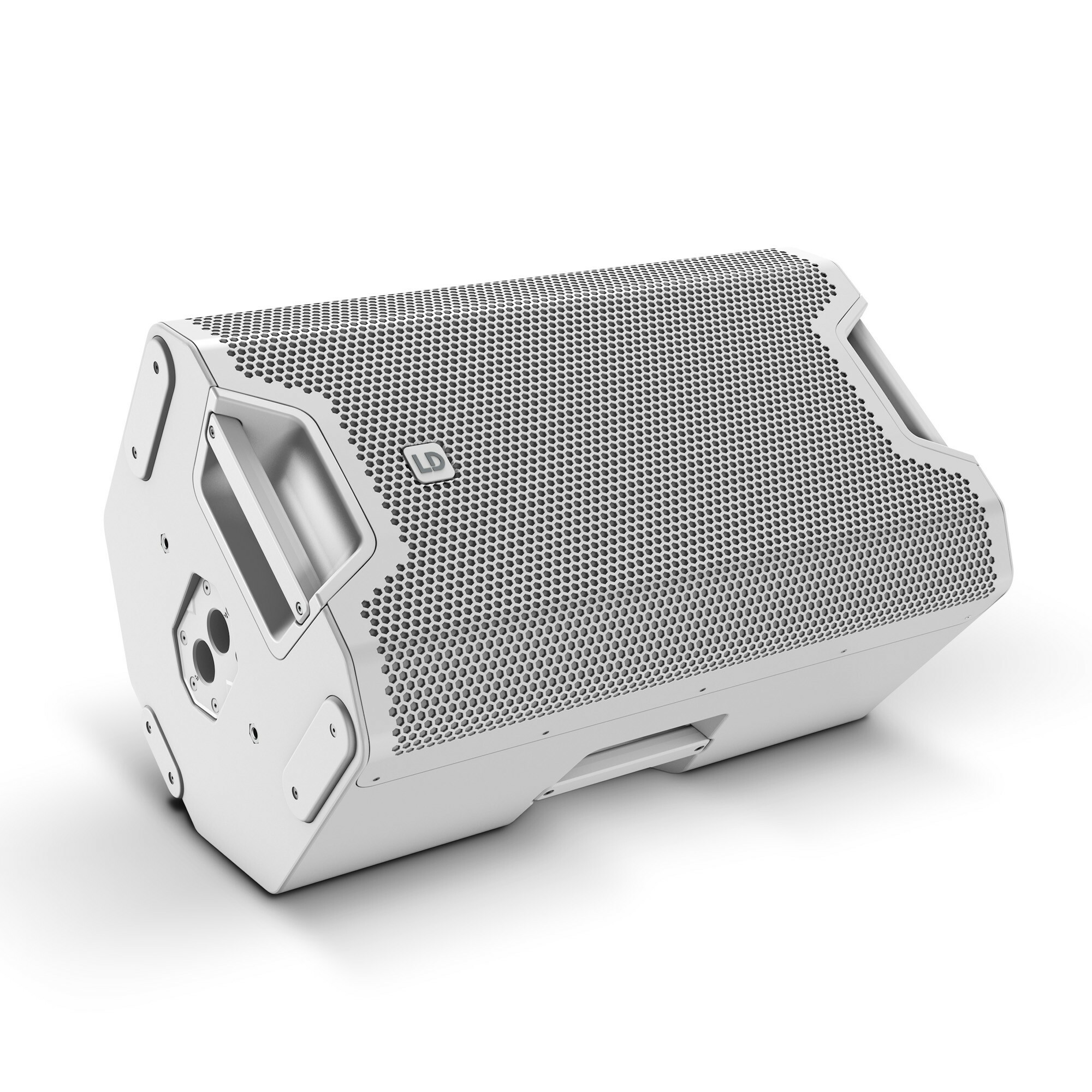

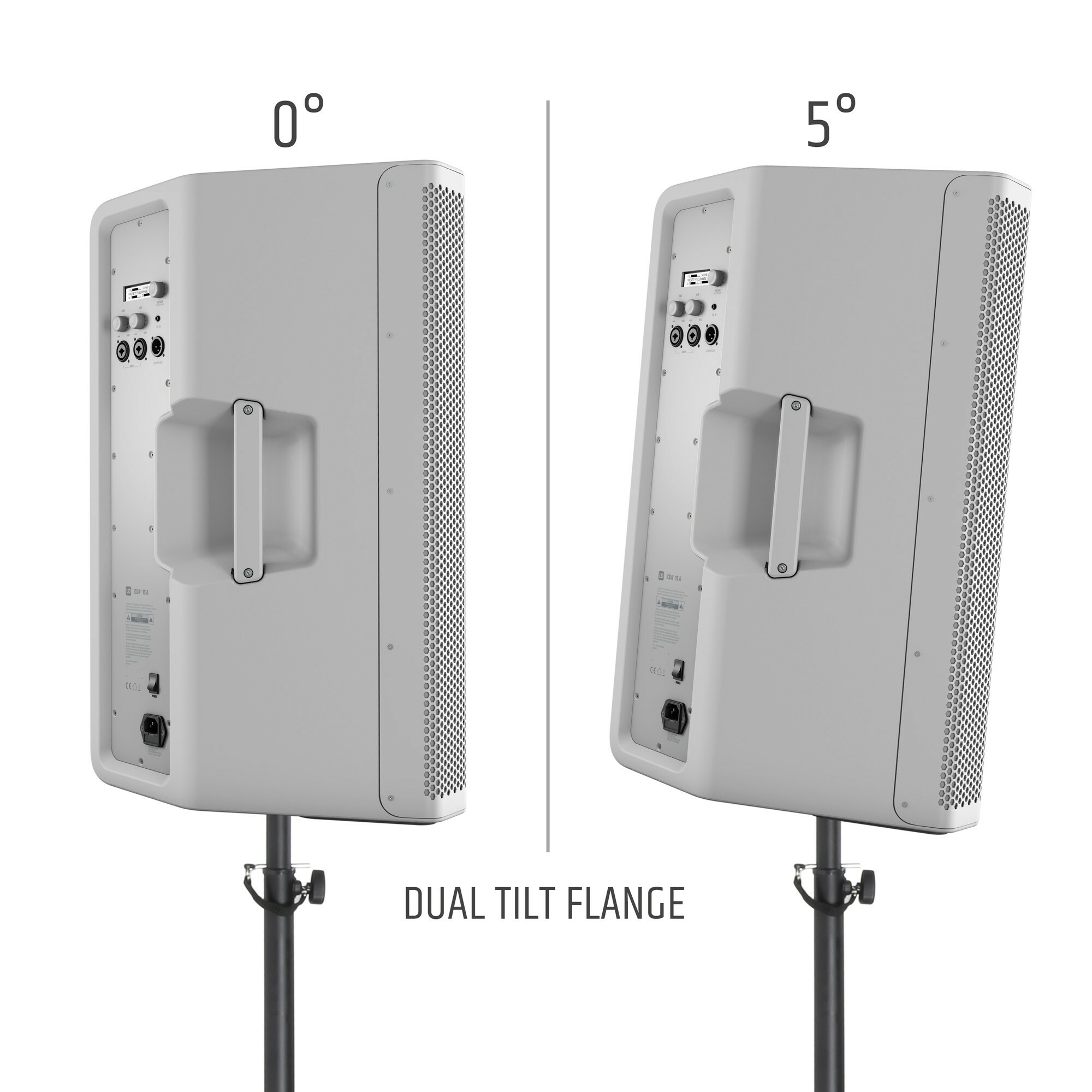

Thanks to its shock-resistant front grille and ideal 55° tilt angle, the LD ICOA 15 A W is also outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment.
Extensive and smart accessories for installation and transport are optionally available. 4 aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.
- General
- Product type: PA loudspeaker
- Type: Powered
- Color: White (RAL 9003)
- Low/mid Woofer dimensions: 15 "
- Woofer dimensions (mm): 381 mm
- Woofer magnet: Ferrite
- Woofer brand: Custom-made
- Horn: BEM optimized CD Horn
- HF driver dimensions: 1 "
- HF driver dimention (mm): 25.4 mm
- HF driver magnet: Ferrite
- HF driver brand: Custom-made
- HF driver voice coil: 35 mm
- Amplifier: Class D
- Dispersion (H x V): 90° x 50°
- System Power (RMS): 300 W
- Peak power: 1200 W
- Frequency response: 48 Hz - 20000 Hz
- Crossover frequency kHz: 2 kHz
- Max. SPL (Peak): 2 dB
- Protection circuits: Multiband limiter, over voltage, over-current, thermal overload
- Controls: 2 x gain, On / off switch, Rotary/push encoder
- Indicators: LC display
- Mic/ line inputs: 2
- Mic-/ Line Input Connectors: 6.3 mm jack Combination sockets (symmetrical), XLR
- Line inputs: 1
- Line input connectors: 3.5 mm TRS
- Line outputs: 1
- Line output connectors: XLR
- Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
- Power consumption: 150 W
- Ambient temperature (in operation): 0 - 40 °C
- Relative Humidity:
- Fuse: T4AL 250 V
- Cabinet material: Polypropylene
- Cabinet construction: Bass Reflex
- Mounting: 36mm flange (0°, 5°), 6 x M10 flying points
- Monitor angle: 55 °
- Width: 416 mm
- Height: 695 mm
- Depth: 415 mm
- Weight: 24,3 kg
- Accessories (included): Power cord
