Beskrivning
LD Systems MAUI 11 G3
Portabelt kardioid kolumn PA-system
Kompakt, kraftfull och enkel att använda - en kolumn PA förblir den perfekta följeslagaren för DJs och mindre band. LD Systems MAUI-serien representerar detta allt-i-ett-koncept i varje detalj och erbjuder ett oöverträffat PA-paket när det gäller ljud, design, teknik och hantering. Sätt upp den, koppla in den, och du är klar!
MAUI 11 G3 levererar ett enormt, kraftfullt och precist ljud med en effekt på 730 W RMS (1 460 W topp), lämpligt för alla tillämpningar: som ett huvudsakligt PA för konserter, ett ljudsystem för mobila DJs eller ett utropssystem vid bröllop, företagsevenemang och mycket mer.
Med sin snygga och eleganta design ser MAUI 11 G3 mycket tilltalande ut. De två aluminiumkolonnerna sitter på främre kanten av subwoofern, vilket ytterligare förhöjer det sömlösa visuella intrycket. Kolonnerna är utrustade med 6 x 3,5'' mellanregisterdrivare och 2 x 1'' diskanthögtalare, vilket ger en jämn ljudfördelning med konstant horisontal dispersion i kombination med den innovativa faspluggdesignen. Dessutom sprider den böjda vågledaren framför diskanten de höga frekvenserna ända till de allra bakre åhörarområdena.
LD Systems ingenjörer har också tagit stor hand om delningsfiltret mellan mellanregister och diskant. Målet var att minska harmonisk distorsion och störningar för att göra ljudet ännu mer transparent, livfullt och kraftfullt. Resultatet talar för sig självt: en mycket precis återgivning av sång och instrument över hela det 120° x 30° stora dispersionfältet.
Kolonnerna på MAUI 11 G3 är designade som kardioidenheter. Detta möjliggör kontrollerade låg-mid frekvenser framtill och upp till 18 dB dämpning bakåt, vilket resulterar i ett rent scenljud. Utrustad med två 8'' basar och fyra basreflexportar, levererar MAUI 11 G3 subwoofern ett klart, tajt och slagkraftigt basljud ned till 39 Hz. Genom att använda en andra subwoofer kan basresponsen också ökas med upp till 6 dB och den kan också köras i kardioidkonfiguration med ett knapptryck (kardioid förinställning). Dessutom tål den mycket slitstarka polyureabeläggningen på subwoofern även de tuffaste kraven på vägen.
MAUI 11 G3 är en riktig ljudmaskin, men övertygar också med sina smarta funktioner i vardagen för DJs, musiker och tekniker. Tack vare Bluetooth 5.0 och AAC-kodning blir kolumn PA ännu mer mångsidig. Transporten är lika enkel som vanligt, medan de dolda multipinnanslutningarna mellan elementen ger ökad stabilitet under montering. Inget kan så lätt rubba MAUI ur dess ställning.
Description (Engelska)
- :

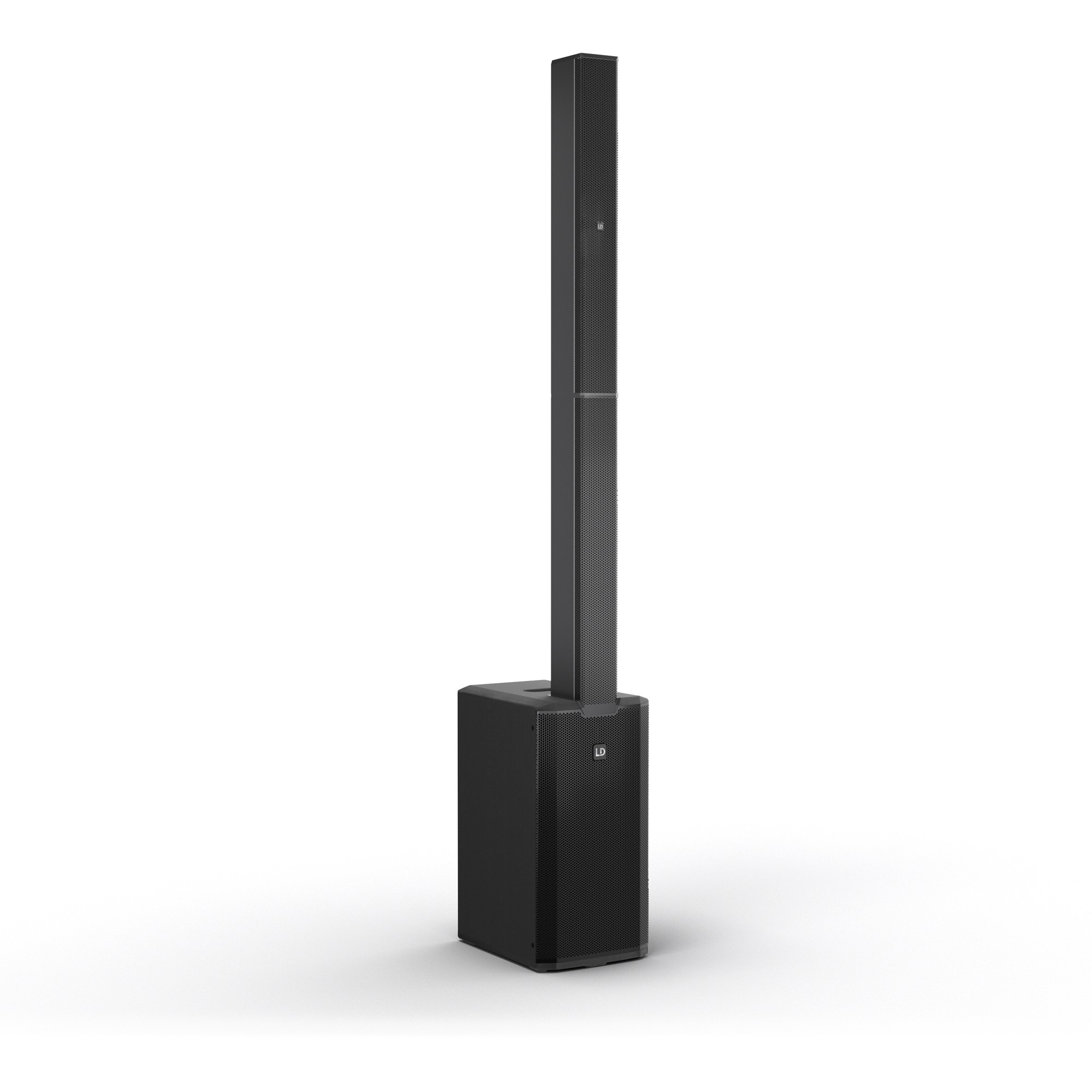

LD Systems MAUI 11 G3
Portable cardioid column PA system
- 1460 W Peak-power and 125 dB max. SPL.
- Powerful bass reproduction with 2 x 8" subwoofer.
- Balanced mids thanks to 6 x 3.5" full-range speakers.
- Precise and silky highs with 2 x 1" high-frequency drivers.
- Cardioid column for controlled low-mid and midrange sound dispersion.
- BEM optimised HF waveguide and midrange phase plugs for homogeneous dispersion.
- Optimised bass-reflex design improves bass response and reduces air flow noise.
- Can be combined with an additional MAUI® 11 G3 subwoofer for increased low end or for cardioid subwoofer setups.
- Dynx® DSP (Gen.2) for distortion-free sound even at maximum volume.

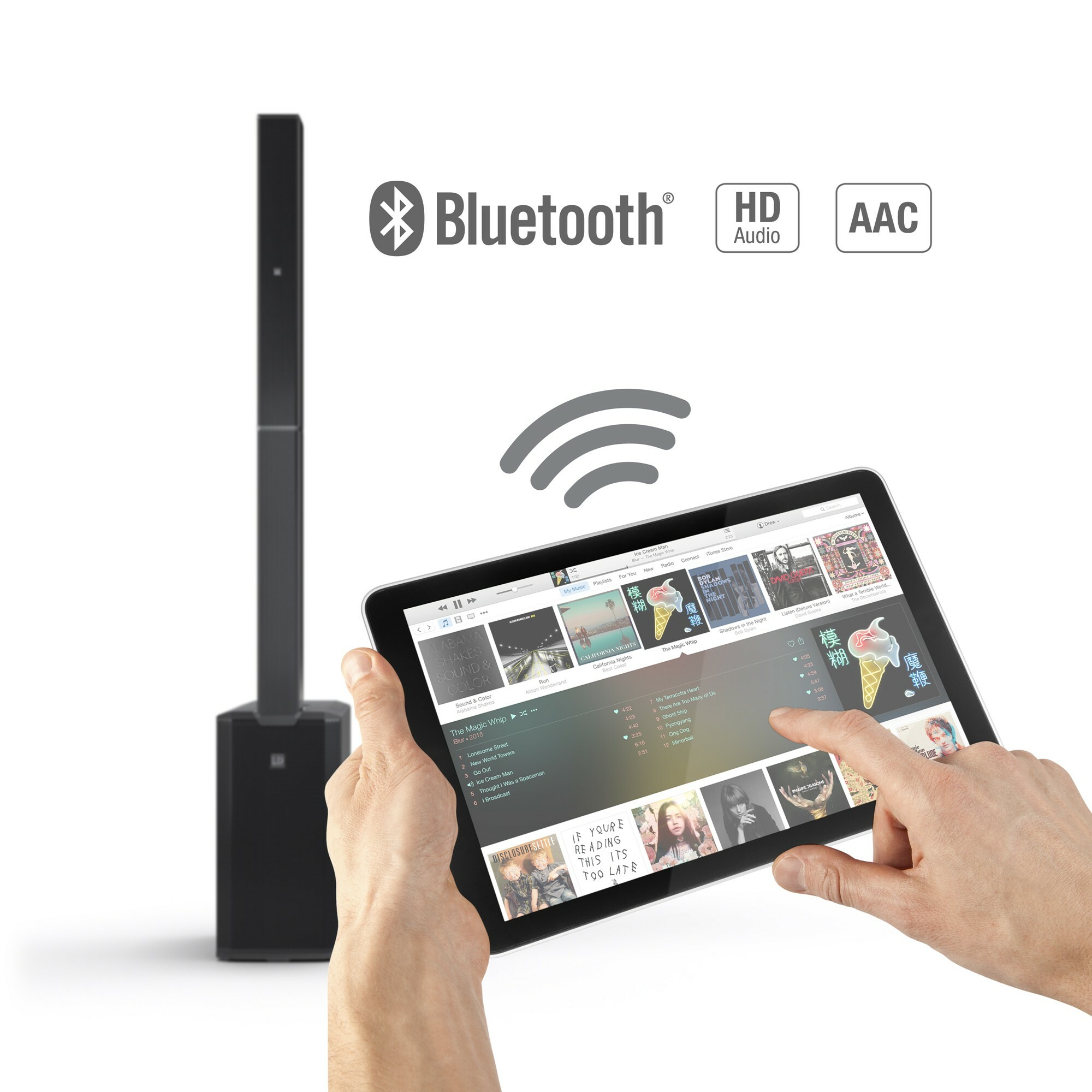

- AAC coding for HD Bluetooth® 5.0 streaming.
- Automatic setup detection for quick and easy operation.

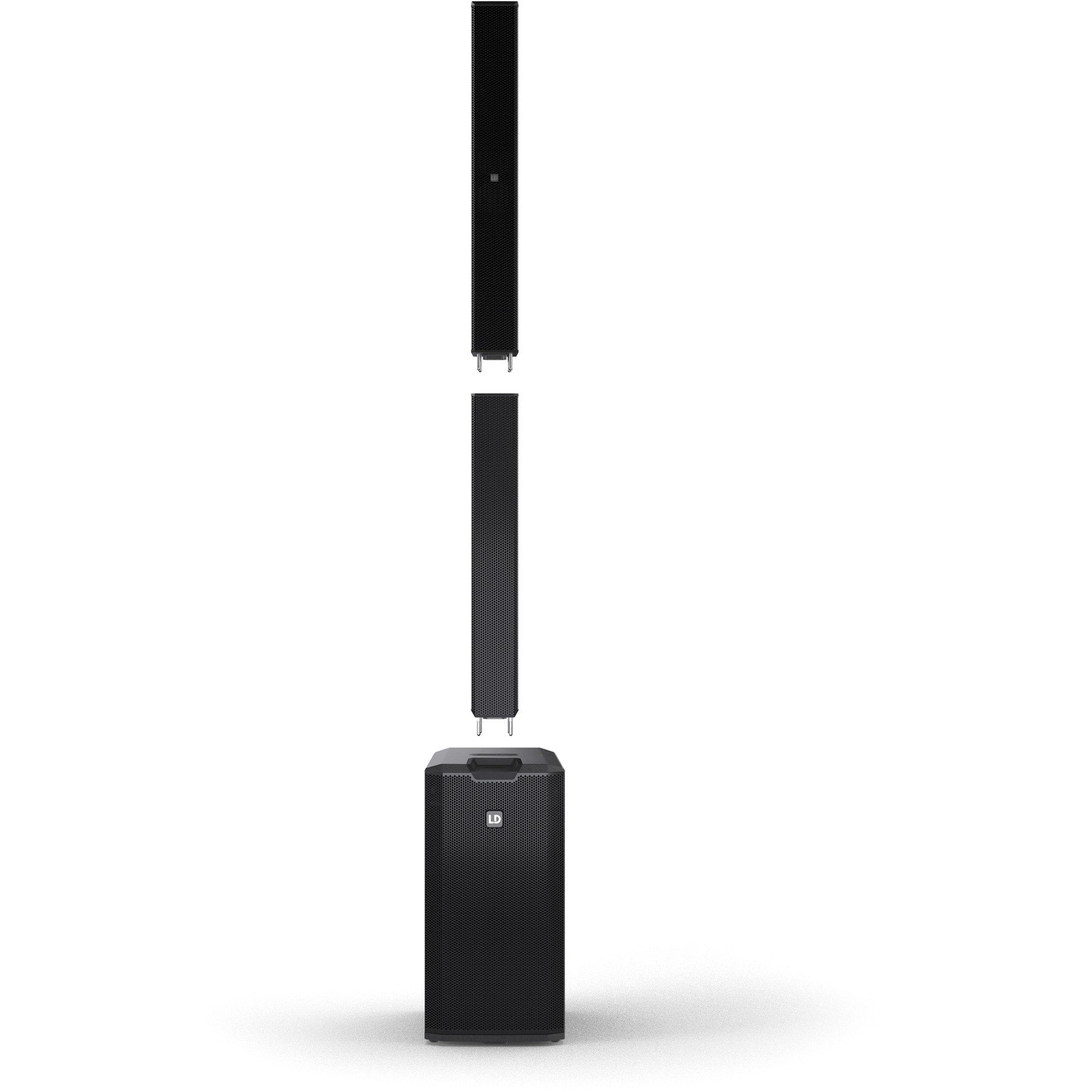

- Fast and simple assembly without stands or cables.
- Rugged birch plywood subwoofer housing with durable polyurea-coating.
- Lightweight, powder-coated aluminium column housing.
Compact, powerful and easy to use - a column PA remains the perfect companion for DJs and smaller bands. The LD Systems MAUI series represents this all-in-one concept in every detail and offers an unrivalled PA package in terms of sound, design, technology and handling. Set it up, plug it in, and you're all set!
The MAUI 11 G3 delivers a huge, powerful and precise sound featuring 730 W RMS power (1,460 W peak), suitable for all applications: as a main PA for concerts, a sound system for mobile DJs or a public address system at weddings, corporate events and many more.

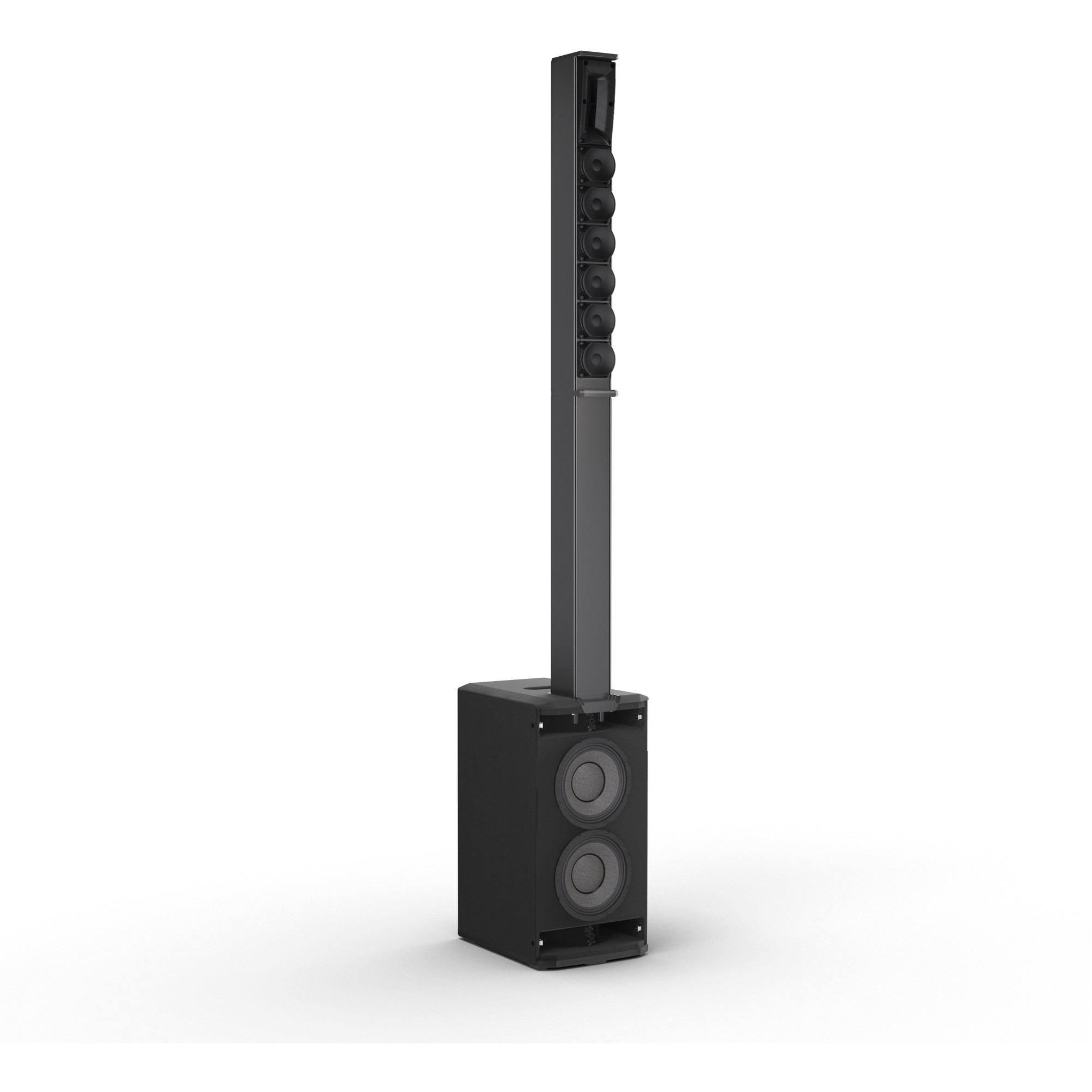

With its sleek and elegant design, the MAUI 11 G3 looks very appealing. The two aluminium column elements sit at the front edge of the subwoofer, further enhancing the seamless visual impression. The columns are equipped with 6 x 3.5'' midrange drivers and 2 x 1'' tweeters, providing an even sound distribution with constant horizontal dispersion in combination with the innovative phase plug design. In addition, the curved waveguide ahead of the tweeters carries the high frequencies even to the very rear audience areas.
The LD Systems engineers also took great care of the crossover filter between midrange and tweeter speakers. The aim was to reduce harmonic distortion and interference to make the sound even more transparent, vibrant and powerful. The result speaks for itself: a highly precise reproduction of vocals and instruments across the entire 120° x 30° dispersion field.

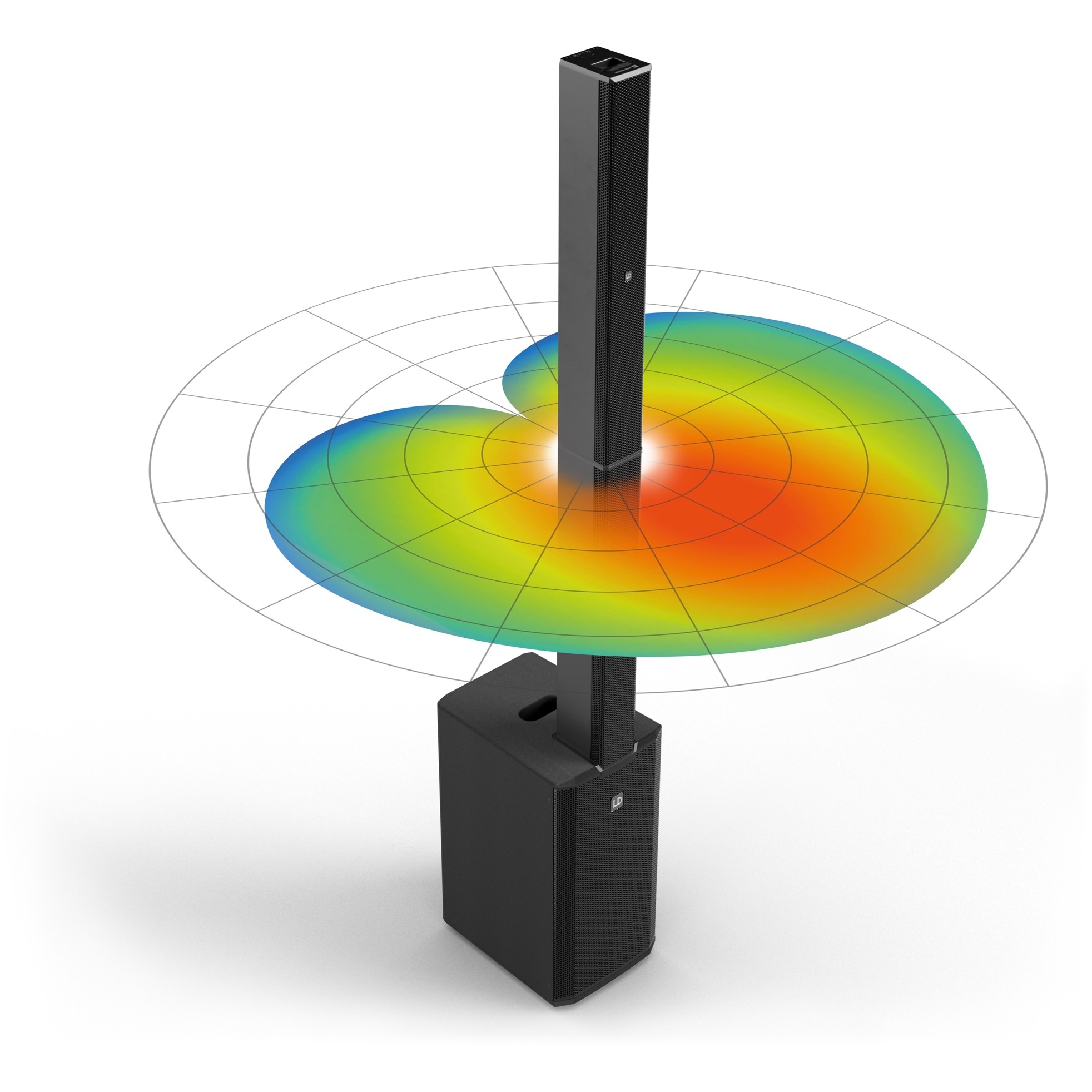

The columns of the MAUI 11 G3 are designed as cardioid units. This allows for controlled low-mids at the front and up to 18 dB of attenuation at the rear, resulting in a clean stage sound. Equipped with two 8'' woofers and four bass reflex ports, the MAUI 11 G3 subwoofer delivers a clear, tight and punchy low end down to 39 Hz. By using a second subwoofer, the bass response can also be increased of up to 6 dB and it can also be driven in cardioid configuration at the push of a button (cardioid preset). In addition, the ultra-durable polyurea coating of the subwoofer easily withstands even the toughest demands on the road.

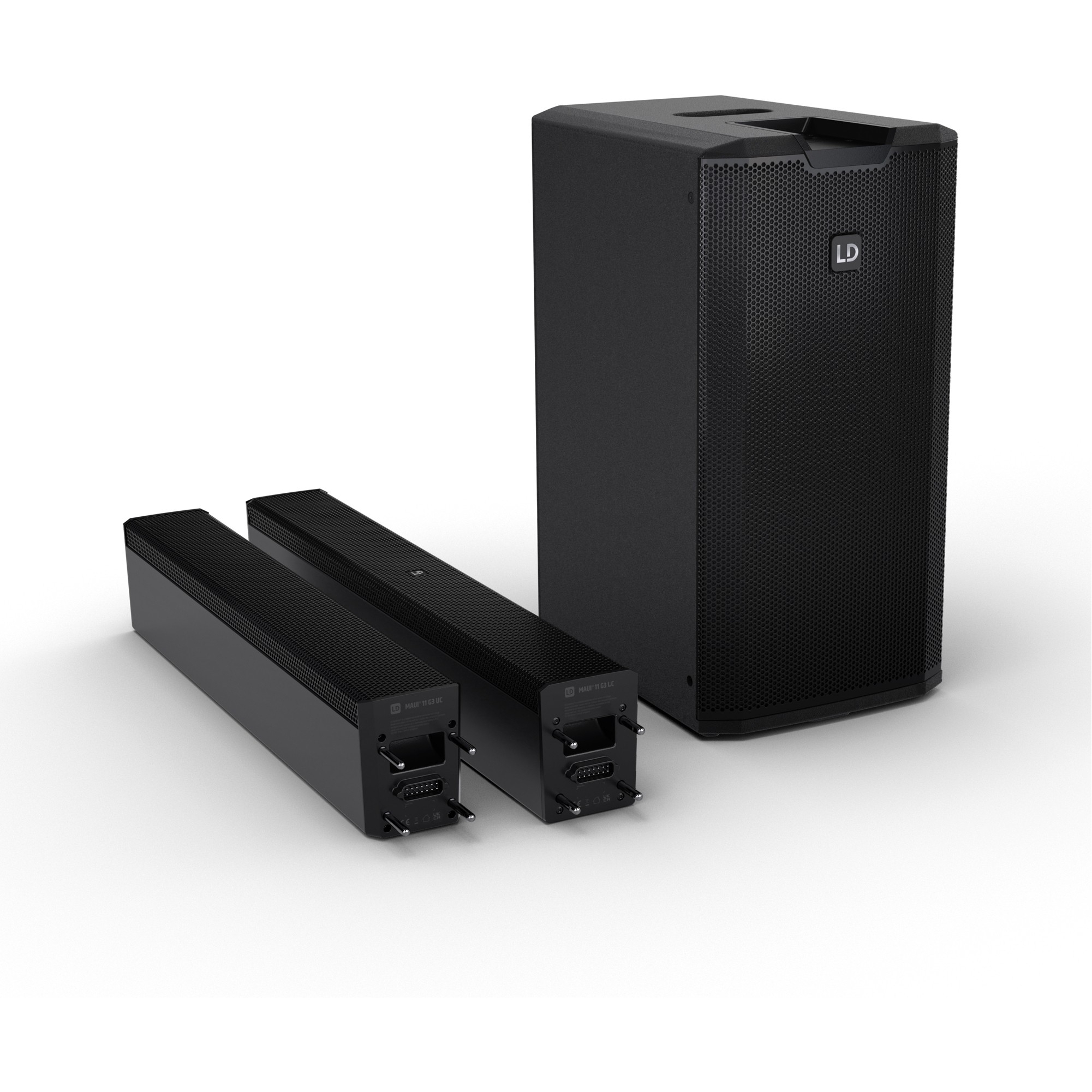

The MAUI 11 G3 is a real sound machine, yet also convinces with its smart features in the day-to-day life of DJs, musicians, and technicians. Thanks to Bluetooth 5.0 and AAC coding, the column PA becomes even more versatile. Transport is as easy as usual, while the hidden multi-pin connections between the elements provide increased stability during assembly. There's nothing that can knock the MAUI off its feet so easily.
- General
- Product type: PA Complete Systems
- Type: Powered
- Color: Black
- Max. SPL (Peak): 125 dB
- Frequency response (-10dB): 39 Hz - 20000 Hz
- Dispersion (H x V): 120° x 30 °
- Total Height: 2052 mm
- Weight: 30,7 kg
- Features: Bluetooth Audio Streaming, Cardioid column, DSP-based Signal Processing, Excellent Sound Dispersion, Mono/ Stereo Application
- Subwoofer
- Woofer dimensions: 2 x 8 "
- Woofer dimensions (mm): 2 x 203 mm
- Woofer magnet: Ferrite
- Woofer brand: Custom-made
- Woofer voice coil: 2 "
- Woofer voice coil (mm): 50.8 mm
- Cabinet construction: Bass Reflex
- Housing material: 15 mm Multiplex
- Cabinet surface: Polyurea
- Dimensions Subwoofer (W x H x D): 305 x 607 x 403 mm
- Subwoofer weight: 20.5 kg
- Mid/Hi System
- Midrange dimensions: 6 x 3.5 "
- Midrange dimensions (mm): 6 x 89 mm
- Midrange magnet: Ferrite
- Midrange brand: Custom-made
- Midrange voice coil: 0.75 "
- Midrange voice coil: 19 mm
- Tweeter dimensions: 2 x 1 "
- Tweeter dimensions (mm): 2 x 25.4 mm
- Tweeter magnet: Neodymium
- Tweeter brand: Custom-made
- Tweeter voice coil: 1 "
- Tweeter voice coil (mm): 25.4 mm
- Wave Guide: CD Waveguide
- Loudspeaker inputs: 1
- Speaker input connections: Custom-made multipin
- Cabinet construction mid/high: Passive Cardioid
- Mid/Hi system cabinet material: Aluminium
- Mid/Hi system cabinet surface: Powder-coated
- Mid/Hi system width: 103 mm
- Mid/Hi system height: 1460 mm
- Mid/Hi system depth: 135 mm
- Mid/Hi system weight: 10.2 kg
- Amplifier module (integrated in subwoofer)
- Amplifier: Class D
- System output (RMS): 730 W
- System output (Peak): 1460 W
- Protection circuits: DC protection, Multiband limiter, short circuit, thermal protection
- Cooling: Convection

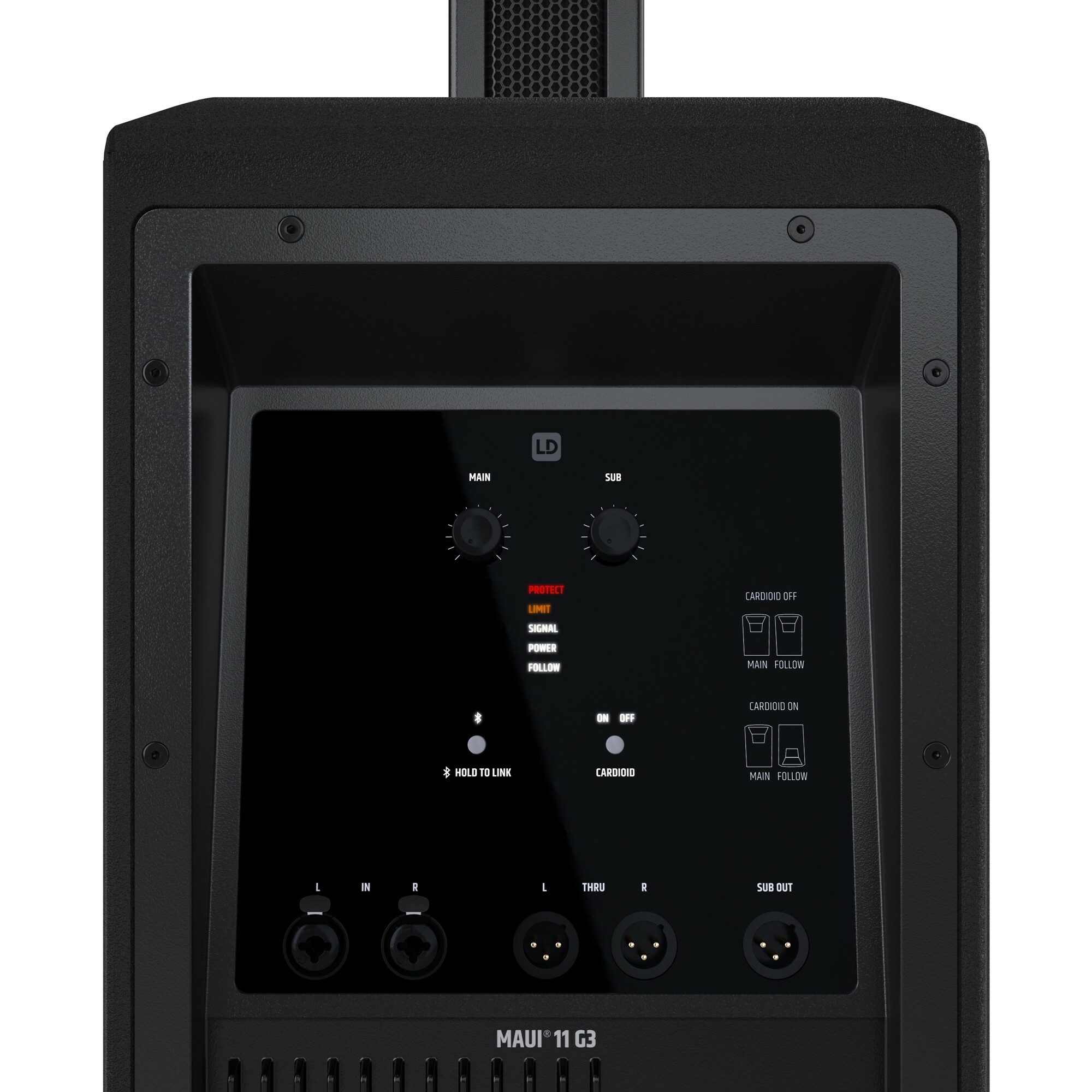

- Controls: Bluetooth HOLD TO LINK button, Cardioid On/Off, Main level, Power On/Off, Sub level
- Indicators: Bluetooth, Cardioid On/Off, Follower mode, Limit, Power, Protect (protection circuit engaged), Signal, Subwoofer Mode
- Mains connector: IEC power cable (included)
- Operating voltage: 100 V AC - 120 V AC, 50 - 60 Hz, 220 V AC - 240 V AC, 50-60 Hz
- Fuse: T 3.15AL / 250 V
- Power consumption: 300 W
- Ambient temperature (operating): 0 - 40 °C
- Relative Humidity: <80% (non-condensing)
- Line Inputs: 2
- Line Input Connectors: Combo XLR / TRS
- Line Outputs: 1 x Sub OUT, 2 x THRU
- Line Output Connectors: XLR male
- Number of speaker outputs: 1
- Loudspeaker Output Connectors: Custom-made multipin
- Bluetooth Standard: A2DP
- Bluetooth Audio Decoder: AAC, SBC
- DSP characteristics
- Bit depth AD/DA converter: 24 bit
- Sampling frequency: 48 kHz
