LD Systems ROADBUDDY 10 HBH 2 B5
Description (Engelska)
- :
LD Systems ROADBUDDY 10 HBH 2 B5
Battery-Powered Bluetooth Speaker with Mixer and Wireless Microphone
- Battery-powered speaker solution.
- Integrated radio receiver 584 - 607 MHz.
- Bluetooth player with USB port and SD card slot.
- Class D power amplifier with 480 watts of peak power.
- 2 combo sockets for microphone or line inputs.
- 3.5 mm Aux input.
- Master section with 2-band EQ.
- Built-in wheels, pull-out handle and fixing for 35 mm tripod mount.
- 2 Wireless microphones and IR-remote control included.

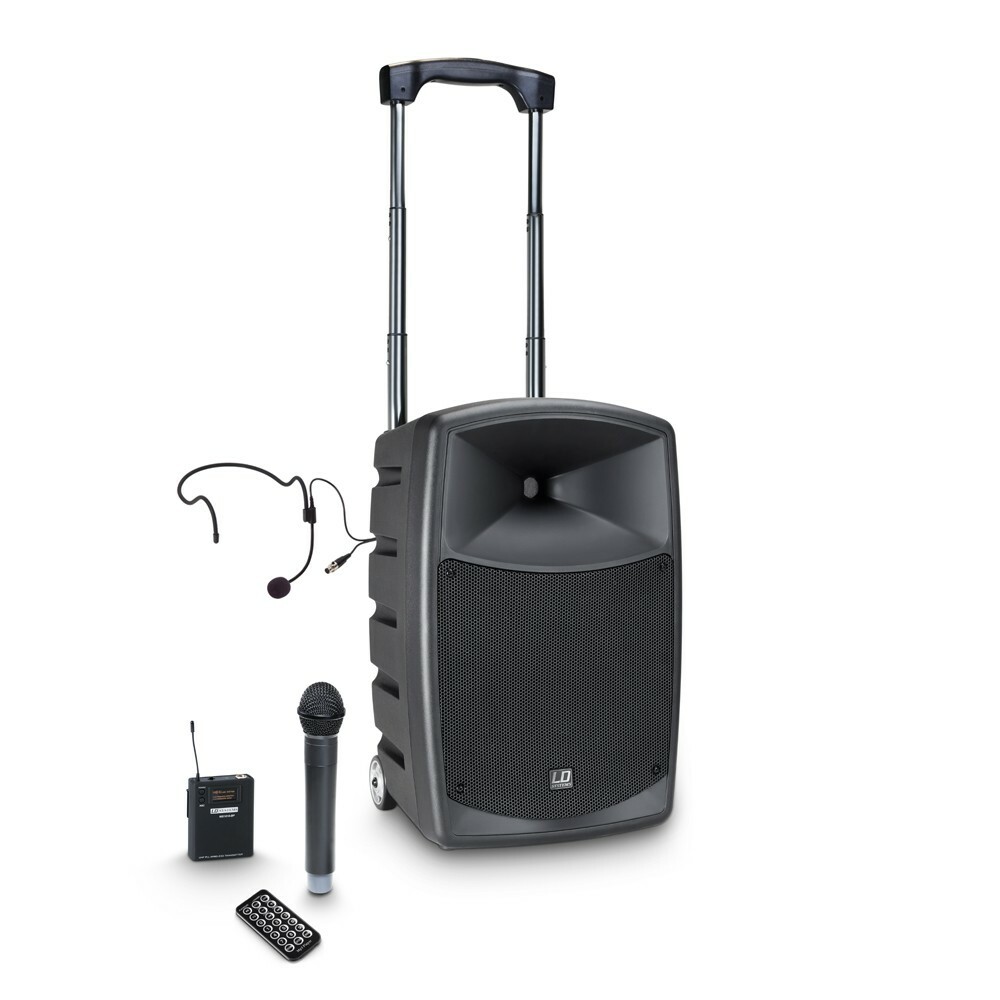

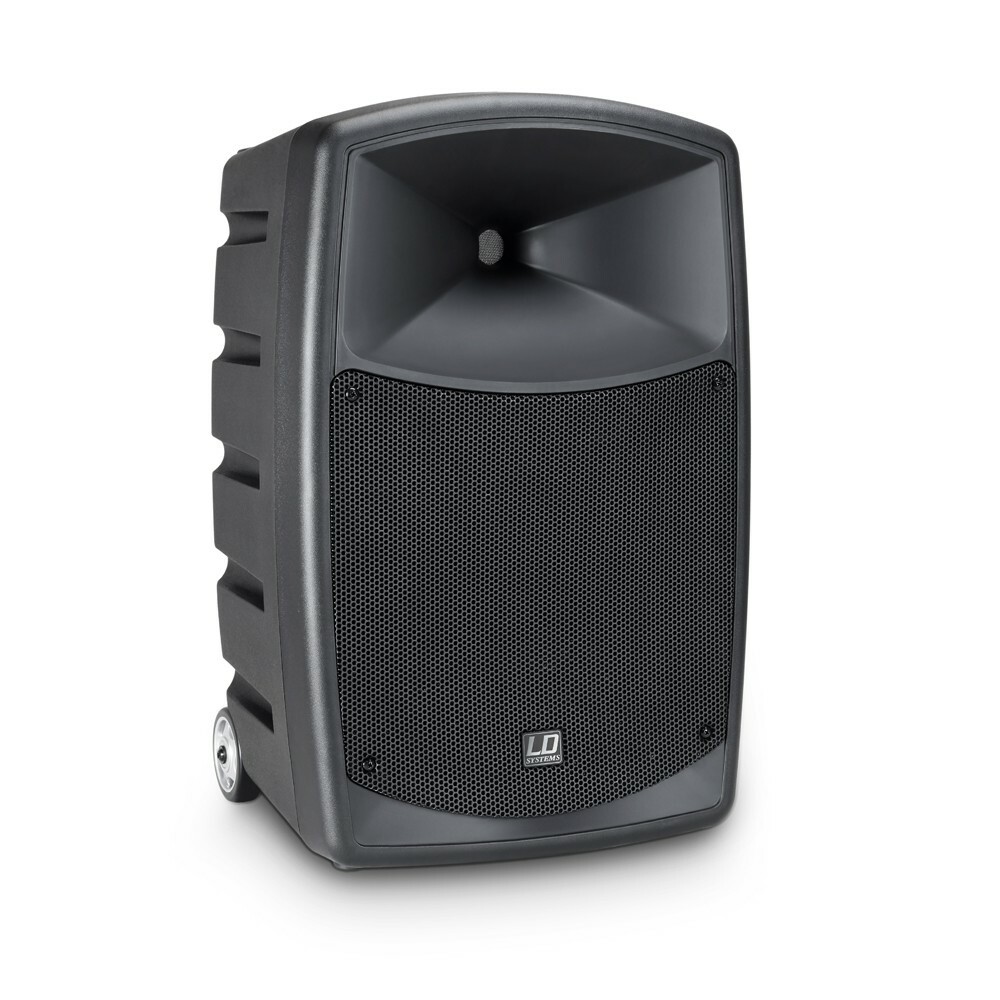

The LD Systems Roadbuddy 10 is an elegant solution for voice and music transmission on the go. The 2-way speaker with a 10" custom woofer and a 1" compression driver is operated with a rechargeable battery for up to 8 hours and is powered by a class D power amplifier with a highly efficient switching power supply and 480 watts of peak power.

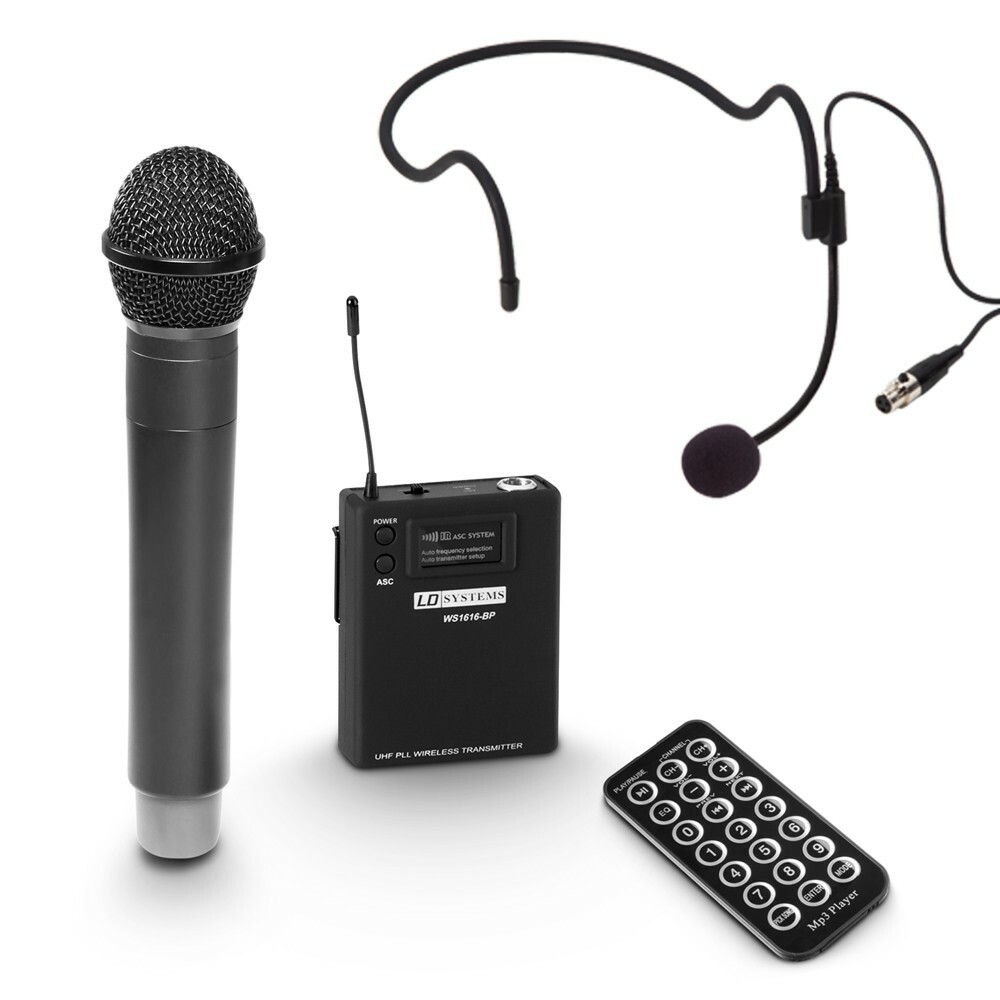

The Roadbuddy relies fully on wireless transmission: it has two UHF radio receiver which operates in the 584 -607 MHz range. The on-board Bluetooth player with backlit multifunction display ,equalizer, USB port and SD card slot supports the mp3, wma and wav formats. Two handheld microphone with 10 mW output power(LDRBUD10HHD2B5), two headset microphones with belt pack (LDRBUD10BPH2B5) or as an alternative a handheld microphone and a headset microphone with belt pack (LDRBUD10HBH2B5) and an IR-remote control for the player are included.

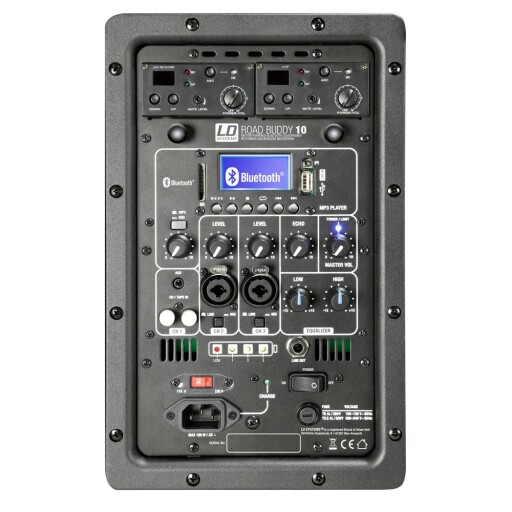

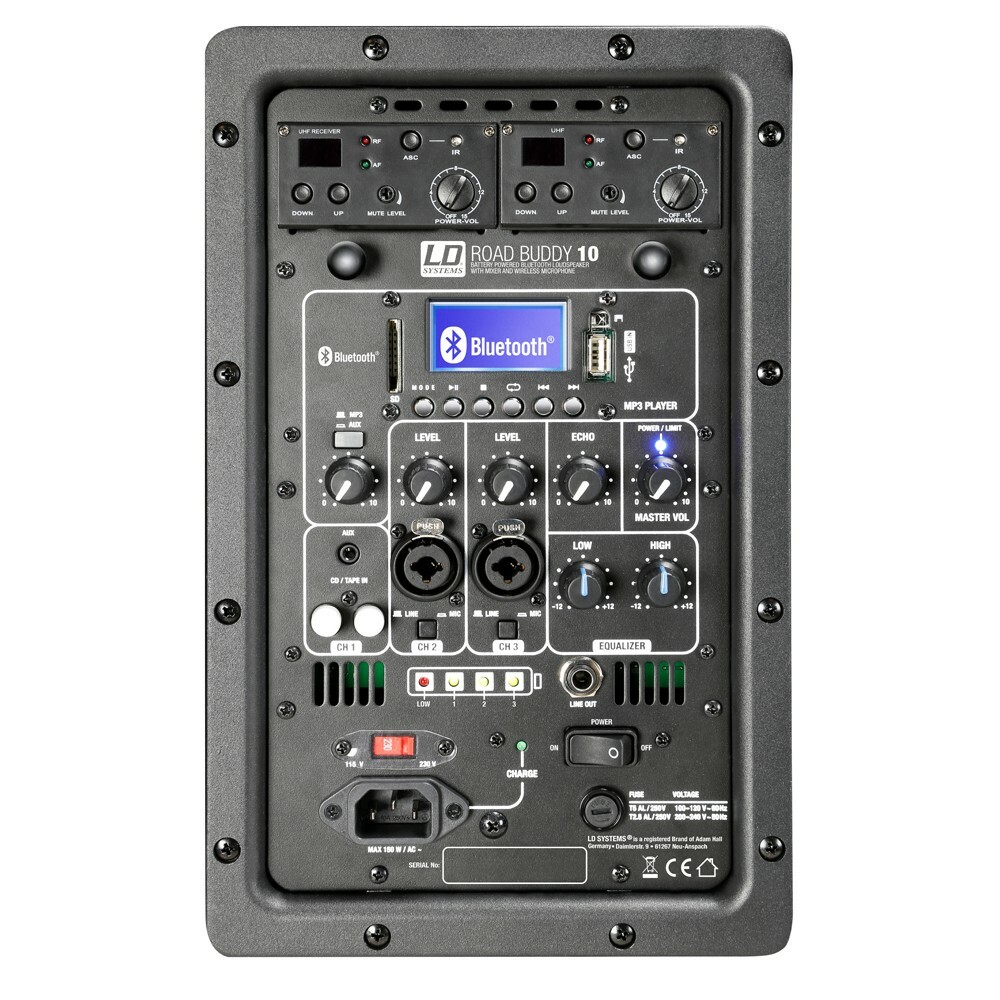

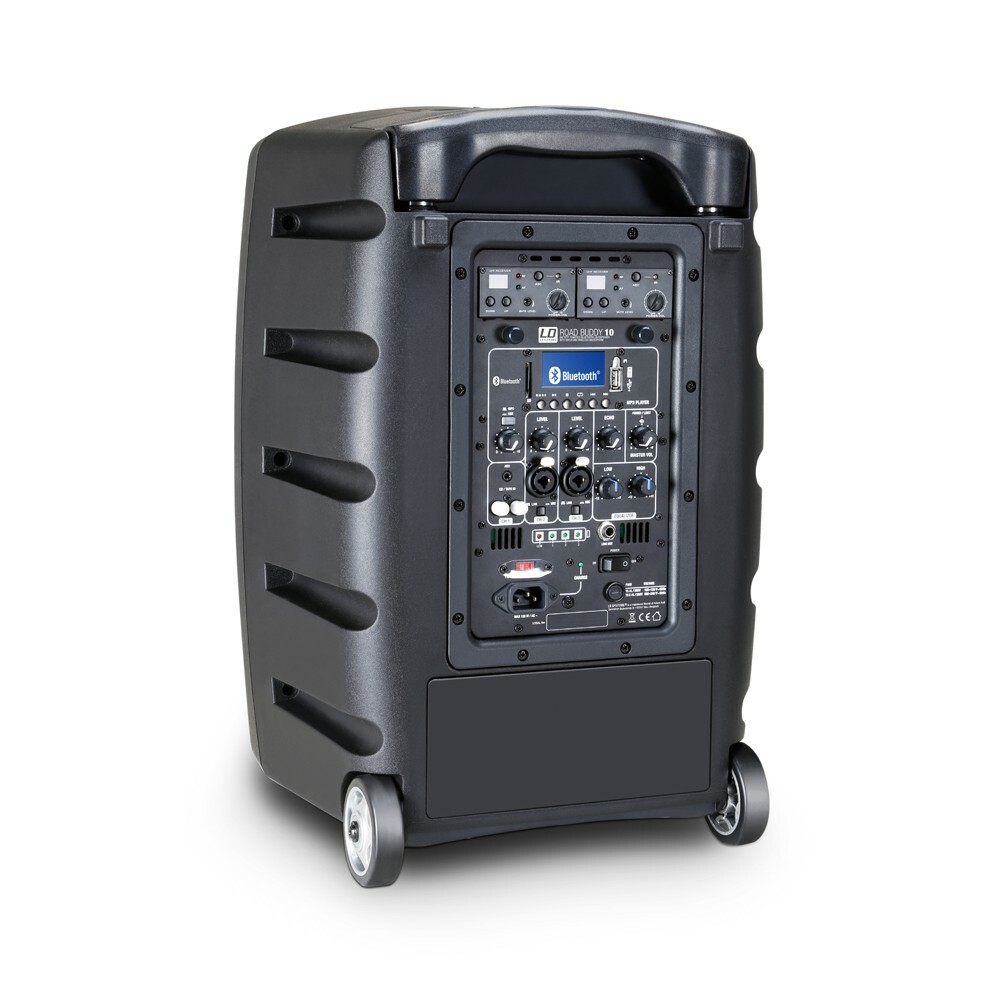

For wired devices, the Roadbuddy has two channels with combo jacks and individual volume controllers that are switchable for microphone and line level, a stereo input via RCA (Cinch) sockets (mono summed) and a 3.5 mm Aux input. Treble, Bass, Echo and Master volume controllers complete the control panel.

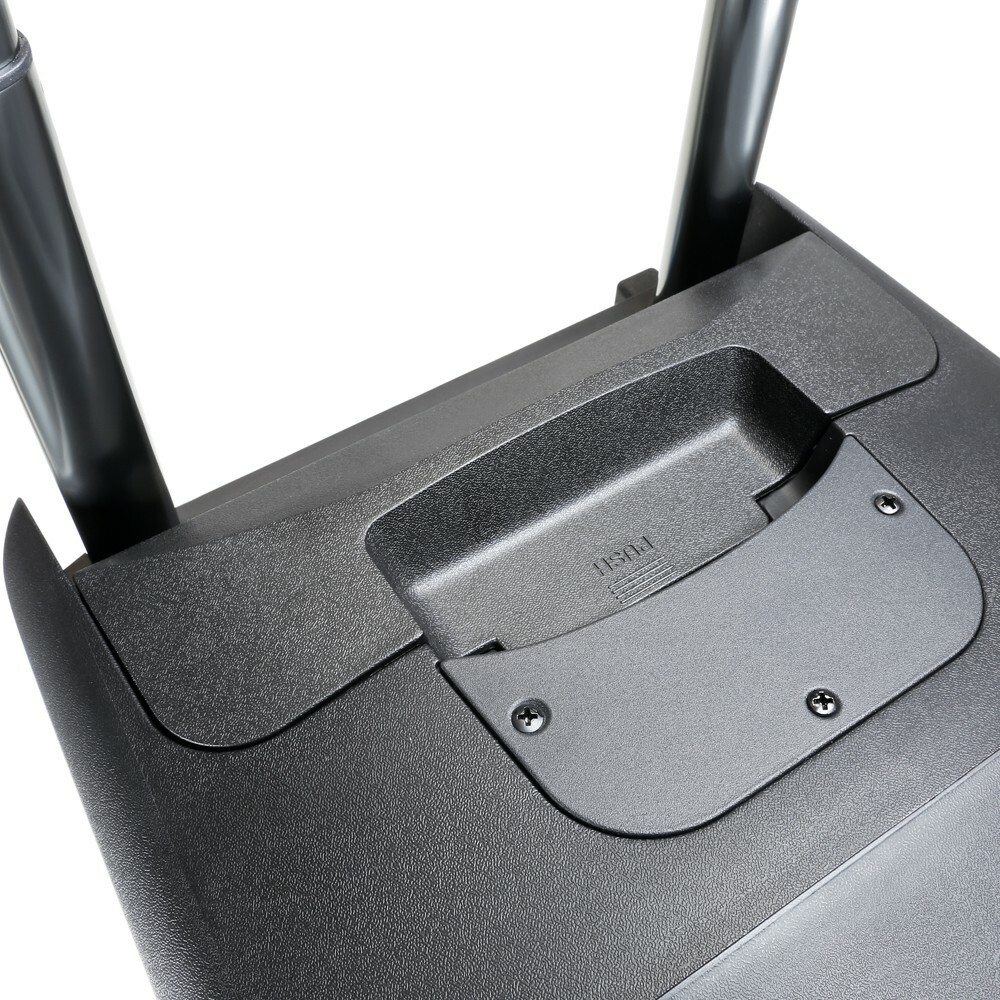

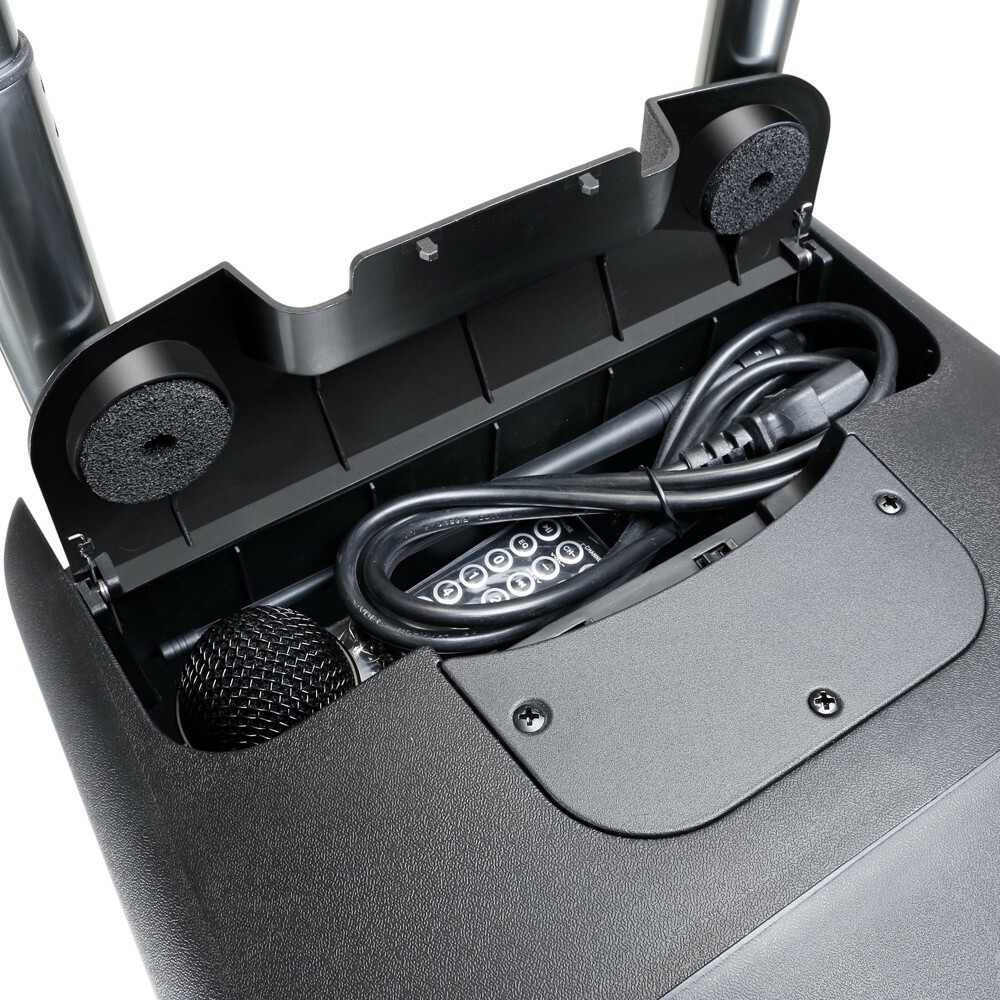

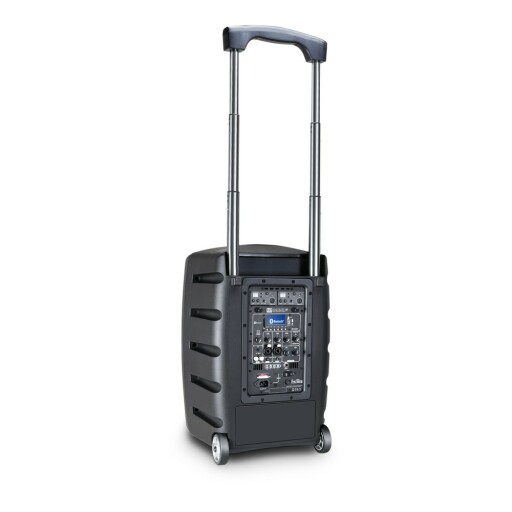

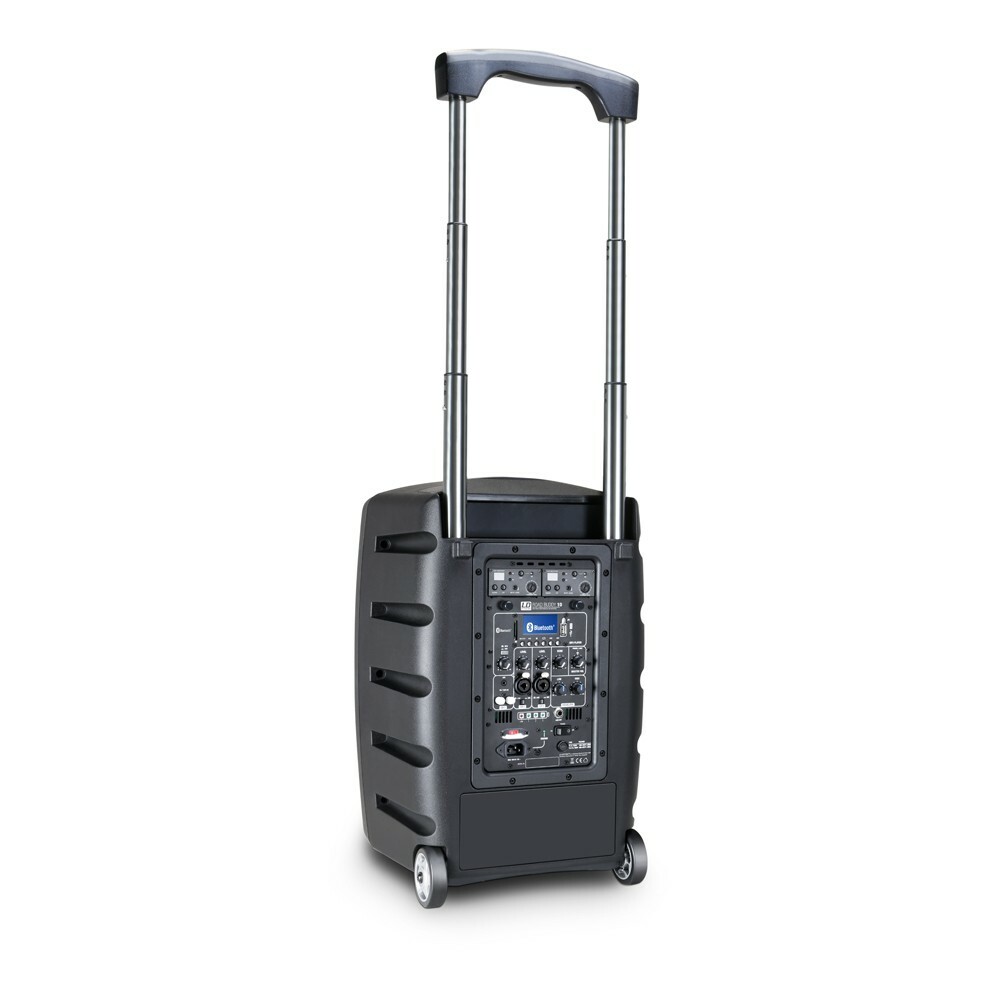

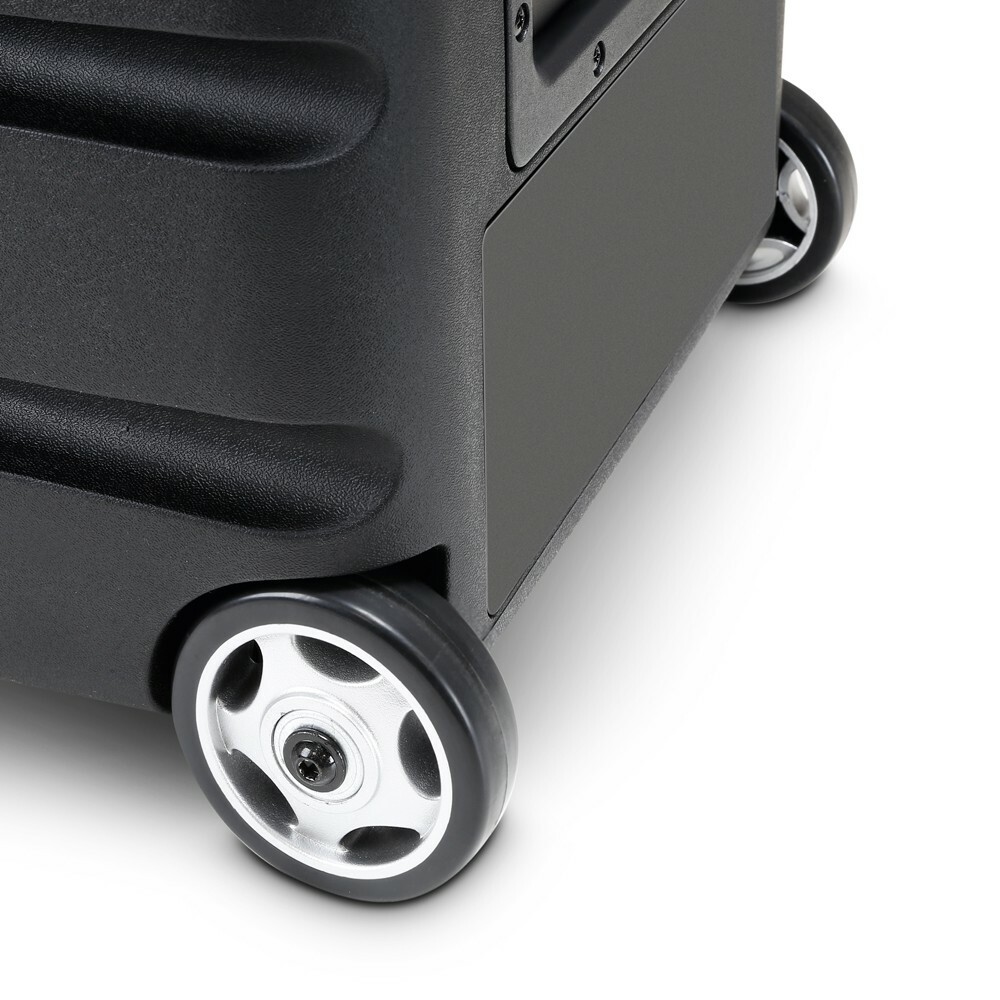

The LD Systems Roadbuddy is easily transportable thanks to built-in castor wheels and a pull-out handle. On the top, there is a handy storage compartment for up to two hand-held transmitter microphones. The plastic housing of this lightweight device has been designed to accommodate a 35 mm tripod mount.
- General
- Product type: Battery-powered PA speaker
- Low/mid Woofer dimensions: 10 "
- Woofer dimensions (mm): 254 mm
- Woofer magnet: Ferrite
- Woofer brand: Custom-made
- HF driver dimensions: 1 "
- HF driver dimention (mm): 254 mm
- HF driver magnet: Ferrite
- HF driver brand: Custom-made
- Amplifier: Class D
- RMS: 120 W
- Peak power: 480 W
- Frequency response: 55 - 18000
- SPL (1W/1m): 96 dB
- Max. SPL: 115 dB
- Protection circuits: Over-current, overload protection, short circuit
- Controls: CD / Tape IN Level, AUX / MP3 switch, Echo, high, low, Mic 1 Level, Mic 2 Level, Total volume
- Indicators: Charge/battery status, Power
- Media player
- Supported media: Bluetooth, SD Card, USB stick
- Supported formats: MP3 file, WAV-CD, WMA file
- Media player controls: Equalizer, Mode (Menu / Bluetooth /SD / USB), Next Track, Play / Pause, Previous Track, Repeat, Stop
- Media player display elements: Lighted multifunctional LC display
- Line inputs: 1
- Line input connectors: 2 x RCA, 2 x XLR, 3.5 mm jack, 6.3 mm jack
- Mic inputs: 2 x XLR, 6.3 mm jack
- Wireless Unit
- Transmission frequency range: 584 - 607 MHz
- Modulation Type: FM
- Channels: 16
- Frequency Response Wireless Unit: 50 - 17000 Hz
- Controllers Wireless Unit: ASC, Mute Level (Squelch), Power / Volume, Value Down, Value Up
- Indicators Wireless Unit: AF (LED), LED Display, RF (LED)
- Connections Wireless Unit: NTNC for receiver antenna
- RF Transmitter Power Output: 10 mW
- Handheld Microphone Weight: 0.285 kg
- Handheld Microphone Material: Aluminium
- Bodypack weight: 0.08 kg
- Bodypack material: ABS plastic
- Operating voltage: 220 V - 240 V AC / 50 Hz, 100 V - 120 V / 60 Hz
- Rechargeable batteries: 12 V / 5 Ah
- Cabinet material: Polypropylene
- Cabinet construction: Bass Reflex
- Width: 415 mm
- Height: 525 mm
- Depth: 328 mm
- Weight: 16,5 kg
- Other features: Extendable handle, IR Remote for Media Player, Stand mount 36 mm, Transport casters, transport handle
