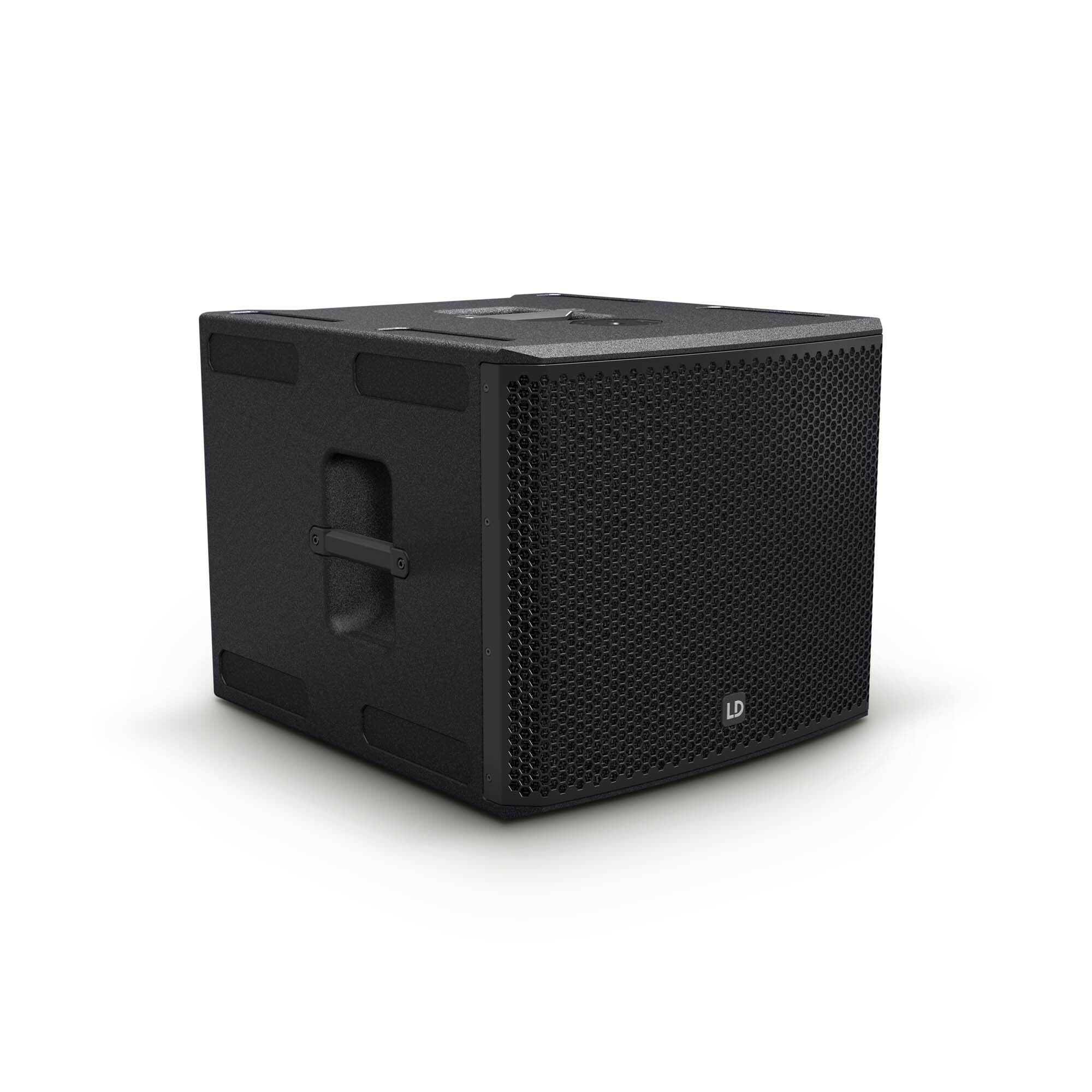

STINGER SUB 15 G3

LD Systems STINGER SUB 15 G3

Passive 15” Bass Reflex PA Subwoofer

• Passive 15" bass-reflex PA subwoofer.
• 600 watts RMS.
• 127 dB maximum sound pressure level.

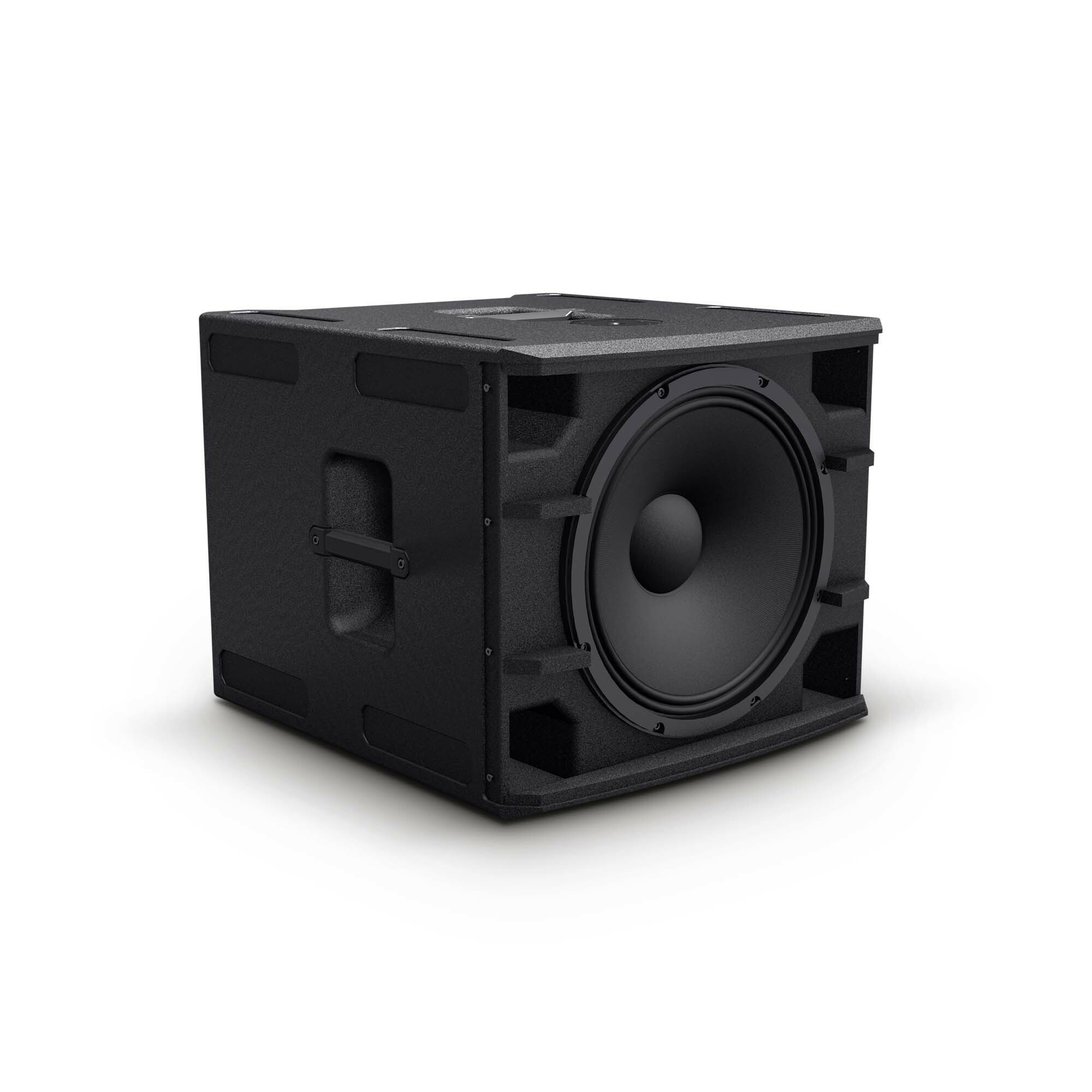

• Deep basses down to 40 Hz, thanks to 15" custom-design woofer.

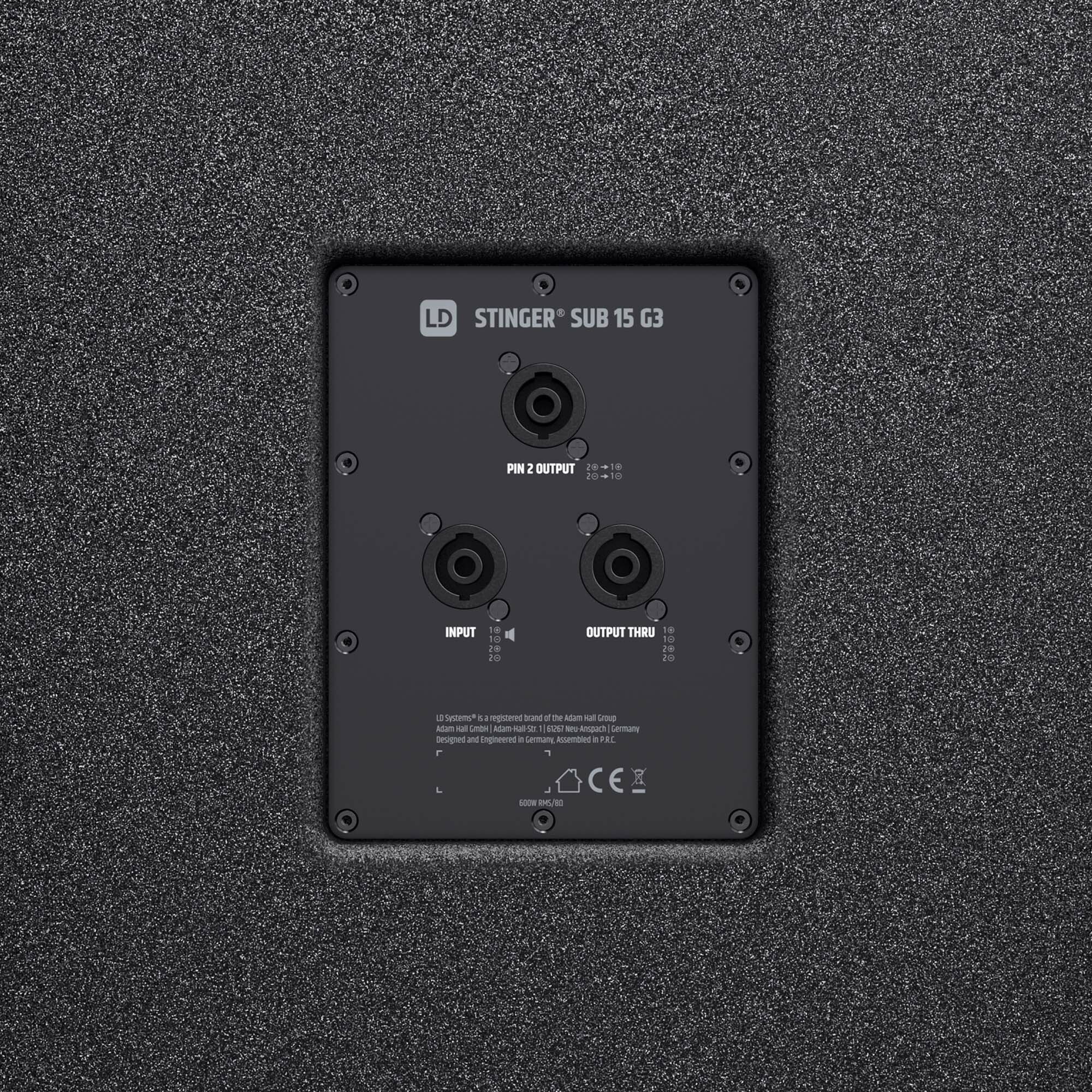

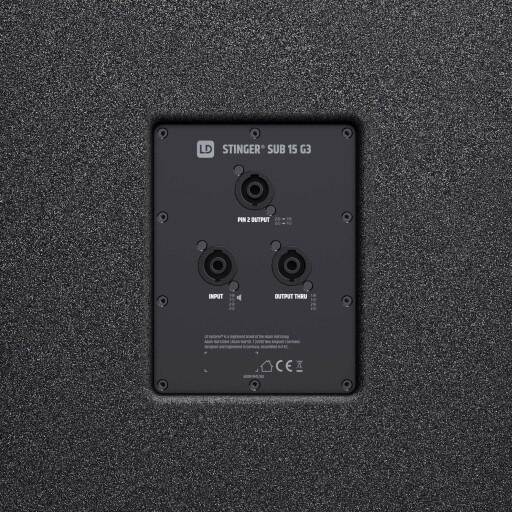

• Speaker In, Satellite Out, Sub Thru sockets.
• Can be used horizontally or vertically.
• 18 mm birch plywood housing with extremely durable polyurea coating.

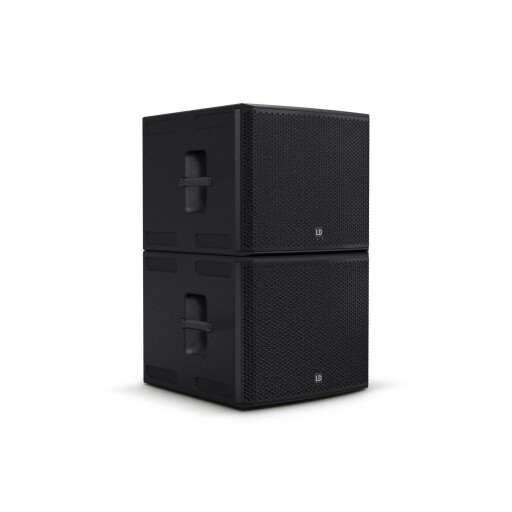

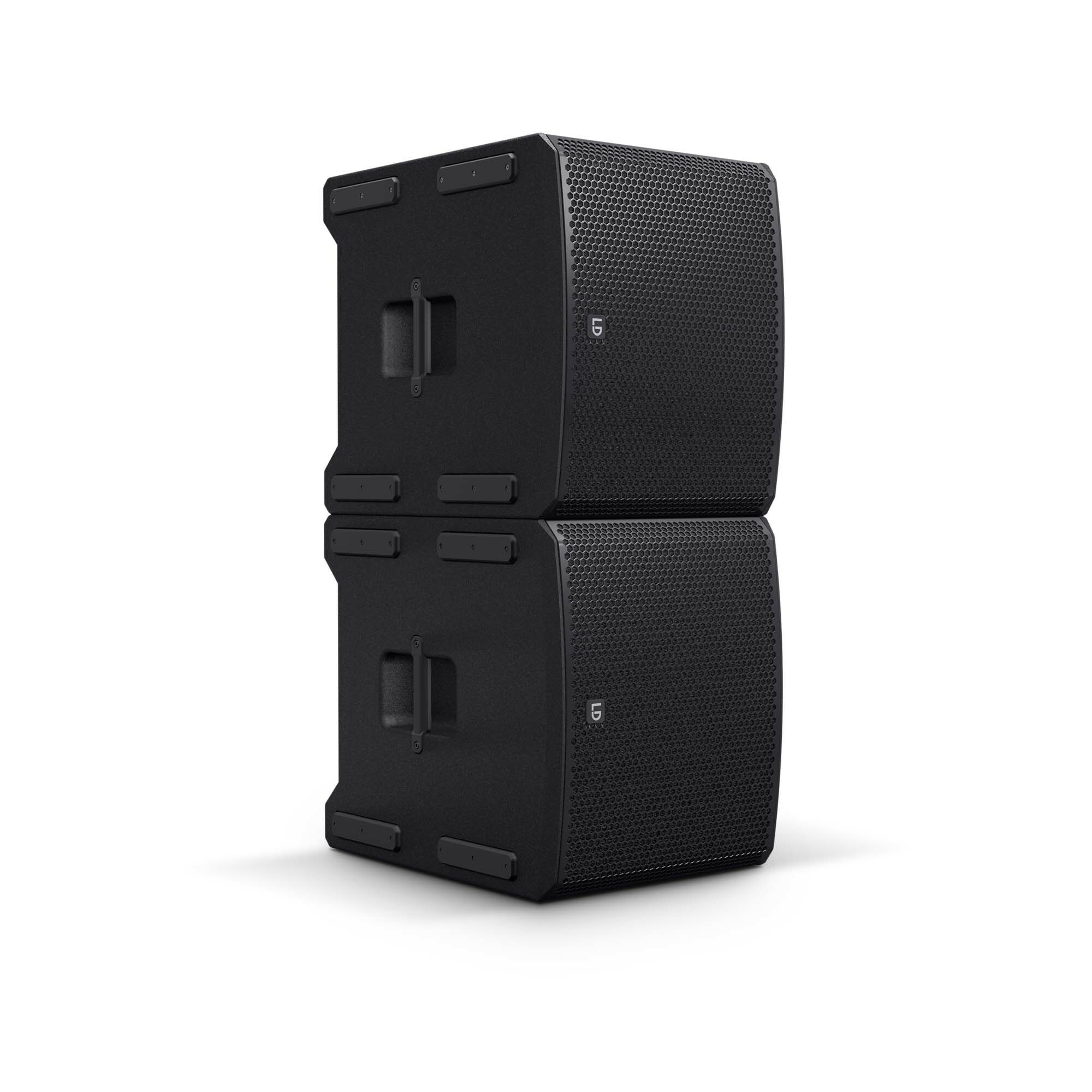

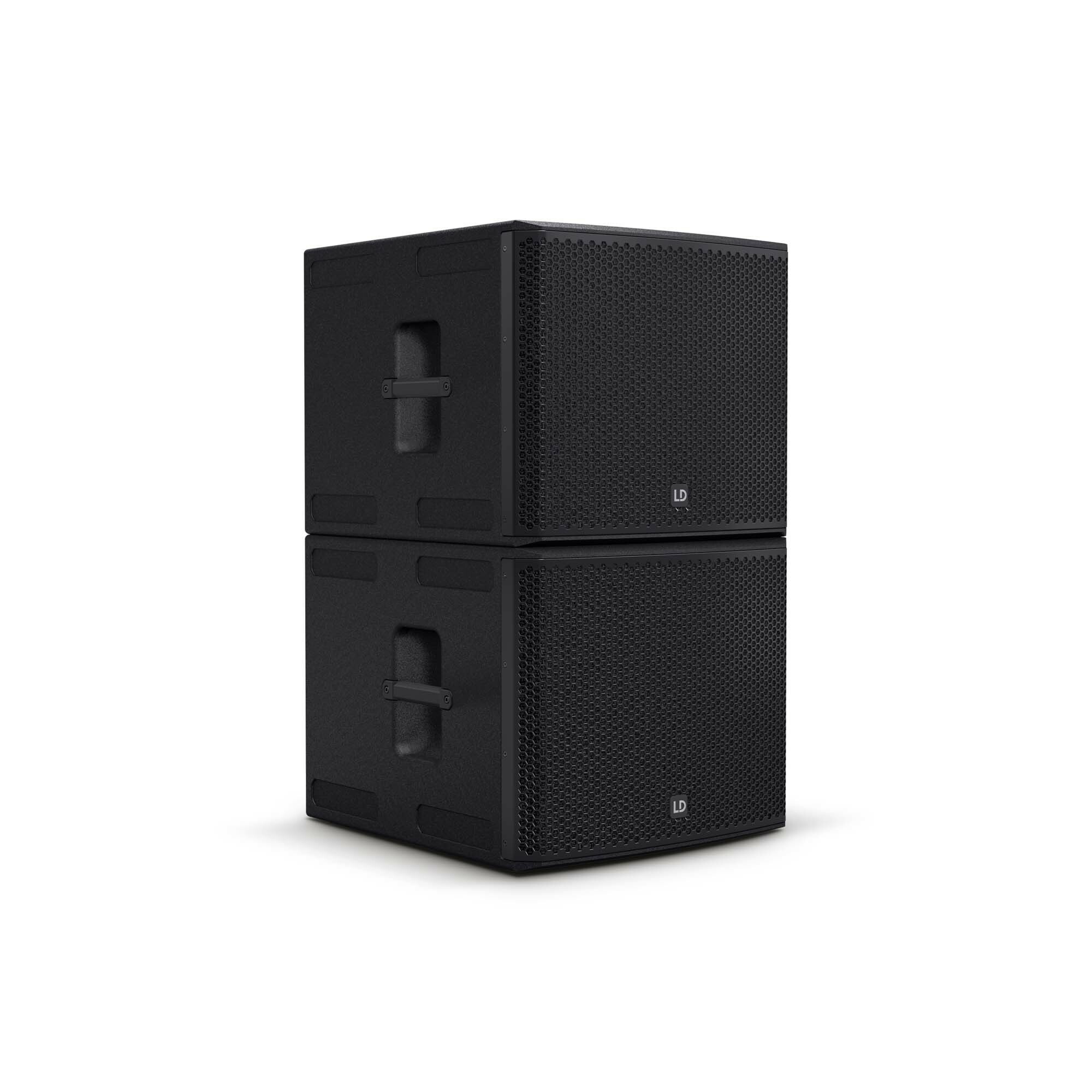

• Easy handling thanks to ergonomic handles and stacking dimples.

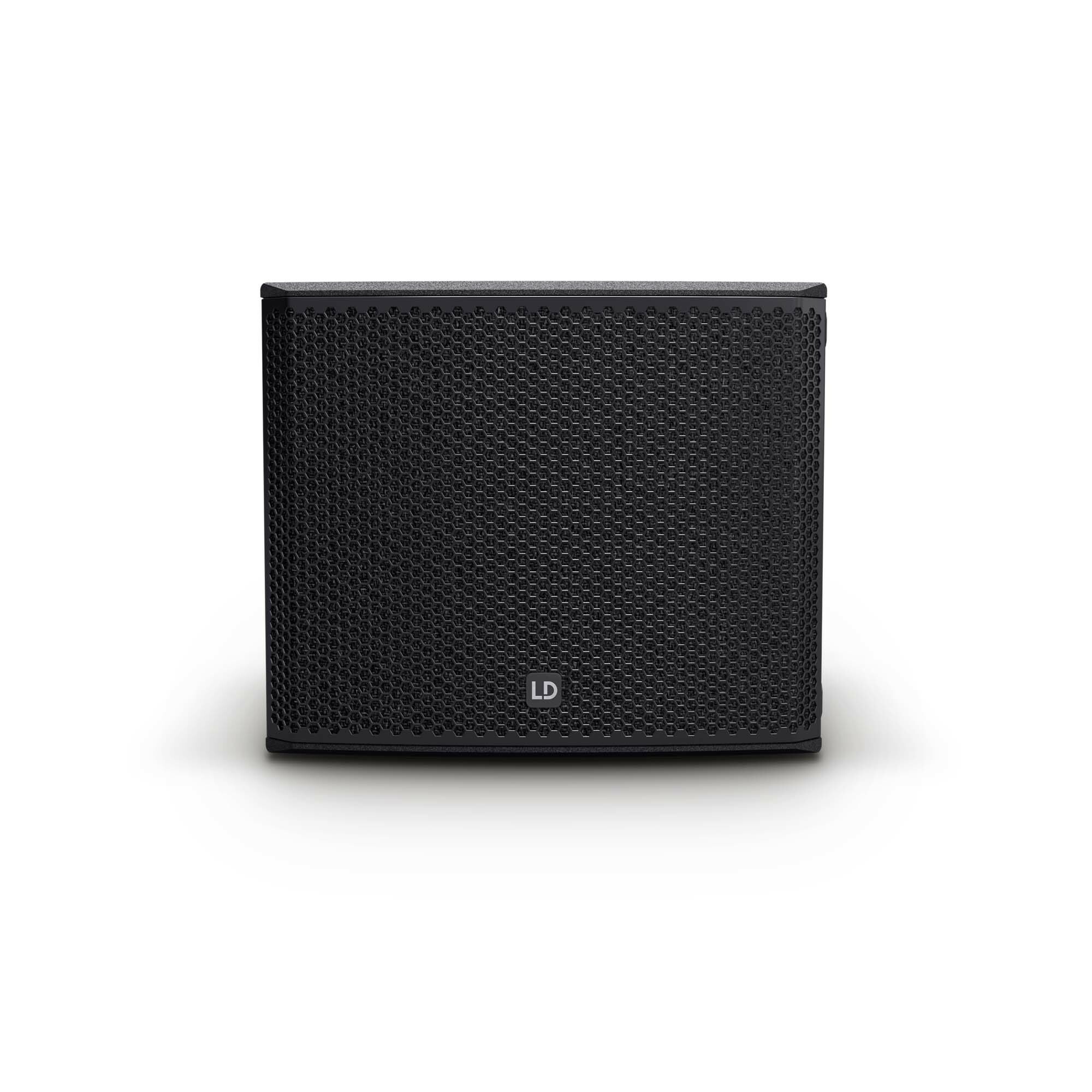

• Shock-resistant front grille for optimal protection of the speaker..

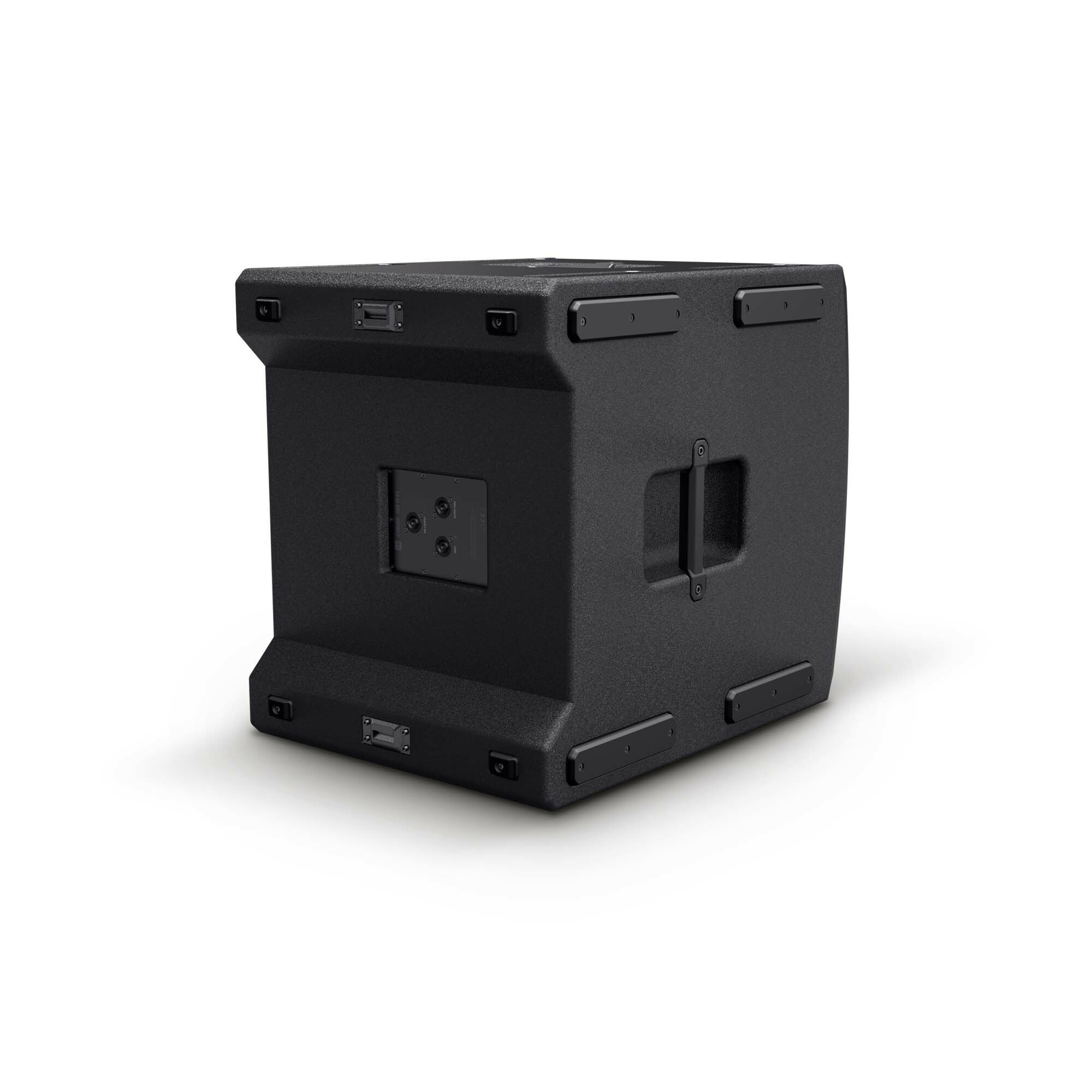

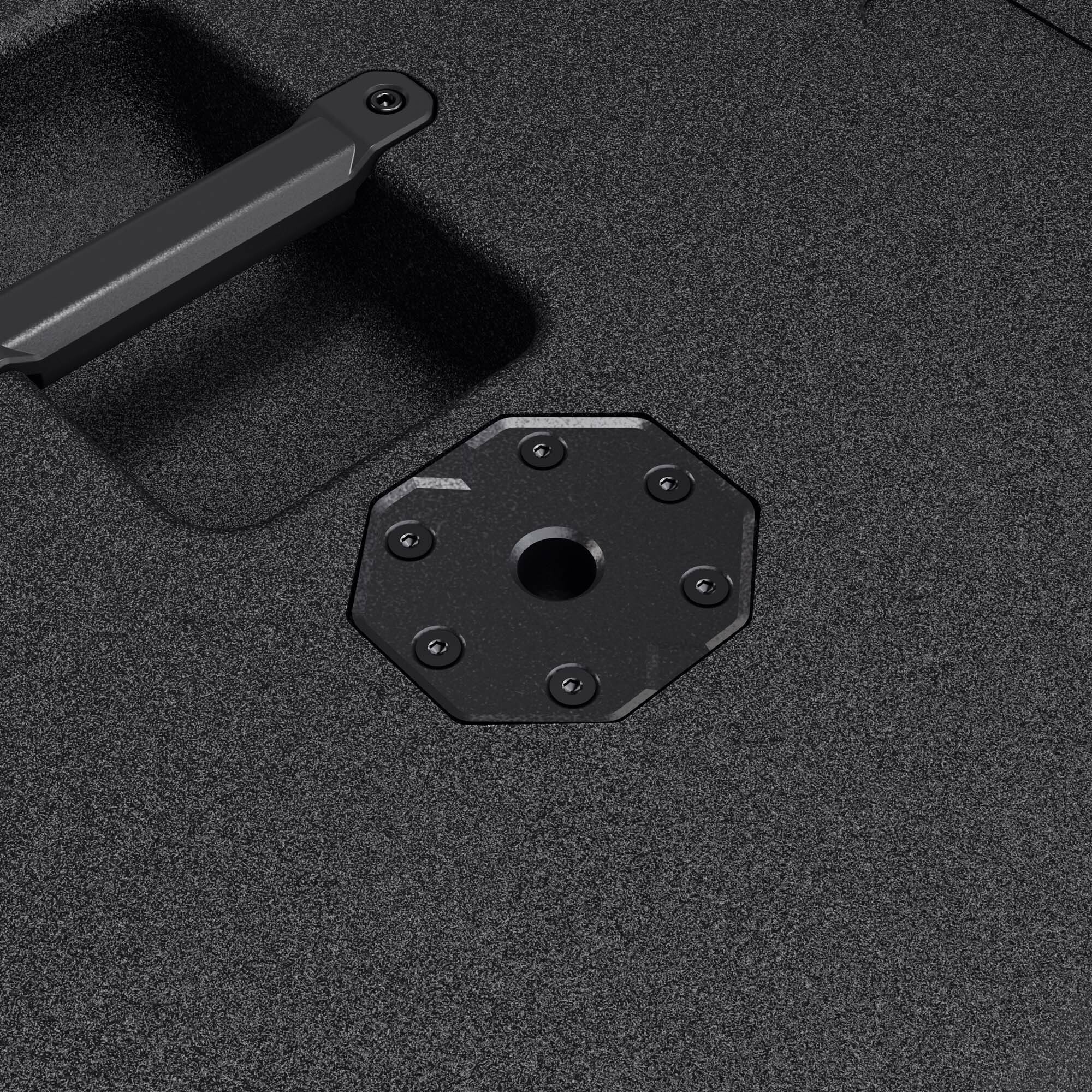

• Used with extension tubes with M20 thread.
• Clever transport accessories.

This highly professional passive subwoofer is designed for absolute, long-term reliability. The STINGER® SUB 15 G3 provides 600 watts of continuous power; the maximum sound pressure level is 126 dB. Its specially developed 15" woofer also emits the deepest bass sounds with extremely powerful and clear contours.

Designed as a real all-round workhorse, the strongly supported bass reflex cabinet is designed for horizontal and vertical use. It is made from robust 18 mm birch plywood and offers exceptional stability and durability thanks to its extremely resilient polyurea coating. The features include a steel grille, a thread insert for M20-extension tubes, stacking dimples and ergonomic handles. The STINGER® SUB 15 A G3 is an affordable solution for professional PA applications; extensive accessories support use on stage and in fixed installations.

• General
  • Product type: PA subwoofer
  • Type: Passive
  • Low/mid Woofer dimensions: 15 "
  • Woofer dimensions (mm): 381 mm
  • Woofer magnet: Ferrite
  • Woofer brand: Custom-made
  • Woofer voice coil: 3 "
  • Woofer voice coil (mm): 76.5 mm
  • Load rating (RMS): 600 W
  • Peak power: 1200 W
  • Frequency response: 40 - Crossover
  • SPL (1W/1m): 99 dB
  • Max. SPL: 127 dB
  • Impedance: 8 Ohm(s)
  • Loudspeaker inputs: 1
  • Speaker input connections: Speakon compatible
  • Loudspeaker outputs: 1
  • Speaker output connections: Speakon compatible
  • Speakers per amplifier channel (DSP44/45K): 3
  • Cabinet material: 18 mm Plywood
  • Cabinet surface: Polyurea
  • Cabinet construction: Bass Reflex
  • Width: 567 mm
  • Height: 477 mm
  • Depth: 624 mm
  • Weight: 29,7 kg
