SUB 10 A

LD Systems SUB 10 A

10" active Subwoofer

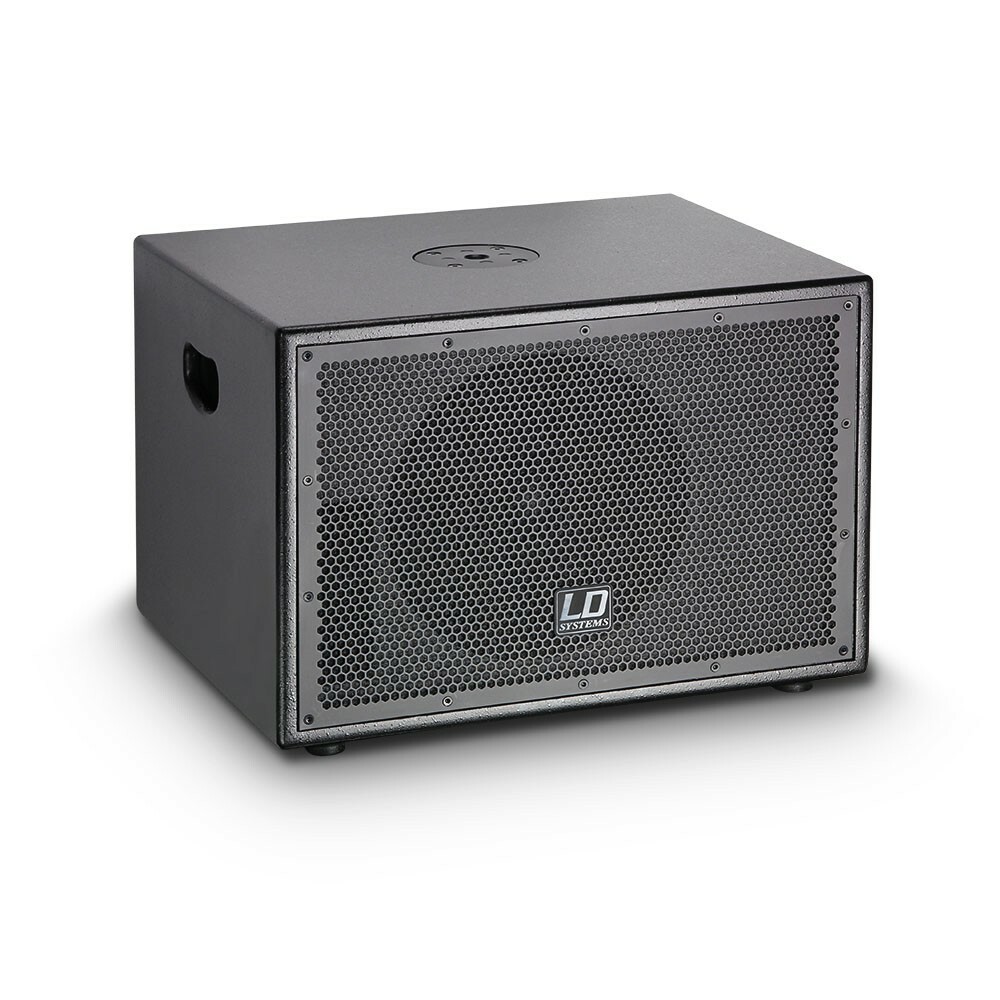

The LDSUB10A is a very compact and powerful 10" subwoofer and a genuine multitalent that can be used as an additional bass cabinet in conjunction with full-range speakers (Stinger 8" or Stinger 10") and is also suitable for permanent installations.

This subwoofer features an integrated 3-channel power amplifier (3 x 120 W RMS), thus permitting connection of additional passive full-range speakers or installation speakers such as those in the LD SAT series.

• General
  • Product type: Subwoofer
  • Type: Installation Subwoofer
  • Low/mid Woofer dimensions: 10 "
  • Woofer dimensions (mm): 254 mm
  • Woofer magnet: Ferrite
  • Woofer brand: Custom-made
  • Woofer voice coil: 2 "
  • Woofer voice coil (mm): 50.8 mm
  • Amplifier: Class A/B
  • System Power (RMS): 360 (3 x 120) W
  • Frequency response: 40 - 120
  • Max. SPL (continuous): 118 dB
  • Protection circuits: Limiter, over voltage, short circuit
  • Input sensitivity: 0.3 V RMS V

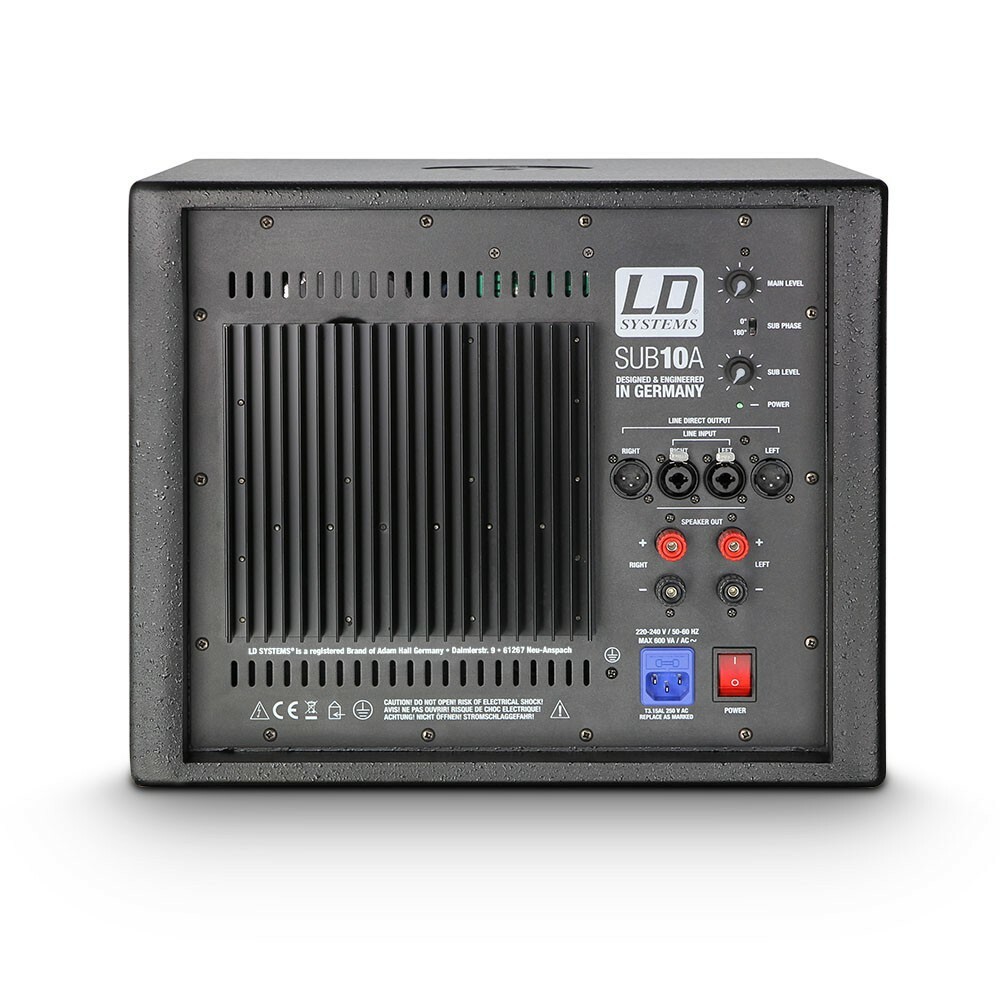

  • Controls: Mains switch (on/off), Subwoofer Phase Reverse, Subwoofer Volume, volume
  • Indicators: Power
  • Line inputs: 2
  • Line input connectors: 6.3 mm jack, XLR
  • Line outputs: 2 x direct output
  • Line output connectors: XLR
  • Loudspeaker outputs: 2
  • Speaker output connections: Terminal posts
  • Operating voltage: 220 V AC - 240 V AC
  • Cabinet material: 15 mm MDF
  • Cabinet surface: Texture paint
  • Cabinet construction: Bass Reflex
  • Width: 505 mm
  • Height: 345 mm
  • Depth: 425 mm
  • Weight: 21 kg

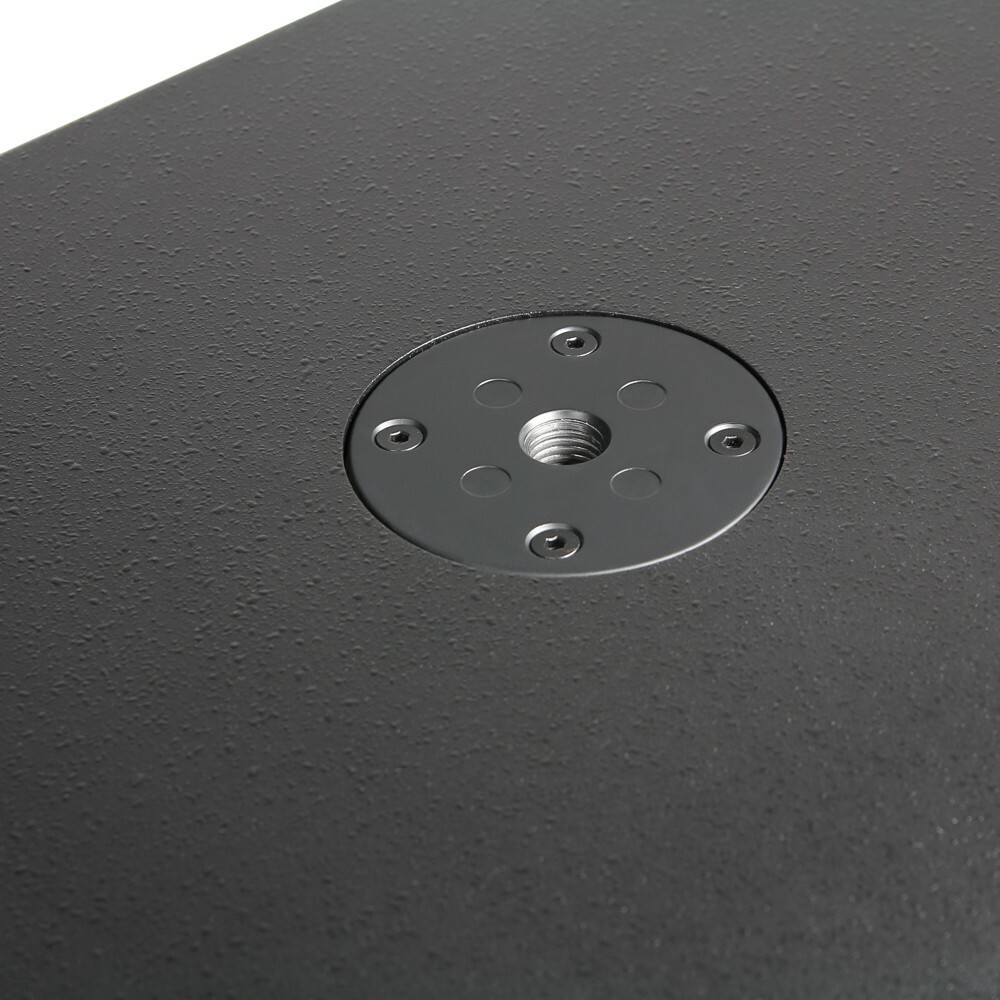

  • Features: Ergonomically shaped insert handles, Threaded flange M20
