SUB 88

LD Systems SUB 88

2 x 8" Subwoofer passive

Powerful, dynamic 2 x 8" Bandpass Subwoofer. Its compact dimensions permit unobtrusive placement of the subbass anywhere, either vertically or horizontally. A 2-channel power amplifier is all that is required to operate e.g. a subbass with up to 4 satellites. Sturdy MDF housing with textured finish.

• General
  • Product type: PA subwoofer
  • Type: Passive
  • Low/mid Woofer dimensions: 2 x 8 "
  • Woofer dimensions (mm): 2 x 203 mm
  • Woofer magnet: Ferrite
  • Woofer brand: Custom-made
  • Load rating (RMS): 200 (2 x 100) W
  • Frequency response: 40 - 120
  • SPL (1W/1m): 92 dB
  • Max. SPL: 115 dB
  • Impedance: 2 x 8 Ohm(s)

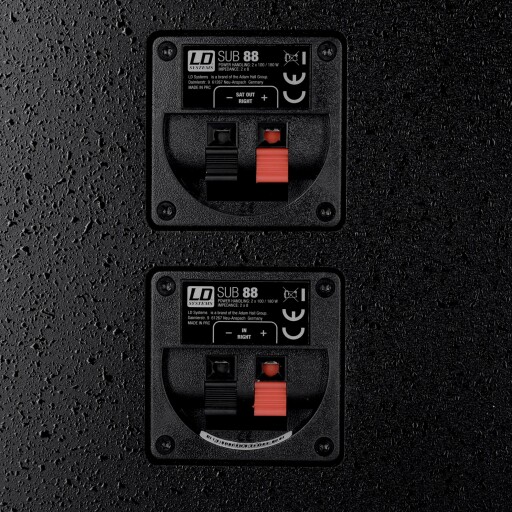

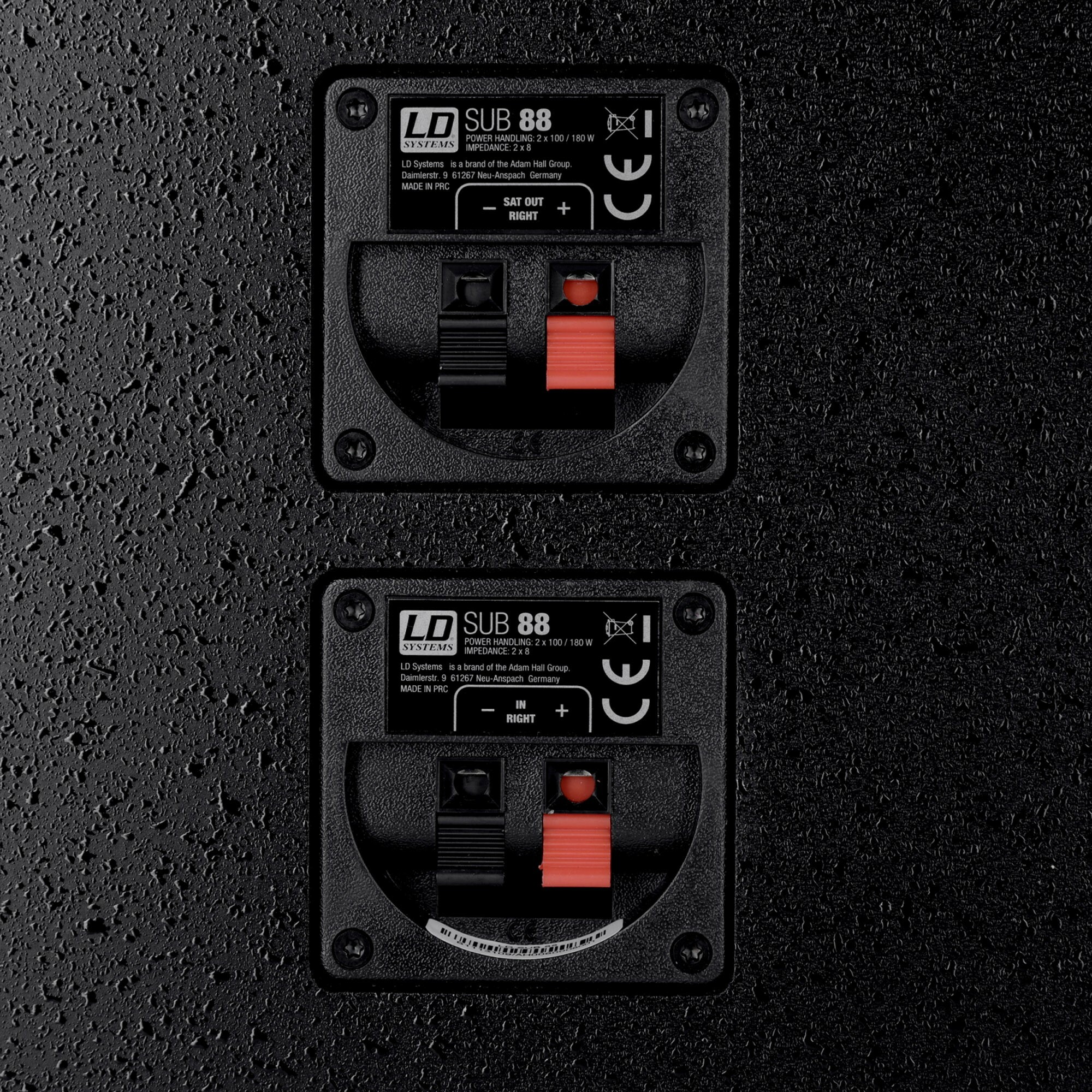

  • Loudspeaker inputs: 2
  • Speaker input connections: Clamp connector
  • Loudspeaker outputs: 2
  • Speaker output connections: Clamp connector
  • Cabinet material: 15 mm MDF
  • Cabinet surface: Texture paint
  • Cabinet colour: Black
  • Cabinet construction: Bandpass
  • Width: 600 mm
  • Height: 250 mm
  • Depth: 350 mm
  • Weight: 13,3 kg
