SUB 88 A

LD Systems SUB 88 A

2 x 8" active Subwoofer

The SUB88A features a 150 Watt (RMS) Mono-amplification unit offering great sound and dynamic characteristics. It is a perfect partner for the SAT62A active speaker or for the passive models SAT42/242/62 in combination with an external amplification unit such as the DJ200.

It can naturally be used with any other high/medium speaker if you wish to complete your sound with a deep and powerful bass fundament.

• General
  • Product type: PA subwoofer
  • Type: Powered
  • Low/mid Woofer dimensions: 2 x 8 "
  • Woofer dimensions (mm): 2 x 203 mm
  • Woofer magnet: Ferrite
  • Woofer brand: Custom-made
  • Amplifier: Class A/B
  • System Power (RMS): 150 W
  • Frequency response: 40 - 120
  • SPL (1W/1m): 92 dB
  • Max. SPL: 115 dB
  • Protection circuits: Overload

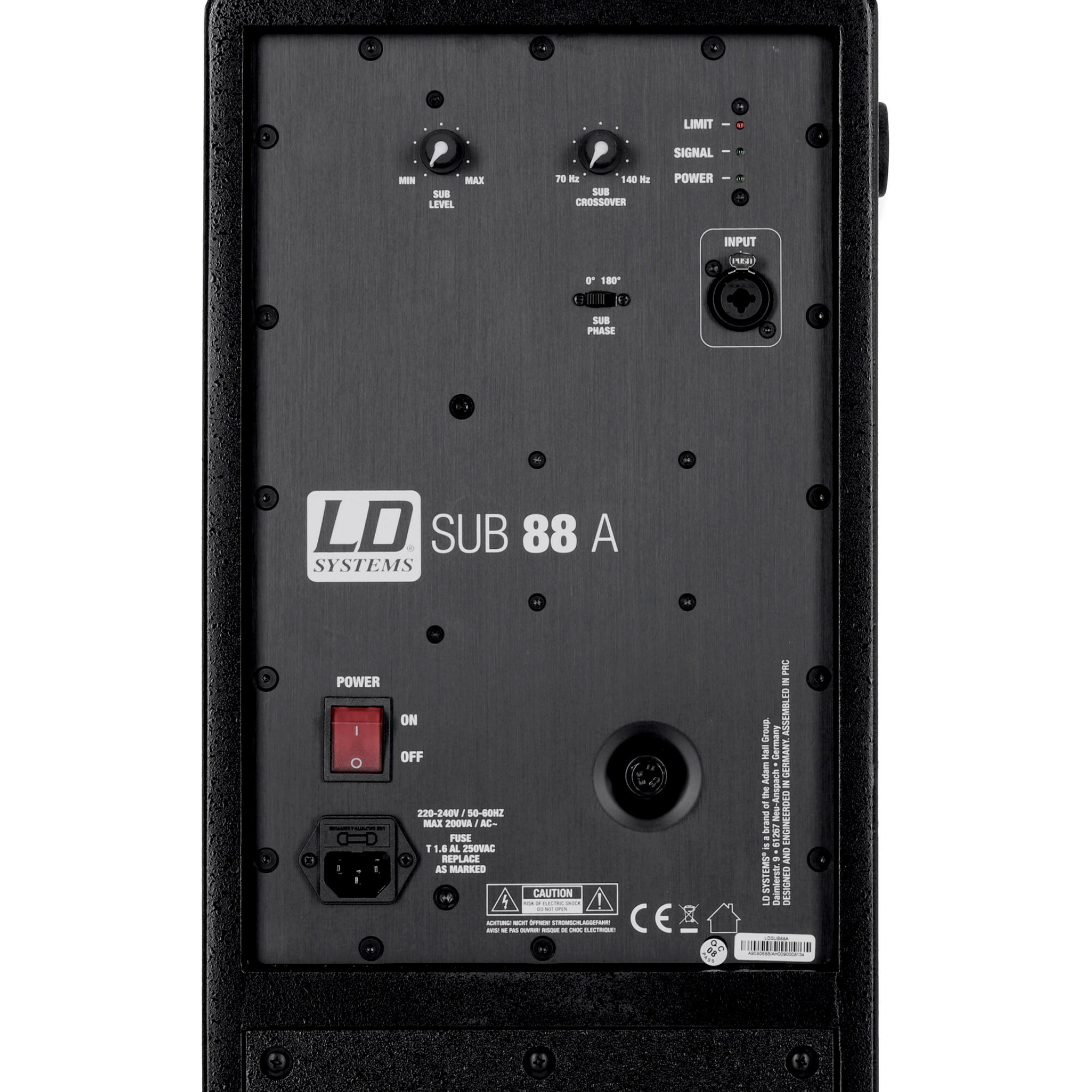

  • Controls: Low-pass filter (70 - 140 Hz), Phase 180°, volume
  • Indicators: Limit, Power, Signal
  • Line inputs: 1
  • Line input connectors: 6.3 mm jack, XLR
  • Operating voltage: 220 V AC - 240 V AC, 50-60 Hz
  • Cabinet material: 15 mm MDF
  • Cabinet surface: Texture paint
  • Cabinet colour: Black
  • Cabinet construction: Bandpass
  • Width: 600 mm
  • Height: 250 mm
  • Depth: 350 mm
  • Weight: 15 kg
