MAUI 28 G2

LD Systems MAUI 28 G2

Compact column PA system active with built-in mixer and Bluetooth black

• All-in-one column speaker for PA and monitor applications.
• 2,000 watts peak Class-D system power offer high performance with a low weight.
• Powerful bass reproduction with 2 x 8" woofers.
• Balanced mids thanks to the 16 x 3" full-range speakers.
• Precise and silky highs with 2 x 1" high-frequency drivers.
• Increased range and wider coverage through the array arrangement.
• Homogeneous dispersion pattern through a BEM-optimised tweeter wave guide.
• Distortion-free sound even at the highest volume thanks to LD Systems DynX® DSP technology.
• Full control through a 4-channel mixer including Bluetooth® Stereo Audio Streaming.

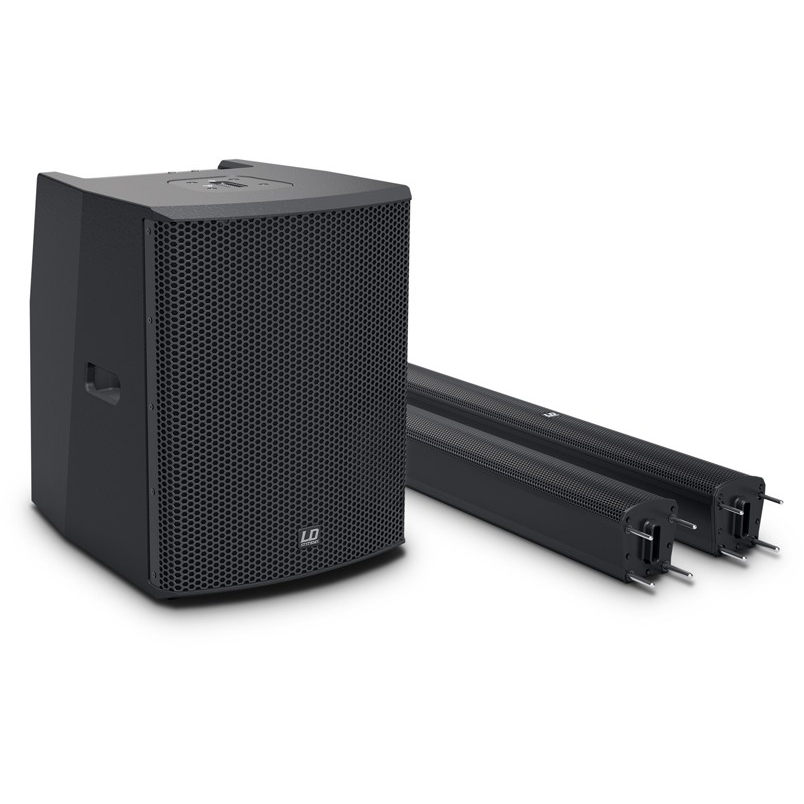

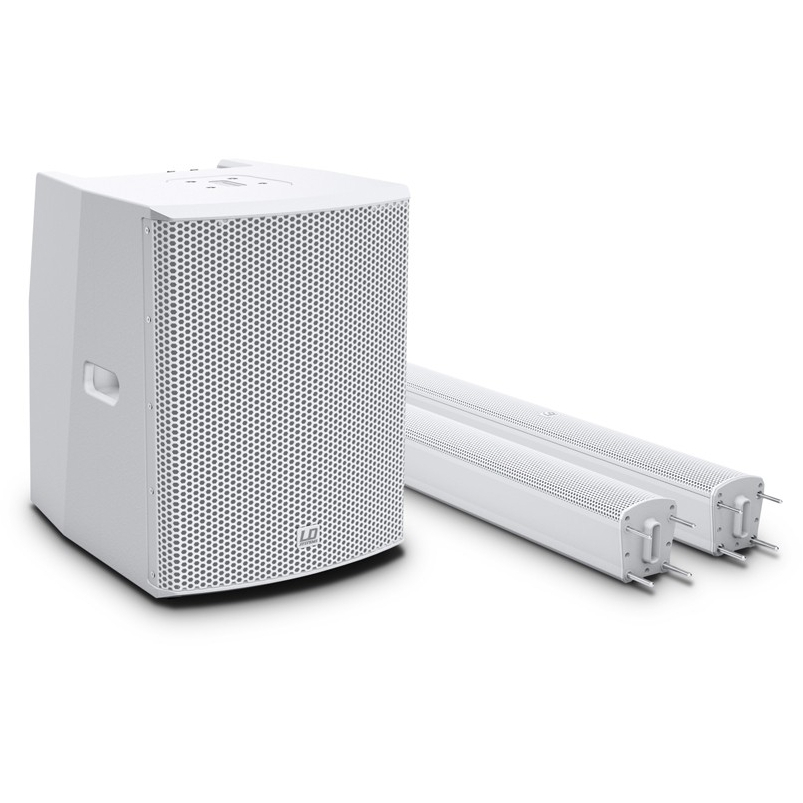

• Two-piece column for compact transport.
• Secure plug-and-play connection thanks to the wireless multi-pin mechanism.
• A wide range of application options through dismountable columns.
• Easy operation with presets for mono or stereo configuration.
• Extensive and smart accessories for installation and transport.

A complete sound system that you can carry together with your instrument: introducing the MAUI 28 G2. The two column elements in the padded shoulder bag, the subwoofer in one hand and the guitar or keyboard in the other - and off you go! Setting up the complete system, which doubles as PA and monitor system is just as easy thanks to the special multi-pin cable plugs. The compact and elegant MAUI 28 G2 offers an unbeatable sound quality and wide-ranging sound distribution. It was developed with year-long experience in the design of the column systems as a user-friendly solution for medium sized gigs and fixed installations.

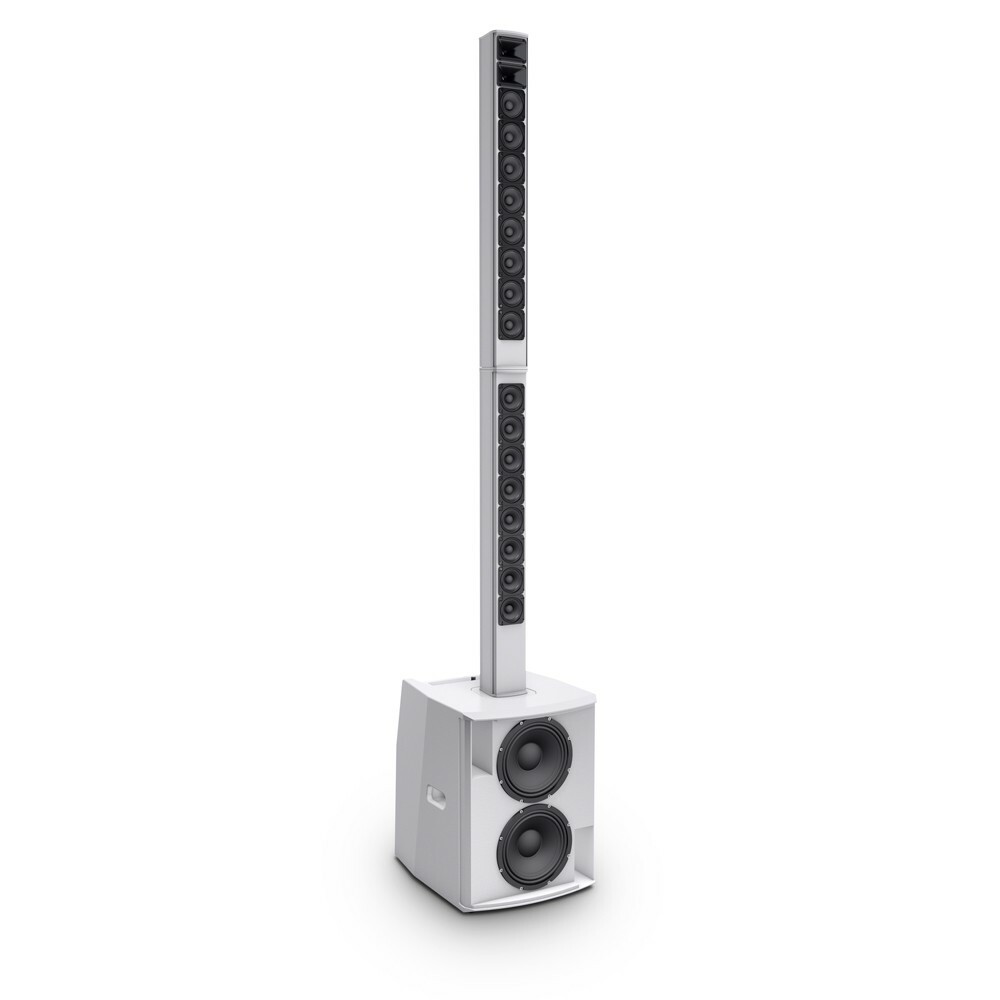

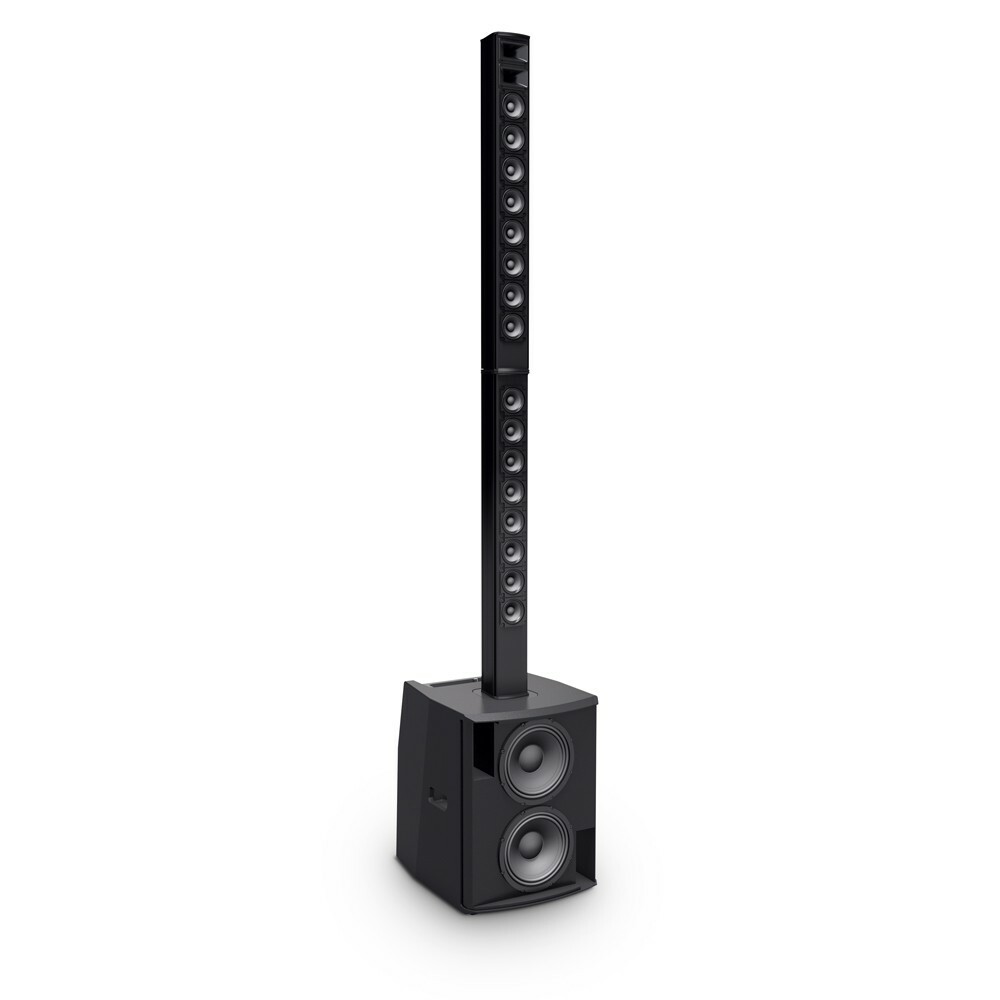

The MAUI 28 G2 is equipped with two 8" woofers, sixteen 3" full-range speakers and two 1" neodymium HF drivers. They are driven by a light Class-D power amplifier with an enormous 2,000 watts peak power and produce a grunty bass, balanced mids and precise and silky highs. The DynX® DSP technology from LD Systems provides a top-class performance every time and the highest level of freedom from distortion. It includes a multiband limiter which protects against overloading, an EQ, a compressor and a 3-way crossover with run time correction.

The design of the MAUI 28 G2 line array achieves a longer range, increased resistance to feedback and a wider space coverage, which makes separate monitor speakers superfluous. The wave guide of the tweeters has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflections from the floor and ceiling and prevents sidelobe levels and thus achieves an homogeneous dispersion - Your audience hears you in the back row just as clearly as in the front.

With the integrated 4-channel mixer, system presets for mono or stereo configuration and Bluetooth® Audio Streaming, you have full control over the system. Whether you are a singer-songwriter, solo entertainer, DJ or musician in a small band, you will be thrilled with the extraordinary sound and portability of the MAUI 28 G2. The column and the subwoofer can be set up separately: thus, the system is extremely flexible and is also an excellent choice for fixed installations. With a selection of clever transport accessories and special mounting hardware, the MAUI 28 G2 is a well thought out overall solution, down to the last details.

• General
  • Weight: 30,9 kg
  • Product type: PA Complete Systems
  • Type: Active

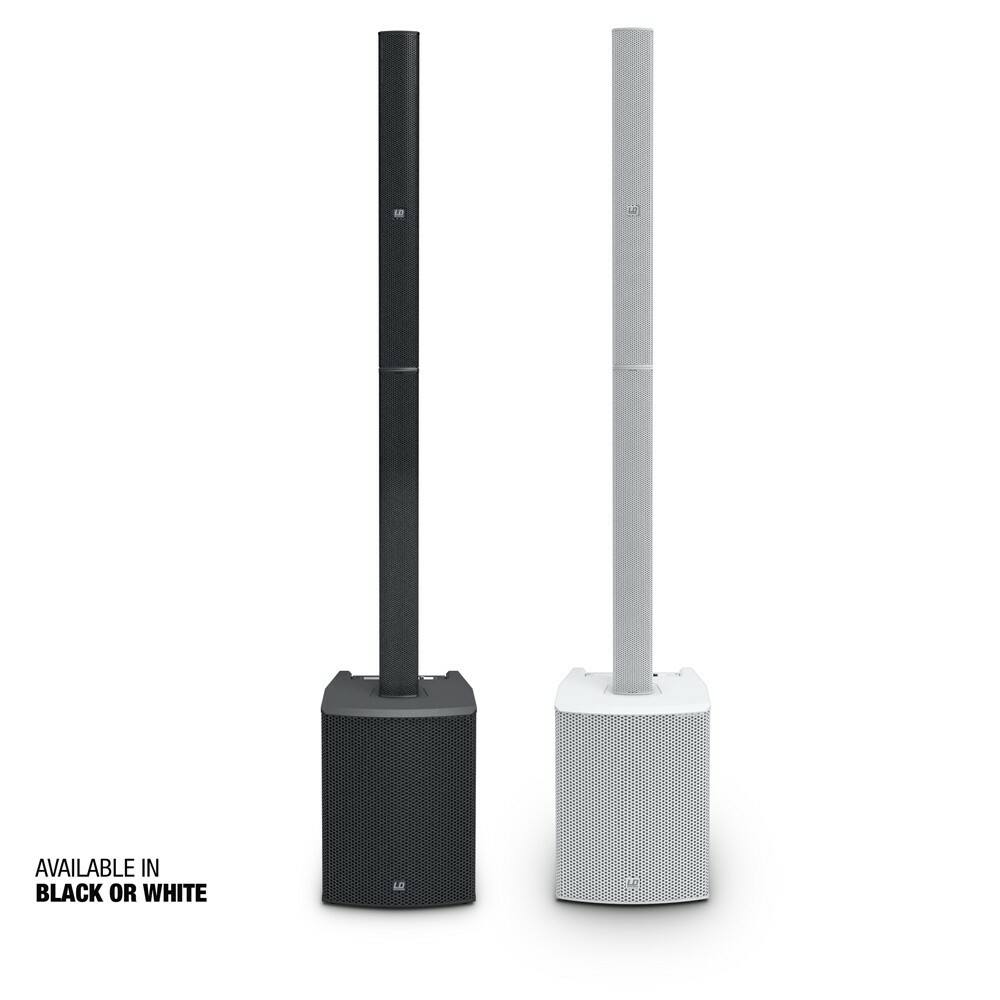

  • Color: Black or White
  • Max. SPL (Peak): 126 dB
  • Frequency response: 45 - 20000
  • Dispersion (H x V): 120° x 20 °
  • Overall height: 2059 mm
• Woofer characteristics
  • Low/mid Woofer dimensions: 2 x 8 "
  • Woofer dimensions (mm): 2 x 203 mm
  • Woofer magnet: Ferrite
  • Woofer brand: Custom-made
  • Woofer voice coil: 2 "
  • Woofer voice coil (mm): 50.8 mm
  • Cabinet construction: Bass Reflex
  • Cabinet material: 15 mm Plywood
  • Cabinet surface: Texture paint

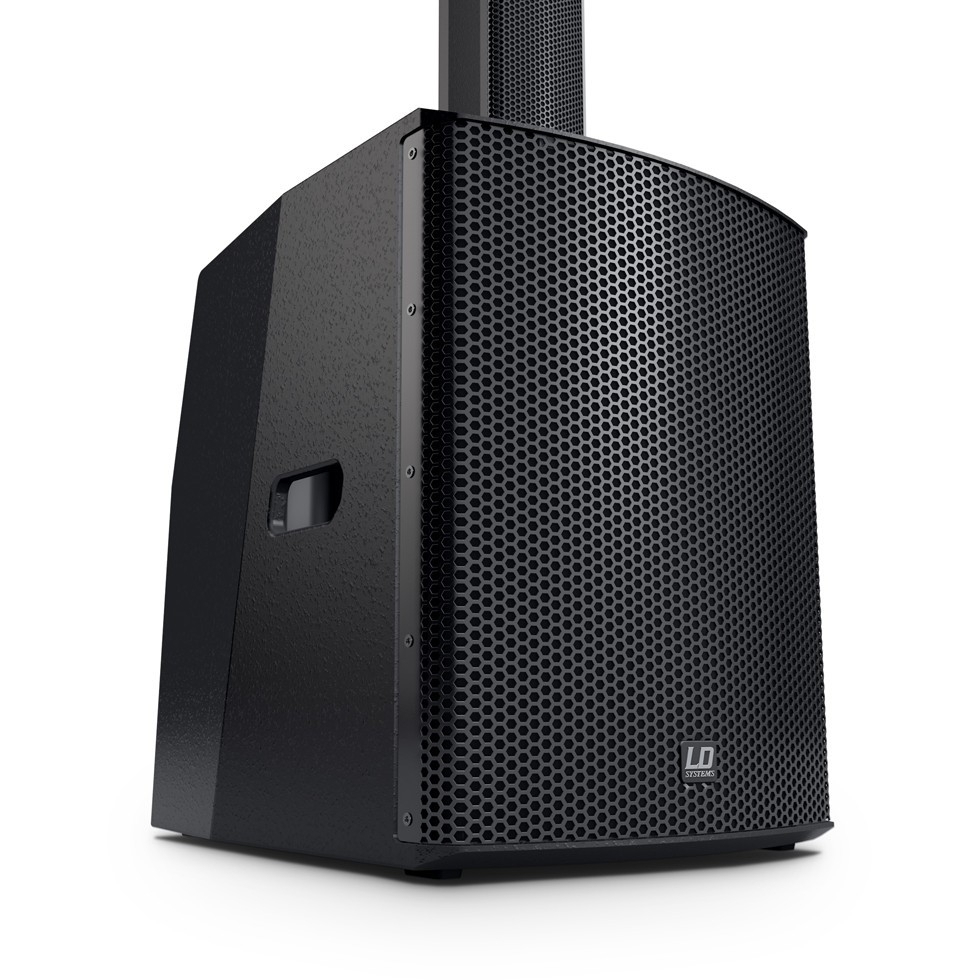

  • Subwoofer width: 370 mm
  • Subwoofer height: 484 mm
  • Subwoofer depth: 480 mm
  • Subwoofer weight: 19.7 kg
• Mid/Hi System
  • Midrange dimensions: 16 x 3 "
  • Midrange dimensions (mm): 16 x 76.2 mm
  • Midrange magnet: Ferrite
  • Midrange brand: Custom-made
  • Midrange voice coil: 25.4 mm
  • Horn: Waveguide
  • Tweeter dimensions: 2 x 1 "
  • Tweeter dimensions (mm): 25.4 mm
  • Tweeter magnet: Neodymium
  • Tweeter brand: Custom-made
  • Tweeter voice coil: 1 "
  • Tweeter voice coil (mm): 25.4 mm
  • Loudspeaker inputs: 1
  • Speaker input connections: Custom-made multipin
  • Cabinet construction mid/high: Closed
  • Mid/Hi system cabinet material: Aluminium
  • Mid/Hi system cabinet surface: HD coating
  • Mid/Hi system width: 96 mm
  • Mid/Hi system height: 780 / 795 mm
  • Mid/Hi system depth: 104 mm
  • Mid/Hi system weight: 5.6 / 5.6 kg
• Amplifier module (integrated in subwoofer)
  • Amplifier: Class D
  • Amplifier output system (RMS): 1000 W
  • Amplifier output system (peak): 2000 W
  • Protection circuits: DC protection, Multiband limiter, short circuit, thermal overload
  • Cooling: Convection
  • Operating Temperature: 0 - 40 °C
  • Humidity Range: 10% to 80%, (non-condensing)
  • Controls: Bluetooth switch, Hi-Z Level, Line level, Main level, Mono/stereo switch, MP3/Bluetooth Level, Power, Sub level
  • Indicators: Limit, mono, On, Protect (protection circuit engaged), Setup, Signal, stereo
  • Power connector: IEC power cable (included)
  • Operating voltage: 100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (automatic switching)
  • Power consumption Off / On / Max.: 0/11/600 W
  • Line inputs: 2 x stereo
  • Line input connectors: RCA, XLR/6.3 mm jack
  • Line outputs: 2 (1x System Out, 1x Sub Out)
  • Line output connectors: XLR
  • Mic inputs: XLR/6.3 mm jack
  • MP3 inputs: 1
  • MP3 input connectors: 3.5 mm jack
  • Hi-Z inputs: 1
  • Hi-Z input connectors: 6.3 mm jack
  • Loudspeaker outputs: 1
  • Speaker output connections: Custom-made multipin
• DSP characteristics
  • Bit depth AD/DA converter: 24 bit
  • Internal sampling frequency: 48 kHz
  • Signal/noise ratio: 100 dB
